Legion TLGB-30F Steam Kettles
Description

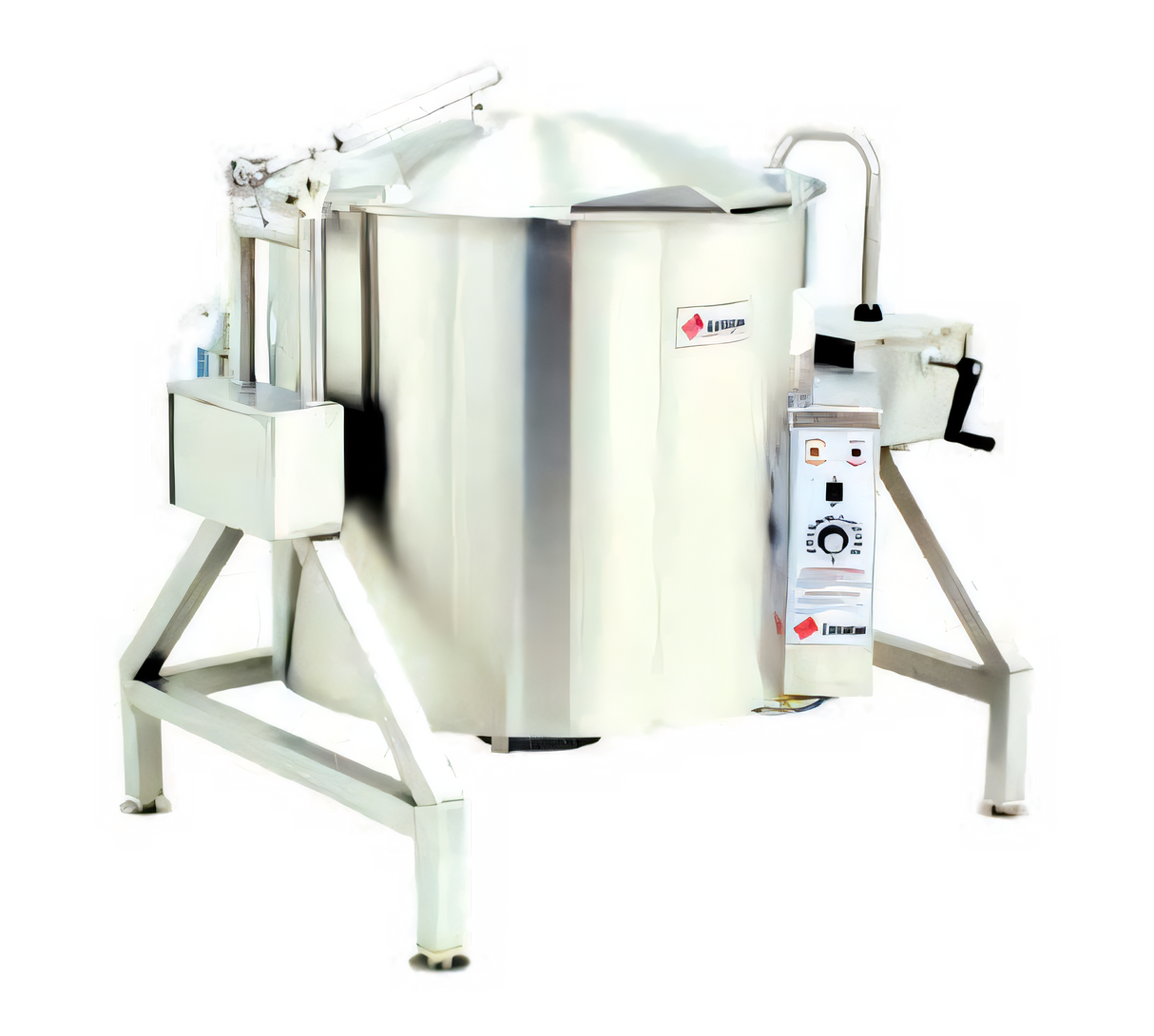

Low-Rim™ Gas Tilting Kettle – Legion TLGB-30F
30 gal (114 L) • Insulated, Self-Contained • Full Jacket • 79,855 BTUEngineered for institutional, commissary, and high-volume restaurant kitchens, the Legion TLGB-30F marries deep-drawn 304 stainless construction with an energy-efficient, fully jacketed design. The result is a 30-gallon workhorse that heats evenly, pours smoothly, and keeps operators safe shift after shift.
Why Chefs Choose the TLGB-30F

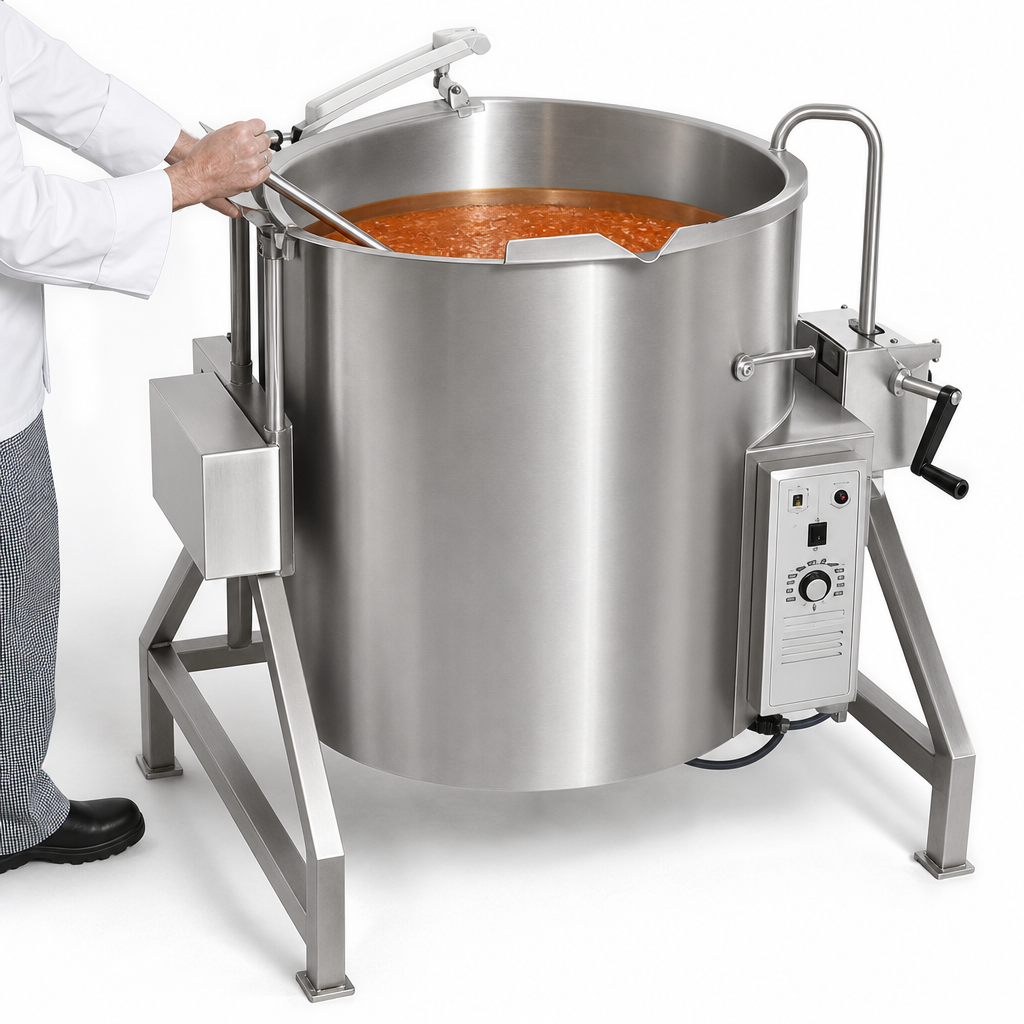

- Low-Rim™ ergonomic design reduces lift height for safer, easier product transfer.
- 304 stainless kettle liner & 304L jacket resist corrosion and stand up to harsh cleaning chemicals.
- Self-contained steam jacket generates its own steam—no external boiler or water connection required.
- Full-body insulation (3″–14″) keeps exterior surfaces cool and improves energy efficiency.
- 79,855 BTU atmospheric burner delivers fast heat-up and recovery.
- Precise thermostat control from 150 °F to 260 °F (66 °C–127 °C) for everything from delicate sauces to rapid soup production.
- Comprehensive safety system includes pressure relief valve, air eliminator, low-water cutoff with indicator, and safety pilot control.

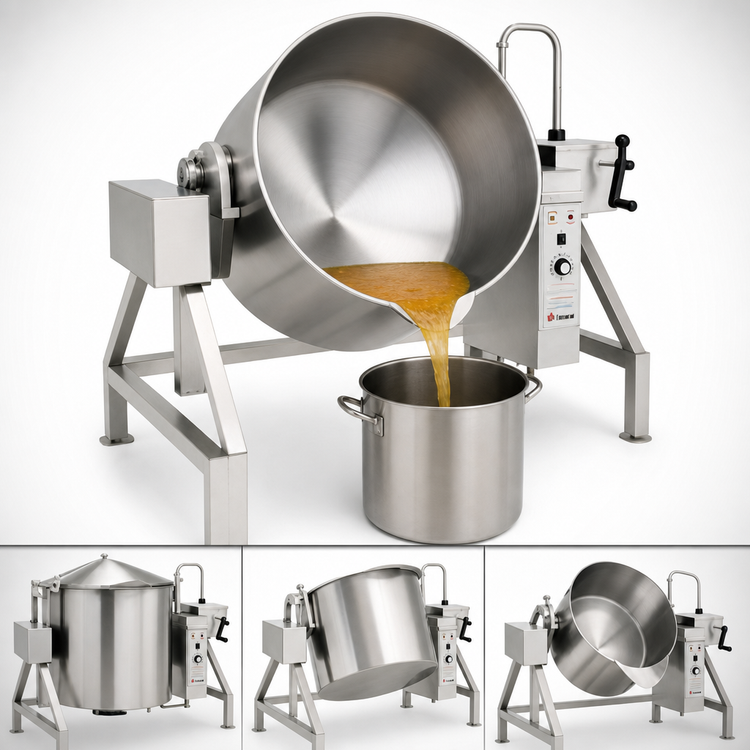

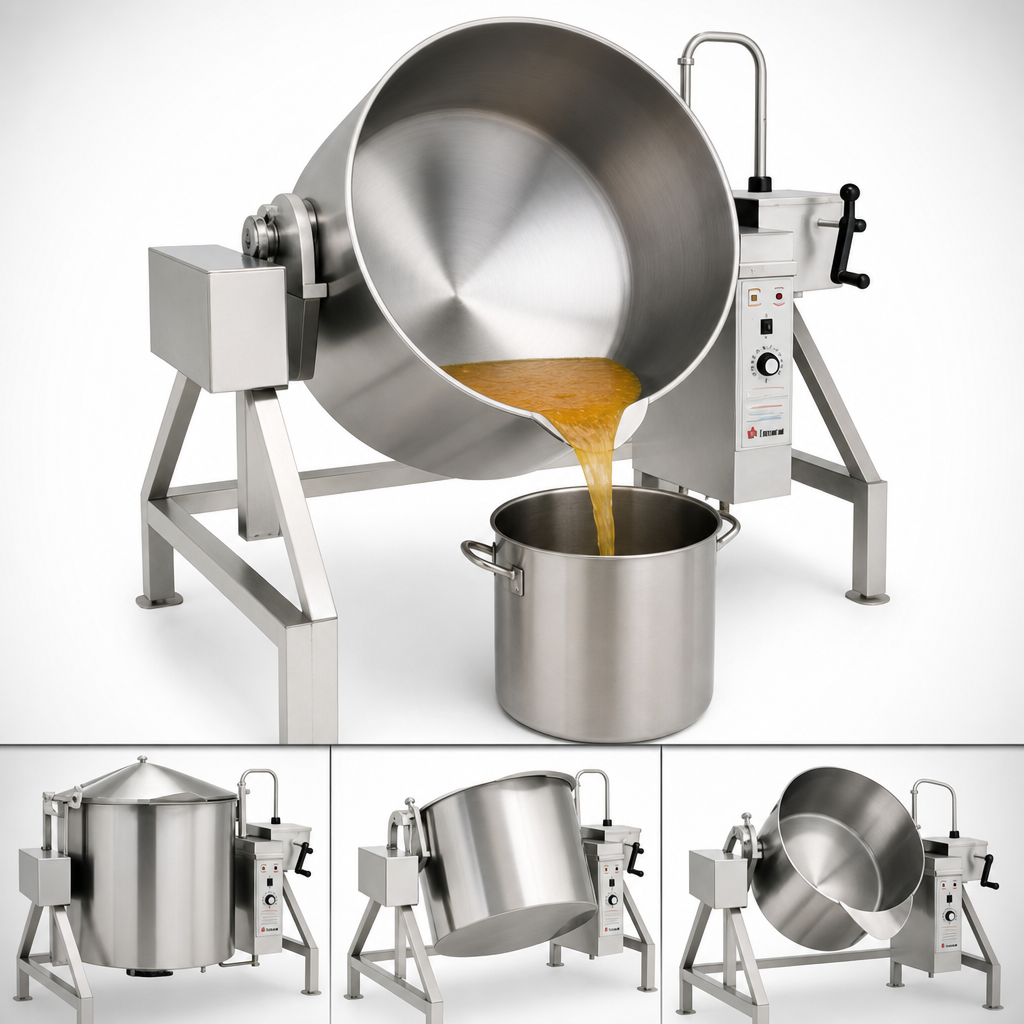

- Self-locking, worm-gear tilt mechanism allows smooth 90° pouring without strain; permanently lubricated for life.
- Electronic ignition (120 V) is standard—no pilot light to relight and less gas wasted.
- Adjustable flanged feet simplify floor installation and allow easy cleaning underneath.
- Made in the USA and built to meet or exceed ASME, NSF, CSA, and related standards.
Technical Specifications
| Model | TLGB-30F |
|---|---|
| Capacity | 30 gal / 114 L |
| Heat Input | 79,855 BTU/hr (Natural Gas) | 83,100 BTU/hr (Propane) |
| Operating Temp. Range | 150 °F – 260 °F (66 °C – 127 °C) |
| Gas Connection | 3⁄4″ NPT (Natural or LP) |
| Electrical | 120 V, 50/60 Hz, 1 Ø, 1 A (208 / 240 V optional) |
| Construction | 304 SS liner • 304L SS jacket • 304 SS frame & console |
| Jacket Type | Full jacket, self-contained, ASME-coded |
| Tilt Mechanism | Self-locking, single-reduction worm gear, manual hand crank |
| Overall Dimensions | A 23.0″ | B 17.8″ | F 51.1″ | G 42.5″ | L 36.8″ (see drawing) |
| Shipping | Fully assembled; includes 6′ power cord with plug |
| Warranty | 12 months parts & labor (extended coverage available) |
Popular Options & Accessories
- 2″ or 3″ draw-off valve (compression or ball-type)
- Lift-off or actuator-assisted cover
- Single / dual fill faucet with swing nozzle
- 48″ vinyl or stainless rinse-down spray hose
- Electric timer with buzzer
- Mixer/Agitator, 2-speed
- Flexible gas hose & quick disconnect kit
- Basket inserts, nylon bag, perforated disk strainers & more
Specifications are subject to change without notice. Drawings represent standard 3″ draw-off valve configuration—contact Legion Industries for dimensional changes or custom requirements.
