Legion TLGB-30 Steam Kettles
Description

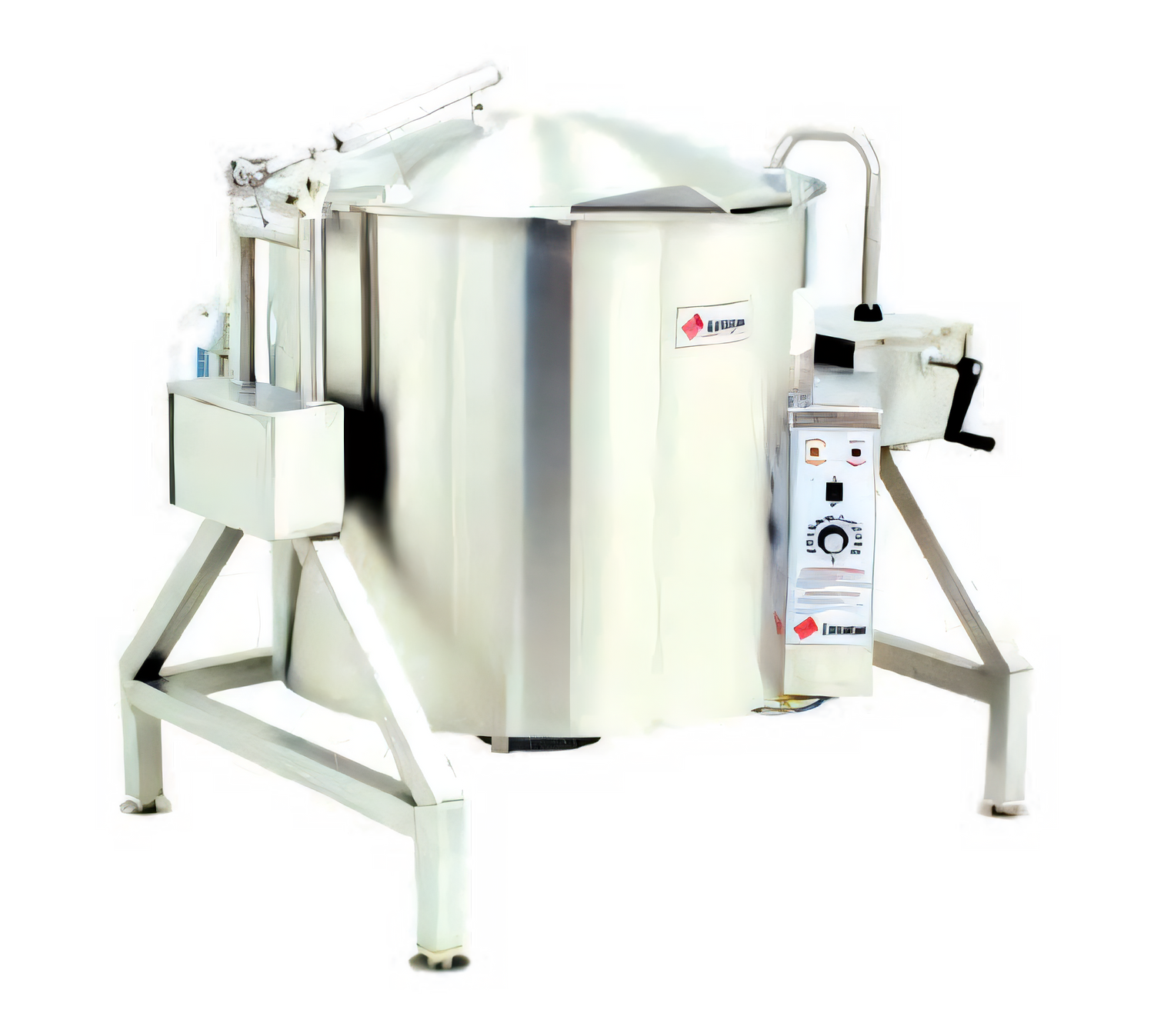

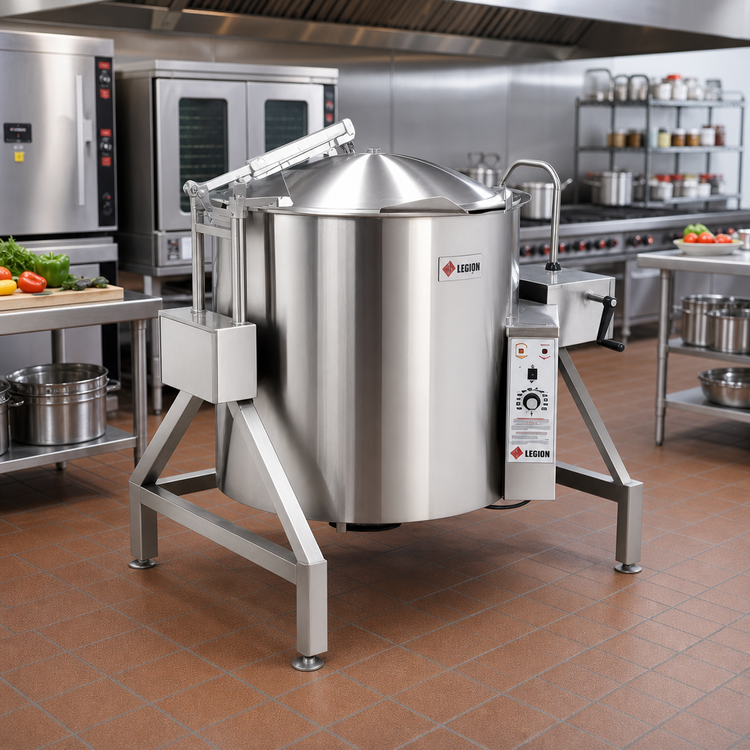

Legion TLGB-30 Insulated Self-Contained Tilting Kettle – 30 Gallon
Gas-Fired | 2/3 Jacket | 304 Stainless | 66,700 BTUProduce batch after batch of perfectly heated soups, sauces, stocks and more—all without an external boiler. The TLGB-30 blends Legion’s Deep-Drawn 304 stainless construction with energy-saving Insulated for Safety™ design, putting 30 gallons (114 L) of reliable steam power right on your kitchen floor.
Why You’ll Love It

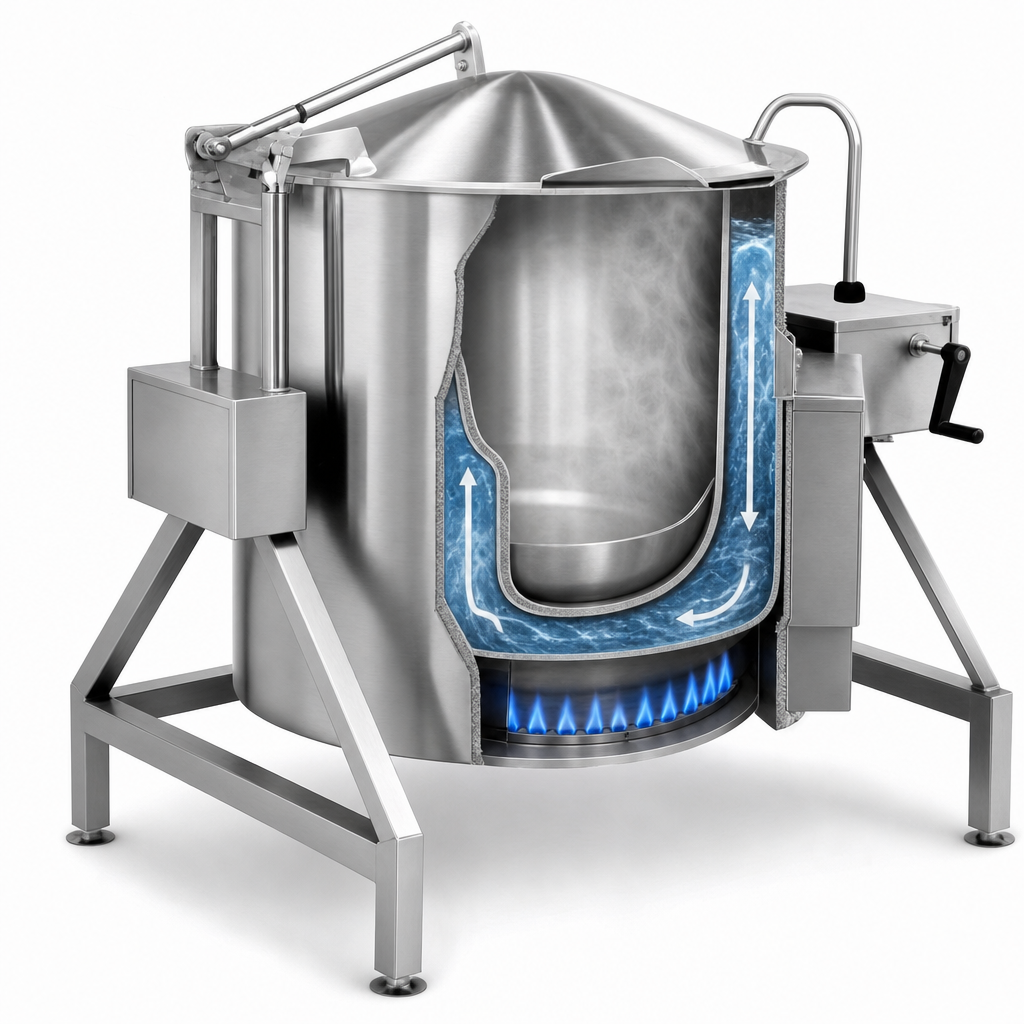

- Full 2/3 self-contained steam jacket—no building boiler required.

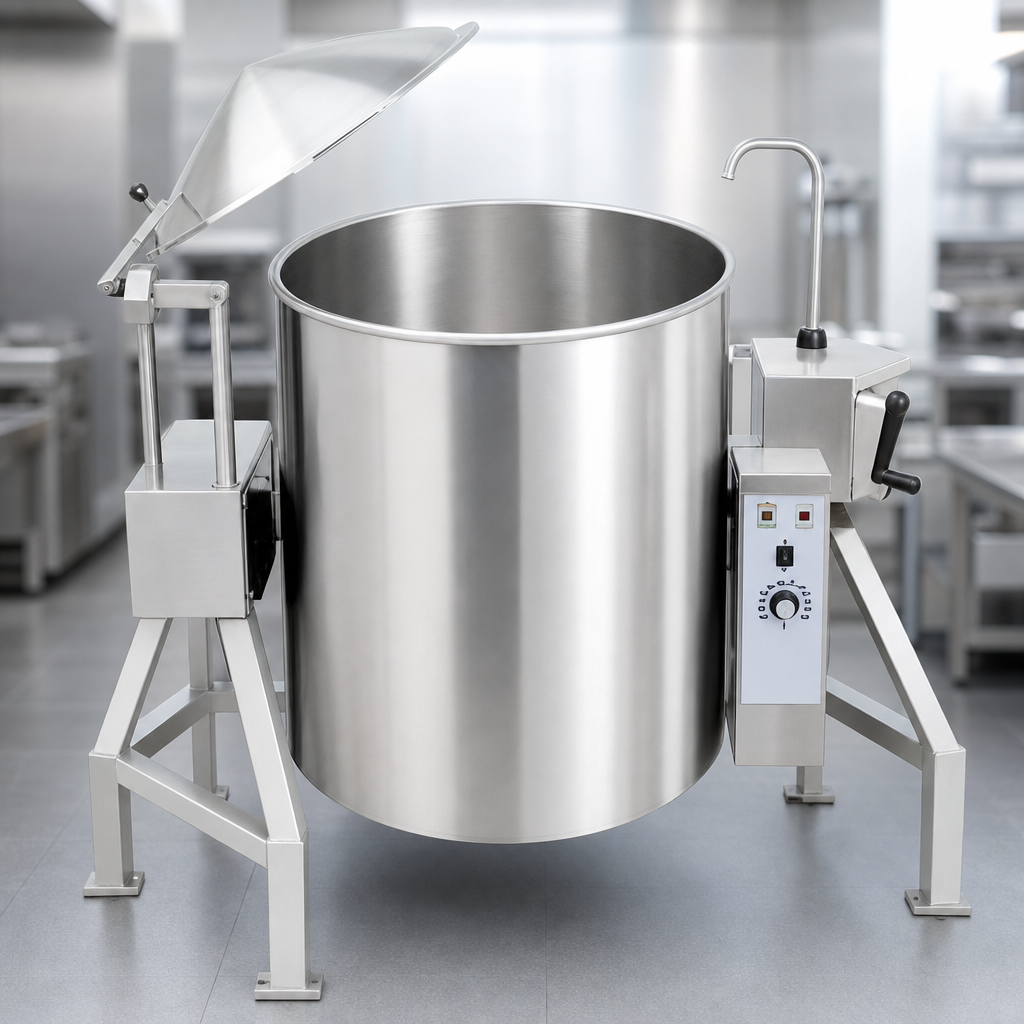

- Deep-drawn 304 stainless liner & 304L jacket for maximum durability and easy sanitation.
- 3–14 inch body insulation keeps outer surfaces cool and cuts energy loss.
- Wide 150 °F – 260 °F thermostat range with push-button electronic ignition (120 V standard).
- Complete safety suite: Kettle Protection System, pressure relief, air eliminator, low-water cutoff, sight glass & more.
- Smooth, self-locking tilt via permanently-lubricated worm gear—perfect for controlled, mess-free pouring.
- Made in the USA and built to meet or exceed ASME, NSF, CSA and related standards.
At-a-Glance Specs
| Model | TLGB-30 |
|---|---|
| Capacity | 30 gal (114 L) |
| Heat Source | Natural or Propane Gas |
| Input | 66,700 BTU /hr (Natural) | 67,800 BTU /hr (LP) |
| Steam Jacket | Self-contained, 2/3 jacket, 304L stainless |
| Operating Temp. | 150 °F – 260 °F (65.5 °C – 127 °C) |
| Ignition / Power | Electronic ignition, 120 V / 1 Ph / 50-60 Hz (208/240 V optional, 1 A) |
| Gas Connection | ½″ IPS supply | 5-7″ W.C. (Natural) | 12-14″ W.C. (LP) |
| Exterior | Seam-welded 304 stainless shell with 3″ reinforced radius lip |
| Overall Dimensions* | 47.7″ W × 23.8″ D × 39.0″ H |
| Warranty | 12 months parts & labor |
*Refer to spec drawing for additional clearances and mounting points.
Built-In Safety & Monitoring
- ASME-stamped pressure relief valve
- Air eliminator & pressure gauge
- Low-water cutoff with indicator light
- Jacket water fill point & sight glass for quick level checks
- Safety pilot & automatic ignition shut-off
Popular Factory Options & Accessories
- 2″ or 3″ sanitary draw-off valve (compression or ball-type)
- Single / double fill faucet with 12″ or 18″ swing nozzle & bracket
- 48″ flexible rinse hose (vinyl or stainless)
- Electric timer with audible buzzer
- ½″ gas quick-disconnect or ½″ × 60″ flexible gas hose
- 2-speed mixer/agitator assembly
- Basket, strainer, nylon bag, measuring strip & other kettle tools
Also available in 20, 40, 60 & 80 gallon sizes—ask our team for details.
