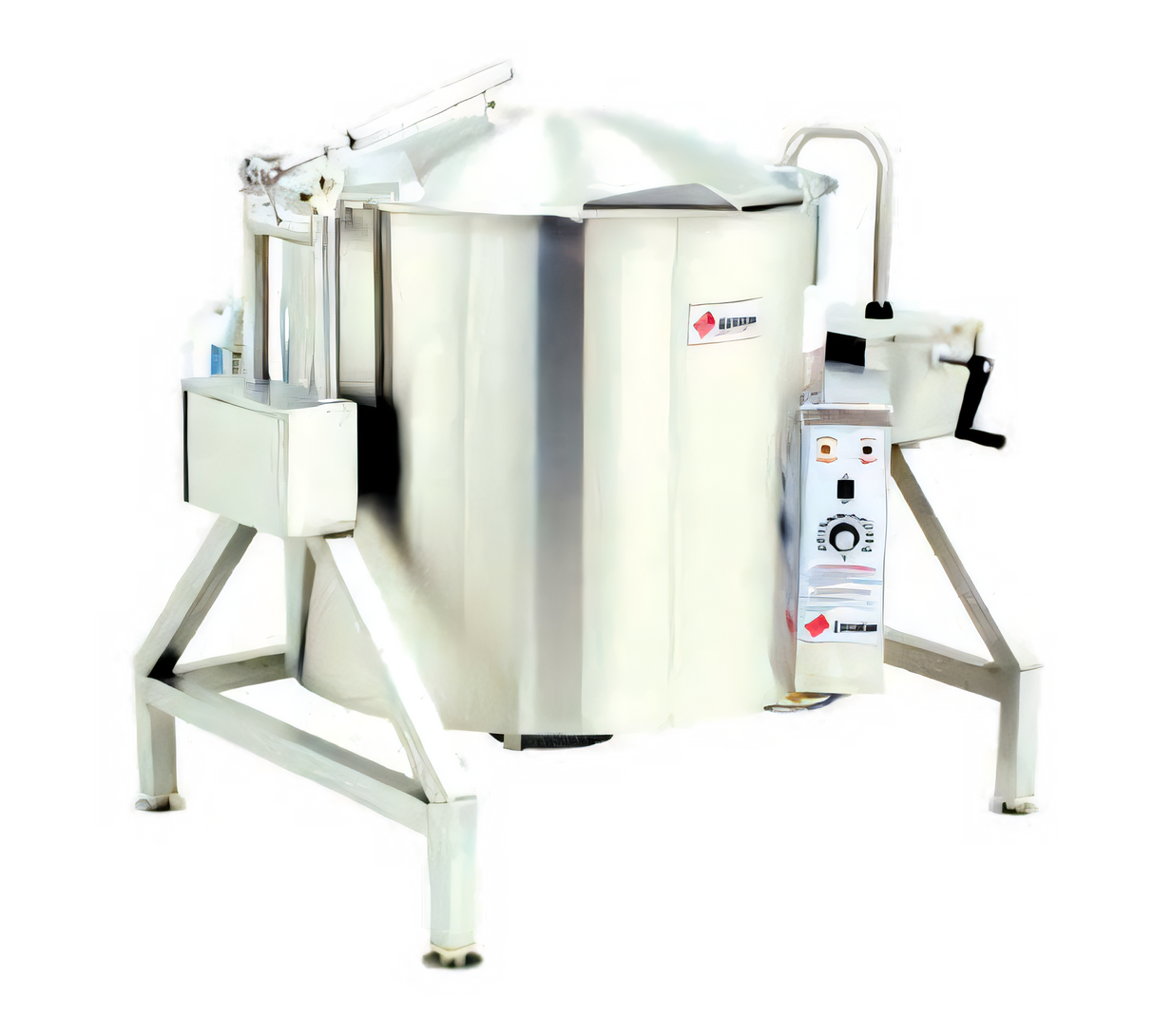

Legion TLGB-20 Gas Tilting Kettle with 2-Speed Mixer – 20 gal
2/3-jacketed • Self-contained • 63,200 BTU (Natural) • Made in USABuilt for demanding production kitchens, the Legion TLGB-20 combines a heavy-duty gas tilting kettle with a factory-mounted twin-shaft agitator. Enjoy precise temperature control, hands-free mixing and industry-leading “Insulated-for-Safety™” construction – all in a compact, floor-mounted design that lets you braise, boil, simmer or sauté up to 20 gallons (76 L) with unbeatable efficiency.
Top Reasons Chefs Choose TLGB-20
- Full 304 stainless steel liner, jacket, frame and controls for maximum durability.
- Self-contained 2/3 steam jacket – no external boiler or steam hook-up required.
- 3"–14" of high-density insulation keeps heat where it belongs and protects staff.
- Factory-installed, two-speed agitator automatically scrapes the entire kettle wall & base.
- Accurate thermostat (150 °F – 260 °F) paired with 63,200 BTU burner for fast recovery.
- Electronic ignition, low-water cut-off and the Legion Kettle Protection System for worry-free operation.
- Smooth worm-gear tilt mechanism with self-locking feature – empty the kettle with a single hand.
- Floor model with adjustable flanged feet for rock-solid installation.
Kettle Construction & Safety Features
- 304L deep-drawn kettle jacket, ASME stamped.
- Seam-welded outer casing with 3" reinforced radius lip – no sharp edges.
- Pressure relief valve, air eliminator, pressure gauge and sight glass standard.
- Automatic low-water cut-off with indicator light prevents element damage.
- Safety pilot and electronic ignition (120 V plug-in) – no standing pilot.
Integrated Twin-Shaft Agitator
- Enclosed, balanced aluminum bridge – tilts out with the kettle for easy access.
- Totally enclosed gear-motor, two speeds: High = 46 RPM main / 120 RPM secondary • Low = 23 RPM main / 60 RPM secondary.
- 304 SS anchor-type main agitator perfectly contours the kettle; removable nylon scraper blades reach every surface.
- 304 SS counter-rotating beater eliminates hot spots and keeps particulates in suspension.
- Quick-release bayonet mounts for tool-free removal and cleaning.
- Actuator-assisted bridge lift with positive rim lock; safety interlock blocks high-speed starts when unlocked.
Technical Specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Jacket Coverage | 2/3 (self-contained water bath) |
| Heat Source | Natural or Propane gas |
| Input | 63,200 BTU (Natural) • 59,600 BTU (LP) |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Gas Connection | ½" IPS; Supply Pressure 5–7" W.C. (Natural) / 12–14" W.C. (LP) |
| Electrical | 120 V, 1 ph, 50/60 Hz, 1 A (kettle & mixer) |
| Overall Dimensions (WxDxH) | 46.8" × 23.7" × 38.0" (see drawing) |
| Tilt Clearance (front) | 15.0" |
| Construction | All-welded 304 SS liner, jacket, frame & consoles |
| Compliance | ASME, NSF, ETL, CSA |
Supplied with 6 ft cord & plug. Draw-off valve, faucets, hose reels and other accessories are available separately.
Warranty
Legion backs every TLGB kettle with a 12-month parts & labor warranty from date of installation (15 months from ship date). Extended coverage is available.
Product Weight:
835.0 lbFrequently Asked Questions
