Description

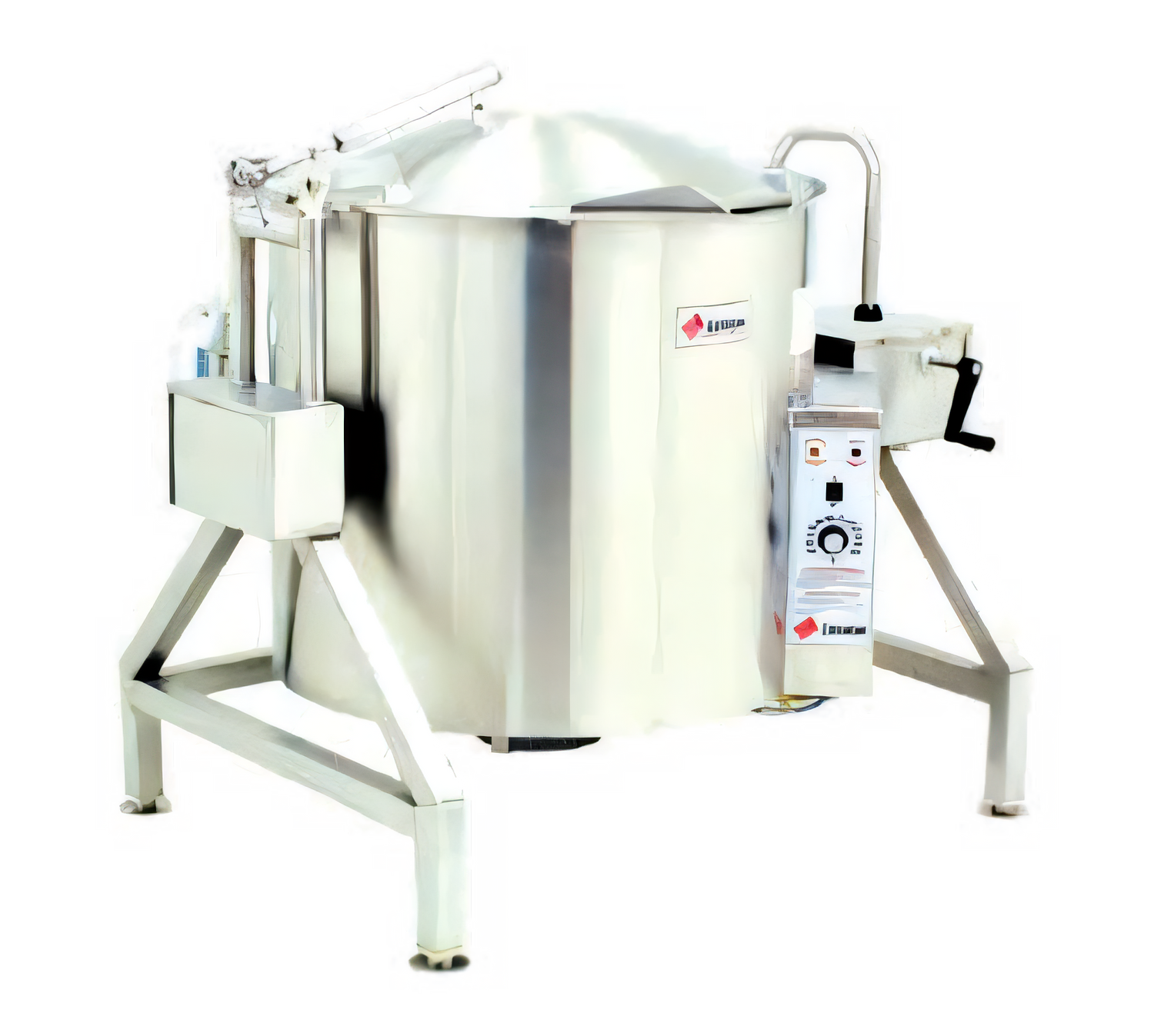

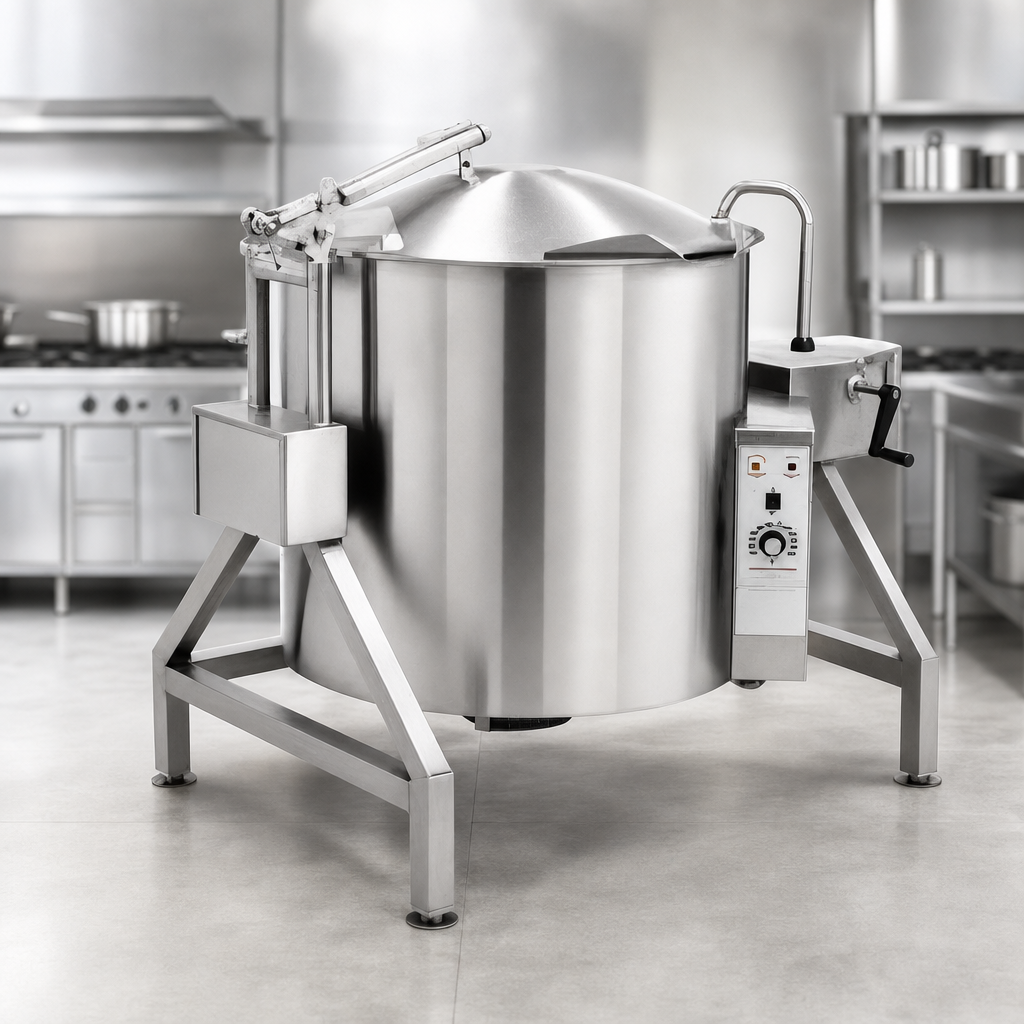

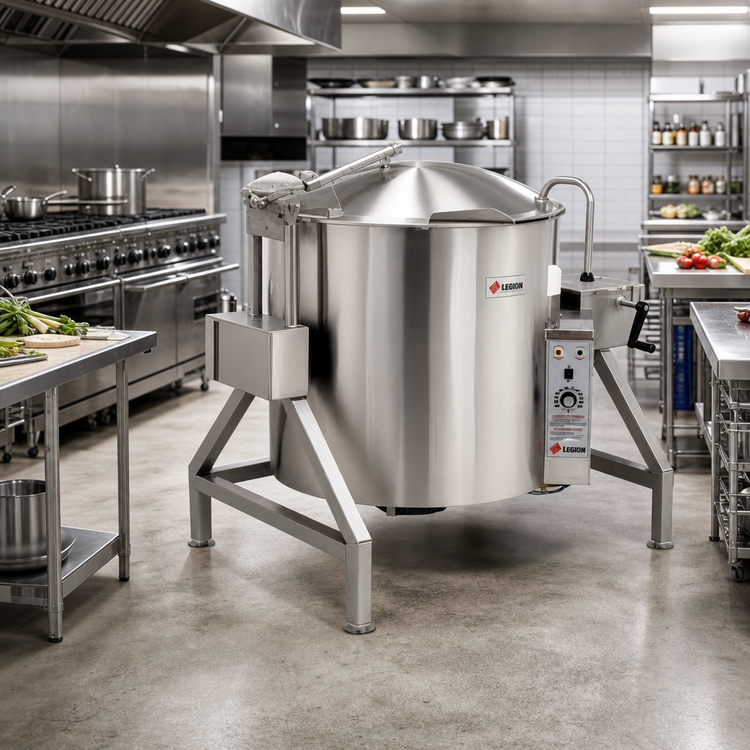

Legion LOW-RIM™ TLGB-20F Gas Tilting Kettle – 20 Gallon
Full-jacketed • Insulated Self-Contained • Made in USABuilt for demanding commercial kitchens, the Legion TLGB-20F delivers 20 gallons (76 L) of precise, steam-jacketed cooking power in an ergonomic Low-Rim design that’s easy to load, stir, and tilt. Deep-drawn 304 stainless steel, full body insulation and a powerful 66,700 BTU burner give you faster heat-up, steadier temperatures and lower operating costs— all while keeping the exterior cool to the touch.
Top Features

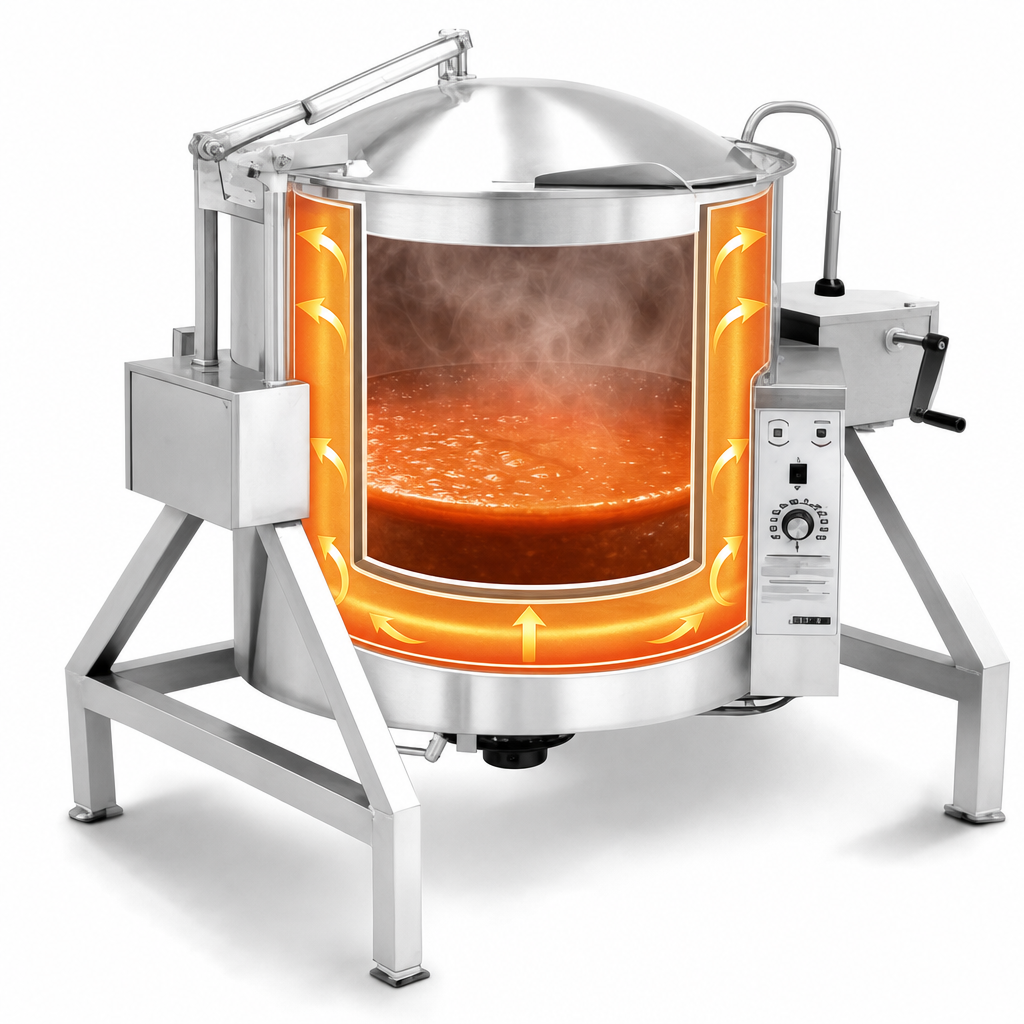

- 20 gal / 76 L capacity with 2/3 jacketed cooking surface for uniform heating
- 66,700 BTU natural-gas burner with electronic ignition (120 V, 1 phase)
- Thermostatic control from 150 °F – 260 °F for precise simmering, braising & boiling
- Insulated for Safety™ – 3"–14" thick mineral wool between jacket & outer casing keeps surfaces cool and saves energy
- Deep-drawn 304 stainless kettle liner and 304L stainless jacket resist pitting and make clean-up easy
- Kettle Protection System: pressure relief valve, air eliminator, pressure gauge, jacket-water sight glass, low-water cutoff & indicator light
- Self-locking, permanently-lubricated worm-gear tilt mechanism with reinforced 304 stainless gear box
- Adjustable flanged feet for secure, level floor mounting
- NSF, ASME & CSA compliant; manufactured and assembled in Waynesboro, GA USA
Low-Rim™ Ergonomics
The kettle rim stands just 27" above the floor, so staff can easily view product and safely pour without step stools or awkward lifting—reducing strain and improving productivity on the cook line.
Technical Specifications
| Model | TLGB-20F |
|---|---|
| Capacity | 20 gal (76 L) |
| Energy Source | Natural Gas – 66,700 BTU / hr Propane option – 67,800 BTU / hr |
| Gas Connection | ½" IPS; supply pressure 5–7" W.C. (natural) / 12–14" W.C. (LP) |
| Electrical | 120 V, 1 Ø, 50/60 Hz, 1 A (electronic ignition) 208/240 V option available |
| Temperature Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Construction | 304 SS liner & outer casing, 304L SS jacket, seam-welded tubular frame |
| Overall Dimensions (in) | A 22.0 | B 15.0 | C 35.9 | D 23.8 | F 47.7 | G 39.0 |
| Shipping Weight | Consult factory |
| Compliance | NSF, ASME, CSA, UL |
| Origin | Made in USA |
Popular Factory-Installed Options
- 2" or 3" sanitary draw-off valve (ball or compression type)
- Single or dual water fill faucet with 12" or 18" swing nozzle
- 48" flexible spray-rinse hose (vinyl or stainless)
- Electric timer with buzzer
- Mixer/Agitator, 2-speed
- Lockable lid & control cover for high-security installations
Professional installation by a qualified technician and adherence to local gas & plumbing codes are required.
