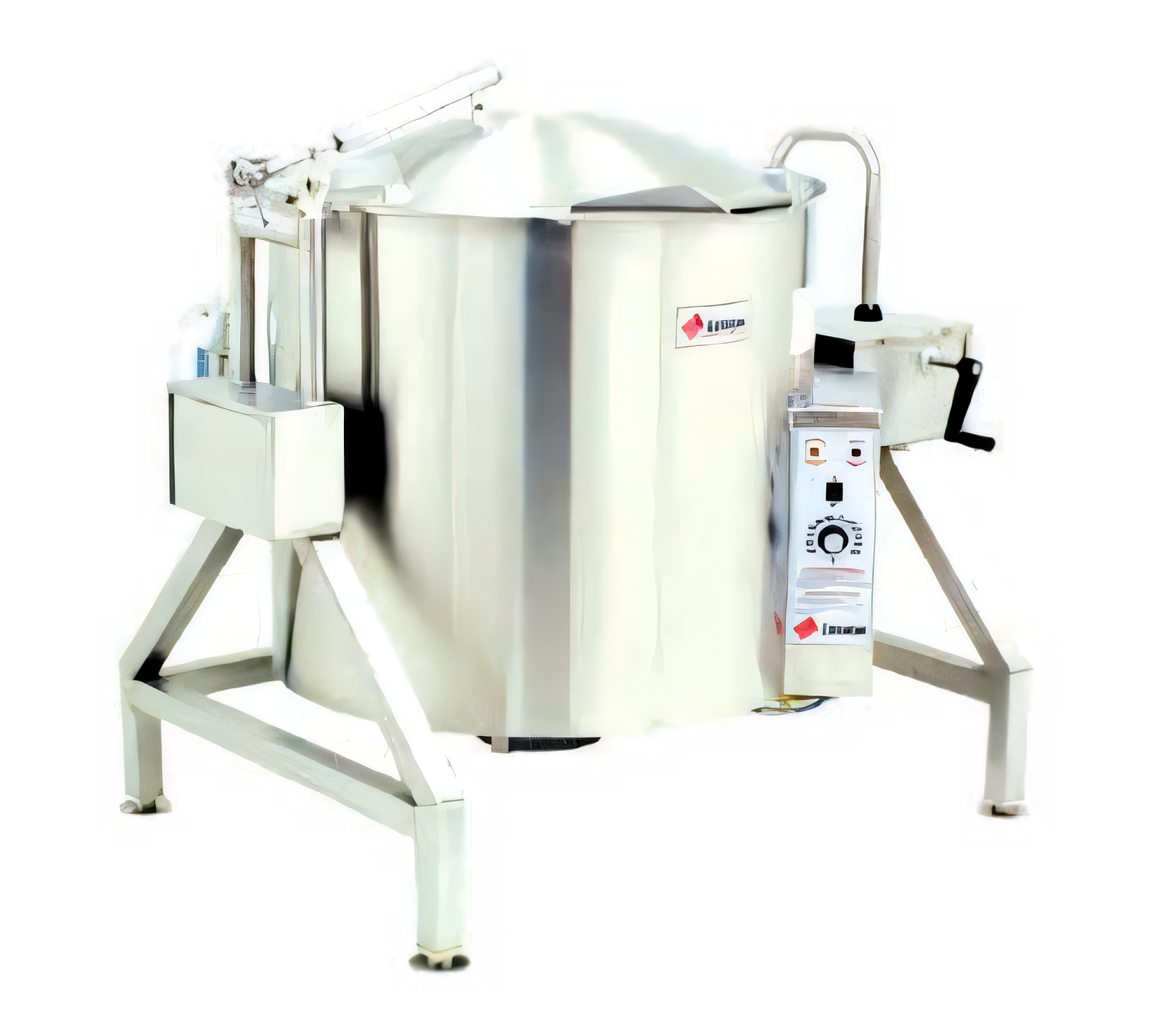

Legion TLGB-20 20 Gallon Gas Tilting Kettle
Insulated • Self-Contained • 2/3 Jacketed • Made in the USAEngineered for demanding commercial kitchens, the Legion TLGB-20 combines fast, even heating with rock-solid durability and operator-first safety. Its self-contained 2/3 steam jacket and deep-drawn 304 stainless-steel construction let you braise, simmer or boil up to 76 litres of product without an external boiler—freeing up space, energy and labour.
Highlights at a Glance
- 20 gal (76 L) batch capacity—ideal for soups, sauces, stews & reductions.
- 63,200 BTU/h natural-gas burner (59,600 BTU/h propane) with electronic ignition.
- Thermostat-controlled range 150 °F–260 °F (66 °C–127 °C) for precise cooking.

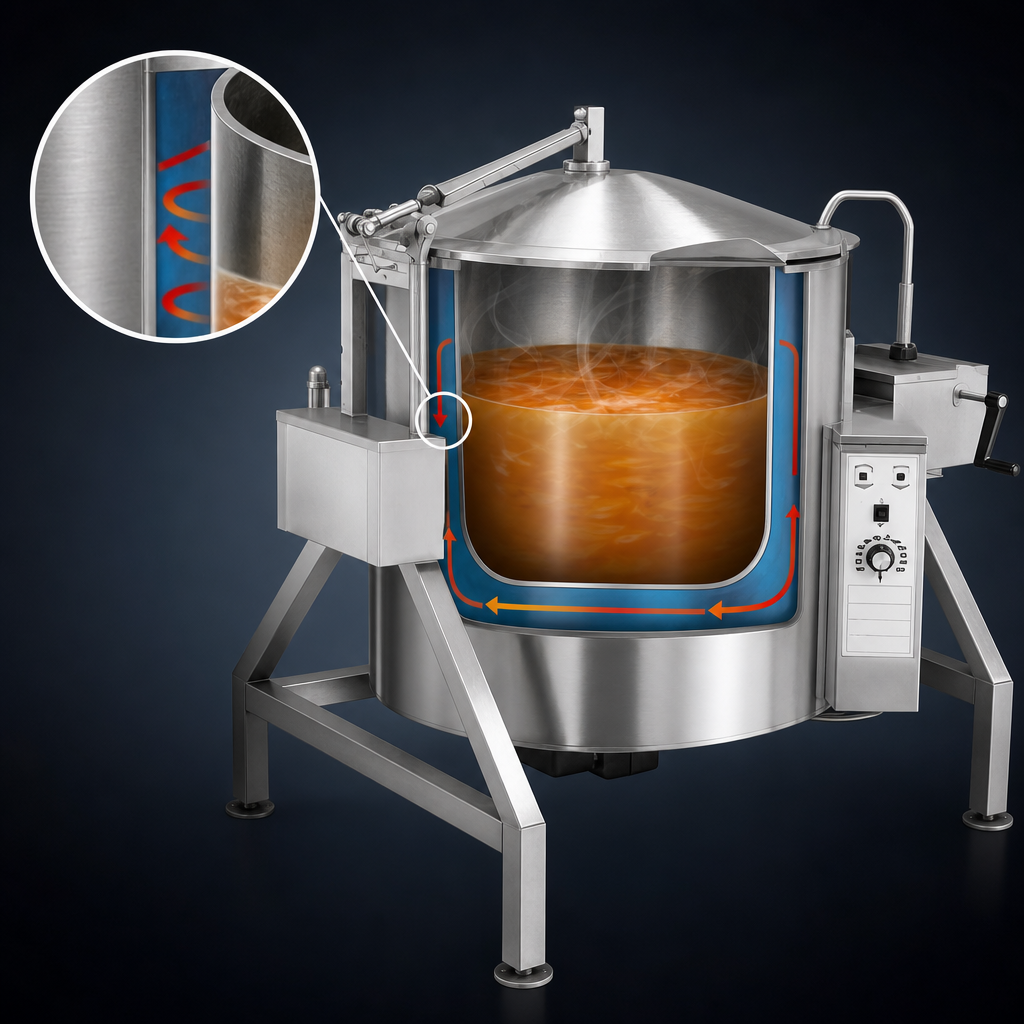

- 2/3 jacket surrounds the cook zone for gentle, uniform heat and fewer scorched bottoms.

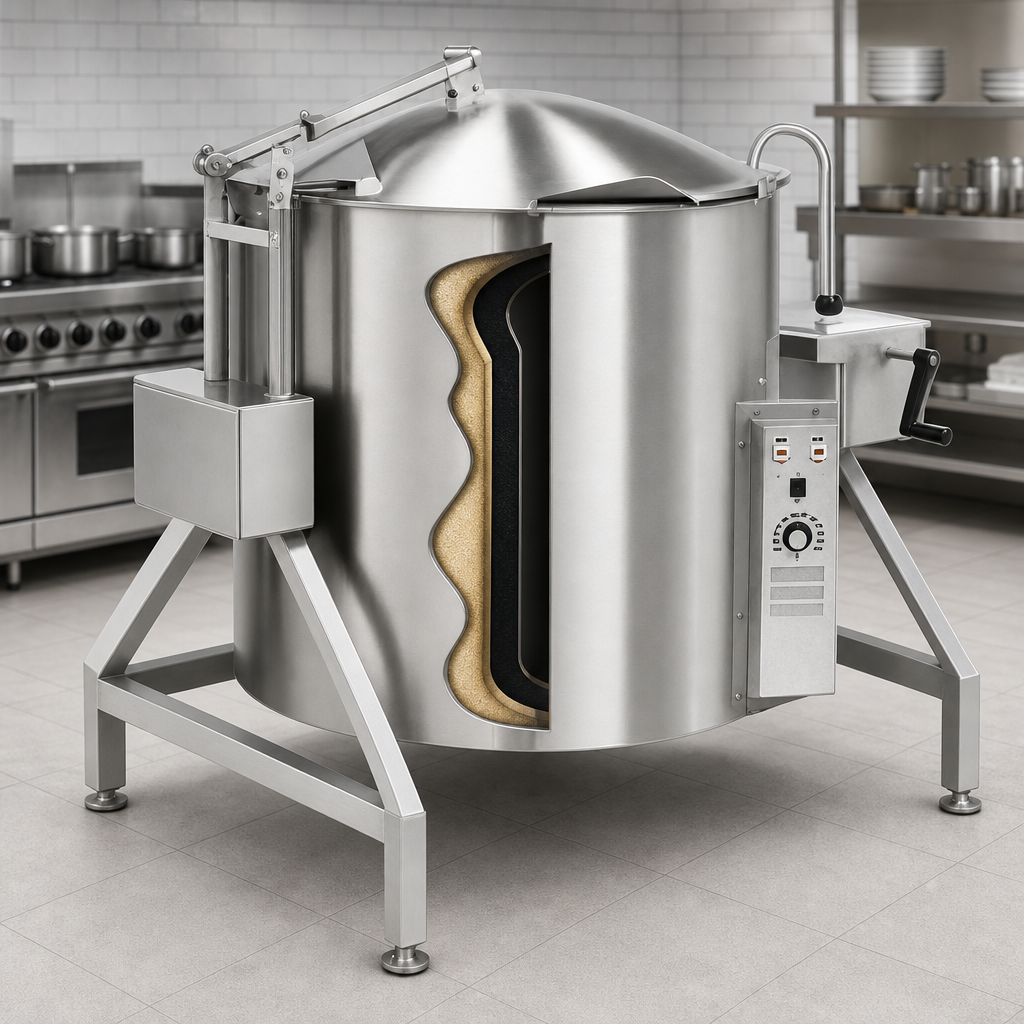

- Full-body mineral-wool insulation (3″–14″) dramatically cuts heat loss and protects staff.
- Self-locking, permanently lubricated worm-gear tilt—smooth, controlled pouring at any angle.
- Stainless control console with pressure gauge, low-water indicator and safety pilot light.
- Kettle Protection System: low-water cutoff, pressure relief and air eliminator built in.
- All-stainless frame, outer casing, gearbox & console for unmatched corrosion resistance.
Operator Conveniences
- Adjustable flanged feet for quick leveling and code-compliant floor mounting.
- Front-mounted jacket-water fill port and sight glass—no tools required.
- Factory-welded 3″ radius lip reduces drips and makes cleaning effortless.
- Wide range of factory options: 2″ / 3″ draw-off valves, fill faucets, spray hoses, covers, timers, agitators & more.
Technical Specifications
| Model | TLGB-20 |
|---|---|
| Capacity | 20 gal / 76 L |
| Heat Input | 63,200 BTU/h (Natural) | 59,600 BTU/h (Propane) |
| Temperature Control | Thermostat, 150 °F–260 °F |
| Gas Connection | ½″ NPT, 5–7″ W.C. Natural | 12–14″ W.C. Propane |
| Electrical | 120 V, 1 Ph, 50/60 Hz, 1 A (electronic ignition) |
| Interior Liner | 304 Stainless Steel, satin finish |
| Jacket Rating | ASME stamped, 50 psi max working pressure |
| Overall Dimensions* | 46.8″ L × 38.0″ W × 32.5″ H |
| Net Weight | Approx. 540 lb (shipping weight varies with options) |
*Dimensions shown with optional 3″ draw-off valve.
Why Choose Legion?
- Made in Waynesboro, Georgia since 1946.
- Meets or exceeds ASME, NSF and applicable gas code standards.
- 12-month parts & labour warranty with optional extended coverage.
- Dedicated U.S. technical support and rapid-ship replacement parts.
Upgrade your production line with the Legion TLGB-20 and experience safer, faster and more consistent batch cooking—shift after shift, year after year.
