Legion  |  Classic  |  SKU: TGSE-2440-9-WC

Legion TGSE-2440-9-WC Classic Braising Pans & Tilt Skillets

$20,220.49
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Braising Pans & Tilt Skillets Specialty Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

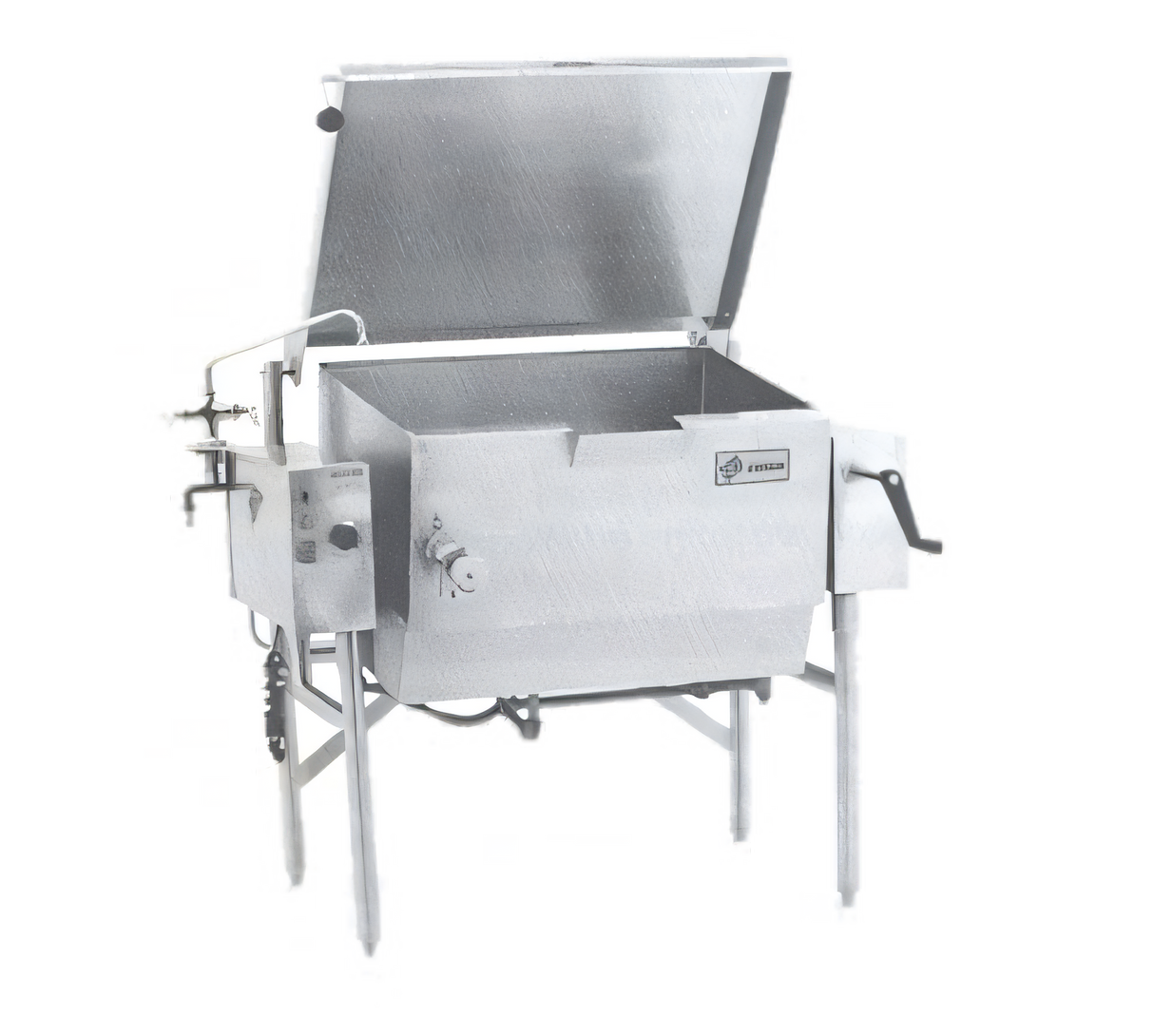

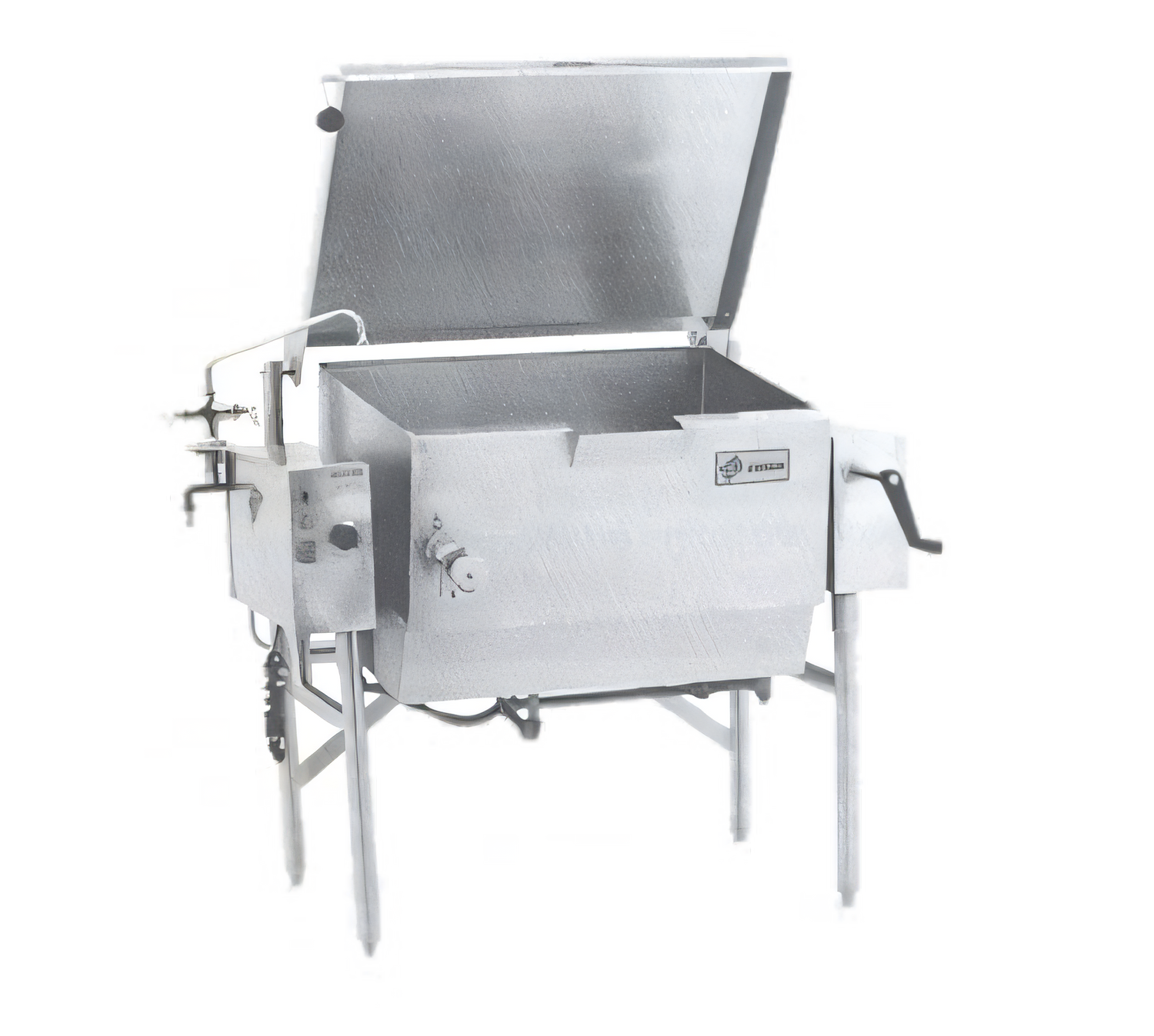

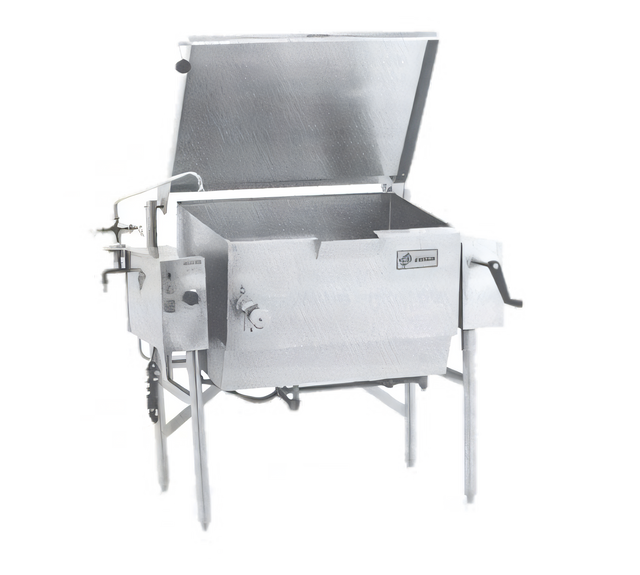

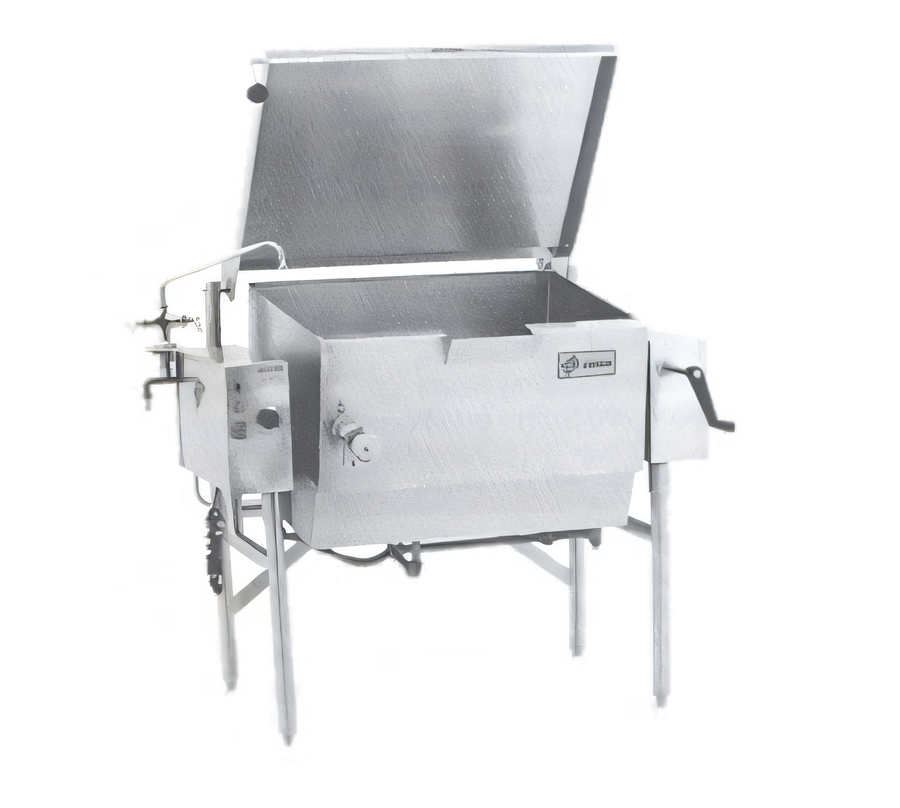

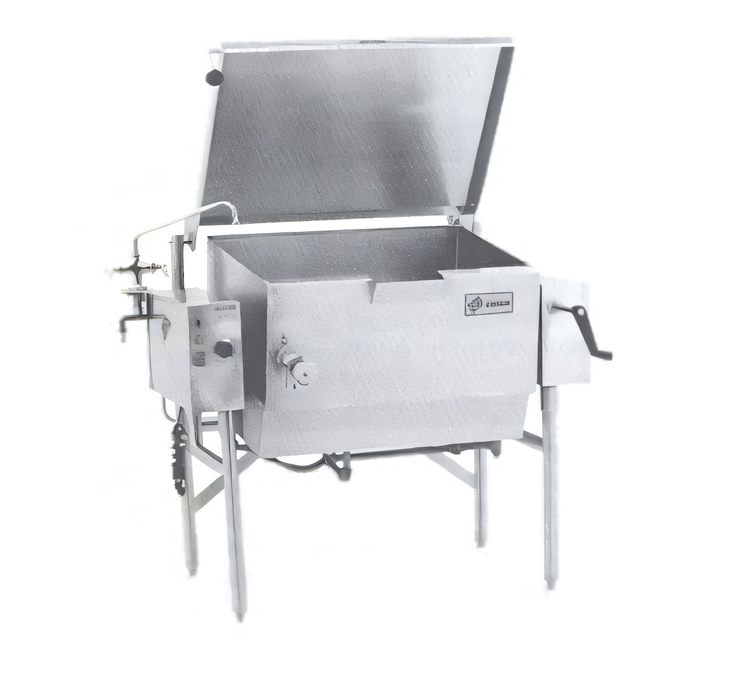

Legion Classic™ Wall-Mounted Tilting Skillet – 40 Gallon, Gas

Model TGSE-2440-9 | Natural or Propane

Free up floor space without giving up capacity. The Classic™ 40-gallon wall-mounted tilting skillet from Legion fuses the power of a griddle, kettle, braising pan and steamer into one heavy-duty, American-made appliance designed for high-volume kitchens.

Key Features

  • 40 gal (151 L) 304 stainless steel pan – seam-welded with 304 clad cooking surface.

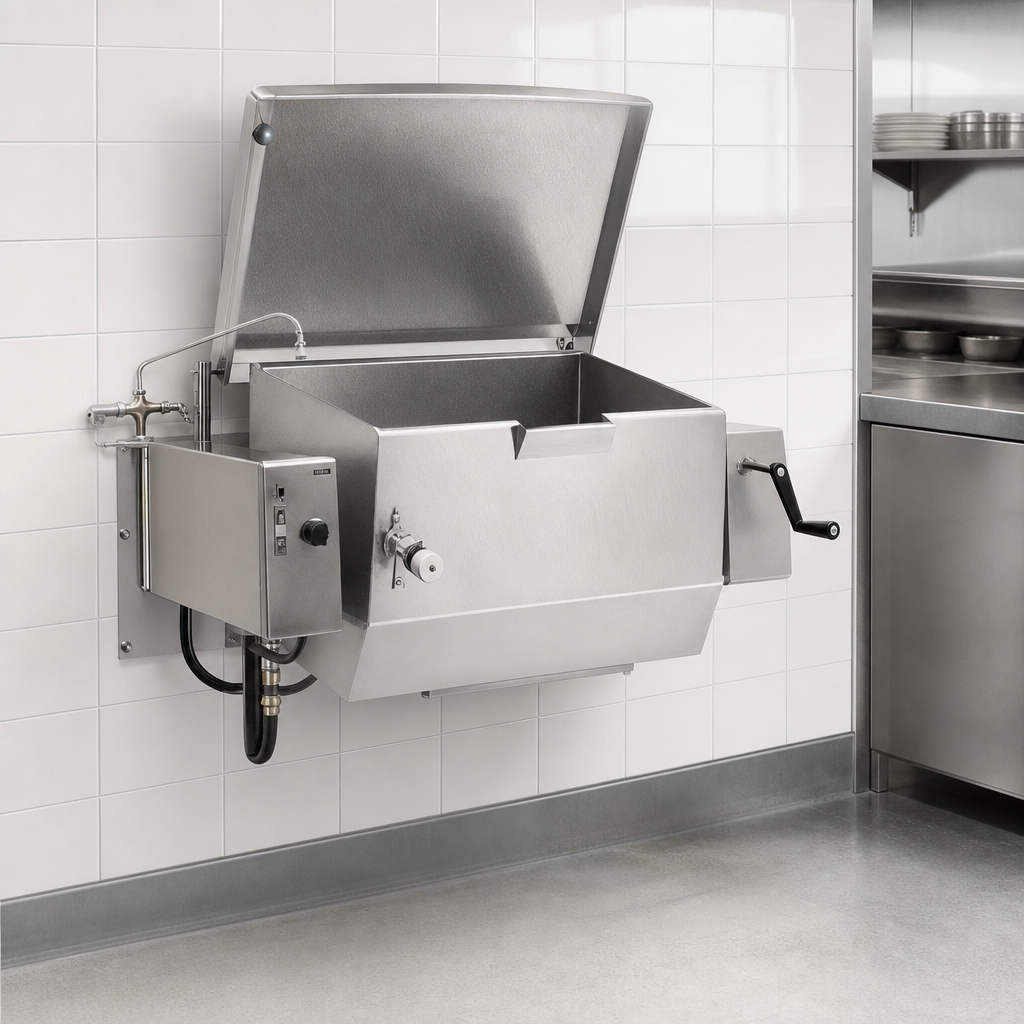

  • In-wall carrier included for secure wall mounting and easy floor cleaning.
  • Manual, self-locking worm-gear tilt with > 90° rotation for complete pour-out.
  • Actuator-assisted, counter-balanced lid with full-width drip shield & rear steam vent.
  • Adjustable thermostat 175 °F – 400 °F (79 °C – 204 °C) + high-limit safety thermostat.
  • 120,000 BTU atmospheric burner with electronic direct-spark ignition.
  • Center trunnion mounting delivers smooth tilting even when fully loaded.
  • Knock-down frame fits through a 26 in × 66 in doorway for easy installation.
  • NSF, ASME & CSA compliant – built in the USA since 1897.

Specifications

Capacity 40 gal / 150 L (≈ 640 10 oz portions)
Pan Depth 9 in (229 mm)
Heat Input Natural Gas: 120,000 BTU • Propane: 100,000 BTU
Gas Connection ½ in IPS; Natural 5-7" w.c. • Propane 12-14" w.c.
Electrical 120 V, 1 ph, 1 A (ignition & controls)
Thermostat Range 175 °F – 400 °F (79 °C – 204 °C)
Dimensions (W × D × H) 41.0 in × 56.1 in × 36.4 in to pan lip
Clearance to Pour 33.5 in minimum from wall (9 in pan)
Construction 304 stainless pan, lid, consoles & tubular frame
Warranty 12 months from installation / 15 months from ship date

Kitchen Tasks Made Easy

  • Browning taco meat or ground turkey in 50 lb batches
  • Searing and braising roasts, ribs, pulled pork or chicken quarters
  • Simmering 35 gal of chili, soup, sauce or gravy
  • Grilling breakfast favorites—pancakes, eggs, grilled cheese—right in the pan
  • Steaming vegetables, seafood or pasta with optional perforated baskets

Popular Accessories (sold separately)

  • Single or dual fill faucet (12" or 18" swing nozzle)
  • 48" stainless flexible spray hose assembly
  • Perforated cooking/steaming baskets (11" × 20 ½" × 5")
  • 1 ½" or 2" draw-off valve & drain hose kit
  • Pour-lip strainer or pan holder assembly
Installation Note: Wall structure must support the filled weight of the skillet (≈ 1,600 lb). Gas and electrical connections must be made by licensed professionals in accordance with local codes.

Need help configuring your Legion skillet? Chat with our equipment specialists or download the full spec sheet from the Resources tab.

Features & Specs

Manufacturer

Legion

Brand_name

Classic

Shipping Weight

625.0lbs

Capacity

40 - 49 gal

Tilt

manual tilt

Base

wall mount

Specifications

Classic Tilting Skillet, Wall Mounted, Gas, 40-gallon, self-locking worm gear tilt mechanism, adjustable thermostat, lid with actuator-assisted counter balance, stainless steel pan, 120,000 BTU
