Legion TGSE-2440-9 Classic Braising Pans & Tilt Skillets
Description

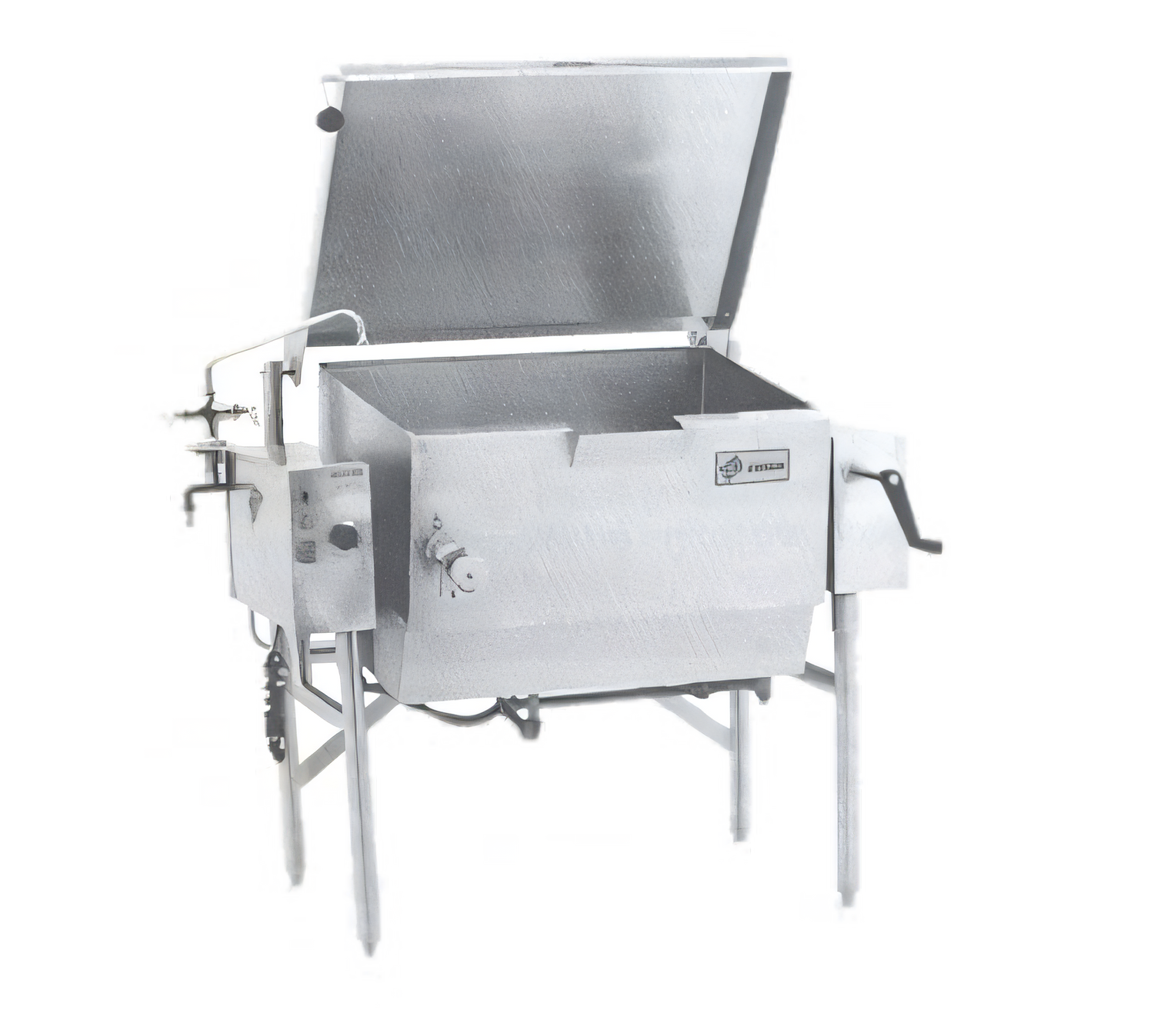

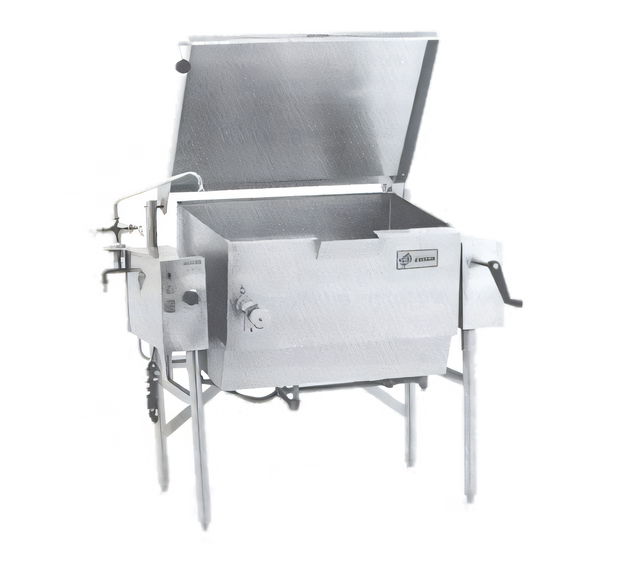

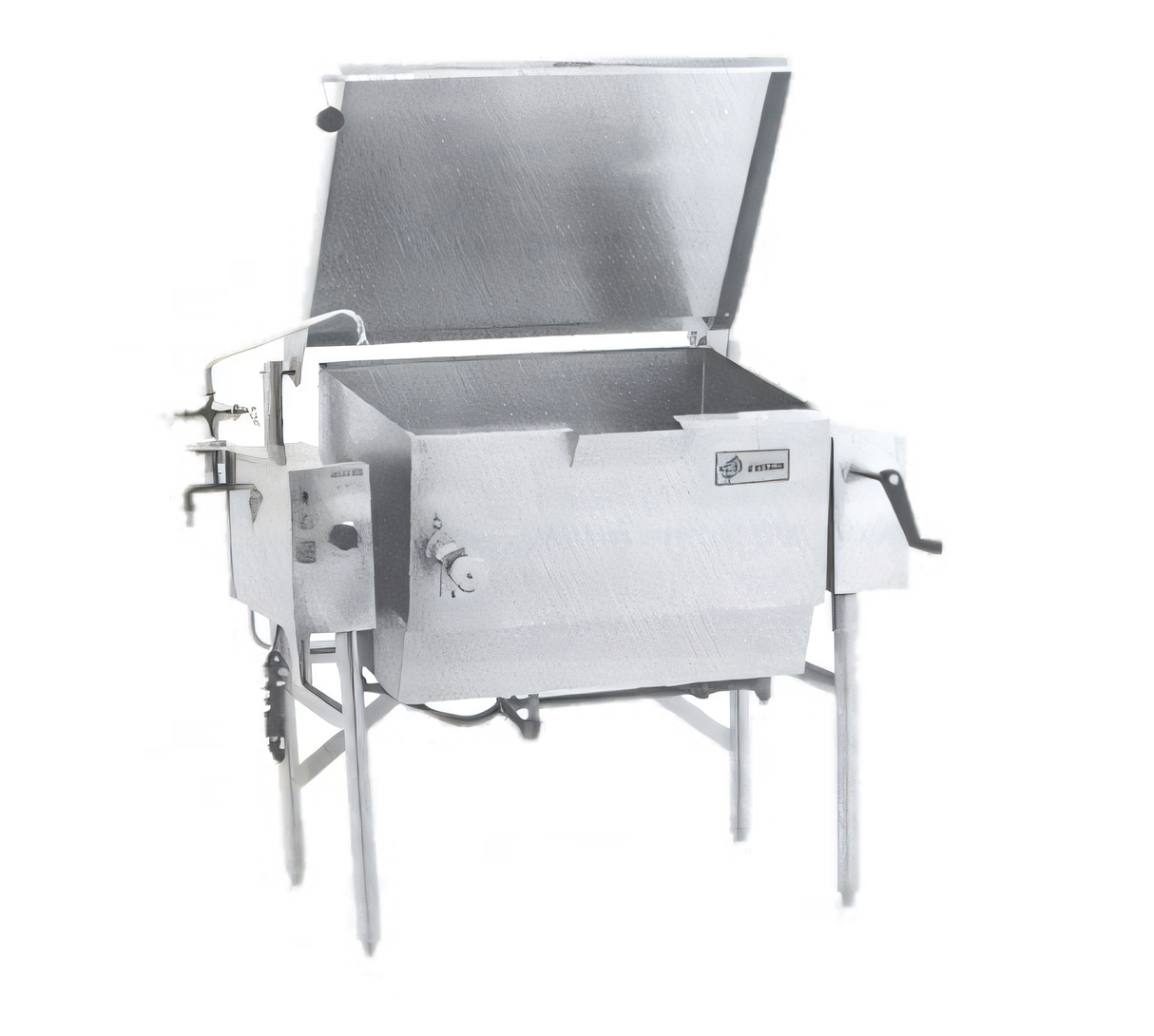

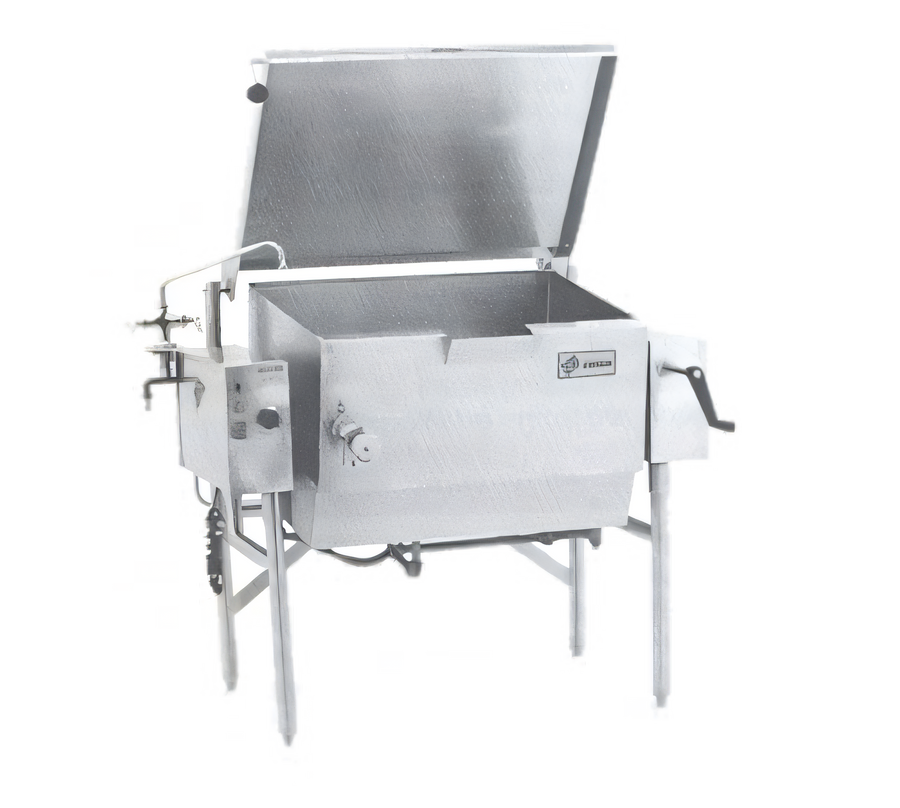

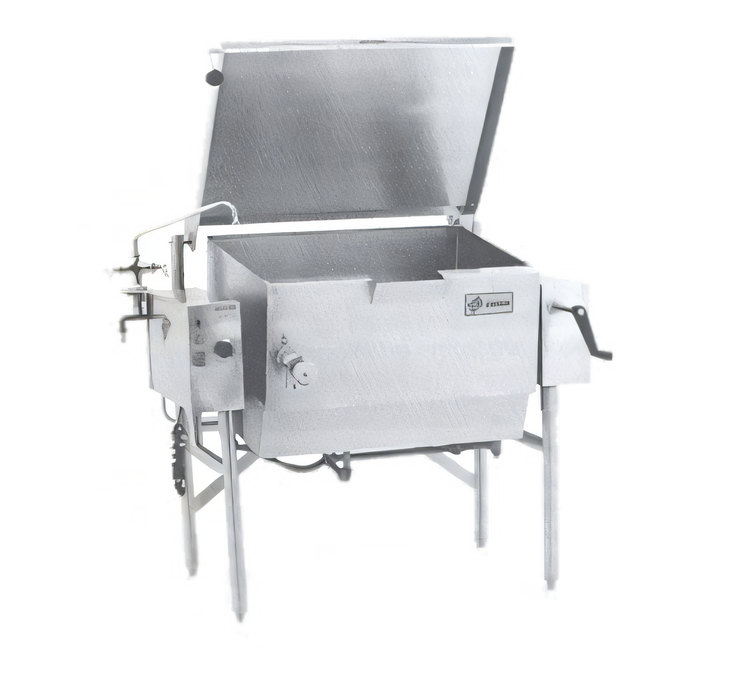

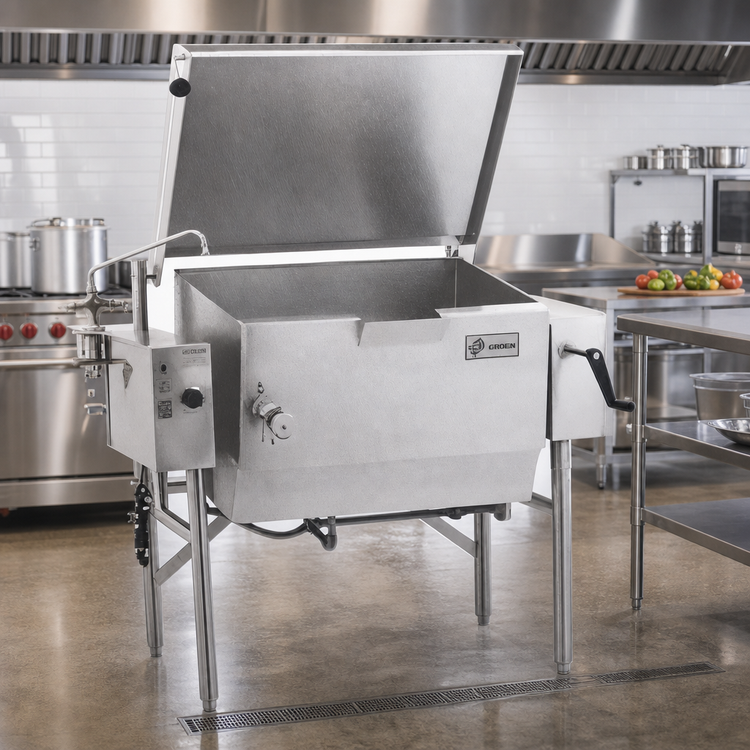

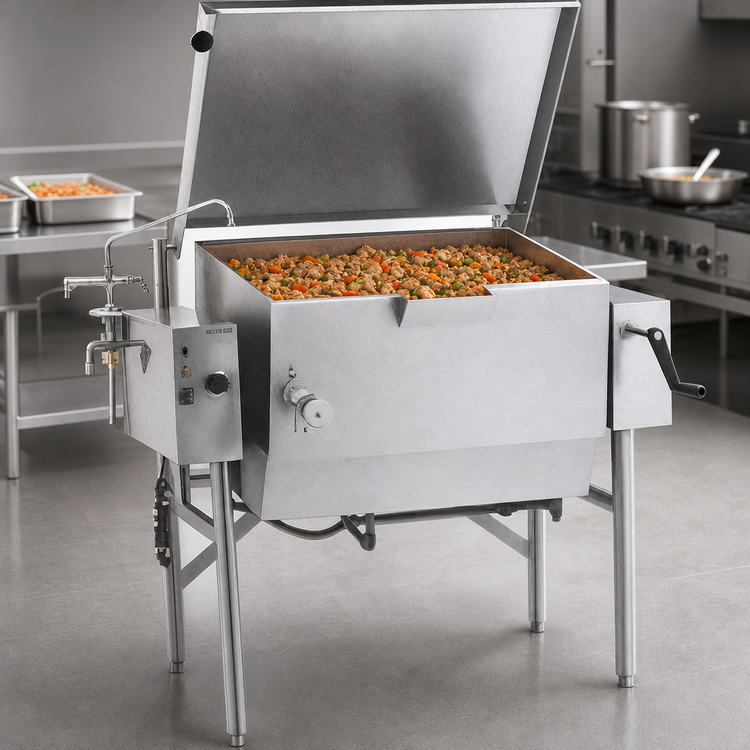

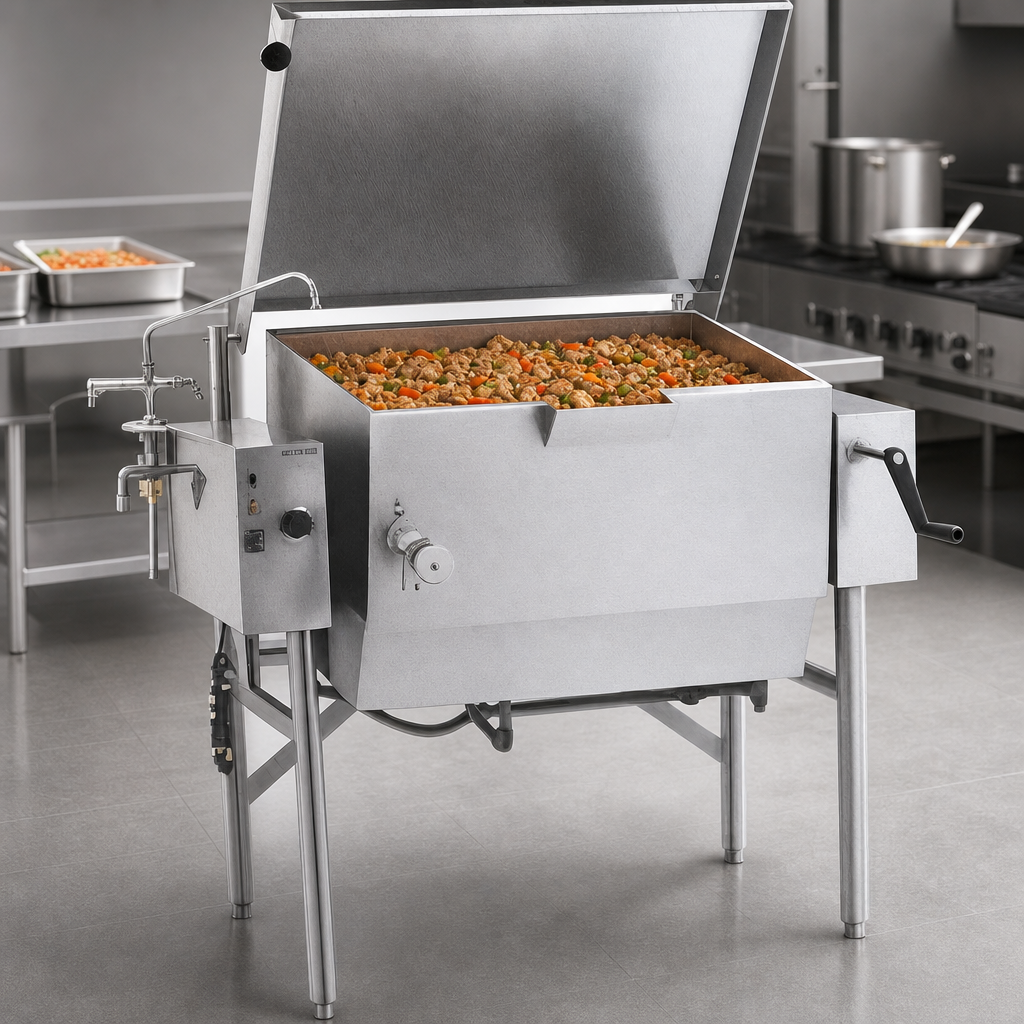

Legion Classic 40-Gallon Gas Tilting Skillet – Model TGSE-2440-9
120,000 BTU | Manual Worm-Gear Tilt | Made in USABuilt for busy commercial kitchens, the Legion Classic 40-Gallon Tilting Skillet lets you braise, sauté, griddle, fry, simmer and hold in one rugged, space-saving workhorse. A seam-welded 304 stainless pan heats evenly and pours effortlessly thanks to a smooth, self-locking manual tilt that rotates more than 90° for complete product removal.
Why You’ll Love It
- 40-gallon (151 L) capacity – ideal for high-volume batch cooking.

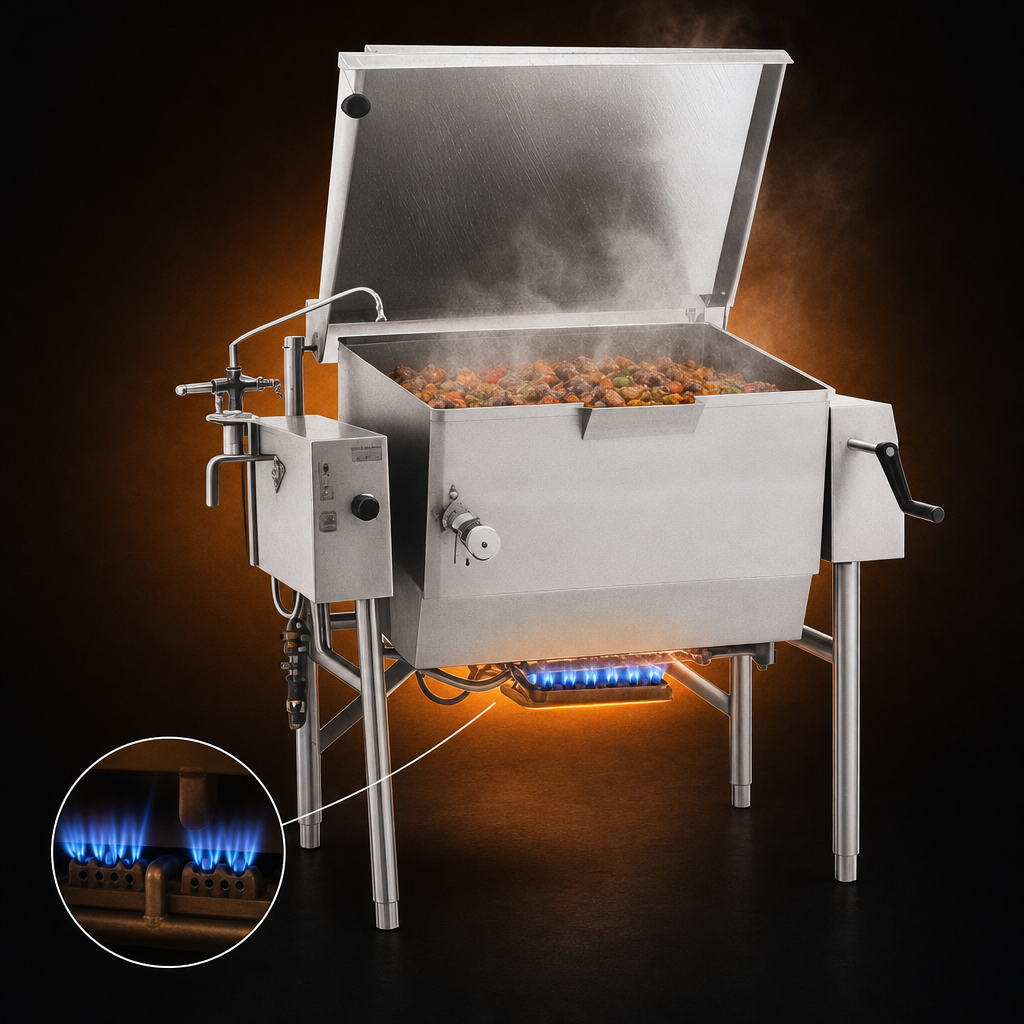

- Gas-fired burner delivers 120,000 BTU with electronic direct-spark ignition.
- 304 stainless, seam-welded pan body on a reinforced tubular frame.
- Center-trunnion, self-locking worm-gear tilt for precise, safe pouring.
- Actuator-assisted counterbalanced lid with full-width condensate drip shield and rear steam vent.
- Adjustable thermostat 175 °F – 400 °F plus high-limit safety cutoff.
- Water-resistant stainless control console; 120 V, 1-phase connection (standard).
- Adjustable bullet feet level the unit on uneven floors.
- NSF, ASME, CSA & UL compliant; manufactured in Waynesboro, GA.
At-a-Glance Specifications
| Model | TGSE-2440-9 |
|---|---|
| Capacity | 40 gal / 151 L |
| Pan Depth | 9 in (229 mm) |
| Cooking Surface | 41 in × 25 1⁄8 in – 1,029 in² (0.66 m²) |
| Heat Source | Natural or LP gas, 120,000 BTU/hr |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical | 120 V, 1 Ph (ignition & controls) |
| Tilt Mechanism | Manual, self-locking worm gear; > 90° rotation |
| Overall Dimensions* | 56.1 in W × 47.5 in D × 38.8 in H (lid closed) |
| Gas Connection | ½ in NPT; Natural 5-7″ w.c. | LP 12-14″ w.c. |
| Construction | All 304 stainless pan, frame, lid & console |
| Origin | USA |
*See spec sheet for detailed rough-in and clearance requirements.
One Skillet, Endless Applications
- Brown 200 lb of ground beef in minutes.
- Simmer signature sauces, chili or soups overnight with even heating.
- Griddle 400 pancakes an hour for breakfast service.
- Shallow-fry cutlets, hash browns or tortilla chips.
- Hold or re-therm product for banquets and catering lines.
Popular Options & Accessories (Sold Separately)
- 1½ in, 2 in or 3 in draw-off valve with strainer and hose kit.
- 48 in flexible spray hose or dual fill faucet for rapid clean-up and filling.
- Adjustable flanged feet or locking/non-locking casters.
- Lockable lid & control cover for correctional or high-security facilities.
- Perforated baskets, solid or perforated food pans, scoops and care kits.
Covered by Legion’s 12-month parts & labor warranty from date of installation (extended plans available).
