Legion TGSE-2440-7 Classic Braising Pans & Tilt Skillets
Description

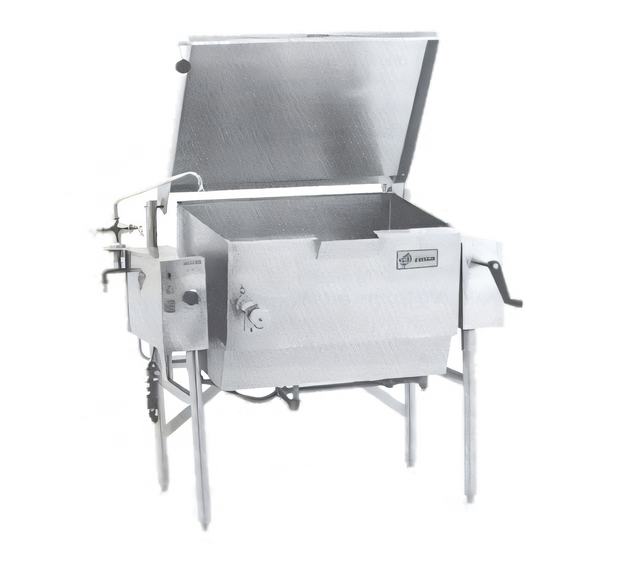

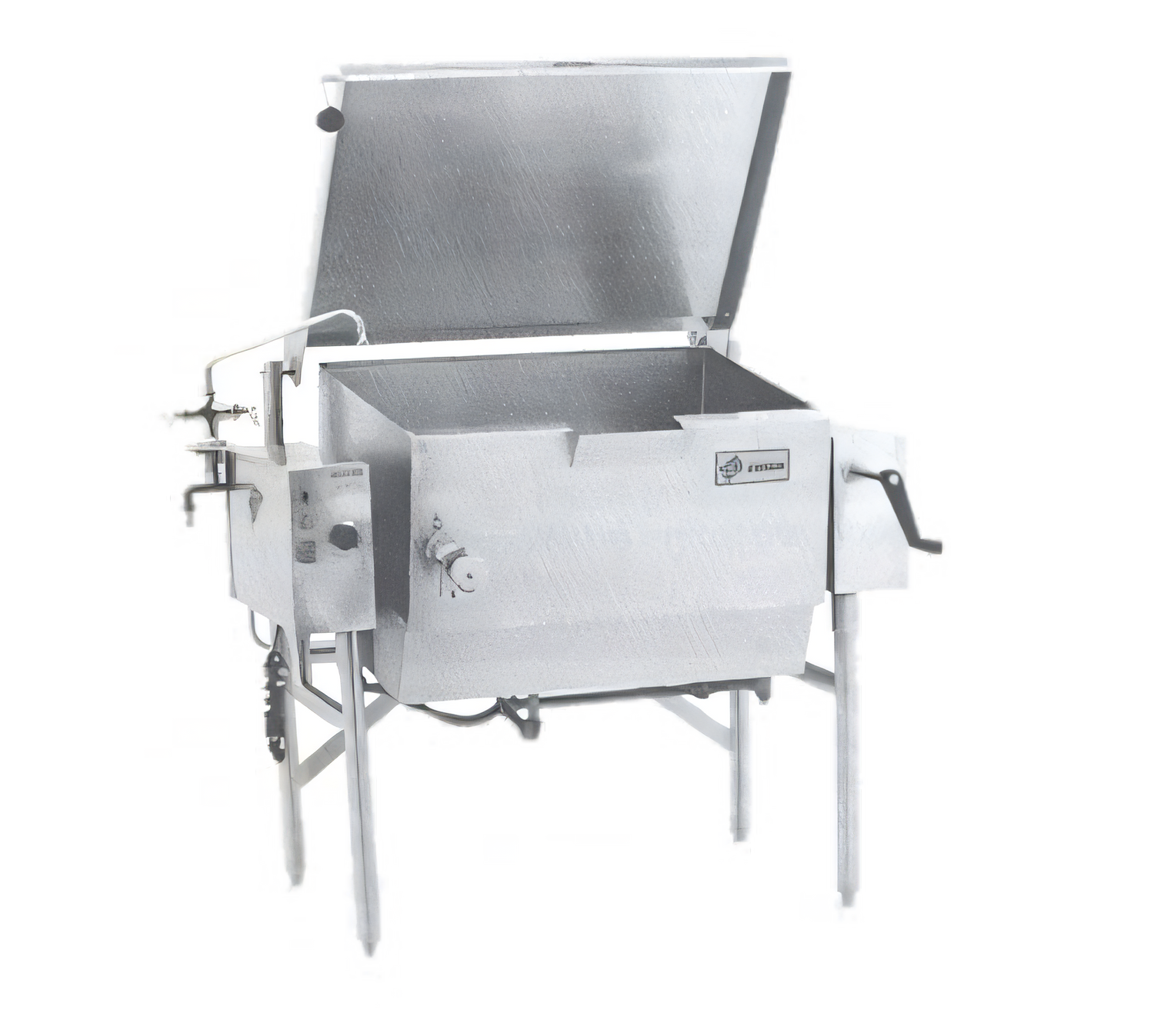

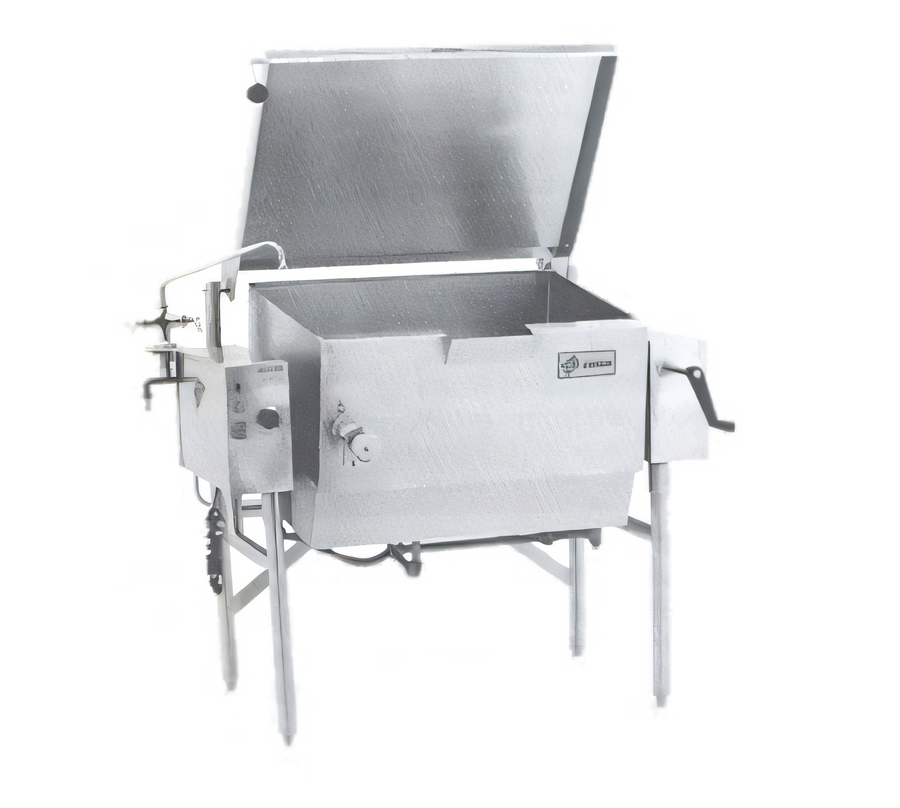

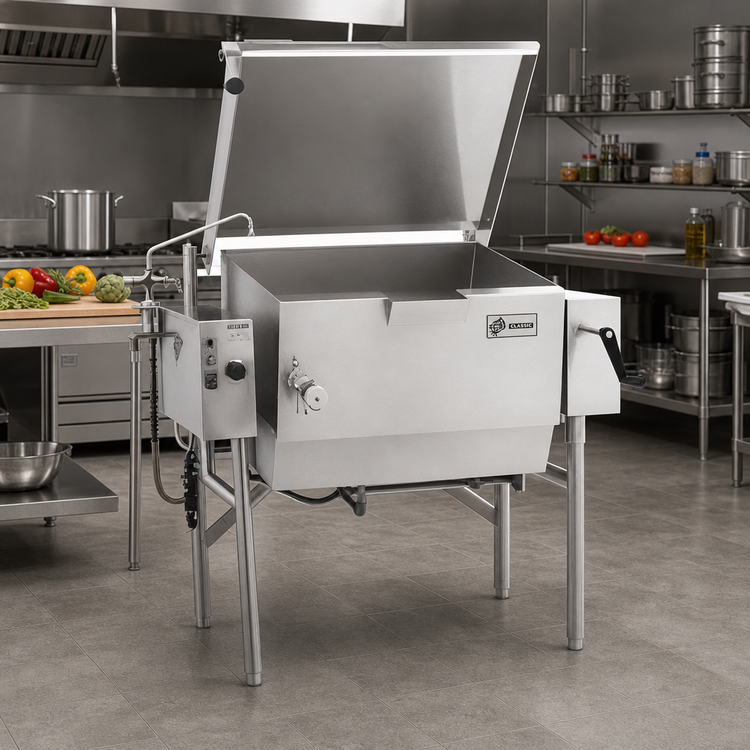

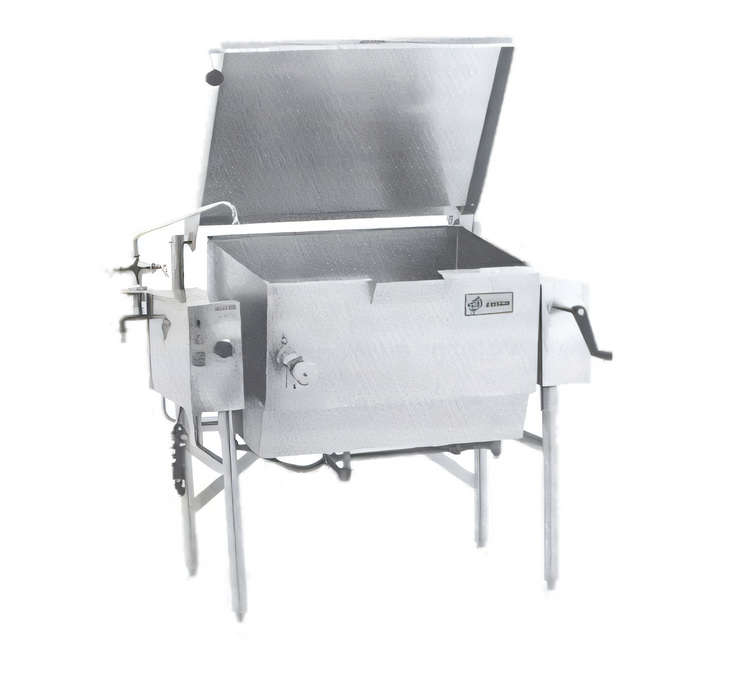

Legion Classic 31-Gallon Gas Tilting Skillet
Model TGSE-2440-7 | 120,000 BTUReplace your braising pans, stock pots, grills and steamers with a single, heavy-duty workhorse. The U.S.-built Legion Classic manual tilting skillet delivers high-volume performance, effortless pouring and rock-solid reliability in busy commercial kitchens.
Performance & safety advantages

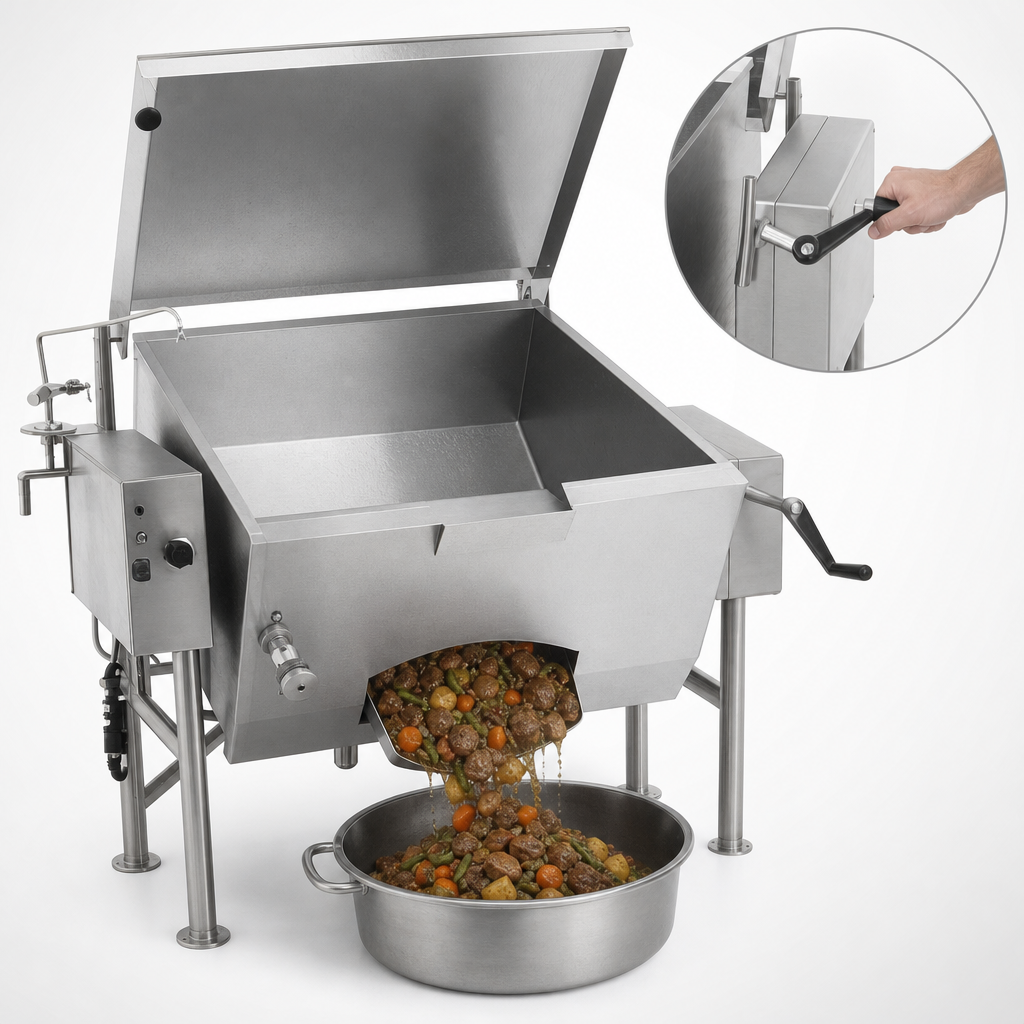

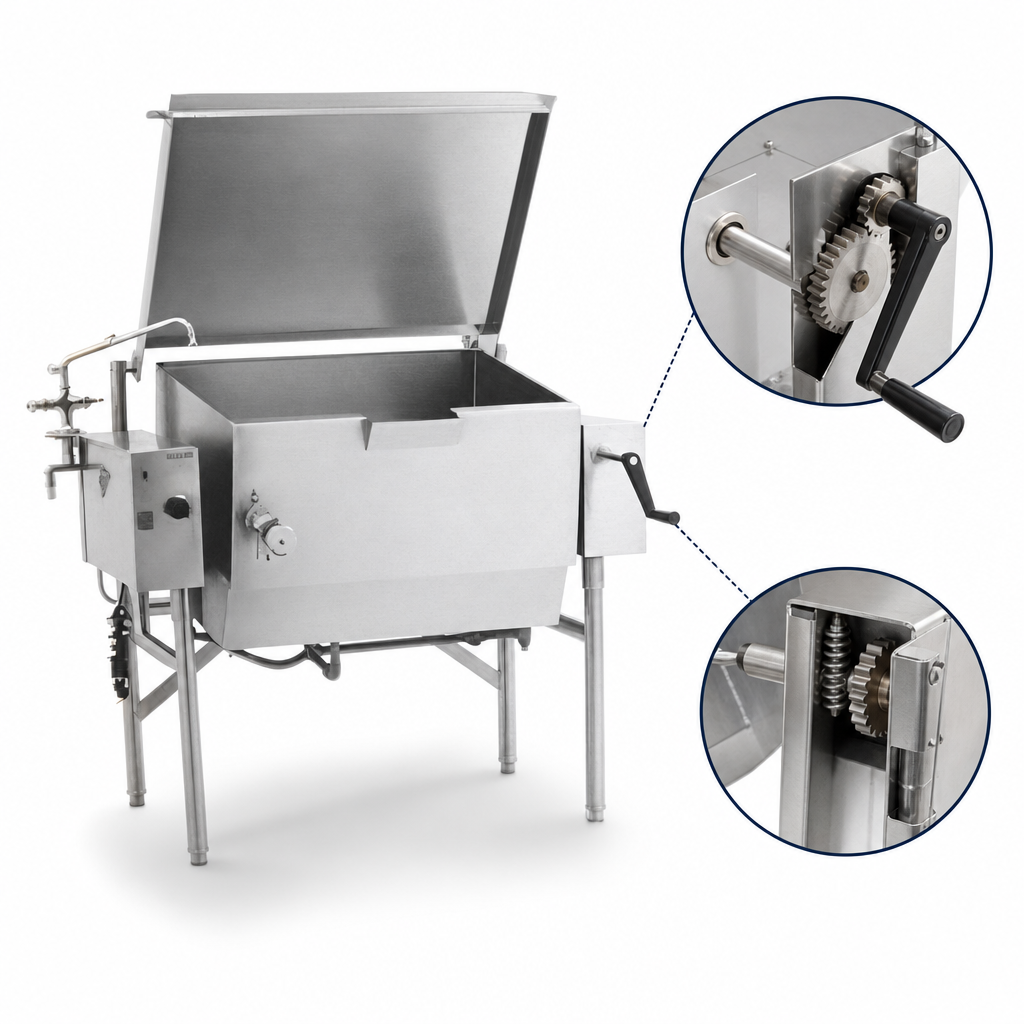

- Self-locking worm-gear tilt mechanism rotates the pan more than 90° for complete emptying without sudden drops.
- 120,000 BTU gas burner with electronic direct-spark ignition heats fast and recovers instantly between batches.
- Thermostat-controlled from 175 °F to 400 °F with separate high-limit safety cut-off.
- Actuator-assisted, counter-balanced lid with full-width drip shield keeps condensate inside the pan—not on the floor.
- All-welded 304 stainless pan, lid, frame and water-resistant control console stand up to daily abuse and harsh cleaners.
- Adjustable bullet feet level the unit on uneven floors for a rock-steady cooking surface.
Key specifications
| Capacity | 31 gal | 118 L |
|---|---|
| Usable pan area | 1,029 in² | 7.1 ft² |
| Pan depth | 7 in | 178 mm |
| Heat source | Natural or LP gas, 120,000 BTU/hr |
| Ignition | Electronic direct spark (120 V, 1 Ø) |
| Thermostat range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt mechanism | Manual, self-locking worm gear, >90° rotation |
| Construction | 304 stainless pan, lid, frame & console |
| Overall width (A) | 41 in | 1,041 mm |
| Overall length (L) | 47.5 in | 1,207 mm |
| Overall height (lid closed) | 38.75 in | 984 mm |
| Shipping weight | ≈ 675 lb | 306 kg |
Versatile cooking applications
- Batch soups, stews, sauces and chili
- Griddle burgers, bacon, pancakes and more
- Sauté or pan-fry meats and vegetables
- Steam with optional perforated baskets
- Hold food hot for service or finishing
Popular options & accessories
- 1½", 2" or 3" draw-off valve with strainer
- 48" flexible spray hose or dual-fill faucet
- Perforated cooking/steaming baskets
- Pour-lip pan holder & strainer
- Electric timer with buzzer
- Casters, flanged feet or security package (lockable lid & controls)
Need something special? Ask us about factory-installed accessories and custom configurations.
Warranty & certifications
Includes 1-year parts & labor warranty (12 months from installation). Built to meet or exceed NSF, UL, ASME and other applicable standards.
