Legion TGSE-2440-11-WC Classic Braising Pans & Tilt Skillets
Description

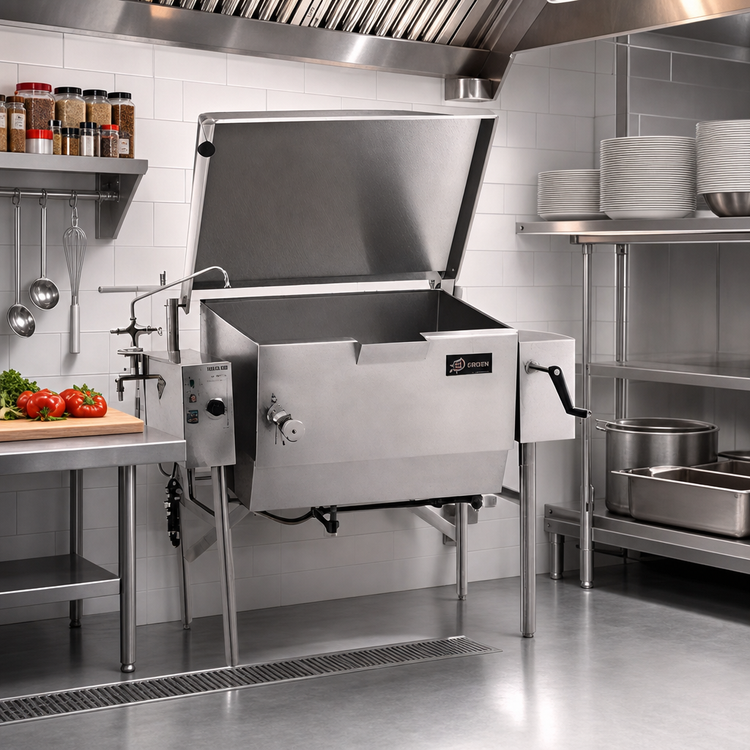

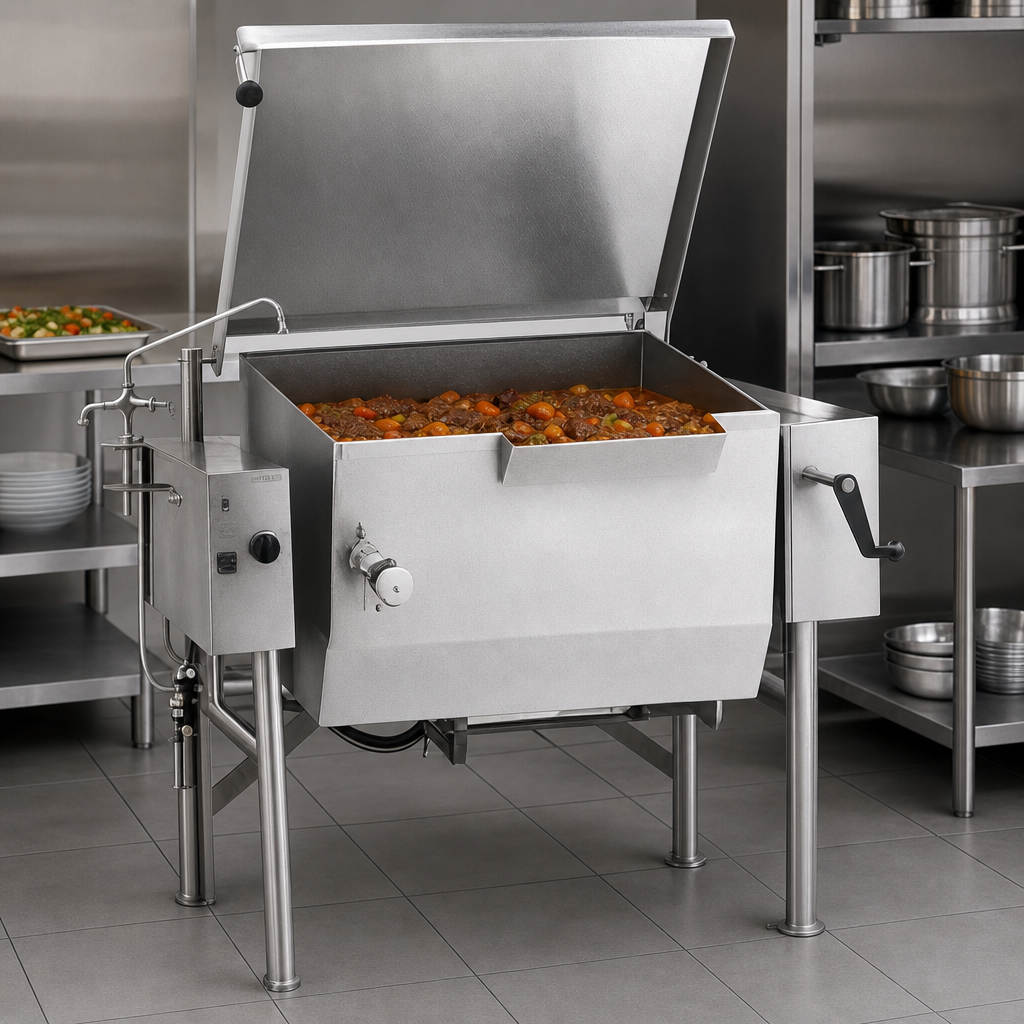

Legion Classic 49-Gallon Wall-Mounted Gas Tilting Skillet
Model TGSE-2440-11 • 120 000 BTU • Made in USAEngineered for high-volume kitchens that demand versatility, speed and rock-solid reliability, the Legion Classic wall-mounted skillet lets one person sear, braise, sauté, simmer or shallow-fry up to 49 gallons of product—then pour with fingertip control.
- Massive 49 gal / 1029 in² cooking surface handles production-scale batches
- Manual self-locking worm-gear tilt rotates a full 90° for safe, controlled pour-off
- 175-400 °F adjustable thermostat plus high-limit safety protects your product—and staff
- Patented actuator-assisted lid reduces strain, traps heat and directs condensate away from food
- 120 000 BTU burner with electronic direct-spark ignition reaches operating temp fast, every time
- 304 stainless steel pan, frame and consoles stand up to daily heavy-duty cleaning

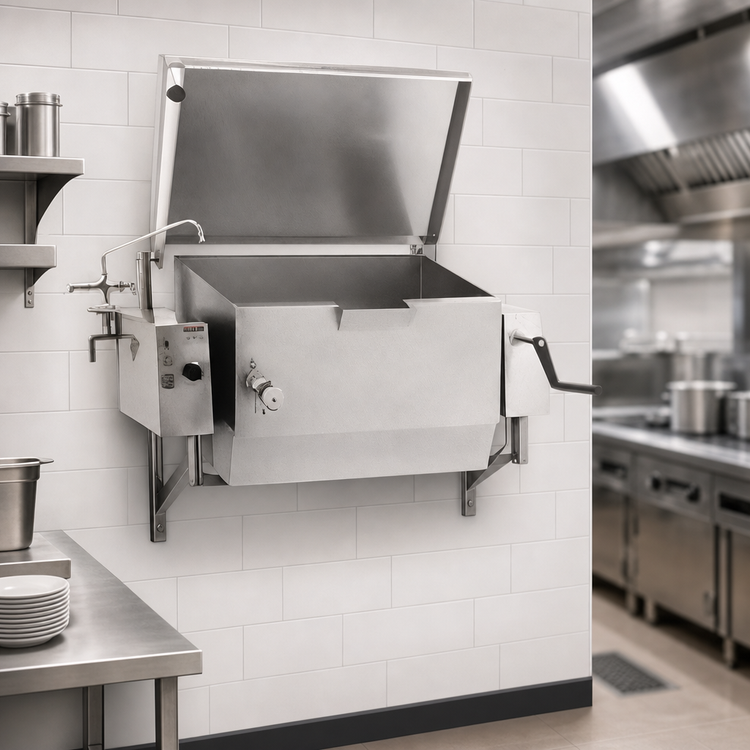

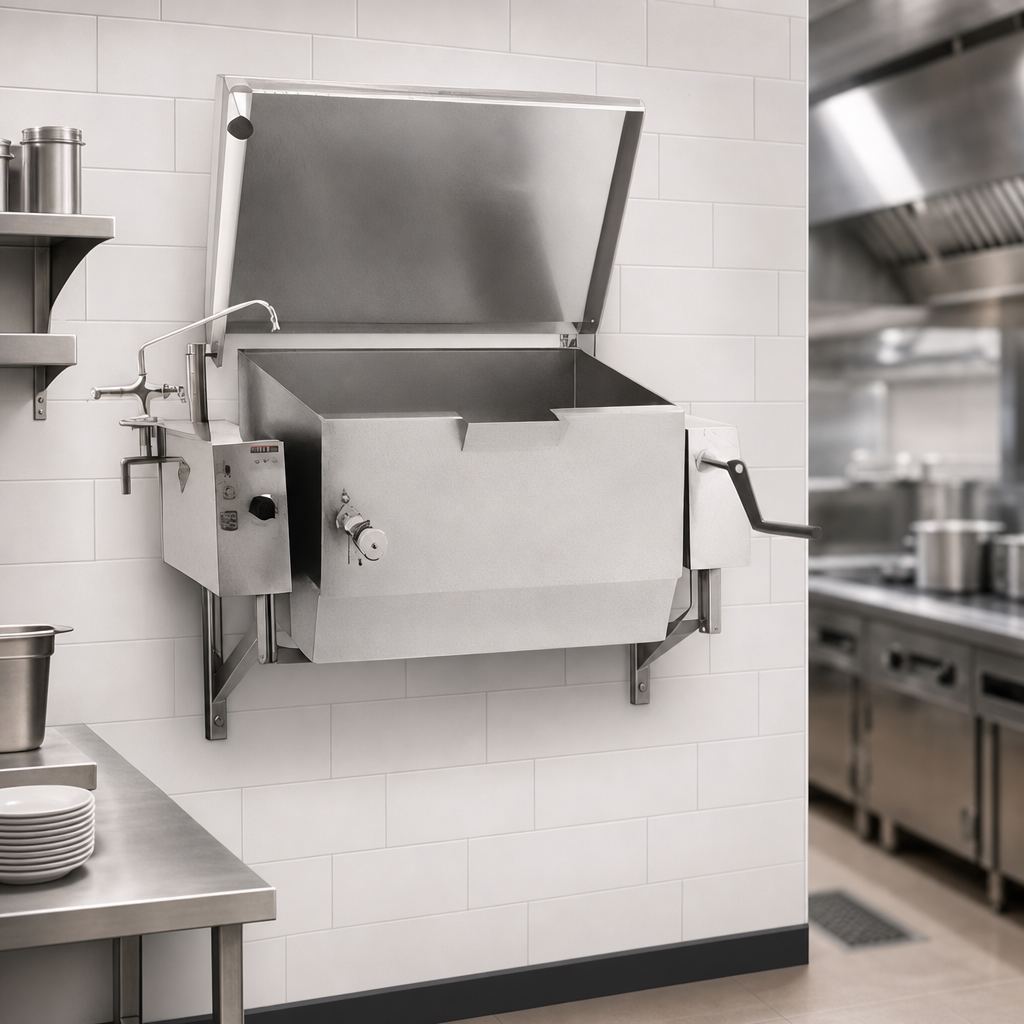

- Wall-mount installation frees floor space and brings the pour lip right to the drop-in pan or hotel pan
Technical Specifications
| Capacity | 49 gal (185 L) | approx. 392 lb of food |
|---|---|
| Pan Depth | 11 in (280 mm) |
| Cooking Surface | 1029 in² (0.66 m²), 304 SS clad |
| Heat Input | 120 000 BTU/hr Natural | 100 000 BTU/hr Propane |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt Mechanism | Manual, self-locking worm gear, > 90° rotation |
| Lid | 304 SS, actuator-assisted, full-width drip shield & steam vent |
| Ignition | Electronic direct-spark, 120 V 1 Ø, 1 A |
| Gas Connection | ½ in IPS, Natural 5-7 " w.c. | Propane 12-14 " w.c. |
| Overall Width (F) | 56.1 in (1425 mm) |
| Overall Depth (A) | 41 in (1041 mm) from wall to front leg |
| Minimum Pour-Path Clearance | 35.5 in with 11 in pan depth |
| Construction | 304 SS seam-welded pan, tubular frame, water-resistant consoles |
| Compliances | NSF, CSA, UL Gas, ASME | U.S. Patent 5,865,101 |
Standard Features
- Center-trunnion mounted pan for balanced tilting
- High-limit safety thermostat prevents overheating
- Knock-down design fits through 26" × 66" doorway for easy install
- Adjustable bullet feet for perfect leveling
- Single side-mounted safety handle keeps operator clear of steam & hot surfaces
Popular Accessories (sold separately)
- Fill faucets (single / dual-swing) with bracket
- 48" stainless flexible spray hose
- Perforated cooking & steaming baskets (12 × 20 pans)
- Draw-off pan holder or pour-lip strainer
- Lockable lid and control cover for correctional installations
- Flexible ½" gas hose & quick-disconnect kit
