Legion TGSE-2440-11 Classic Braising Pans & Tilt Skillets
Description

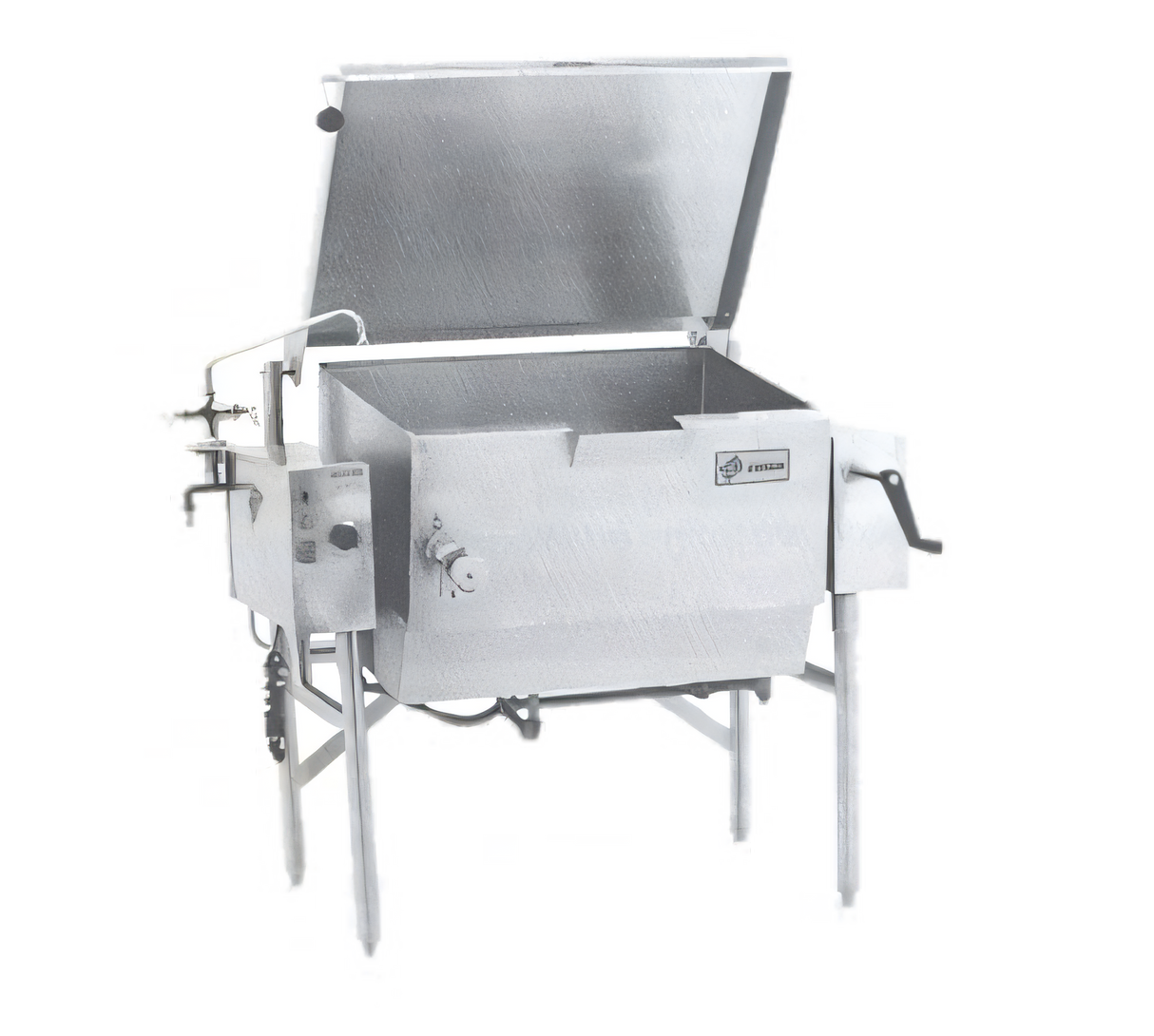

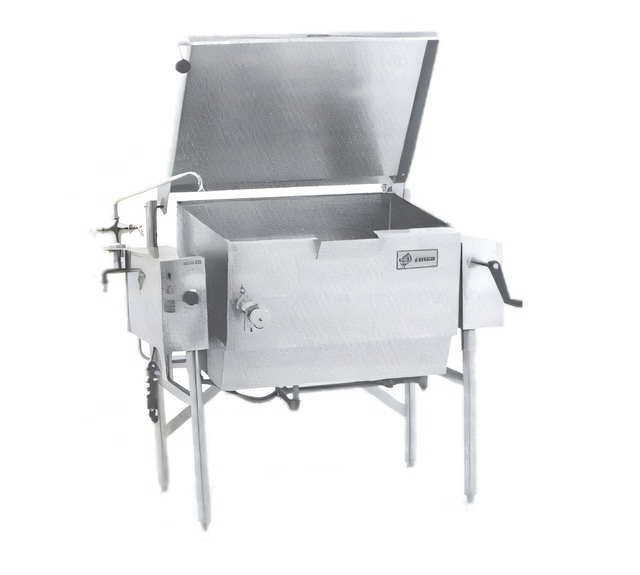

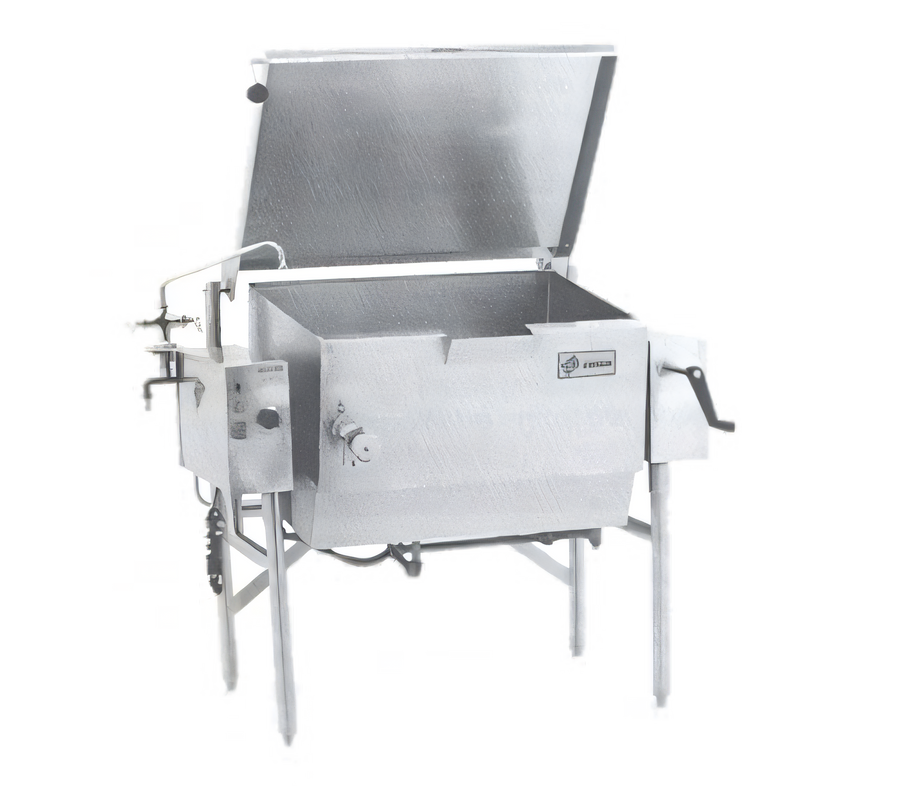

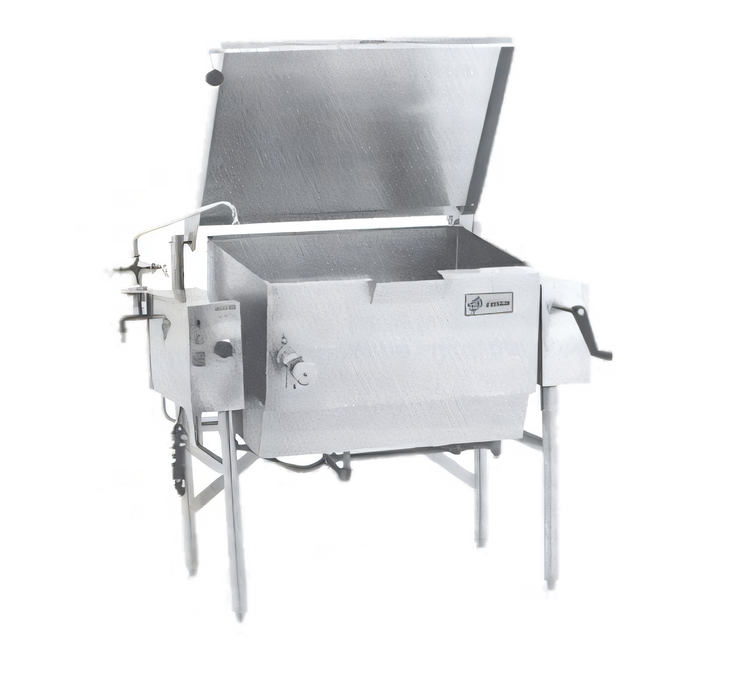

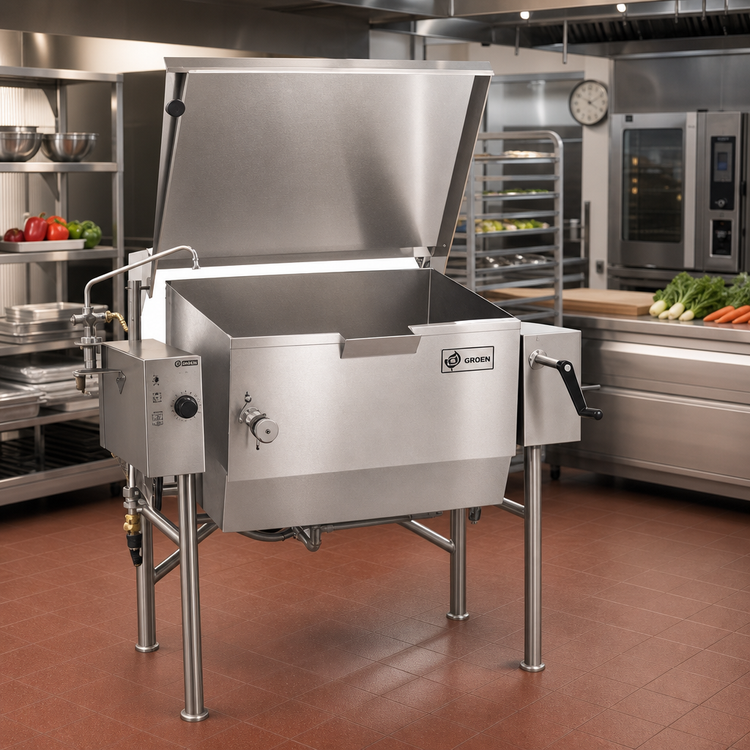

Legion Classic Gas Tilting Skillet – 49 Gal / 120,000 BTU
Model TGSE-2440-11 – Made in the USAEngineered for high-volume, high-versatility kitchens, the Legion Classic manual tilting skillet delivers 49 gallons of precise, even heat in a rugged, all-stainless frame. Whether you’re braising, sautéing, steaming, grilling or holding, its smooth worm-gear tilt and counter-balanced lid make every task safe, fast and effortless.
Why You’ll Love It

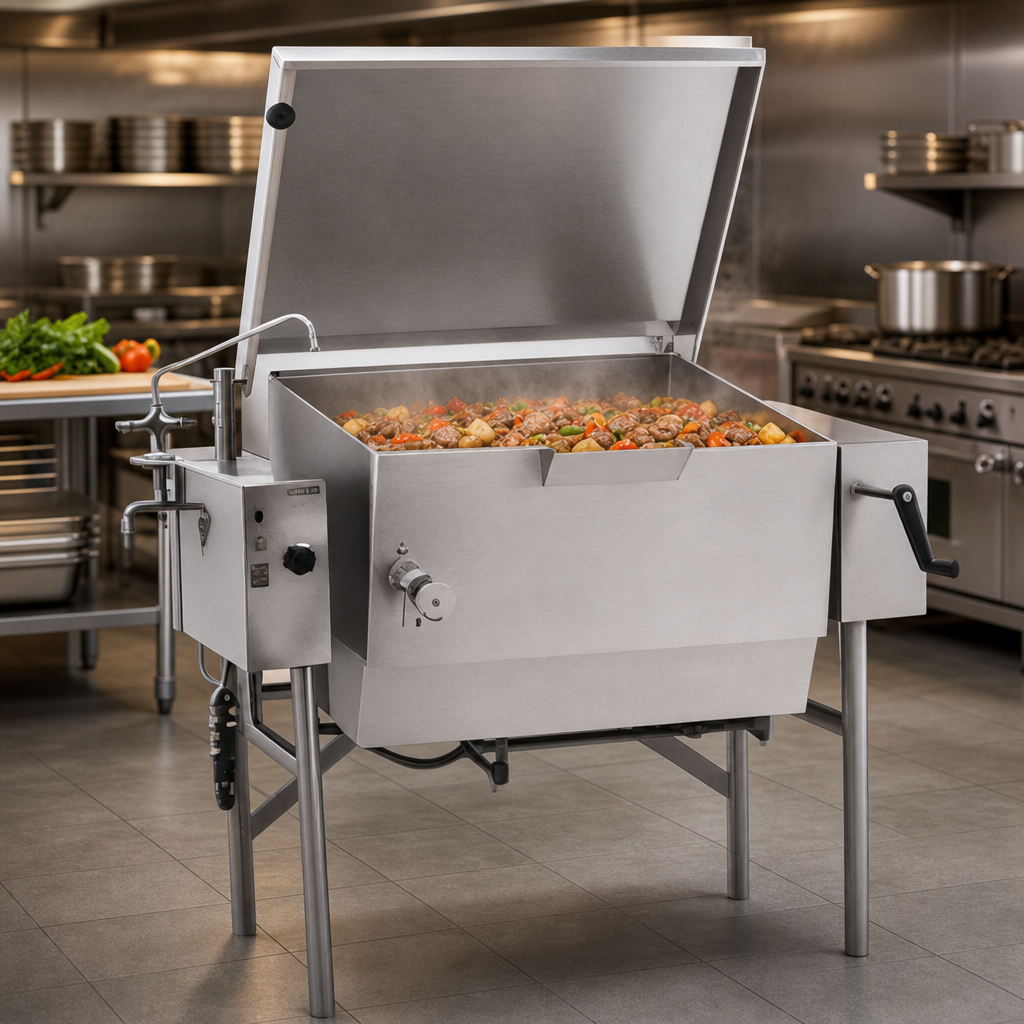

- Massive 49-gallon (6.6 ft³) capacity handles up to 600+ 4 oz portions in one batch.
- Gas-fired burner packs 120,000 BTU/hr for rapid preheat and recovery.
- Electronic direct-spark ignition – reliable starts, no standing pilot.
- Adjustable thermostat 175 – 400 °F + independent high-limit safety.

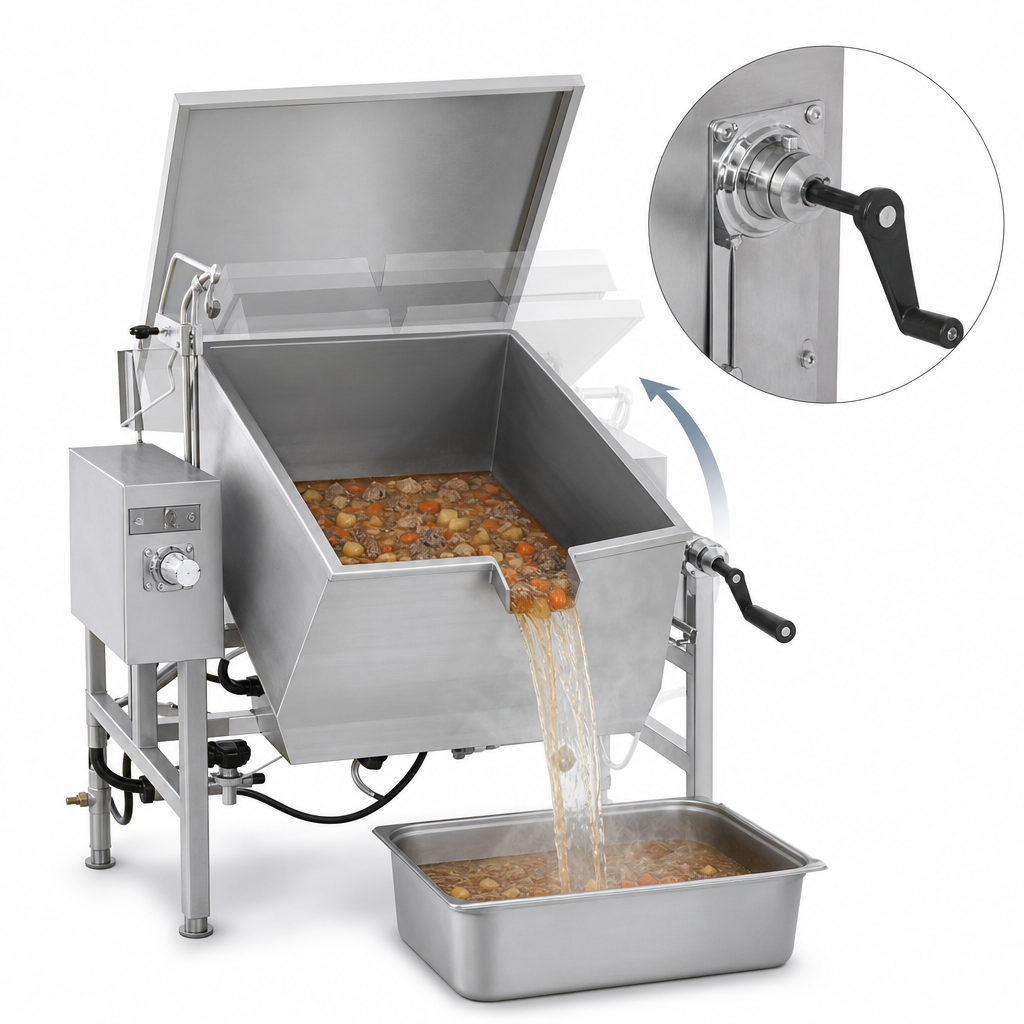

- Self-locking worm-gear tilt rotates >90° for complete pan drainage.
- Patented 304 SS lid with actuator-assisted counter-balance, full-width drip shield & steam vent.
- Seam-welded 304 SS pan, frame, and water-resistant control console for decades of service.
- Adjustable bullet feet level the unit on any kitchen floor.
Built for Volume
The 1,029 in² cooking surface spreads heat evenly across three full-size sheet pans’ worth of area, letting you brown meat, fry chicken, scramble eggs or simmer sauces without hot spots. When service is done, the polished interior cleans up fast with a quick rinse and wipe down.
Technical Specifications
| Capacity | 49 gal | 6.6 ft³ (11 in pan depth) |
|---|---|
| Cooking Surface | 1,029 in² (≈3 full-size sheet pans) |
| Heat Source | Natural gas, 120,000 BTU/hr (Propane rating: 100,000 BTU/hr) |
| Thermostat Range | 175 °F – 400 °F with high-limit cutoff |
| Ignition | Electronic direct spark, 120 V / 1 Ø |
| Tilt Mechanism | Manual, self-locking worm gear, >90° rotation |
| Construction | 304 stainless pan, lid, frame & control console |
| Overall Dimensions | 56.1 in W × 47.5 in D × 36.4 in H (pan rim) |
| Gas Connection | ½ in NPT, 5–7 in w.c. (Nat.) / 12–14 in w.c. (LP) |
| Compliance | NSF, ASME, UL, ETL, CSA & other applicable standards |
Popular Options & Accessories
- 1½ in, 2 in or 3 in draw-off valve with strainer & hose.
- 48 in spray hose assembly (vinyl or stainless).
- Automatic water-fill meter.
- Perforated or solid food-pans, steaming baskets & flat-bottom scoops.
- Adjustable flanged feet or heavy-duty casters with locks.
- Lockable lid & control cover for correctional facilities.
- Electric timer with buzzer.
Contact your Legion representative for a complete option list.
Warranty & Service
The Classic TGSE series includes a 12-month parts & labor warranty (15 months from shipment). Extended coverage up to 3 years is available at the time of purchase.
