Legion  |  Classic  |  SKU: TGSE-2430-9-WC

Legion TGSE-2430-9-WC Classic Braising Pans & Tilt Skillets

$18,760.53
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Braising Pans & Tilt Skillets Specialty Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

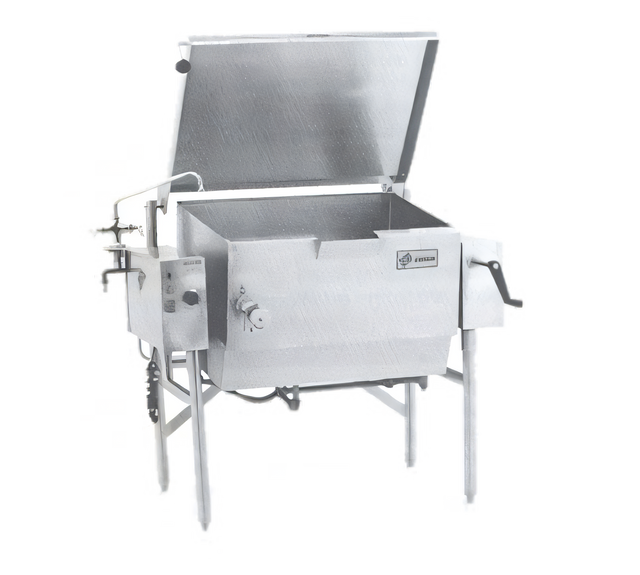

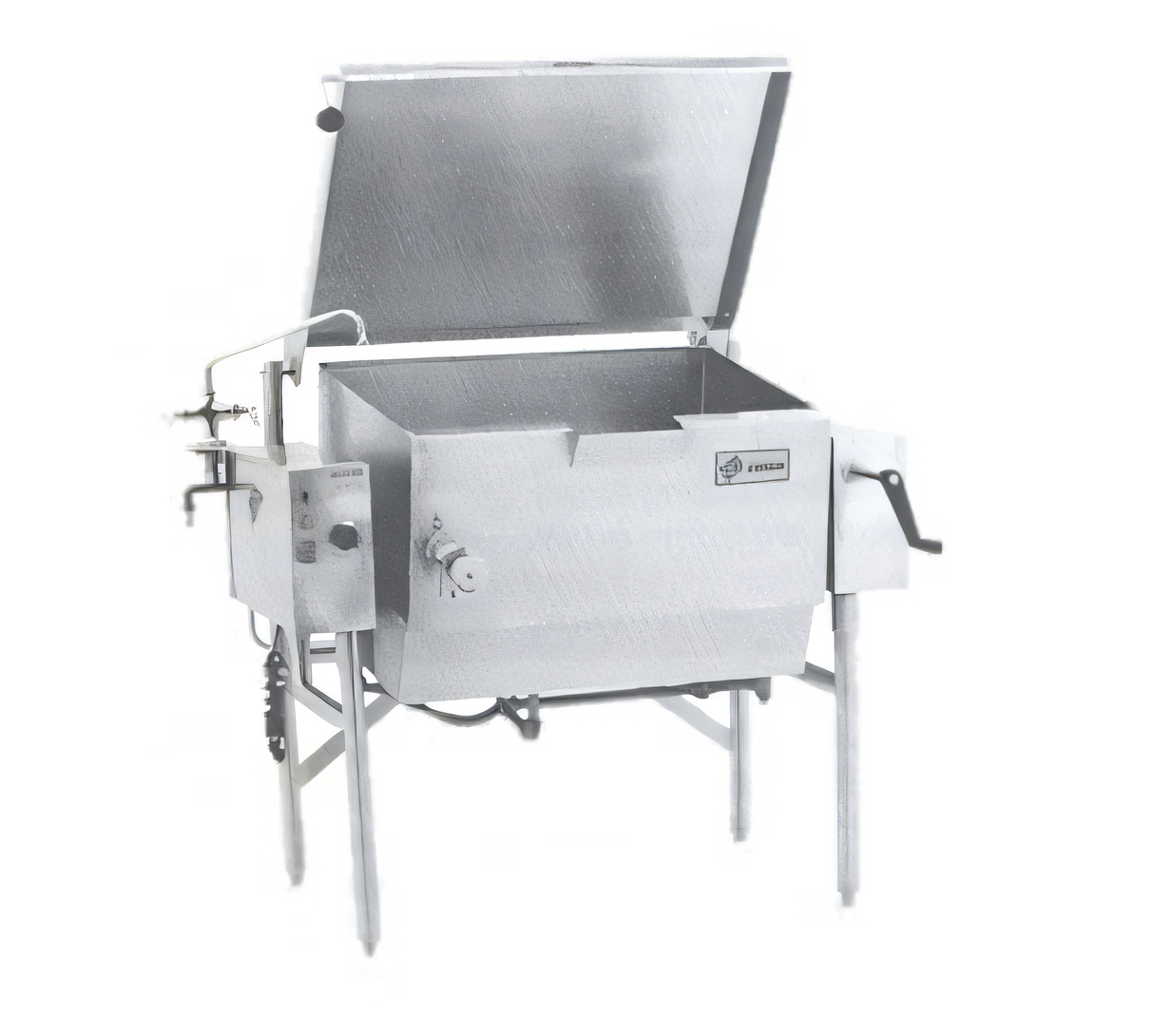

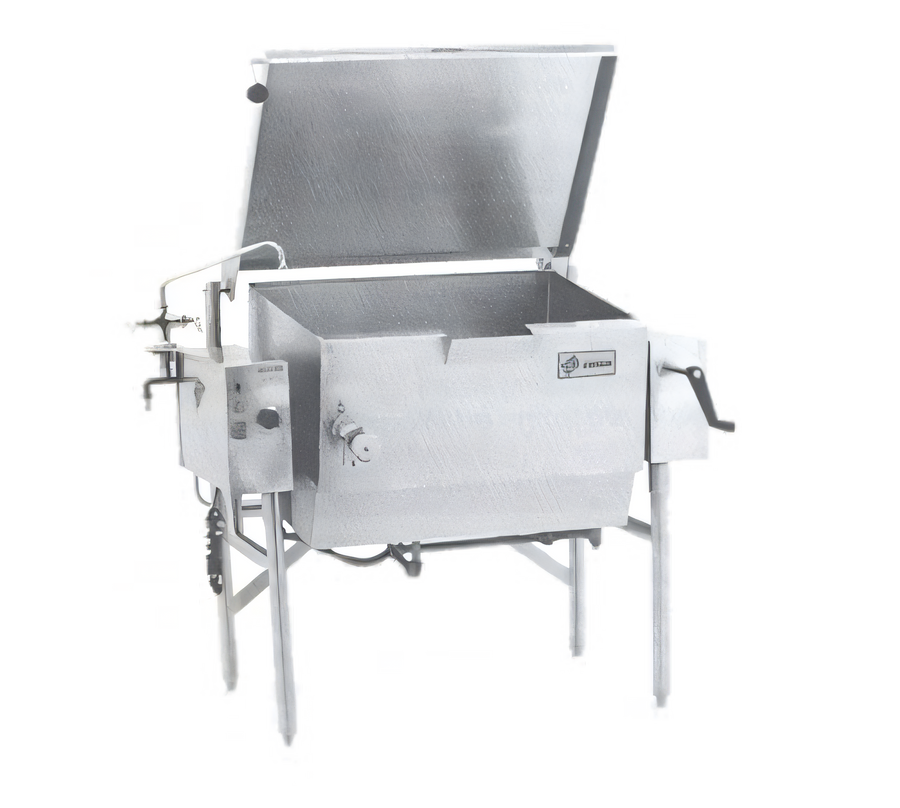

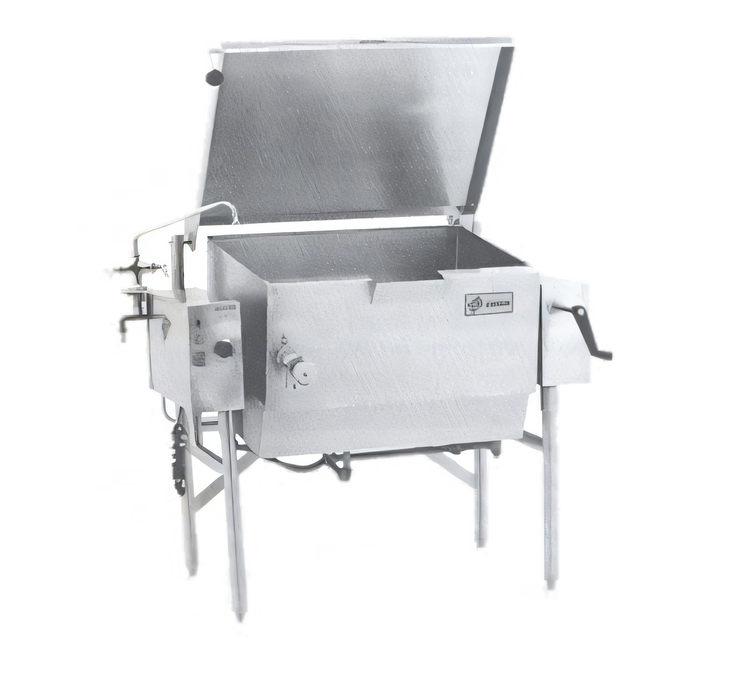

Legion Classic 30-Gallon Wall-Mounted Gas Tilting Skillet

Model TGSE-2430-9 | 90,000 BTU (Natural)

Turn any high-volume kitchen into a powerhouse of productivity with the Legion Classic 30-gallon tilting skillet. Whether you’re browning 45 lb of beef, simmering soup for 450 guests, or batch-frying chicken, its spacious stainless steel pan, precise thermostat, and smooth worm-gear tilt deliver the speed, consistency, and safety that busy operations demand.

Key Features
  • 30-gal (113 L) capacity pan provides 778 in² of usable cooking surface.
  • 304 stainless steel, seam-welded pan with 304 stainless clad cooking surface—exceptional heat transfer & easy clean-up.

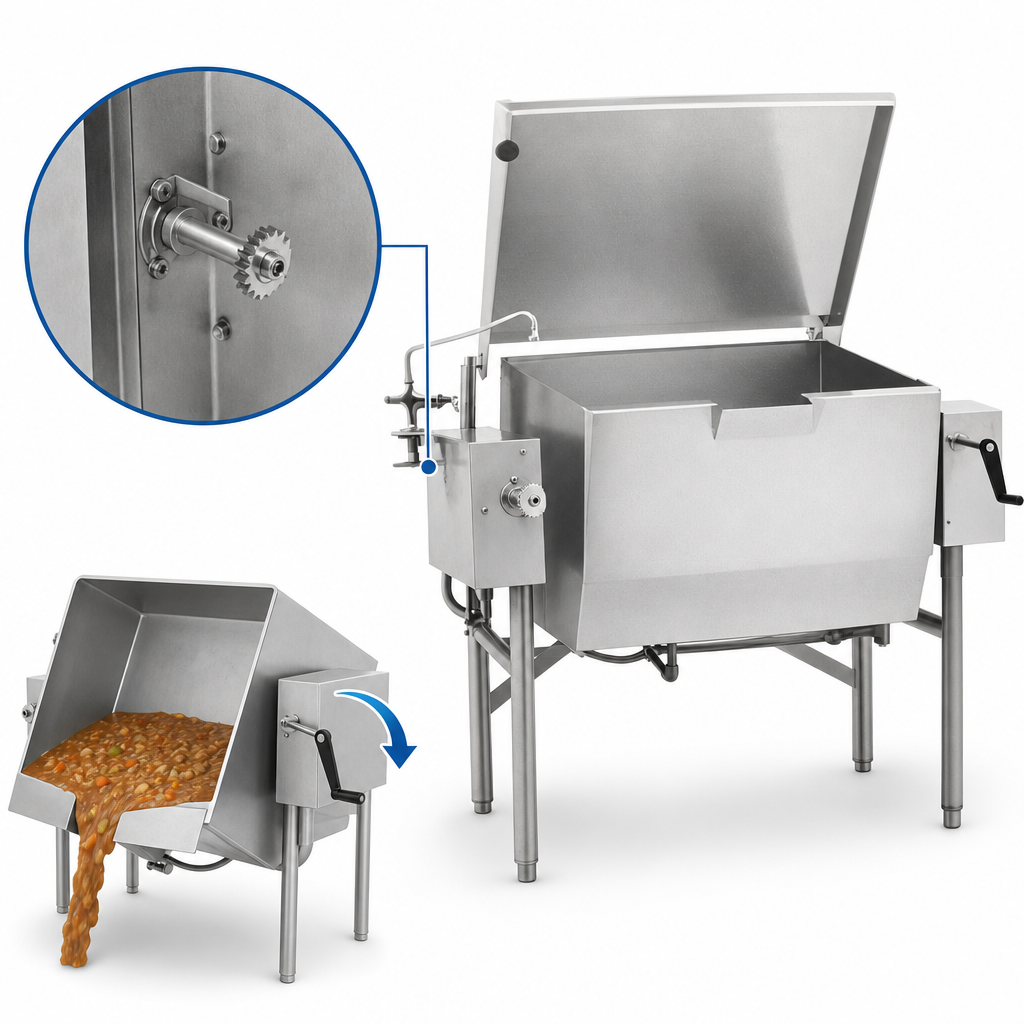

  • Manual, self-locking worm-gear tilting mechanism with center trunnion; rotates more than 90° for complete emptying.
  • Actuator-assisted, counter-balanced lid with full-width condensate drip shield and rear steam vent.
  • Electronic direct-spark ignition and high-output gas burner—90,000 BTU (Natural) / 75,000 BTU (LP).

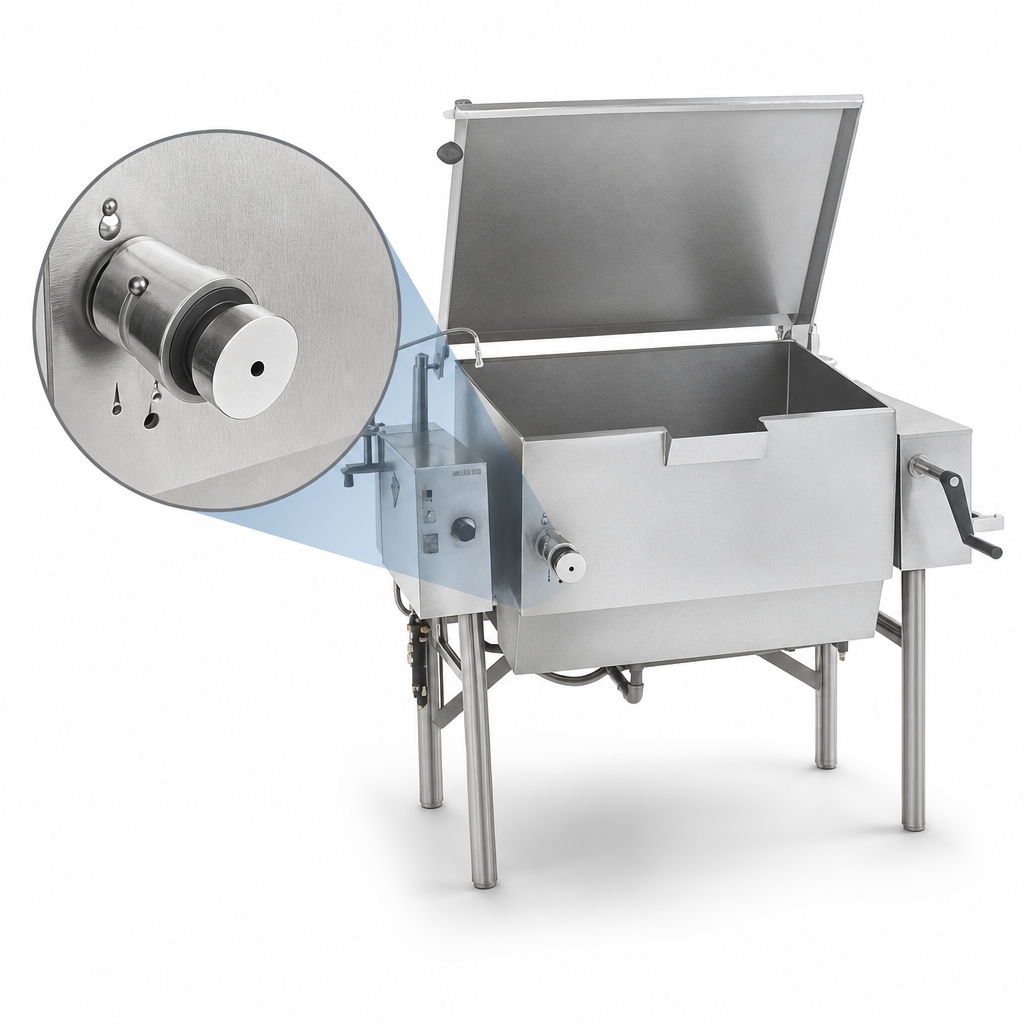

  • Adjustable thermostat 175 °F – 400 °F with built-in high-limit safety thermostat.
  • Wall-mount carrier included—frees floor space and speeds sanitation.
  • Knock-down construction fits through 26" × 66" doorways for hassle-free installation.
  • Water-resistant 304 stainless control consoles and tubular frame stand up to daily wash-downs.
Why a Tilting Skillet?
  • Do the work of a braising pan, griddle, kettle, sauté pan, steamer, and holding cabinet in a single footprint.
  • Large surface area + direct contact heat = faster batch cooking and lower energy costs.
  • Manual tilt eliminates heavy stock-pot lifting, reducing labor and injury risk.
  • Rounded corners and full pour eliminate food traps for superior food safety.
Specifications
Model TGSE-2430-9 (Wall-Mount)
Capacity 30 gal / 113 L
Pan Dimensions (W × L × D) 24" × 30" × 9"
Cooking Area 778 in² (0.50 m²)
Gas Input 90,000 BTU/hr (Natural) • 75,000 BTU/hr (LP)
Gas Connection ½" NPT, rear
Ignition Electronic direct spark
Thermostat Range 175 °F – 400 °F
Electrical 120 V, 1 ph, 1 A (controls & ignition)
Overall Width (A) 31.0"
Front-to-Back (F) 46.1"
Height (lid closed) 36.3"
Construction All 304 stainless steel
Origin Made in U.S.A.
Looking for even more capacity? 40-gallon Classic models are also available—contact us for details.
Popular Options & Accessories (sold separately)
  • Single or dual swing fill faucets (12" or 18" nozzle)
  • 48" stainless or vinyl spray hose assembly
  • Perforated cooking/steaming basket set (11" × 20½" × 5")
  • Pour-lip strainer or pan holder assemblies
  • ½" flexible gas hose with quick disconnect
  • Lockable lid and control cover for correctional applications
Installation Note: Unit requires connection by a licensed gas fitter and electrician. Maintain a minimum pour-path clearance of 33½" (for 9" deep pan) between the rear wall and front of skillet.
Covered by Legion’s 12-month parts & labor warranty. Extended coverage available.

Features & Specs

Manufacturer

Legion

Brand_name

Classic

Shipping Weight

510.0lbs

Tilt

manual tilt

Capacity

30 - 39 gal

Base

wall mount

Specifications

Classic Tilting Skillet, Wall Mounted, Gas, 30-gallon, self-locking worm gear tilt mechanism, adjustable thermostat, lid with actuator-assisted counter balance, stainless steel pan, 90,000 BTU
