Description

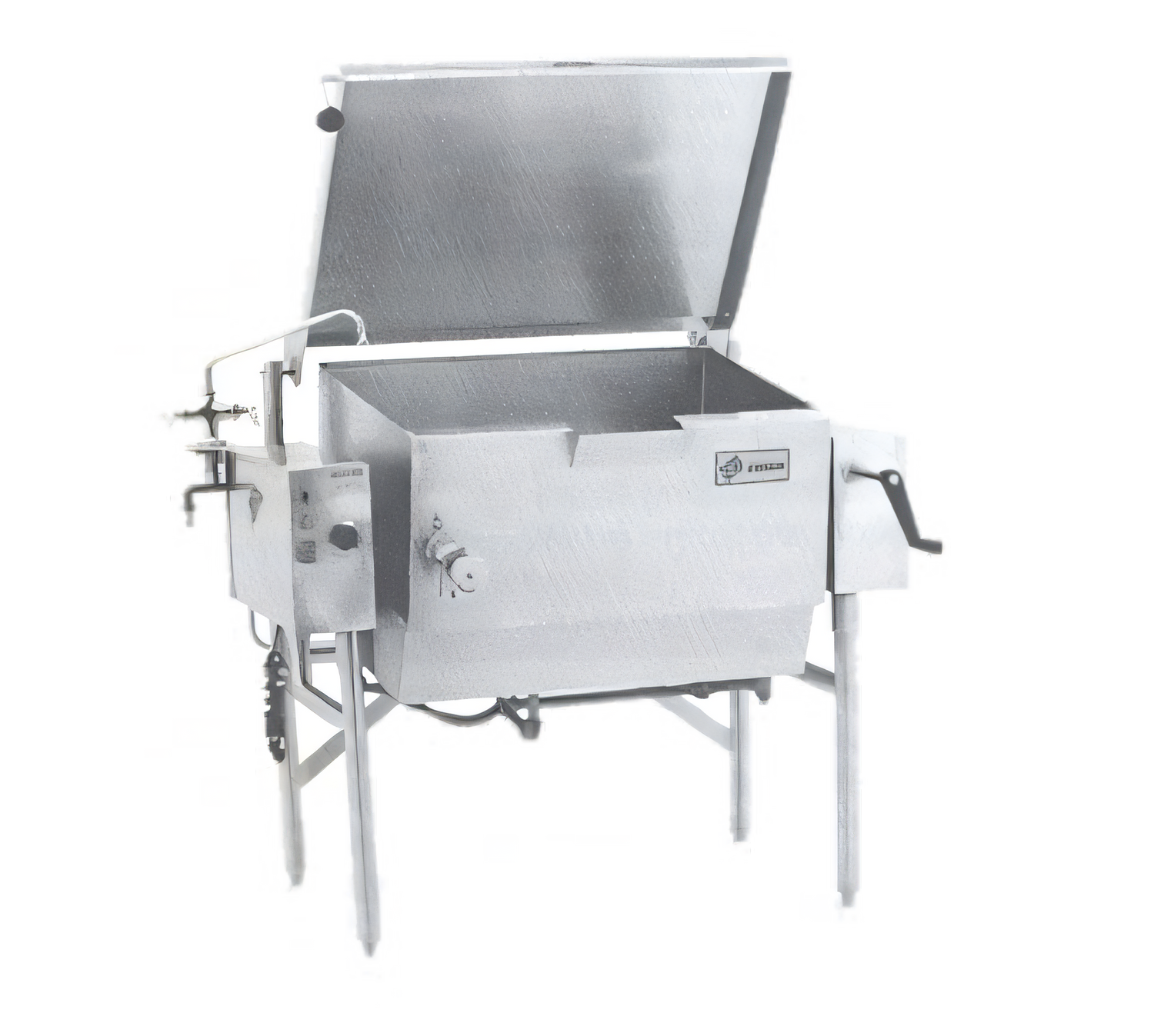

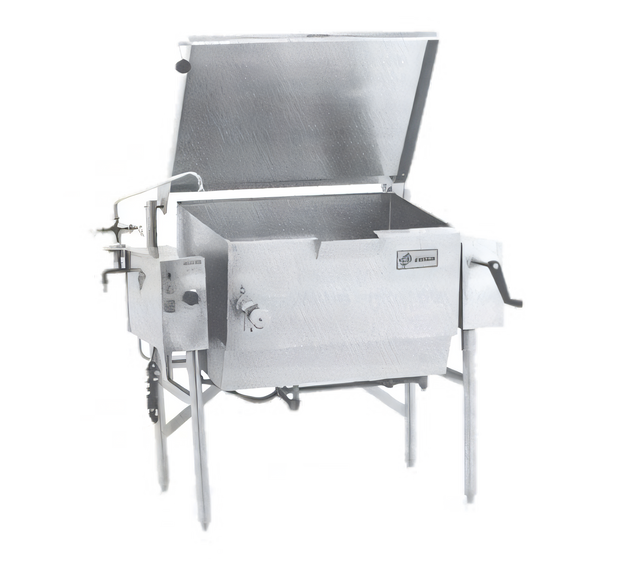

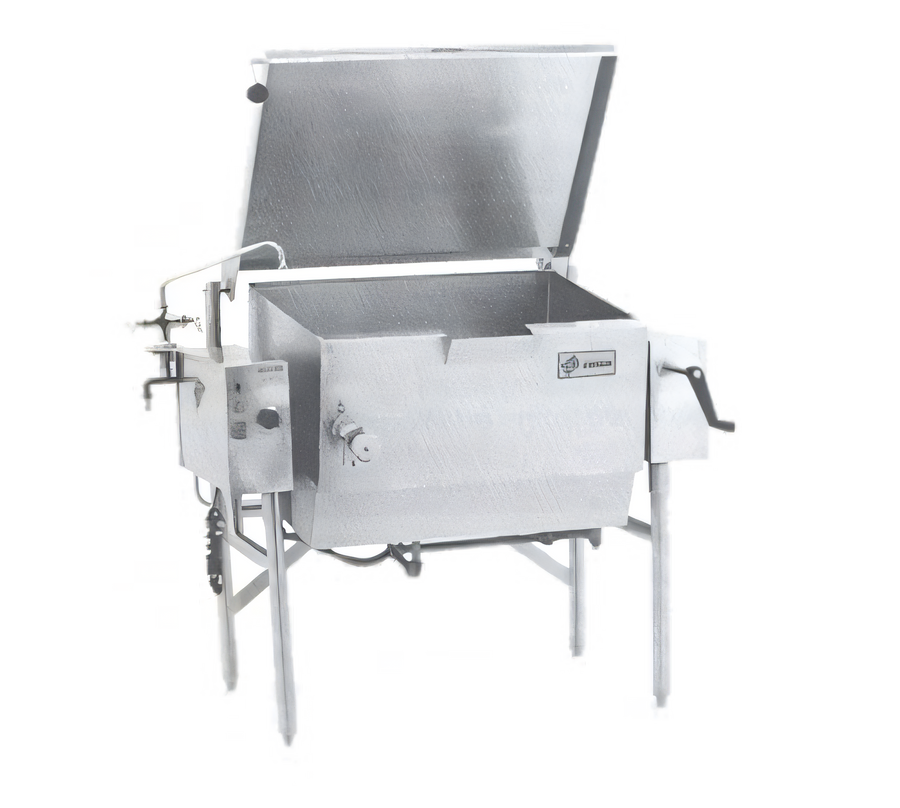

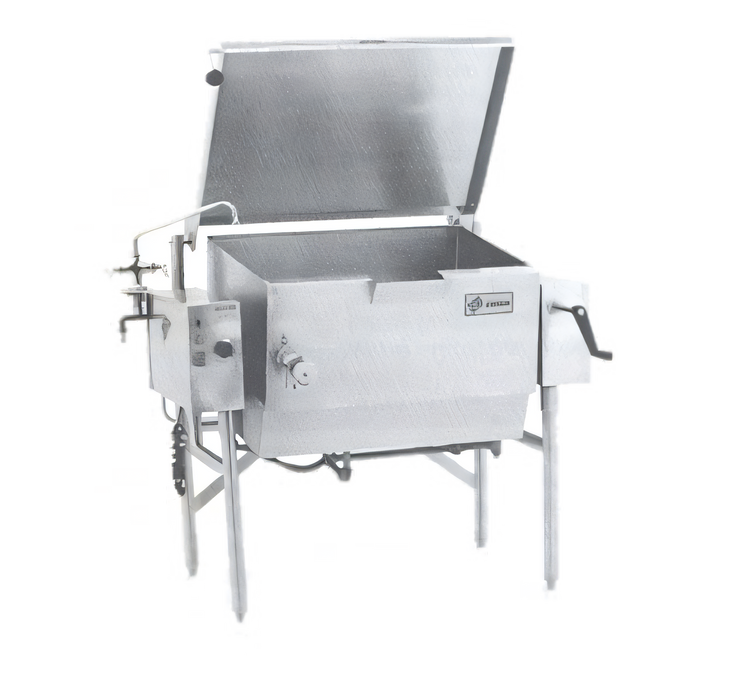

Legion Classic 30-Gallon Gas Tilting Skillet

Model TGSE-2430-9  |  Made in the USA

Engineered for kitchens that demand versatility, speed, and rugged dependability, the Classic 30-Gallon Gas Tilting Skillet from Legion delivers braising, sautéing, steaming, pan-frying, simmering, and griddling—all in one heavy-duty, floor-mounted workhorse.

Why You’ll Love It

  • 30 gal. (113.6 L) capacity—prepare up to 450+ servings per batch.
  • 90,000 BTU natural-gas burner with electronic direct-spark ignition for fast, even heat.

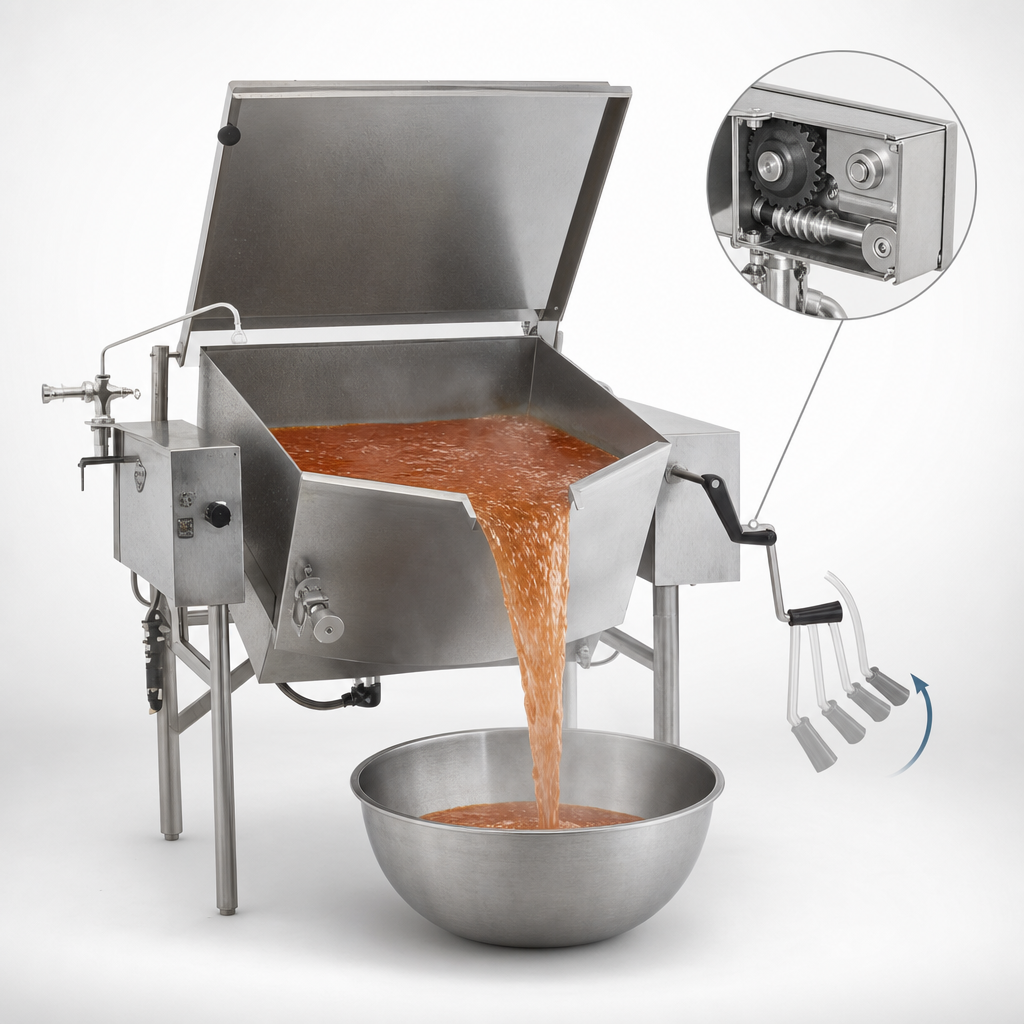

  • 304 stainless, seam-welded pan with center trunnion mount; manual self-locking worm-gear tilt rotates >90° for effortless pour-off.

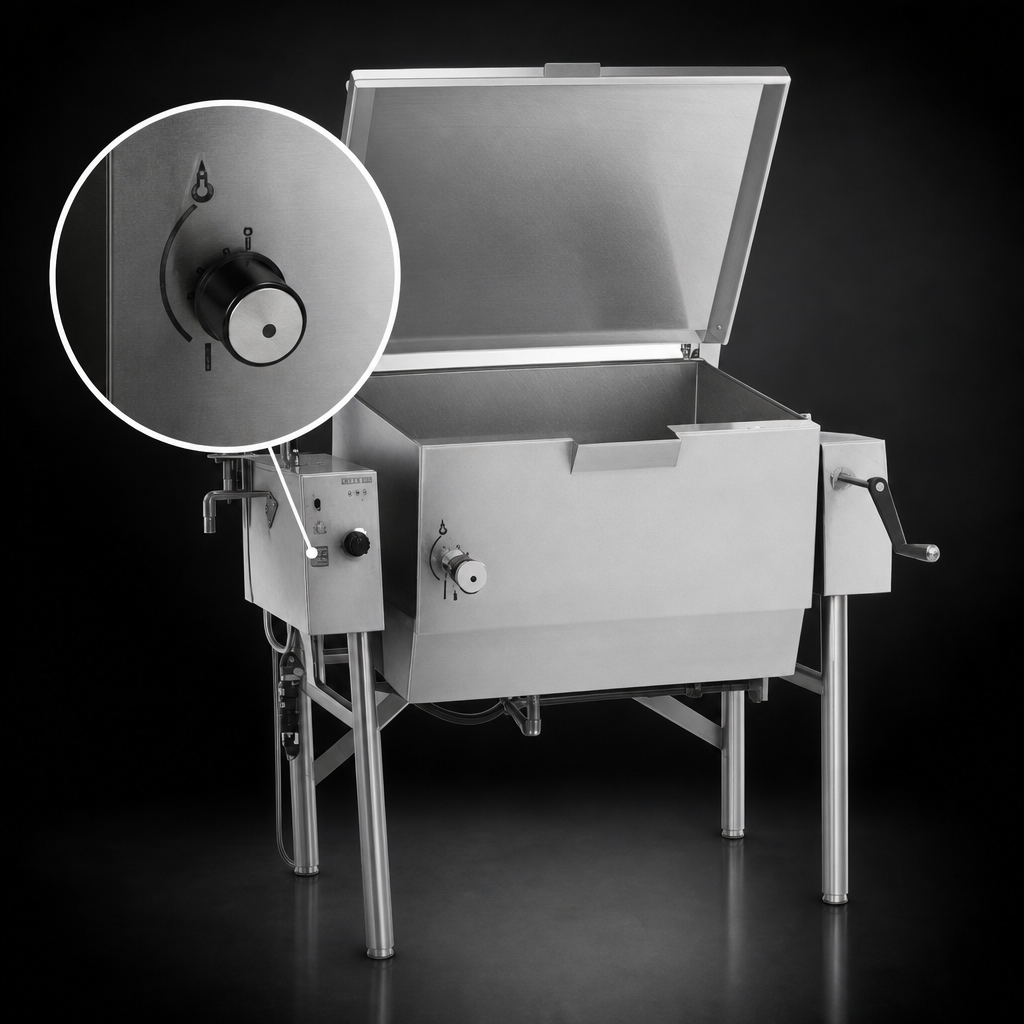

  • Precise thermostat (175°F – 400°F) backed by a high-limit safety cut-off.
  • Patented actuator-assisted counter-balanced lid with full-width condensate drip shield and rear steam vent—keeps operators safe and kitchens cleaner.
  • Water-resistant, reinforced stainless control console rated for the toughest line-ups.
  • Adjustable bullet feet on a tubular stainless frame let you level the unit on uneven floors.
  • NSF, UL, ETL, ASME, CSA compliant; built & assembled in Waynesboro, GA.

Technical Specifications

Usable capacity 30 gal / 113.6 L
Cooking surface 778 in² (5.02 ft²)
Pan depth 9 in. (229 mm)
Heat input 90,000 BTU /hr (Natural)  |  75,000 BTU /hr (LP)
Gas connection ½ in. IPS, rear—Nat. 5-7 in. w.c.  |  LP 12-14 in. w.c.
Temperature control Adjustable thermostat 175°F – 400°F with high-limit safety
Ignition / electrical Electronic direct-spark; 120 V, 1 Ø, 0.5 A
Tilt mechanism Manual, self-locking worm gear; > 90° rotation
Lid construction 304 stainless, actuator-assisted, full-width drip shield & steam vent
Overall dimensions* ≈ 46.1 W × 37.5 D × 36.4 H in. (lid closed)
Shipping weight* ≈ 730 lb (331 kg)
Warranty 12 months parts & labor from installation (15 months from ship date)

*Dimensions and weight are nominal. Consult the spec sheet for detailed rough-in data.

Perfect For

  • High-volume restaurants & cafeterias
  • Correctional & military foodservice
  • Central production kitchens & commissaries
  • Schools, universities, and healthcare facilities
Important: Installation must be performed by a qualified technician in accordance with all local gas and electrical codes. A ½ in. gas supply line, vent hood, and 120 V receptacle are required.

Factory Options & Accessories

  • 1½ in. or 2 in. draw-off valve with strainer &/or hose
  • 48 in. flexible spray rinse hose (single or dual faucet)
  • Automatic water-fill meter
  • Perforated steaming baskets, food pans & fry scoops
  • Lockable lid & control cover for correctional use
  • Swivel casters with locks & seismic restraining kit
  • Electric timer with buzzer alert

Need a different capacity or electric model? Explore the full Legion Classic TGSE line →

Features & Specs

Manufacturer

Legion

Brand_name

Classic

Shipping Weight

510.0lbs

Capacity

30 - 39 gal

Tilt

manual tilt

Base

open frame

Specifications

Classic Tilting Skillet, Gas, 30-gallon, self-locking worm gear tilt mechanism, adjustable thermostat, lid with actuator-assisted counter balance, stainless steel pan and frame, adjustable bullet feet, 90,000 BTU
