Legion TGSE-2430-7-WC Classic Braising Pans & Tilt Skillets
Description

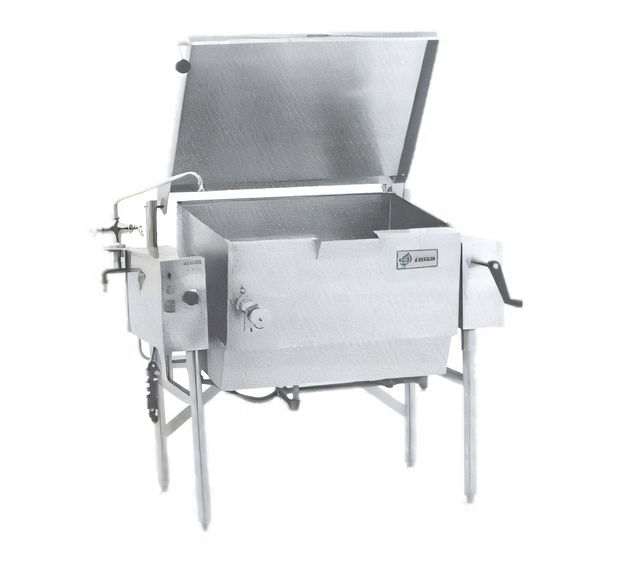

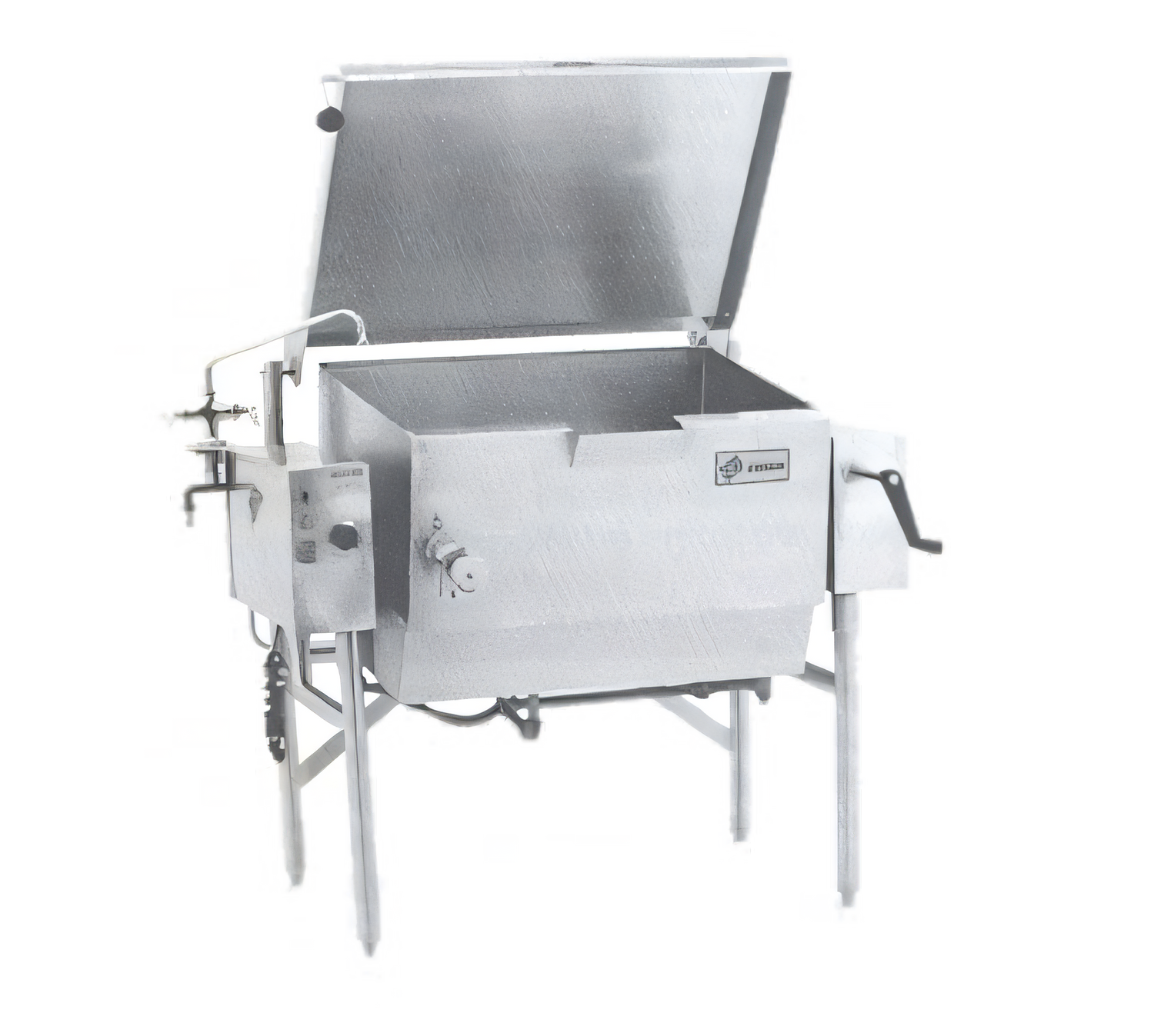

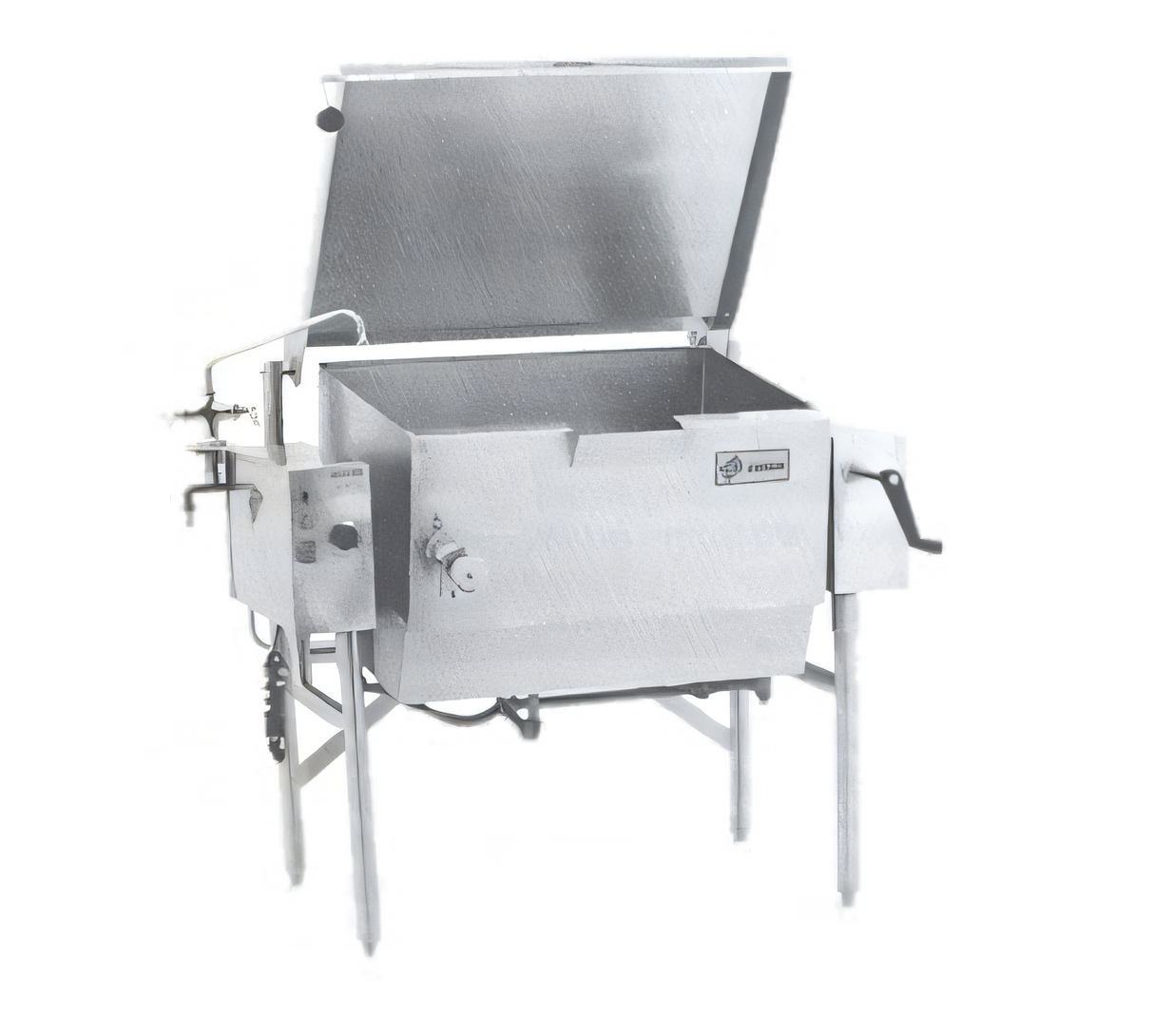

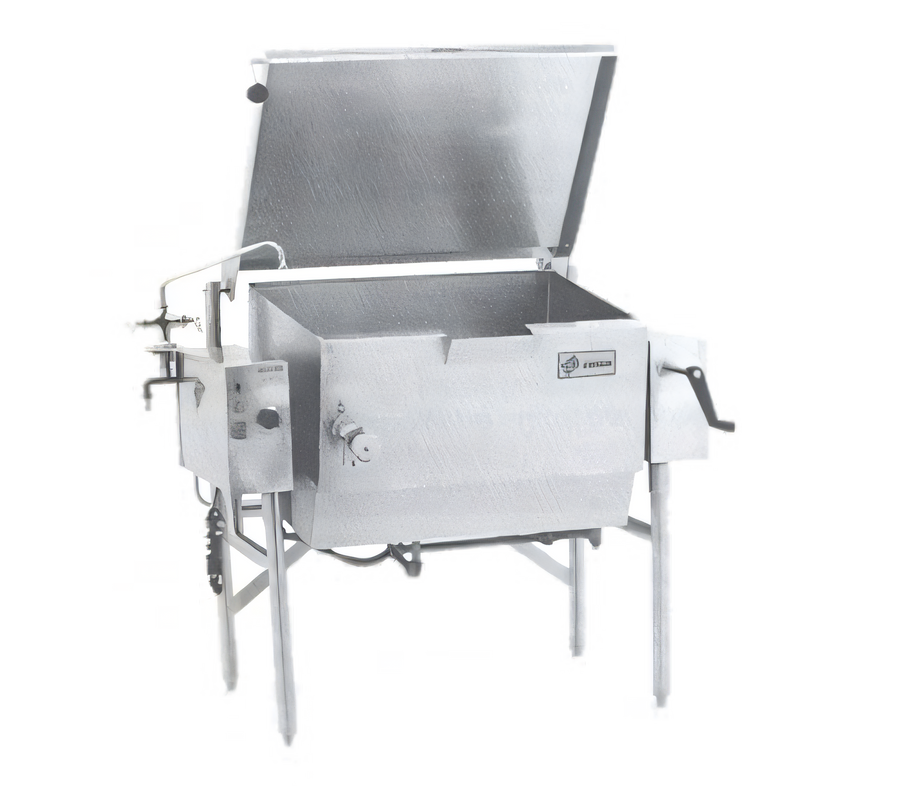

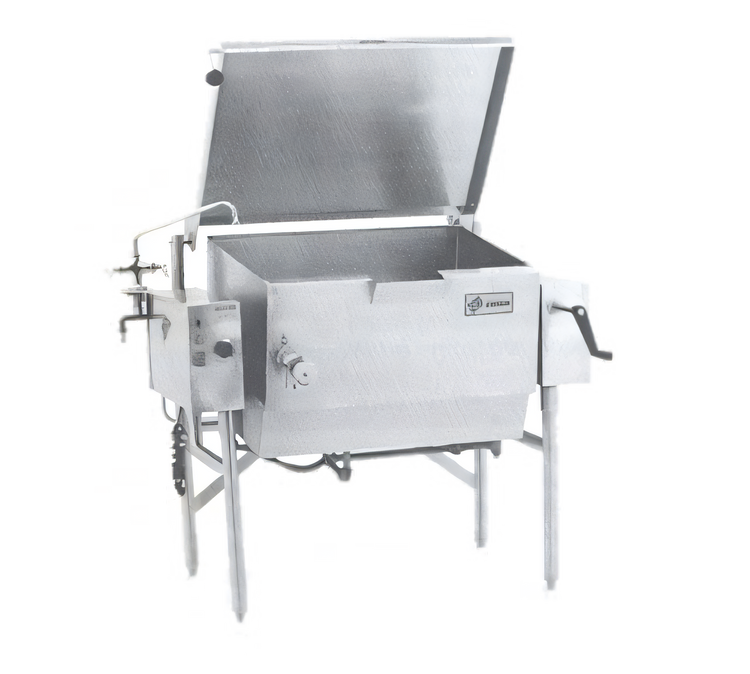

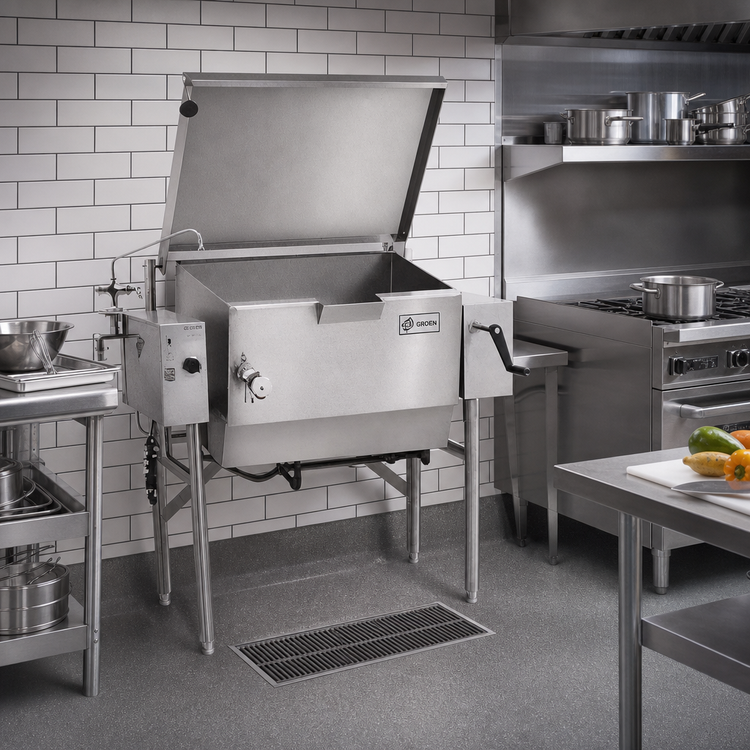

Legion Classic 23-Gallon Wall-Mounted Gas Tilting Skillet

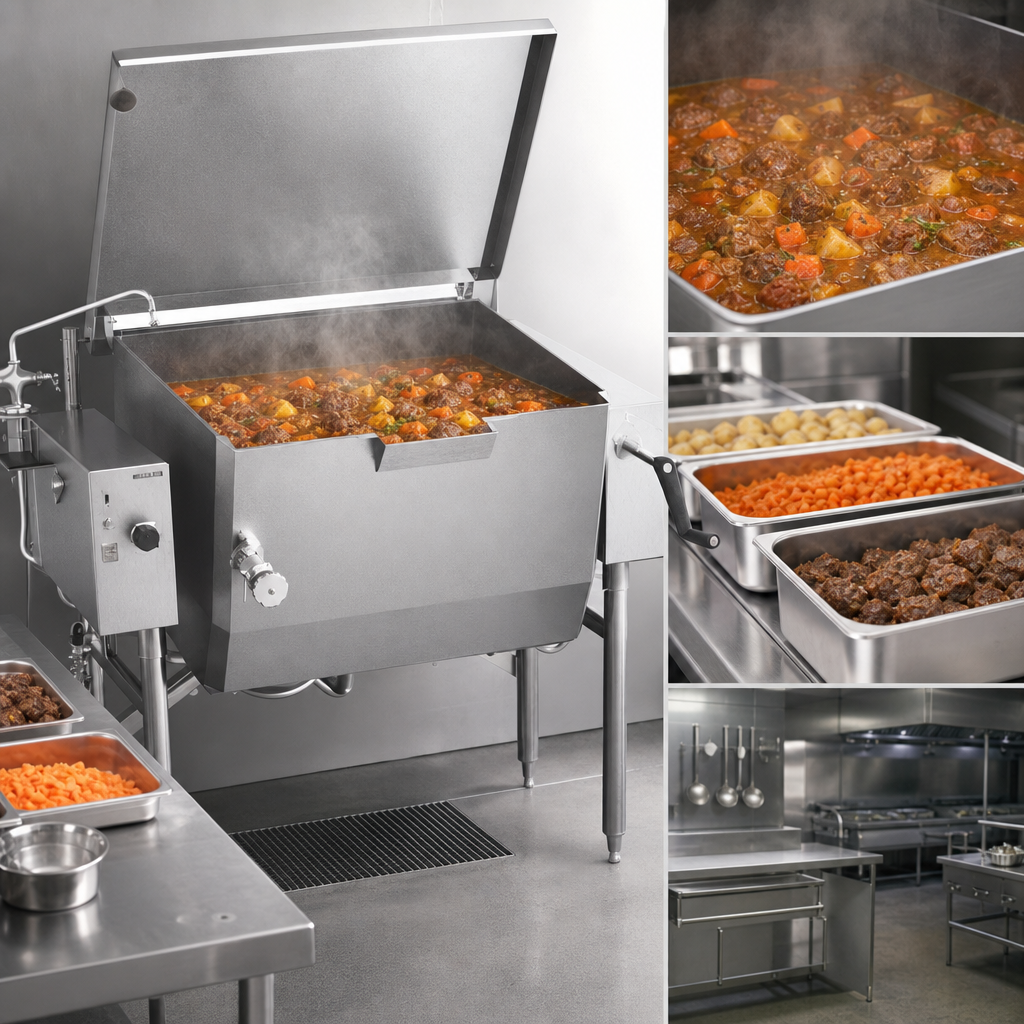

Model TGSE-2430-7Put the power of a full kitchen into a single, space-saving appliance. With a 23 gallon (87 L) capacity and a 90,000 BTU gas burner, the Legion Classic wall-mounted tilting skillet sears, braises, sautés, steams, or simmers anything from breakfast scrambles to dinner service sauces—then tilts effortlessly for fast, controlled pour-off.
Why you’ll love it
- 304 SS seam-welded pan—24 × 30 in (778 in²) cooking surface
- Manual self-locking worm-gear tilt rotates > 90° for complete drainage
- Actuator-assisted, counter-balanced lid with drip shield & rear steam vent
- Adjustable thermostat 175 °F – 400 °F with high-limit safety cut-off
- Electronic direct-spark ignition on a powerful 90,000 BTU burner

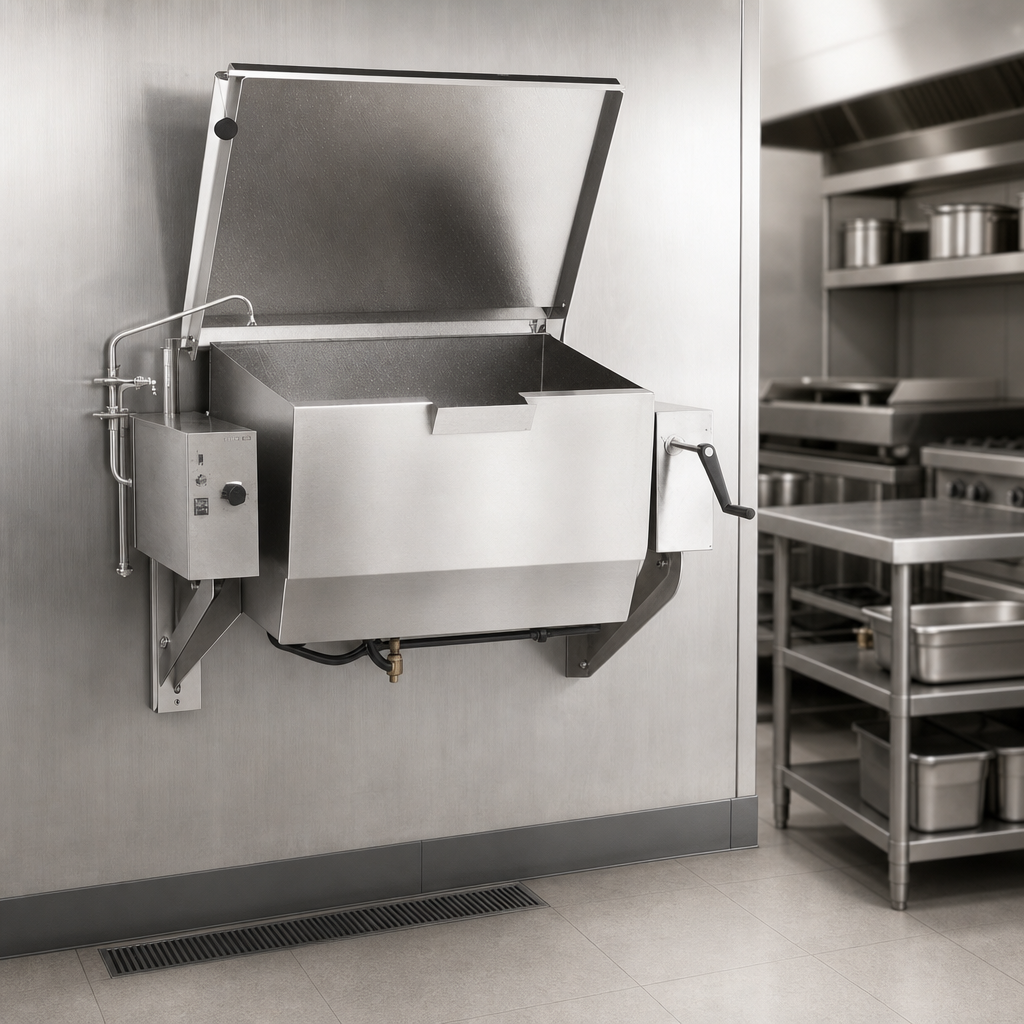

- Wall-mount carrier saves floor space & simplifies cleaning beneath the unit
- Knock-down frame fits through a 26 × 66 in opening for easy installs
- Made in the USA; NSF, UL, CSA & ASME compliant
Performance advantages
- Even heat distribution eliminates hot spots for perfectly browned product
- Full-width pour lip ensures smooth, spill-free transfers into hotel pans or kettles
- Replaces multiple pots, pans and griddles—slash clean-up time & labor
- Single 120 V, 1 A connection (cord & plug included) powers ignition & controls
Specifications
| Capacity | 23 gal / 87 L |
|---|---|
| Pan depth | 7 in (178 mm) |
| Cooking surface | 24 in × 30 in (778 in²) |
| BTU input | 90,000 BTU /hr (Natural Gas) • 75,000 BTU /hr (Propane option) |
| Gas connection | ½ in NPT; inlet 5 – 7 in w.c. (NG) / 12 – 14 in w.c. (LP) |
| Electrical | 120 V, 1 Ø, 1 A (ignition & controls) |
| Tilt mechanism | Manual worm gear, self-locking |
| Overall dimensions (W × D × H) | 31.0 × 46.1 × 37.5 in |
| Minimum pour-path clearance | 31.5 in from wall |
Popular accessories
- Single or dual swing-nozzle fill faucet with wall bracket (12 in or 18 in reach)
- 48 in stainless flexible spray hose assembly
- Perforated cooking/steaming baskets (11 × 20½ × 5 in)
- Pour-lip strainer or pan holder assembly
- 1½ in or 2 in draw-off valve kit & drain hose
- Lockable lid or control cover for correctional installations
Don’t see the option you need? Ask—Legion skillets are built to order with a wide range of factory-installed accessories.
Warranty
Includes 12-month parts & labor coverage from date of installation, extendable up to three years.
