Legion TGSE-2430-7 Classic Braising Pans & Tilt Skillets
Description

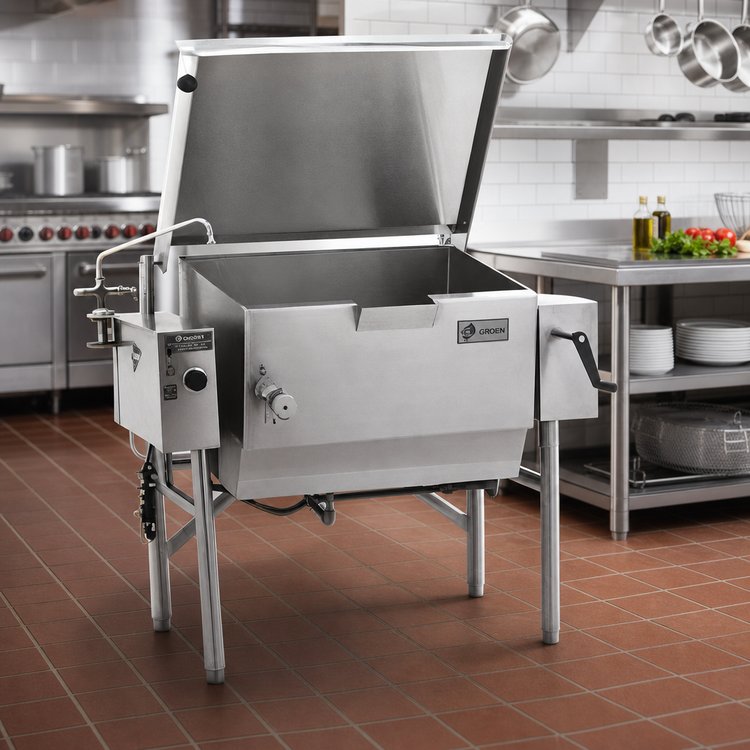

Legion Classic 23-Gallon Gas Tilting Skillet – Model TGSE-2430-7
Manual worm-gear tilt • 90,000 BTU • Made in USABuilt for high-volume, multi-method cooking, the Legion Classic TGSE-2430-7 brings 23 gallons of heavy-duty performance to your commercial kitchen. From braising and searing to steaming, frying, or holding, this floor-mounted tilting skillet delivers precise temperature control, effortless manual tilting, and rock-solid 304 stainless-steel construction that stands up to the busiest service.
Why You’ll Love It
- 304 stainless, seam-welded pan with 778 in² cooking surface & 7 in. depth.

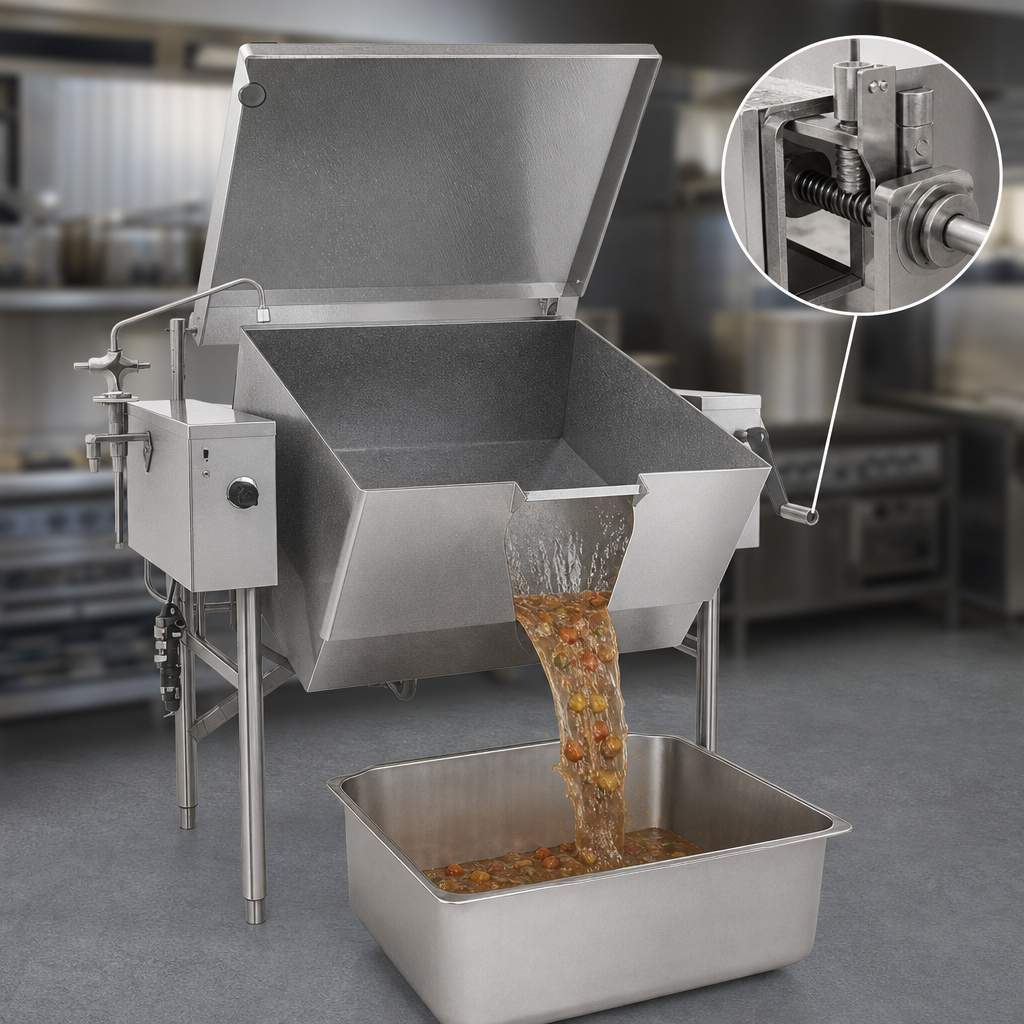

- Self-locking worm-gear mechanism tilts the pan smoothly past 90° for complete emptying.
- Electronic direct-spark ignition and adjustable thermostat (175 °F – 400 °F) for fast, accurate heat.
- High-limit safety thermostat prevents overheating and protects the equipment.
- Patented 304 stainless safety lid with actuator-assisted counterbalance, full-width condensate drip shield, and rear steam vent.
- Water-resistant, reinforced control console and tubular stainless frame with adjustable bullet feet.
- 120 V, 1 Ø connection powers ignition and controls—no separate transformer required.
- Built to meet or exceed ASME, NSF, UL, ETL, AGA, CSA, & CGA standards.
Performance & Safety
- 90,000 BTU natural gas burner (75,000 BTU LP) delivers rapid pre-heat and recovery.
- Center-trunnion mount keeps the pan balanced at every angle.
- Full-width 304 stainless safety handle stays cool to the touch.
- High-temperature silicone seals and seam-welds stop leaks and make cleanup easy.
Optional Upgrades (Sold Separately)
- 1½ in. or 2 in. draw-off valve with perforated strainer or hose kit.
- Dual or single fill faucet with 48 in. vinyl or stainless spray hose.
- Electric timer with buzzer, lockable lid & control cover, casters, security fasteners, and more.
Technical Specifications

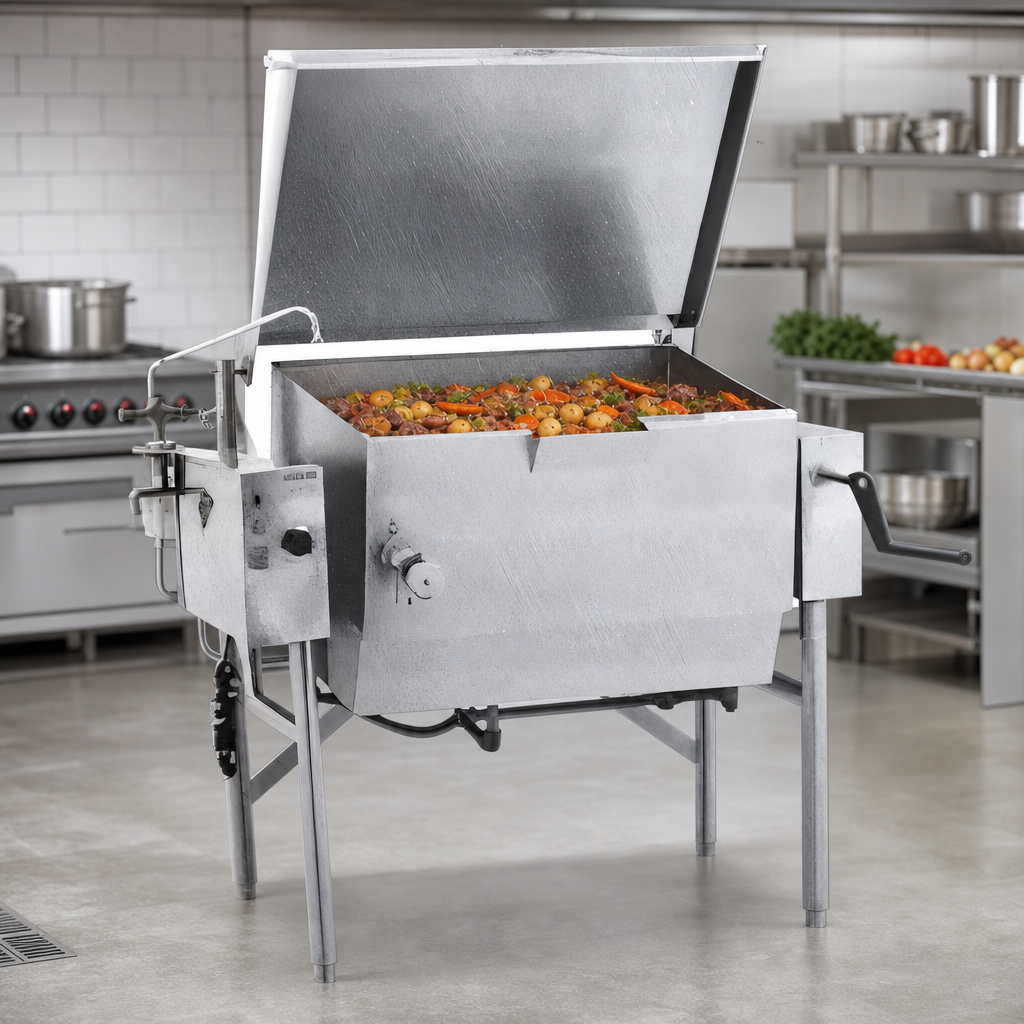

| Capacity | 23 gal | 3.2 ft³ |
|---|---|
| Cooking Surface Area | 778 in² |
| Pan Depth | 7 in. |
| BTU Input | 90,000 BTU (Natural) | 75,000 BTU (LP) |
| Temperature Range | 175 °F – 400 °F (adjustable) |
| Gas Connection | ½ in. IPS; 5–7 in. w.c. (Nat) / 12–14 in. w.c. (LP) |
| Electrical | 120 V, 1 Ø, 1.0 A (ignition & controls) |
| Overall Dimensions (WxDxH) | 31.0 in. × 46.1 in. × 38.75 in. (pan closed) |
| Net Weight | Approx. 510 lb |
| Construction | 304 stainless seam-welded pan, frame, lid & control console |
| Country of Origin | USA |
Perfect For
- Hotels & resorts
- High-volume restaurants & catering operations
- Schools, universities & correctional facilities
- Healthcare & senior-living kitchens
Covered by Legion’s 12-month parts & labor warranty from date of installation (or 15 months from shipment).
