Legion TGSE-2430-11 Classic Braising Pans & Tilt Skillets
Description

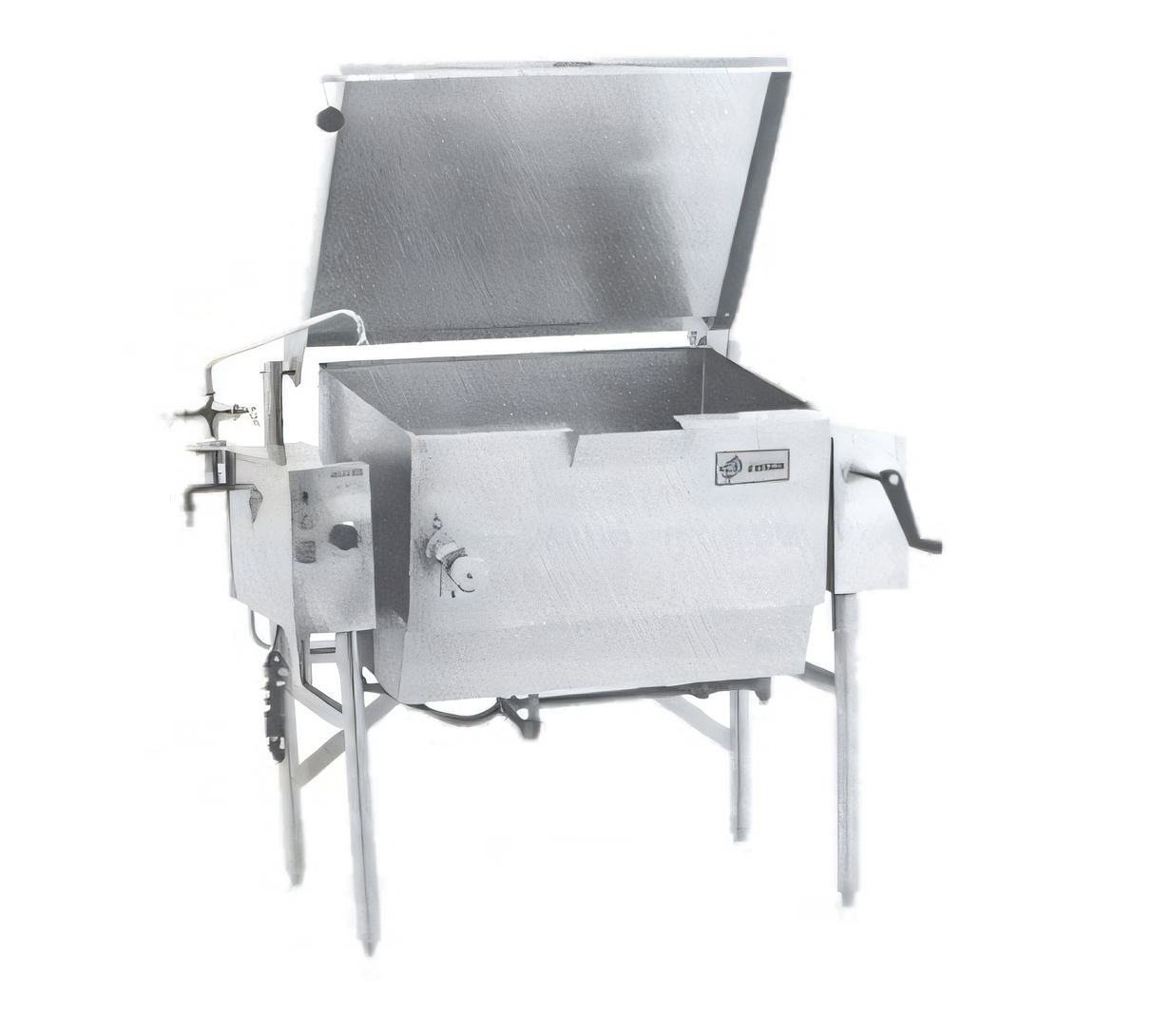

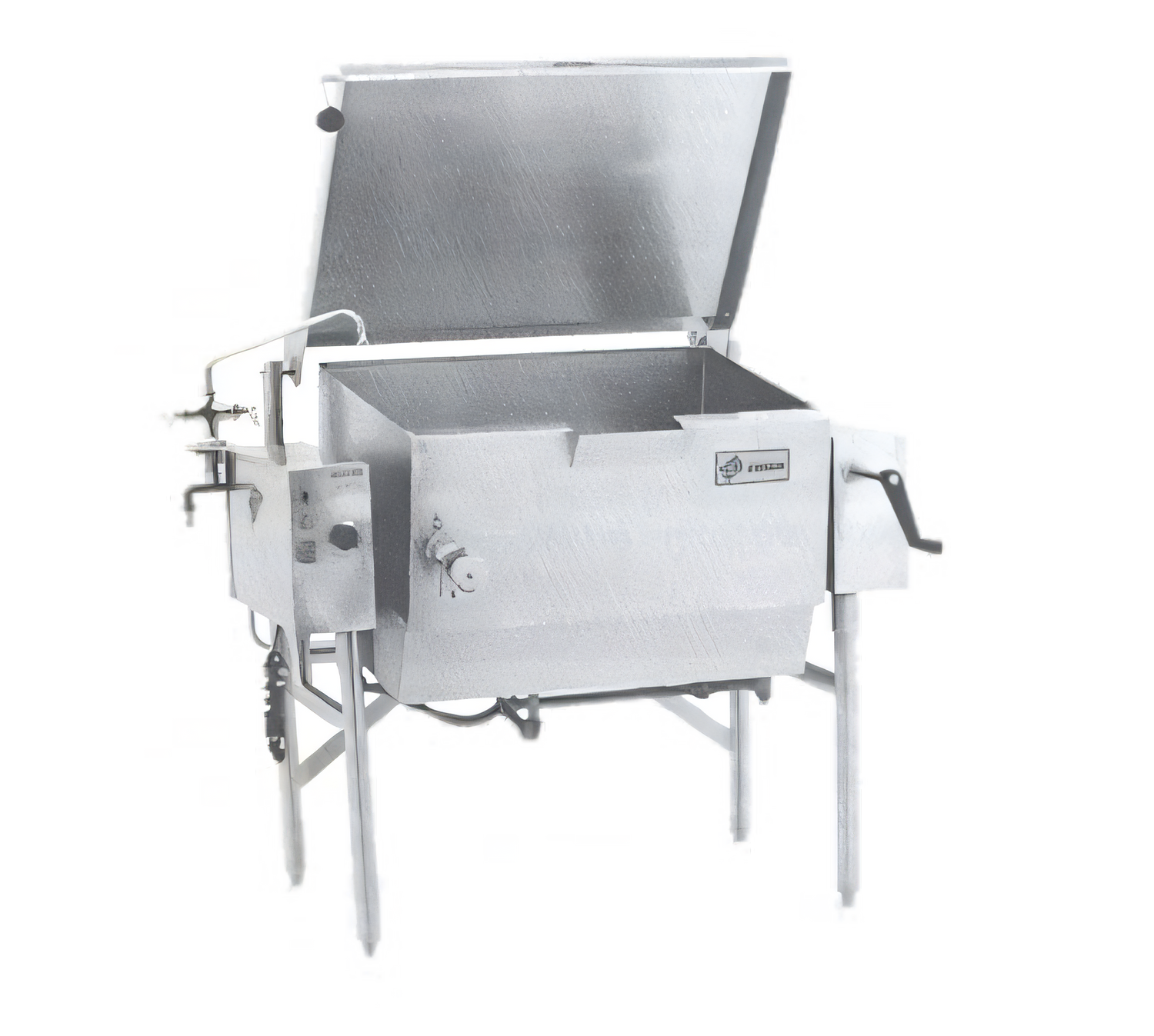

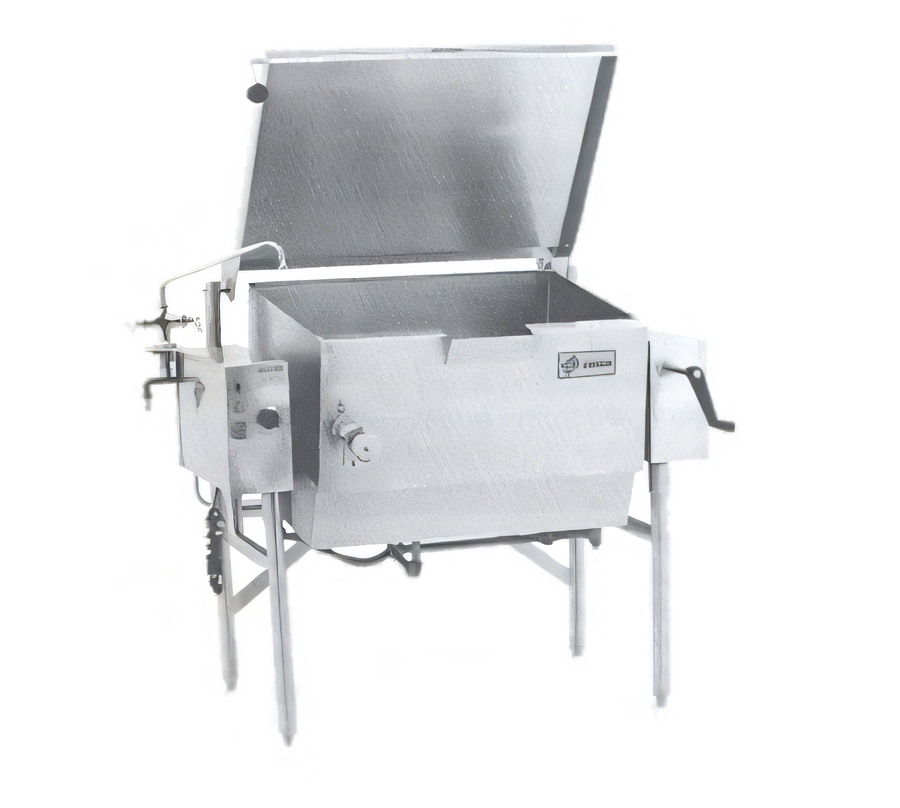

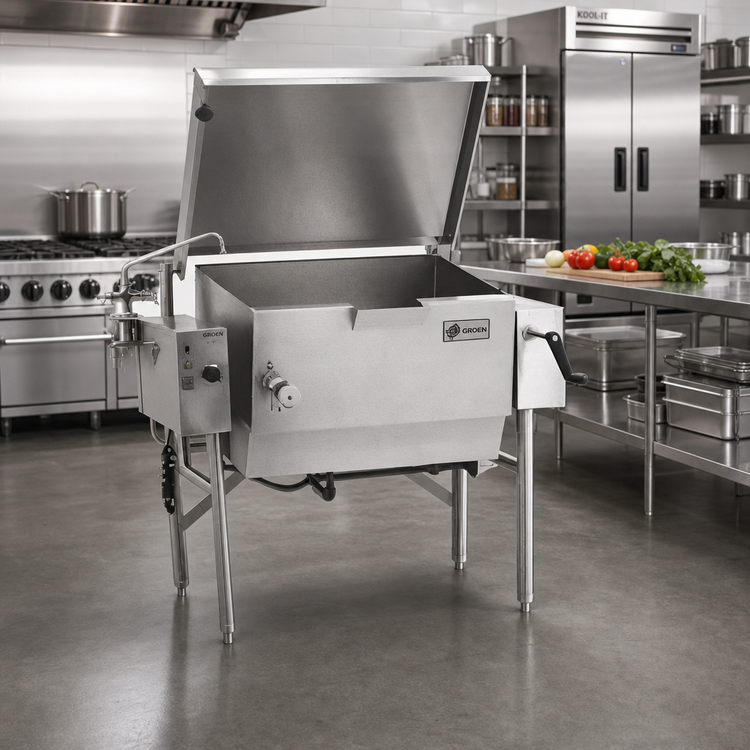

Legion Classic TGSE-2430-11 Gas Tilting Skillet
37 gal (140 L) • 90,000 BTU • Made in USAEngineered for high-volume, high-versatility kitchens, the Legion Classic TGSE-2430-11 delivers braising, sautéing, simmering and pan-frying power in one rugged, floor-mounted package. A seamless 304 SS pan, manual worm-gear tilt and precision thermostat give chefs total control from 175 °F to 400 °F, while its 37-gallon capacity keeps service moving when every cover counts.
Why You’ll Love It
- 37 gal / 5.0 cu ft capacity handles up to 90 lb of ground meat or 45 qt of soup per batch.
- Gas-fired burner with 90,000 BTU input (natural gas) and electronic direct-spark ignition for fast, even heat.

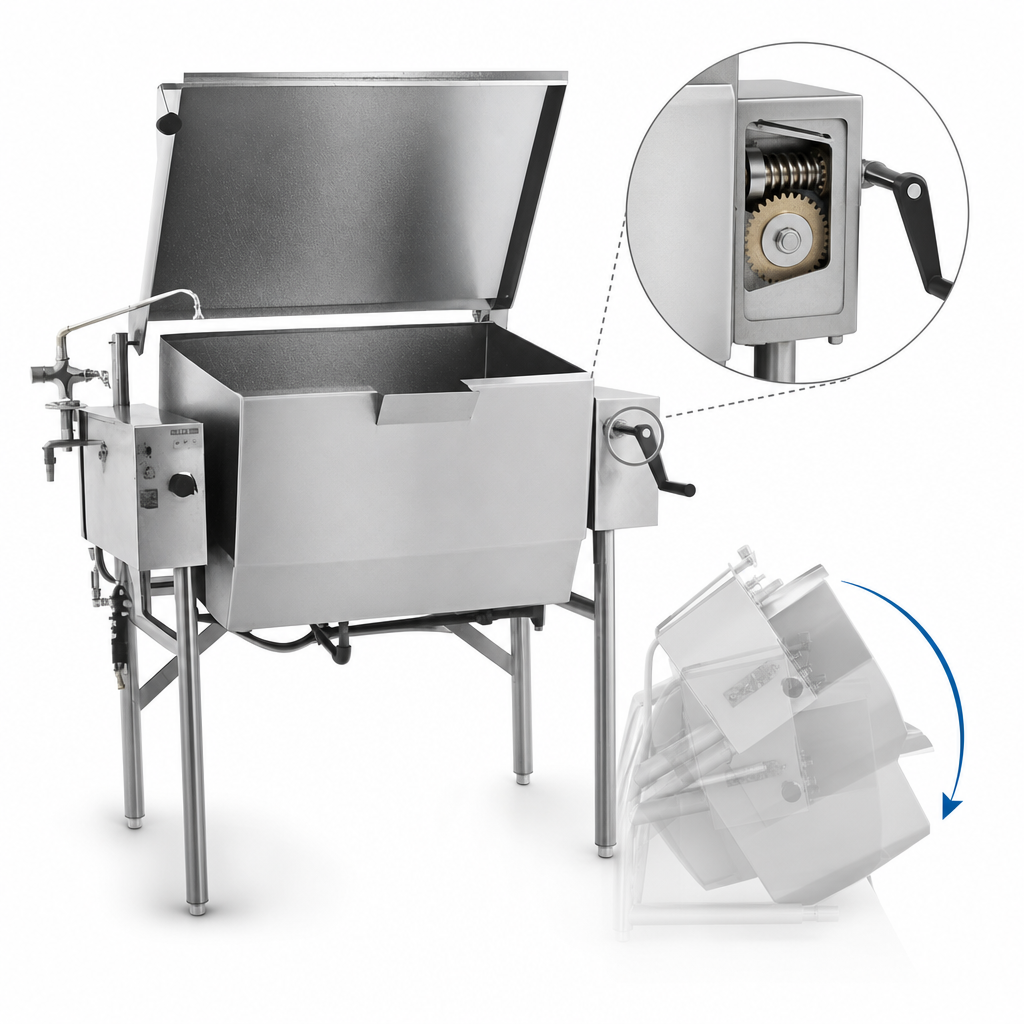

- Manual, self-locking worm-gear tilt rotates more than 90° for complete emptying and easy cleaning.
- Seam-welded 304 SS pan body with 778 in² cooking surface—no rivets, no crevices, no hassle.
- Actuator-assisted counter-balanced lid with full-width drip shield and rear steam vent keeps operators safe and kitchens cleaner.
- Factory-set high-limit safety thermostat prevents overheating and protects product.
- 120 V, 1-phase control circuit; reinforced, water-resistant 304 SS console stands up to the toughest lines.
- Adjustable bullet feet level the unit on uneven floors; optional flanged feet or casters available.
Ideal Applications
- Institutional batch cooking—schools, healthcare & corrections
- High-volume restaurants, hotels & catering operations
- Central kitchens & commissaries looking to consolidate multiple pieces of equipment
Technical Specifications
| Model | Classic TGSE-2430-11 |
|---|---|
| Capacity | 37 gal | 5.0 cu ft | 140 L |
| Pan Dimensions (W × L × D) | 24 in × 30 in × 11 in (610 × 762 × 279 mm) |
| Cooking Surface Area | 778 in² (5,016 cm²) |
| Gas Input | 90,000 BTU/hr (Natural) | 75,000 BTU/hr (LP) |
| Gas Connection | ½ in IPS, 5–7 in w.c. (Nat) • 12–14 in w.c. (LP) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical | 120 V, 1 Ø, FLA < 1 A (ignition & controls) |
| Tilt Mechanism | Manual worm gear, self-locking, > 90° rotation |
| Exterior Construction | 304 SS pan, lid, control console & tubular frame |
| Overall Dimensions | 31 in A-width • 46.1 in F-width • 37.5 in L-depth • 38.75 in height (lid closed) |
| Net Weight | Approx. 595 lb (270 kg) |
| Agency Approvals | NSF, ASME, CSA/AGA, UL (control circuit) |
| Warranty | 1-year parts & labor (extended plans available) |
Popular Factory Options
- 1½ in or 2 in draw-off valve with perforated strainer
- 48 in vinyl or stainless spray-hose fill faucet
- Automatic water-fill meter
- Perforated cooking/steaming baskets & food pans
- Casters with locking brakes & seismic restraint kit
Need a different capacity or electric model? Explore the full Legion Classic TGSE series or chat with our team for a customized quote.
