Legion TFN-20 Steam Kettles
Description

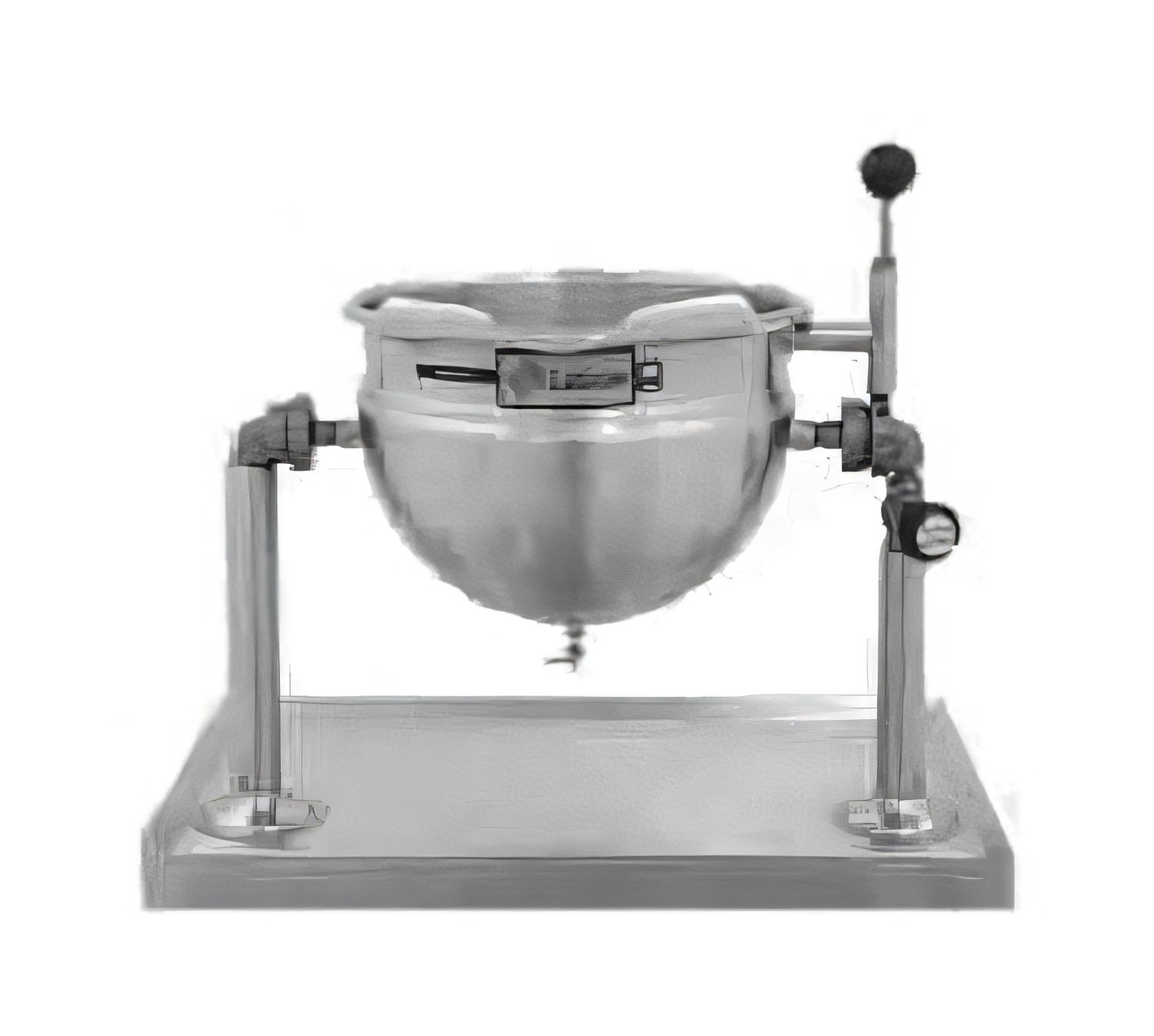

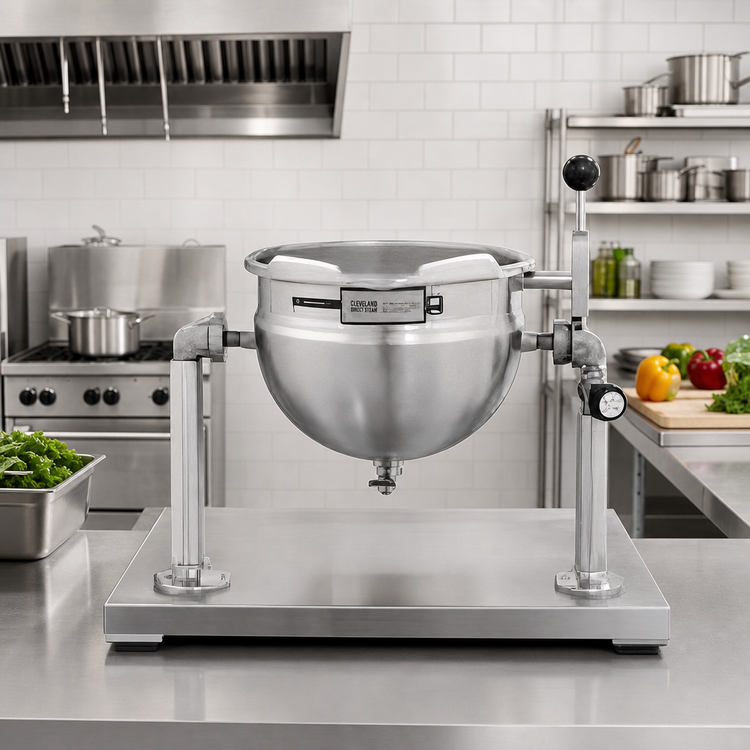

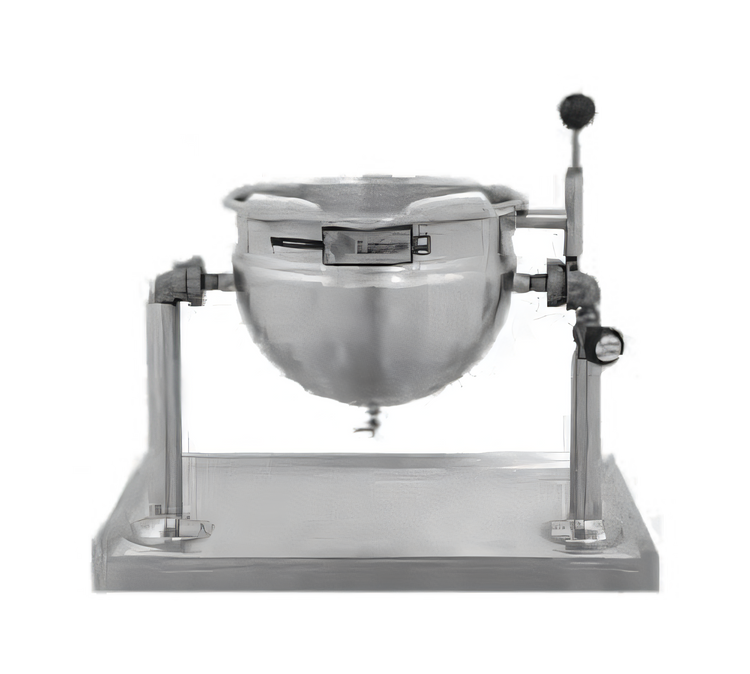

Legion TFN-20 20 Quart Table-Top Tilting Direct-Steam Kettle
Seamless 304 Stainless Steel • 2/3 Jacketed • 30 psi Operating Pressure • Made in USAThe Legion TFN-20 is a compact, heavy-duty, table-mounted kettle that delivers the speed, uniform heating and pour-control serious chefs expect. A seamless, deep-drawn 304 stainless liner teamed with a 2/3 steam jacket and precision tilt mechanism lets you produce small-batch soups, sauces and sides faster—while cleaning up in a snap.
Standard Features
- 20 qt (19 L) working capacity—ideal for small-batch production without sacrificing throughput.
- Seamless, deep-drawn 304 stainless kettle liner for a smooth cooking surface that resists pitting and is simple to sanitize.
- 2/3 jacketed design in 304L stainless steel for rapid, even heat transfer.

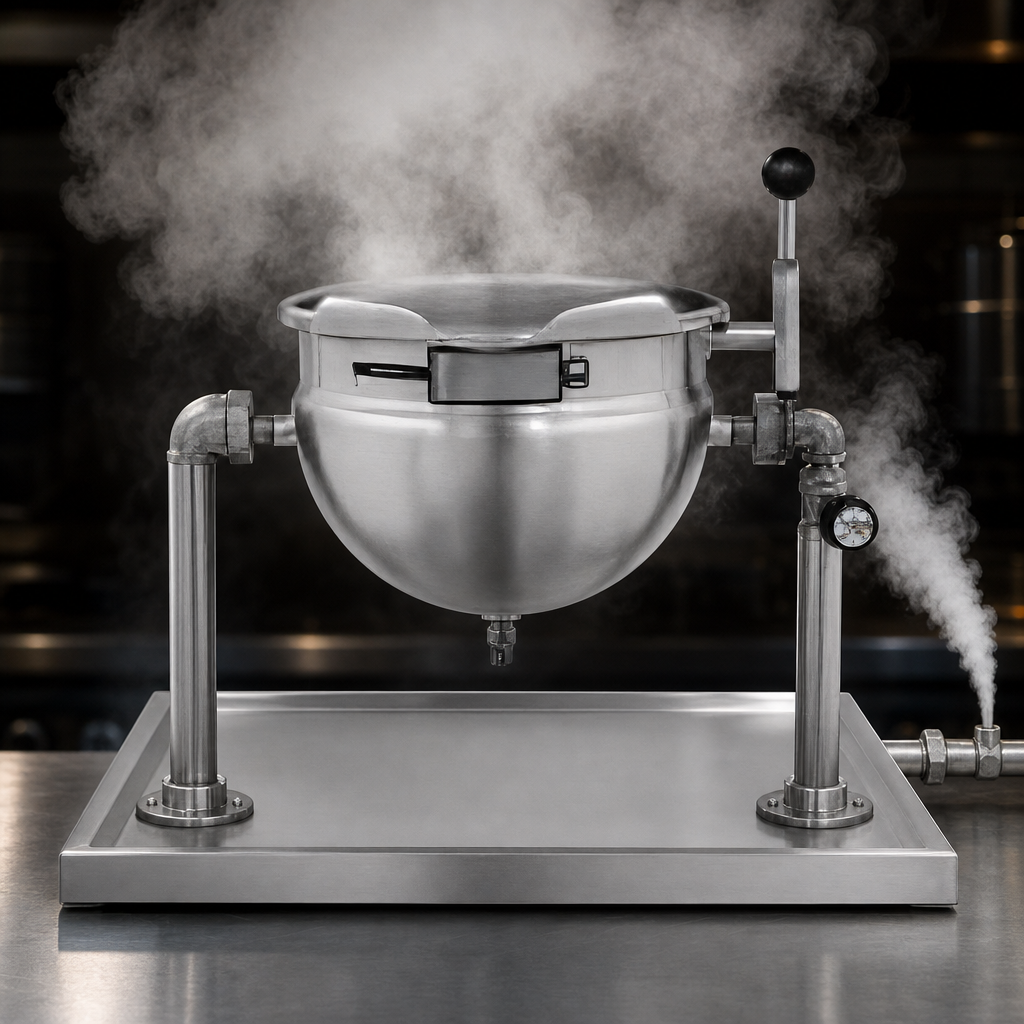

- Direct-steam operation rated to 30 psi for high-performance cooking.
- Rugged 304 stainless support arms, base plate and trunnion housing keep the kettle rock-solid during tilting.

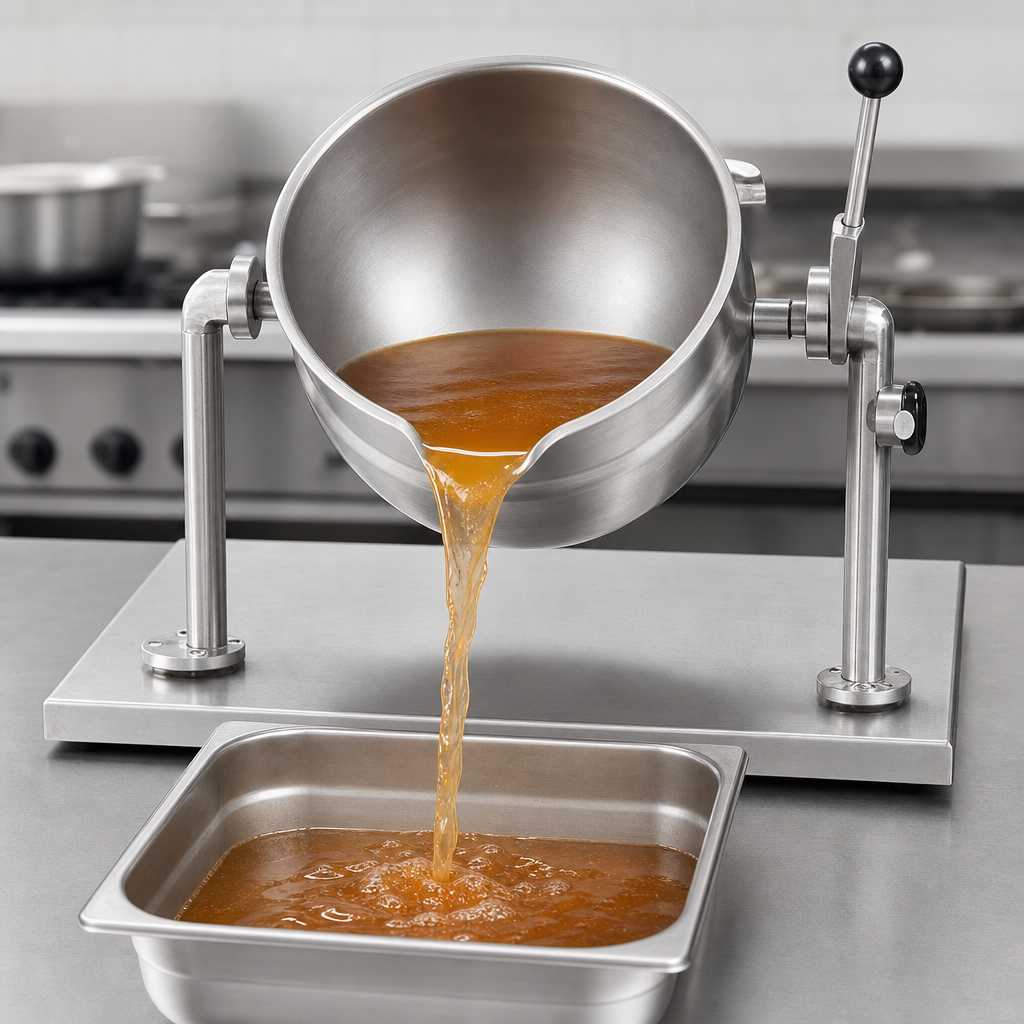

- Manual tilting with positive-position lock lets staff pour safely and precisely.
- ½" NPT steam inlet and condensate outlet for quick connection to your facility’s steam supply.
- Built to meet or exceed applicable ASME, NSF and other agency standards.
Technical Specifications
| Model | TFN-20 |
|---|---|
| Capacity (US / metric) | 20 qt | 19 L |
| Operating Pressure | 30 psi (2.1 bar) direct steam |
| Interior | Seamless 304 stainless steel, deep-drawn |
| Jacket | 2/3 jacket, 304L stainless steel |
| Mounting / Support | Table-top; 304 stainless support arms, base plate & trunnion housing |
| Tilt Mechanism | Manual with positive-position lock |
| Steam Connection | ½" NPT inlet |
| Condensate Outlet | ½" NPT outlet |
| Approx. Dimensions* |
A = 12" B = 12" C = 16.3" D = 15.5" F = 16.9" J = 22.3" |
| Country of Origin | USA |
*Dimensions provided by manufacturer drawing; allow for plumbing clearances.
Optional Accessories & Upgrades *
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray-hose assembly (PVC or stainless)
- Automatic water-filling meter
- Lift-off covers (10, 20 or 40 qt)
- Mixer/agitator, single speed
- Care kit, baskets & nylon bag insert with spreader ring
- Steam trap kit, bright nickel-plated finish
*Accessories sold separately—see price list for full details.
Warranty
Legion Industries backs the TFN-20 with a 12-month parts & labor warranty from the date of installation (15 months from date of shipment when stored). Extended coverage is available—ask your sales representative for details.
