Legion TES-2440-9-WC Classic Braising Pans & Tilt Skillets
Description
Legion Classic 40-Gallon Wall-Mounted Electric Tilting Skillet
Model TES-2440-9W | 15 kW | 240 V / 3-Phase (other voltages available)Replace multiple stock pots, braising pans and steam kettles with one powerful piece of equipment. The wall-mounted Legion Classic™ tilting skillet gives you 40 gallons of fast, even heat for searing, browning, simmering or holding—while keeping valuable floor space clear.
Key Performance Benefits
- 15 kW electric elements deliver rapid heat-up and quick recovery, adjustable from 175 °F to 400 °F (79 °C – 204 °C).
- 304 stainless steel, seam-welded pan with 304 stainless clad cooking surface for unmatched durability and easy cleanup.
- Manual, self-locking worm-gear tilt cranks more than 90° for complete emptying and safe handling of heavy product loads.
- Patented lid with actuator-assisted counterbalance—open or close smoothly with one hand.
- Full-width condensate drip shield & rear steam vent keep both operator and wall dry.
- High-limit safety thermostat protects the elements from accidental overheating.
- Knock-down design fits through a 26" × 66" doorway—ideal for retrofits.
- Made in the USA to NSF & UL standards for commercial foodservice.
Technical Specifications

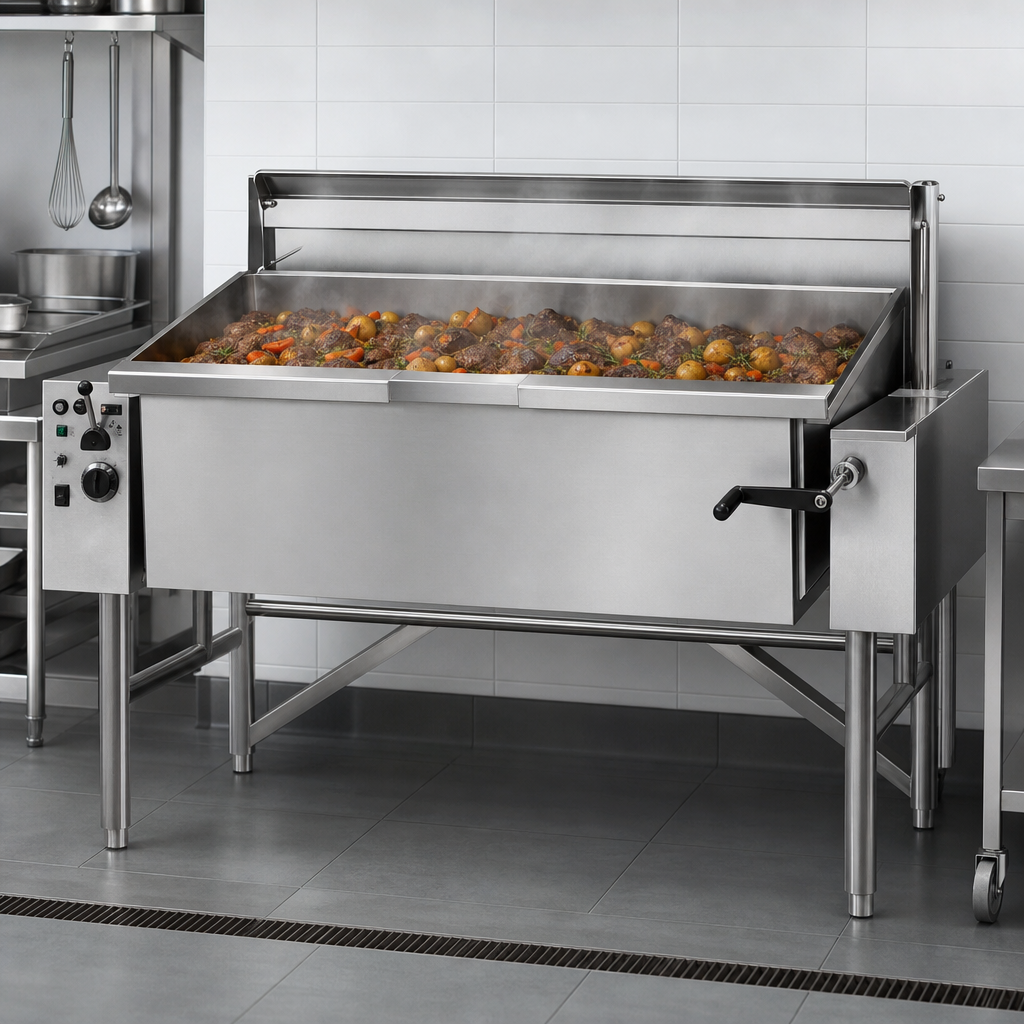

| Usable capacity | 40 gal | 151 L |
|---|---|
| Cooking area | 1,029 in² | 0.66 m² |
| Pan depth | 9 in | 229 mm |
| Heating | Electric, 15 kW concealed elements |
| Thermostat range | 175 °F – 400 °F |
| Voltage (standard) | 240 V, 3-phase |
| Amperage @ 240 V / 3Ø | 36.1 A |
| Tilt mechanism | Manual crank, self-locking worm gear, > 90° dump angle |
| Construction | All 304 stainless steel pan, lid, consoles & carrier |

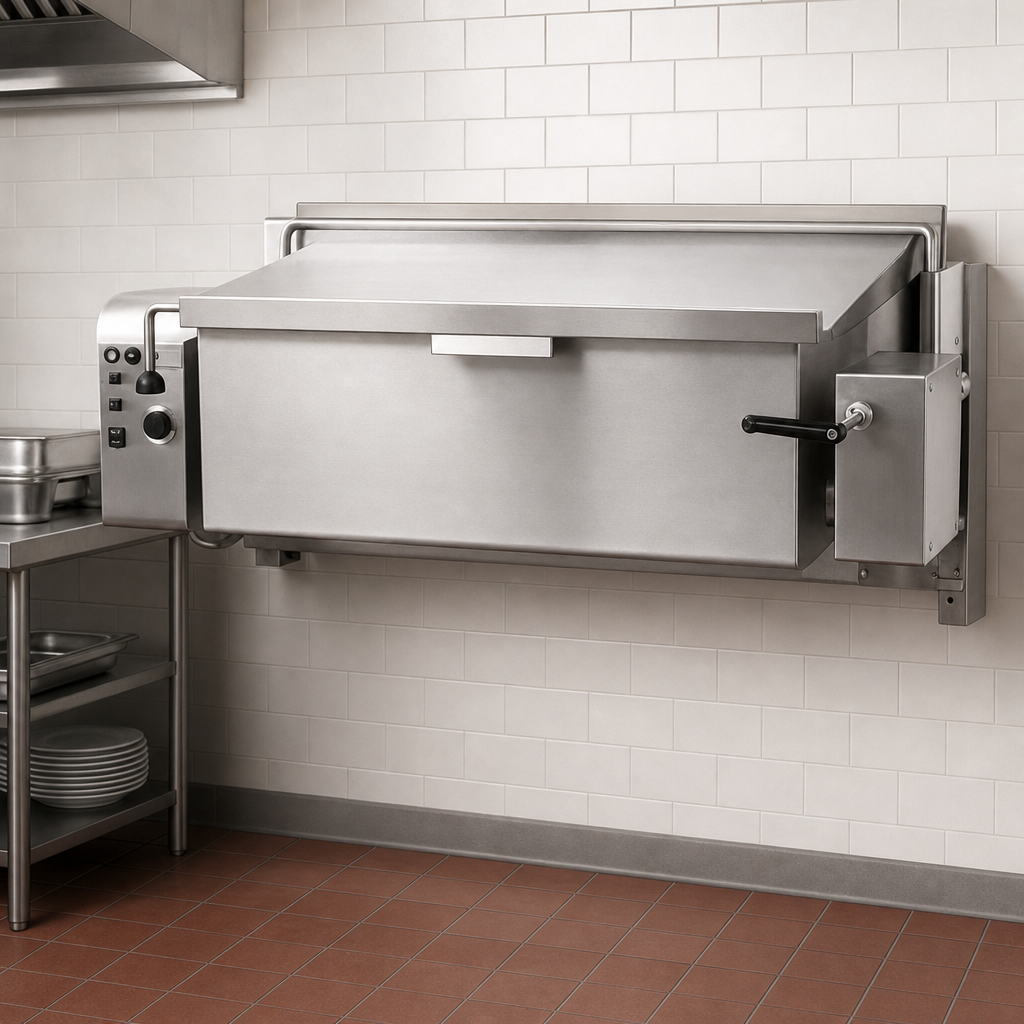

| Mounting | Heavy-duty wall carrier system (included) |
Typical Batch Yields*
- Up to 120 lb (54 kg) ground beef crumbles
- 40 gal (151 L) soup, sauce or stock
- Approximately 240 quarter-pound burgers in a single layer
*Actual yields vary with product, temperature and operator technique.
Factory Options & Accessories
- 1½", 2" or 3" draw-off valve (compression or ball type)
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" stainless or vinyl spray hose assembly
- Automatic water-fill meter
- Electric timer with buzzer
- Perforated cooking baskets, solid/perf 12 × 20 pans, #10 can holder
- Lockable lid or control cover for secure facilities
Looking for a different voltage, phase or custom accessory? Contact us—every Legion skillet is built to order.
