Legion TES-2440-9 Classic Braising Pans & Tilt Skillets
Description
Classic 40-Gallon Electric Tilting Skillet
Legion Model TES-2440 | Manual Worm-Gear TiltEngineered for high-volume, high-versatility production, the Legion Classic TES-2440 delivers 40 gallons of evenly-heated cooking capacity in a rock-solid, 304-stainless package. From searing and braising to simmering sauces or shallow-frying, this floor-mounted workhorse handles it all—then tilts more than 90° for a safe, effortless pour.
Key features

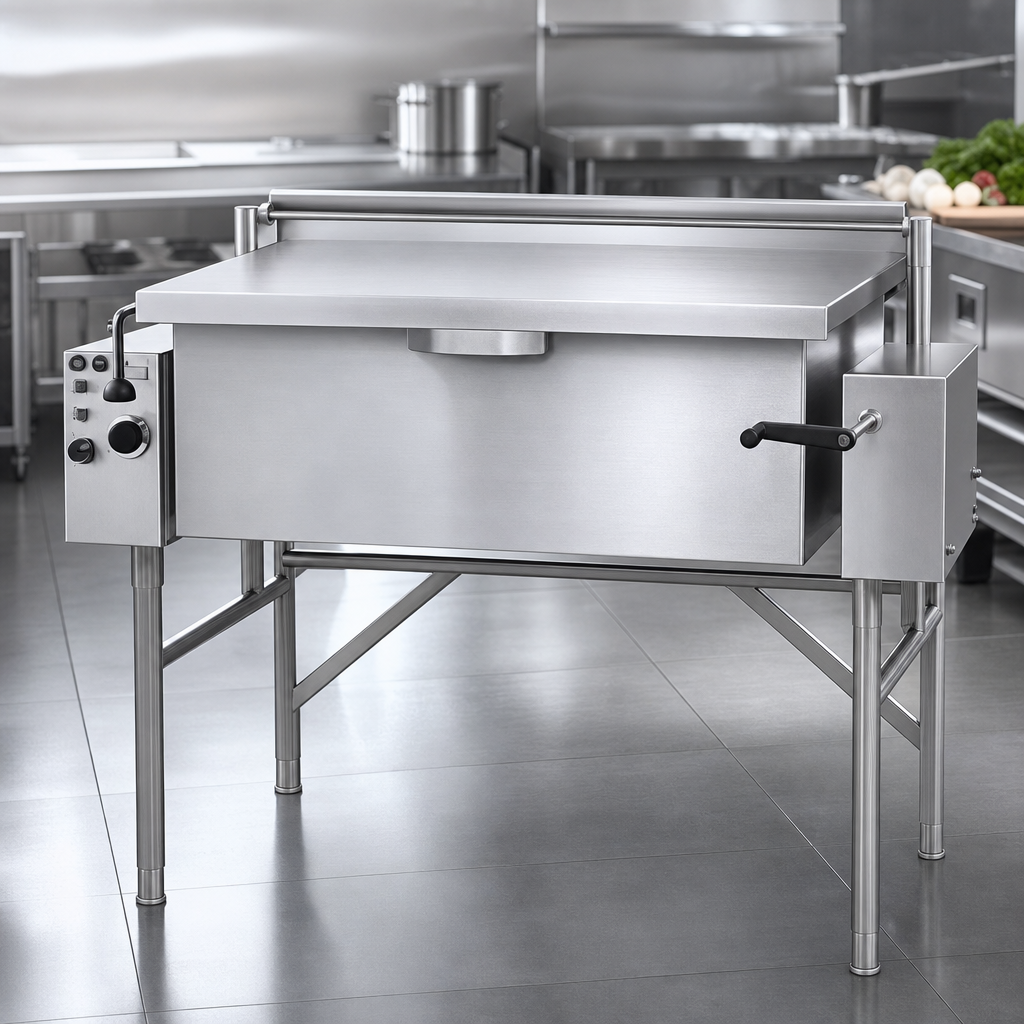

- 40 gal. (152 L) capacity pan, seam-welded from 304 stainless steel

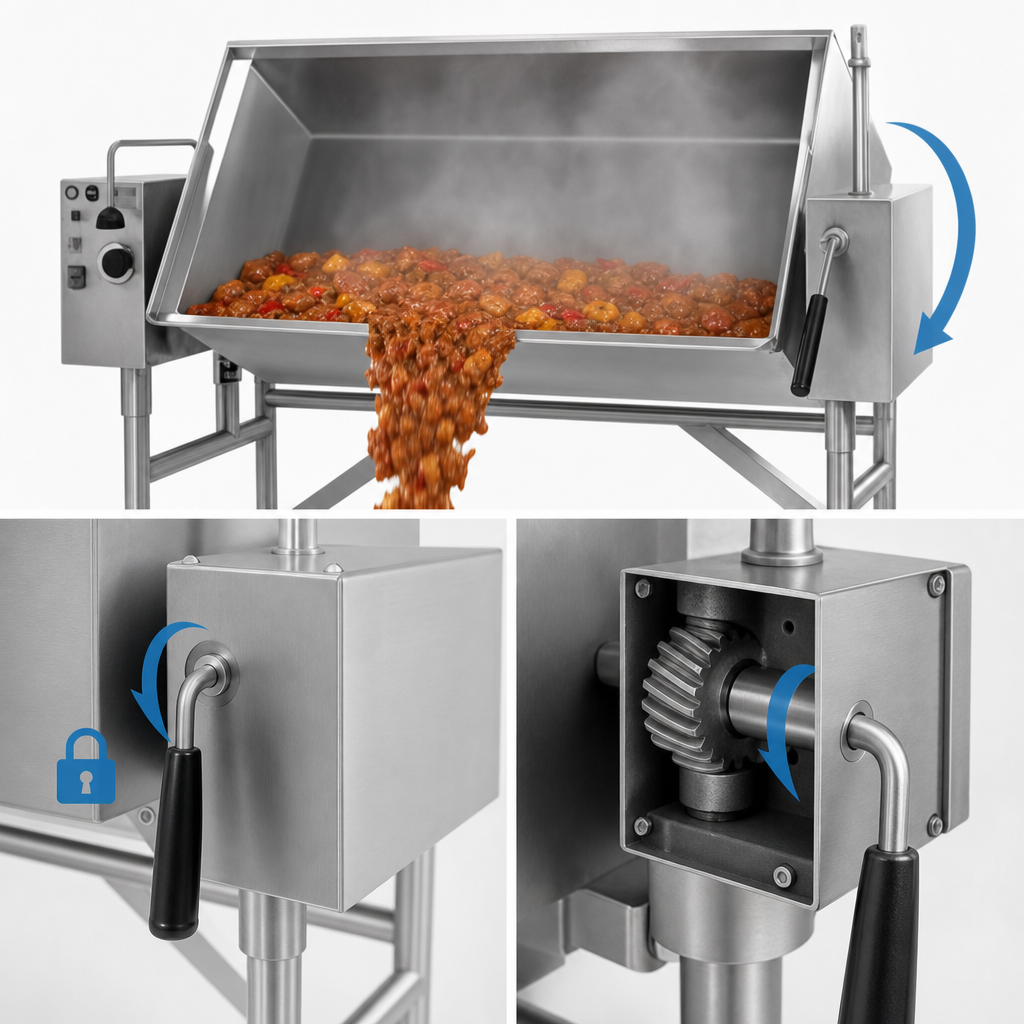

- Manual, self-locking worm-gear tilt mechanism—smooth, precise & exceeds 90° rotation
- 15.0 kW electric heating with adjustable thermostat 175-400 °F (79-204 °C)
- High-limit safety thermostat for over-temperature protection
- Patented counterbalanced lid with full-width drip shield & rear steam vent
- Center trunnion mount for even weight distribution and long service life
- Reinforced, water-resistant stainless control console
- Tubular stainless frame with adjustable bullet feet—levels easily on uneven floors
- Knock-down design passes through a 26 “ × 66 ” doorway
- Built & certified in the USA to NSF, UL and other applicable standards
One piece of kit—endless applications
Sauté 100 lbs of onions, braise pot-roast for banquets, scramble a case of eggs, hold soup for service or shallow-fry chicken cutlets—all in the same vessel. The Classic TES-2440 replaces stock pots, braisers, griddles and holding pans, slashing clean-up time and freeing valuable range space.
Specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Cooking area | 1,029 in² (6641 cm²) |
| Pan depth (standard) | 9 in • 7 in or 11 in optional |
| Heating output | 15.0 kW electric |
| Thermostat range | 175 – 400 °F (79 – 204 °C) |
| Standard voltage | 240 V, 3 phase (208, 380, 415, 440, 480 V &/or 1 Ø optional) |
| Tilt mechanism | Manual, self-locking worm gear >90° |
| Materials | 304 stainless pan, lid, frame & control enclosure |
| Overall width (F) | 56.1 in (1425 mm) |
| Overall length (L) | 47.5 in (1207 mm) |
| Inside pan width (A) | 41.0 in (1041 mm) |
| Pour-path clearance* | 30 in for 9 in pan (28 in for 7 in / 32 in for 11 in) |
| Origin | Made in USA |
*Measured from back wall to front-edge pour position.
Popular options & accessories
- 1½″, 2″ or 3″ draw-off valve (compression or ball-type)
- 48″ flexible spray/fill hose (vinyl or stainless)
- Perforated or solid food-pans & steaming baskets
- Lockable control cover & security fastener kit
- Adjustable flanged feet or locking casters
- Electric timer with audible buzzer
