Legion TES-2440-7-WC Classic Braising Pans & Tilt Skillets
Description

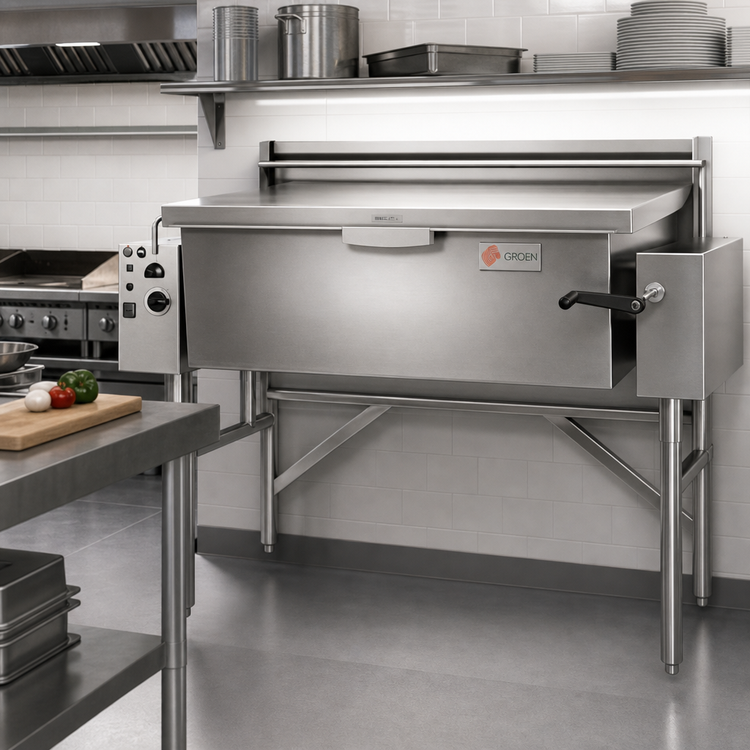

Legion Classic 31-Gallon Electric Tilting Skillet – Wall Mounted
Model TES-2440-7-WM | 15 kW | 31 gal (117 L)From breakfast batches to braises for banquets, the Legion Classic Wall-Mounted Tilting Skillet delivers the capacity, control and rock-solid construction serious kitchens demand. Its 31-gallon pan, powered by a 15 kW electric heating package, gives you the speed of a griddle, the depth of a kettle and the convenience of a built-in pour spout—all in one space-saving wall installation.
Why you’ll love it
- Versatile 31 gal (117 L) capacity handles up to 240 lb of ground meat or 60 qt of soup in a single load.

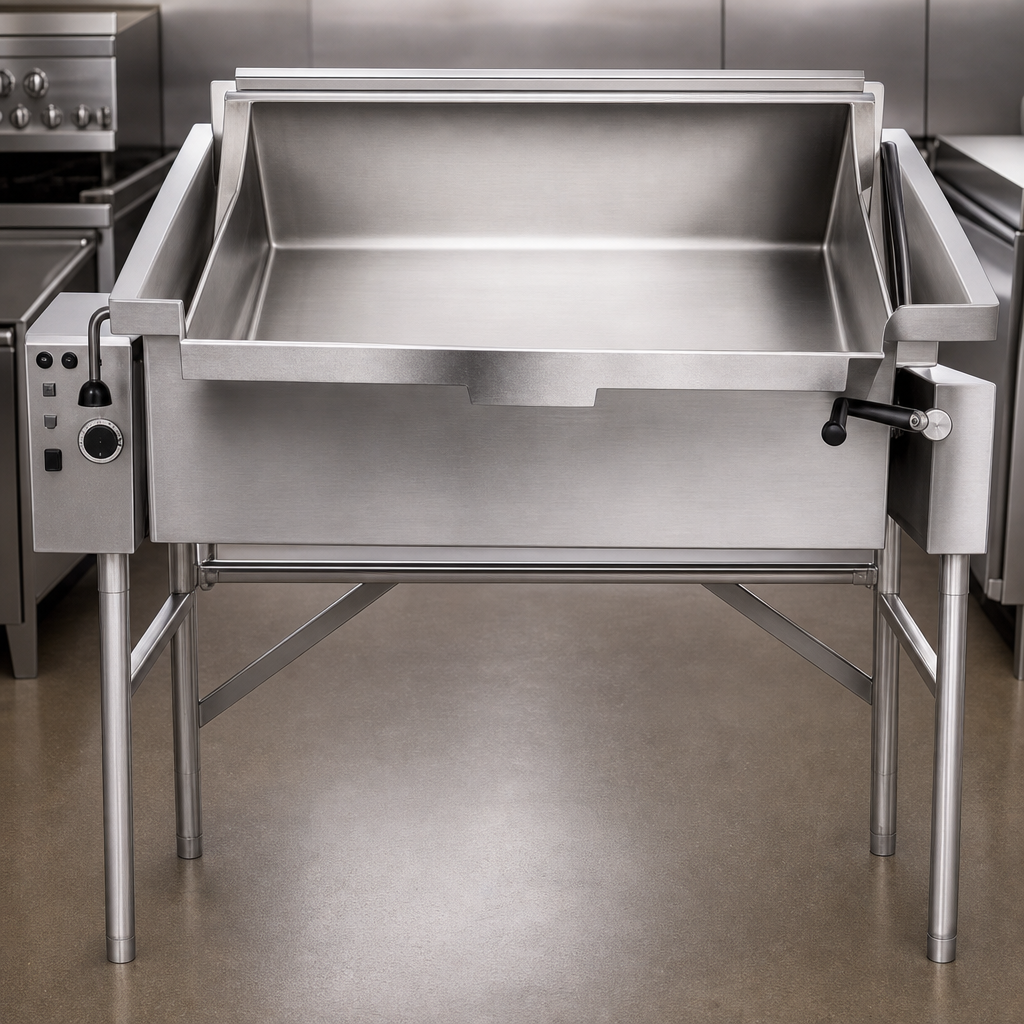

- 304 SS seamless pan with clad cooking surface for even heat distribution & easy cleanup.

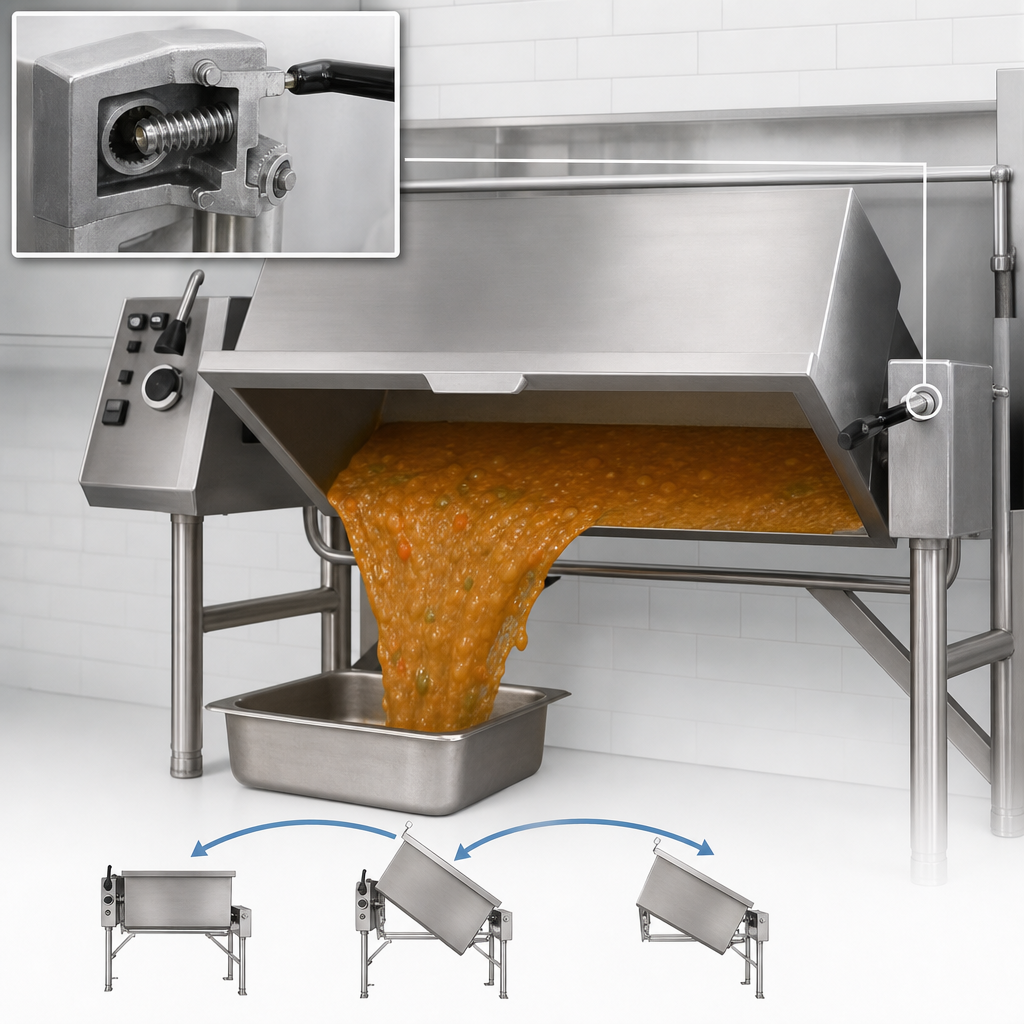

- Self-locking worm-gear tilt exceeds 90° for complete emptying and hands-free holding position.
- Precision adjustable thermostat 175 °F – 400 °F plus high-limit safety cutoff.
- Patented 304 SS lid with actuator-assisted counterbalance, rear steam vent & full-width drip shield.
- Center-trunnion mounting and in-wall carrier keep the floor clear and make daily cleaning faster.
- Knock-down frame fits through a 26" × 66" doorway for easy installation in tight facilities.
- Made in the USA and built to meet or exceed NSF, UL & ASME requirements.
Technical specifications
| Model | TES-2440-7-WM (Classic Series) |
|---|---|
| Mounting | Wall-mounted with stainless steel in-wall carrier |
| Pan capacity | 31 gal / 117 L (7" pan depth) |
| Cooking surface area | 1,029 in² (41" W × 25 1⁄8" D inside) |
| Heating | Electric, 15 kW concealed elements |
| Temperature range | 175 °F – 400 °F (adjustable) |
| Electrical (standard) | 240 V, 3-phase, 36.1 A Also configurable 208/380/415/440/480 V, 1- or 3-phase |
| Tilt mechanism | Manual crank, self-locking worm gear, > 90° rotation |
| Lid | 304 SS, actuator-assisted counterbalance, rear steam vent, condensate drip shield |
| Overall dimensions | 56.1" W × 38.8" D × 67.3" H (with lid open) |
| Construction | All 304 SS: pan, lid, consoles & tubular frame |
| Safety | High-limit thermostat, single side-mounted safety handle, water-resistant consoles |
| Compliance | NSF, UL, ASME; Made in USA |
Popular accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" stainless flexible spray hose
- 1½" or 2" draw-off valve & hose kit
- Perforated cooking/steaming baskets (11" × 20½")
- Flat bottom & perforated 12 × 20 pans – 2½", 4" or 6" deep
- Lockable lid or control cover for corrections & institutional use
Requires hard-wired electrical connection by a qualified electrician. Allow a minimum pour-path clearance of 28" from the wall.
