Legion TES-2440-11-WC Classic Braising Pans & Tilt Skillets
Description

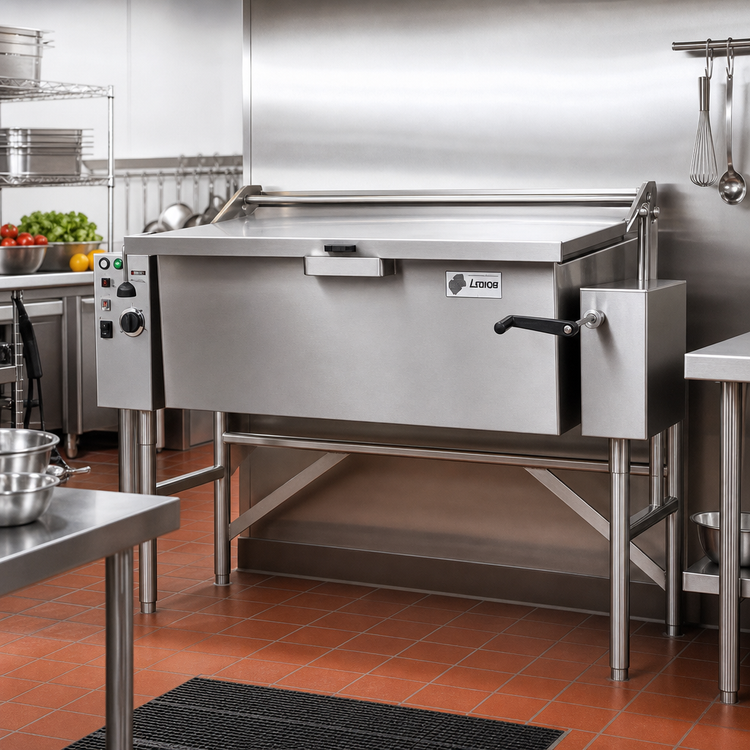

Legion Classic 49-Gallon Wall-Mounted Electric Tilting Skillet
Model TES-2440-11 | 15 kW | 304 Stainless SteelMade in the USA for high-volume kitchens, the Legion Classic Wall-Mounted Tilting Skillet combines the power of a kettle, grill, braising pan and steamer in one rugged unit. Its 49-gallon pan heats evenly, tilts effortlessly and mounts securely to an in-wall carrier—freeing up valuable floor space while keeping every pour safe and controlled.
Key Advantages
- 49 gal (185 L) capacity with 1,029 in² cooking surface—ideal for soups, sauces, searing or sautéing.
- Wall-mount design maximizes workflow and simplifies cleaning under the unit.

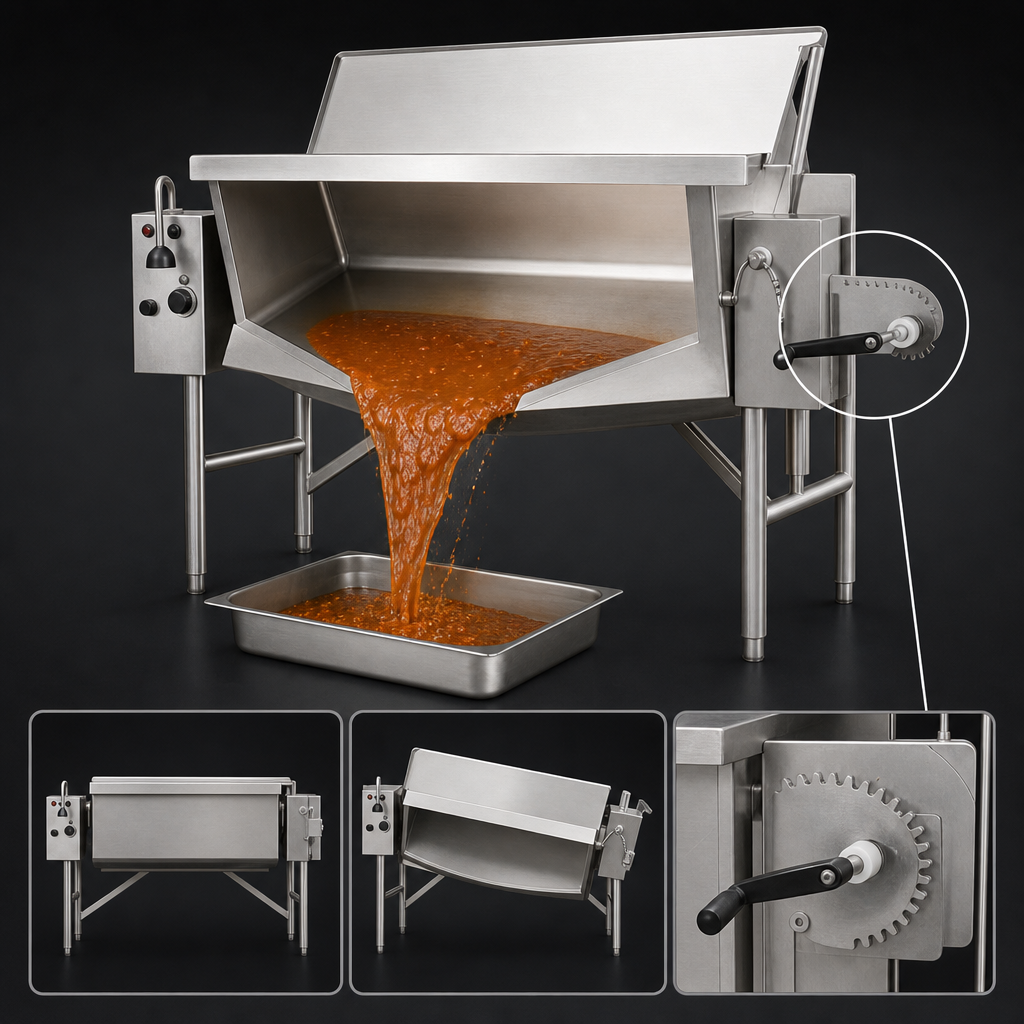

- Self-locking worm-gear tilt with single side handle provides smooth, 90°+ pouring.
- Actuator-assisted counter-balanced lid with full-width drip shield and rear steam vent.
- Thermostatic control from 175 °F – 400 °F plus high-limit safety thermostat.

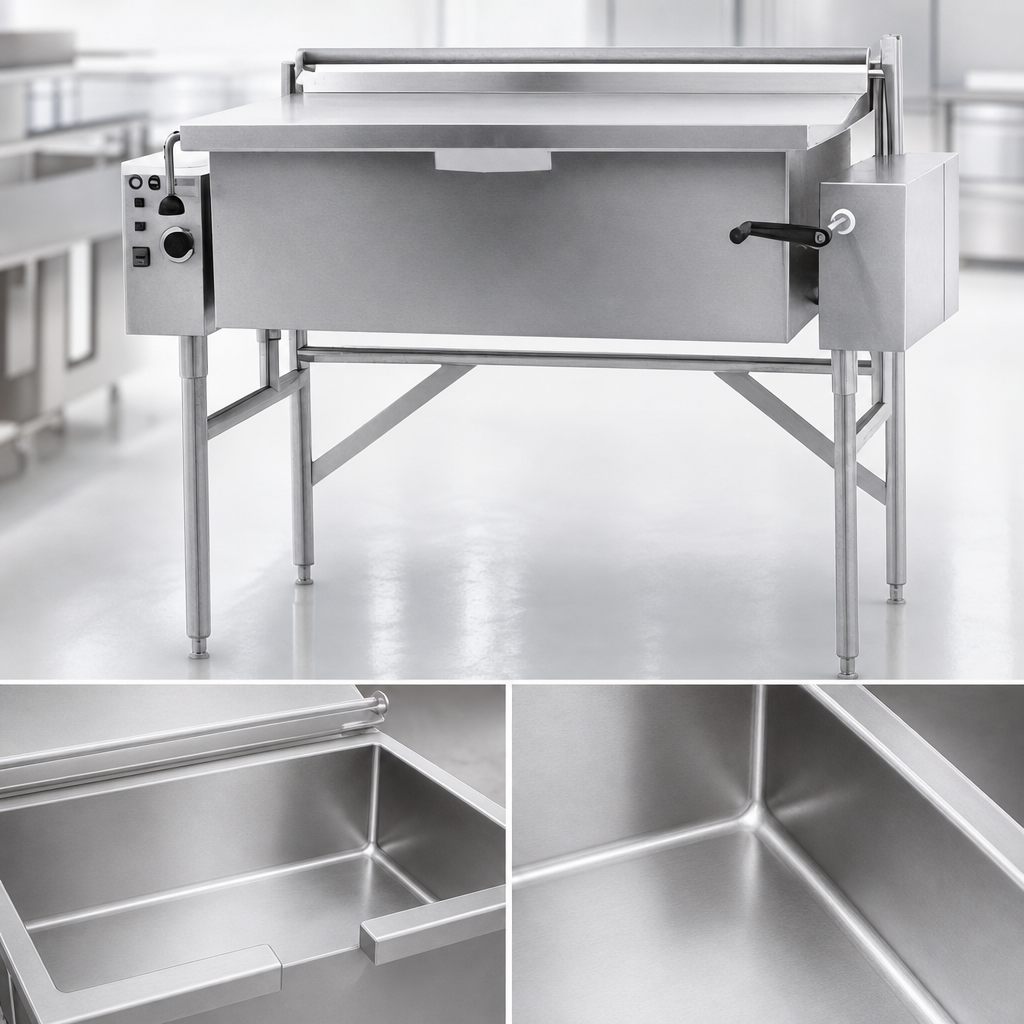

- Seam-welded 304 SS pan & clad cooking surface for superior heat distribution and sanitation.
- Knock-down frame fits through a 26" × 66" doorway for easy site delivery.
- NSF, UL, ASME compliant; backed by Legion’s 12-month parts & labor warranty.
Technical Specifications
| Pan Capacity | 49 gal | 185 L | 5.4 ft³ |
|---|---|
| Cooking Surface | 1,029 in² (41" W × 25 1⁄8" D) |
| Pan Depth | 11" |
| Heat Source | Electric, 15 kW |
| Standard Power | 240 V, 3-phase, 36.1 A/phase |
| Available Voltages | 208 V, 380 V, 415 V, 440 V, 480 V (1- or 3-phase) |
| Tilt Range | > 90° (self-locking) |
| Overall Width (F) | 56.1" |
| Overall Length (L) | 47.5" |
| Max Height (lid open) | 67.25" |
| Construction | 304 SS pan, lid, consoles & tubular frame |
Popular Options & Accessories
- 1½", 2" or 3" draw-off valve (compression or ball type)
- Single/double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Electronic timer with buzzer
- Perforated or solid 12 × 20 food pans & steaming baskets
- Lockable lid or control cover (correctional use)
- Classic care kit for routine maintenance
Looking for a different size or configuration? Contact us and our equipment specialists will build a Legion Classic to fit your kitchen.
