Legion TES-2440-11 Classic Braising Pans & Tilt Skillets
Description

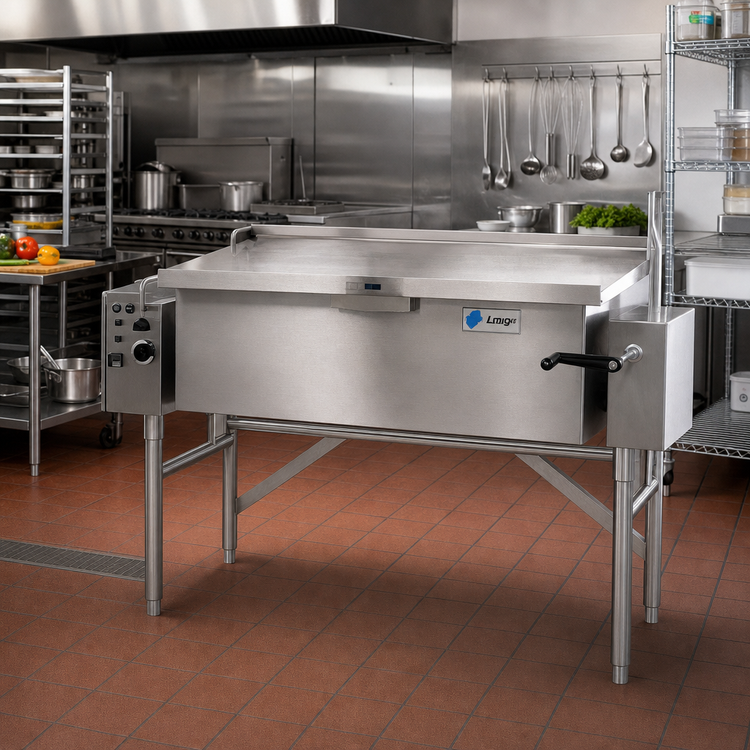

Legion Classic 49-Gallon Electric Tilting Skillet – Model TES-2440-11
Manual worm-gear tilt • 15 kW • Made in USAReplace multiple kettles, braising pans and stock pots with one rugged workhorse. The Legion Classic Tilting Skillet delivers 49 gallons of versatile cooking power—braise, sauté, simmer or steam—and then tilts more than 90° for fast, safe pour-out.
Built for busy commercial kitchens

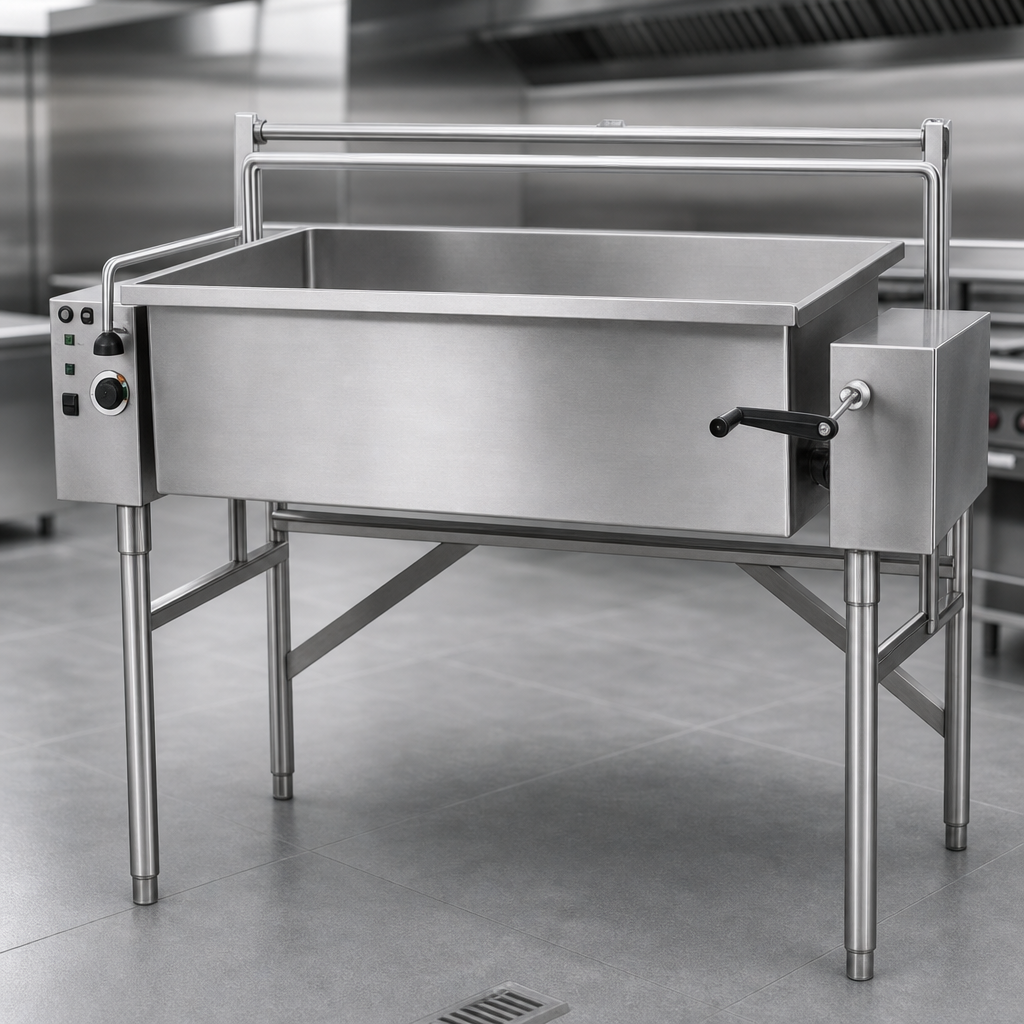

- Heavy-duty, seam-welded 304 SS pan mounted on a center trunnion for perfect balance.

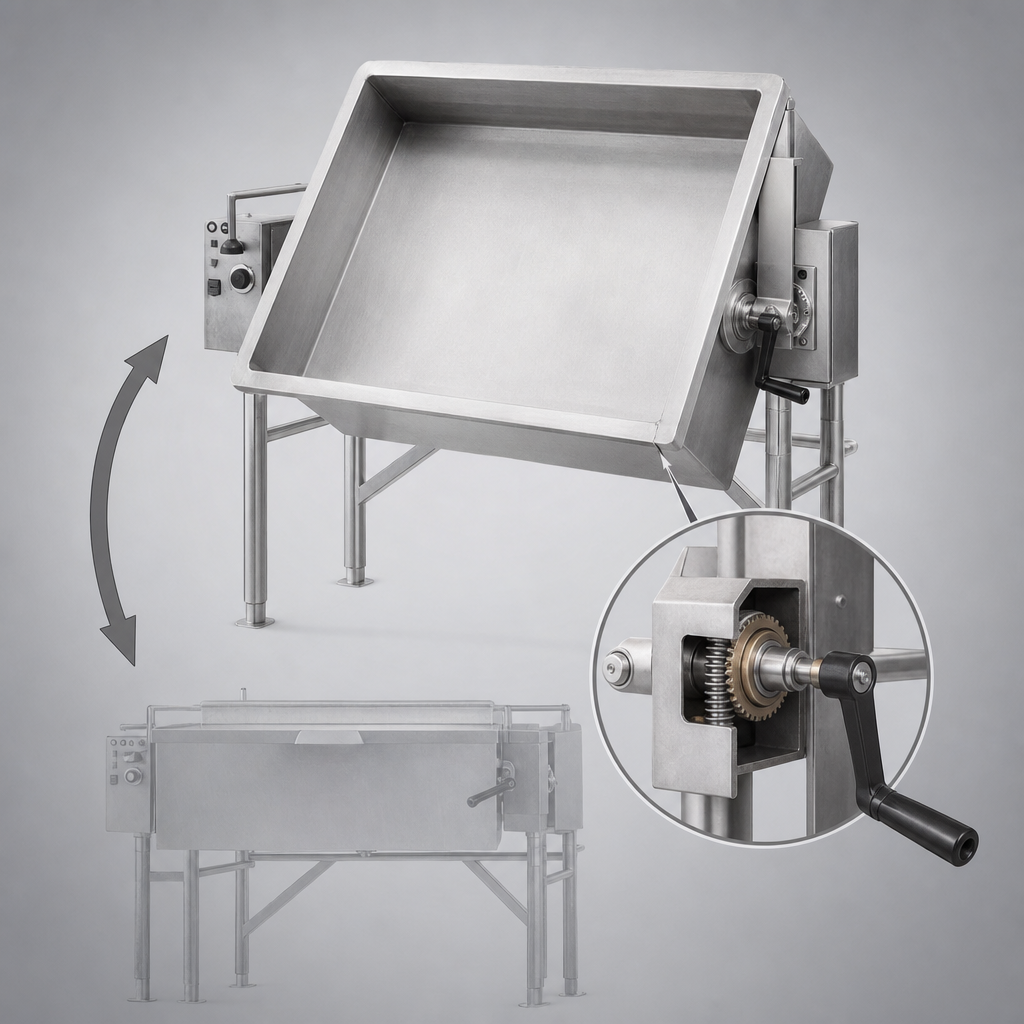

- Self-locking worm-gear mechanism provides smooth, controlled manual tilting past 90°.
- 15 kW electric elements heat evenly; thermostat adjusts from 175 °F – 400 °F with high-limit safety.
- Patented actuator-assisted lid with full-width drip shield returns condensate to the pan.
- Water-resistant stainless control console stands up to spray-downs and harsh cleaners.
- Adjustable bullet feet level the unit; knock-down design fits through a 26" × 66" doorway.
Key specifications
| Model | TES-2440-11 (Classic Series) |
|---|---|
| Capacity | 49 gal / 185 L | 1,029 in² cook surface | 11" pan depth |
| Heating | Electric, 15.0 kW tubular elements |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt Mechanism | Manual, self-locking worm gear | > 90° rotation |
| Lid | 304 SS, actuator-assisted counter-balance with drip shield & steam vent |
| Electrical | 240 V / 3 Ø standard; 208, 380, 415, 440, 480 V & 1 Ø available |
| Overall Footprint | 56.1" W × 47.5" D × 38.8" H (lid closed) |
| Construction | All-welded 304 SS pan, frame, console & handles |
| Origin | Waynesboro, Georgia – USA |
One skillet, endless applications
- Braise or pan-fry 350 lb of protein with quick, even heat distribution.
- Simmer stocks, chili or sauces, then tilt directly into hotel pans or portioning stations.
- Steam vegetables, rice or seafood in minutes using optional perforated baskets.
- Hold finished product as a 6 ft³ steam table with precise temperature control.
Popular factory-installed options
- 1.5", 2" or 3" draw-off valve with strainer & hose
- Single- or dual-fill faucet with 48" spray hose
- Perforated cooking/steaming baskets and hotel pan inserts
- Lockable lid & control cover for correctional facilities
- Flanged feet or caster kit with restraining devices
- Electric timer with buzzer
Looking for a custom voltage, security package or faucet setup? Contact us—each Classic skillet is built to order.
Upgrade your production line with the Legion Classic Tilting Skillet—industry-leading durability, operator safety and cooking performance in one space-saving footprint.
