Legion TES-2430-9-WC Classic Braising Pans & Tilt Skillets
Description

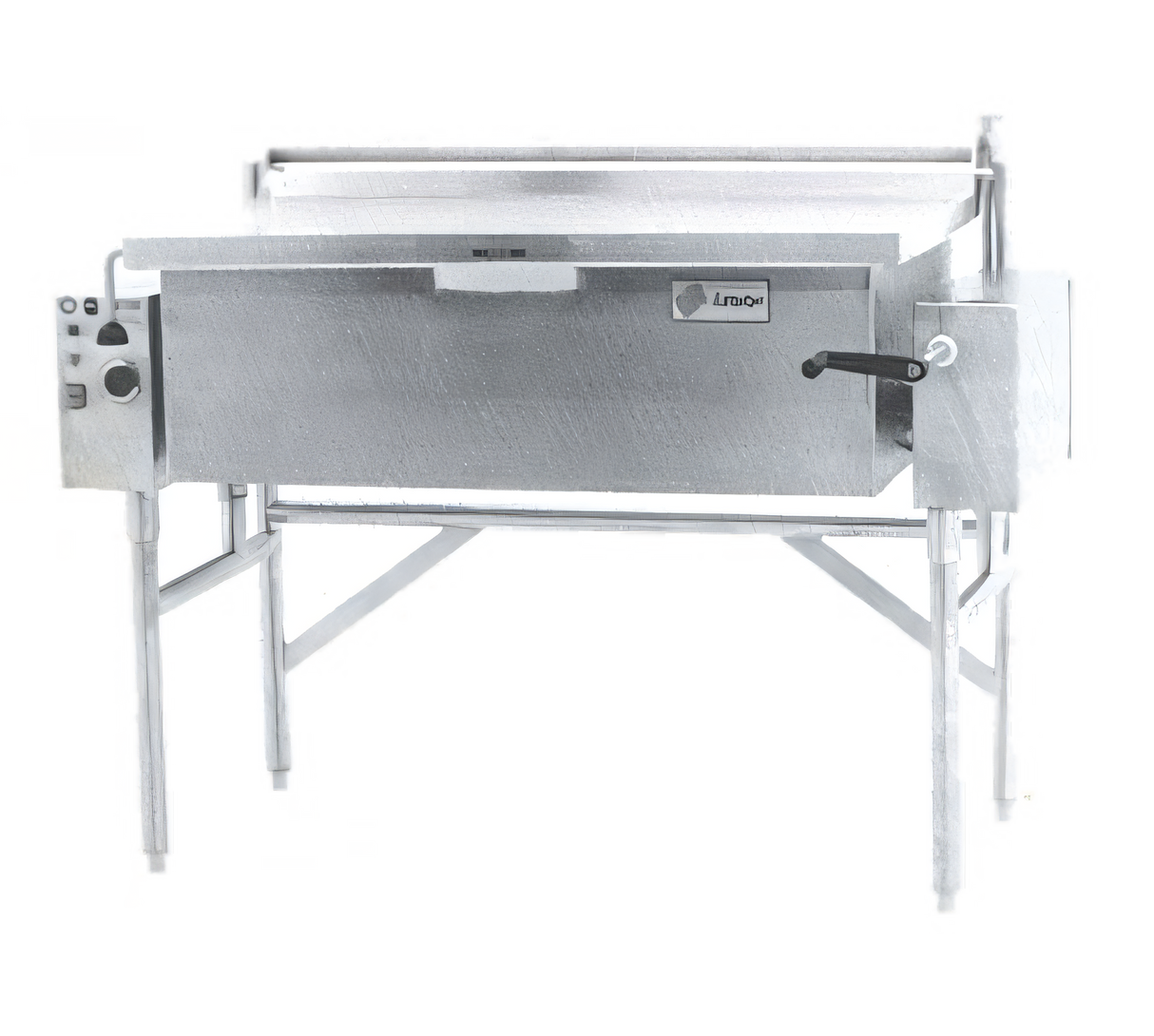

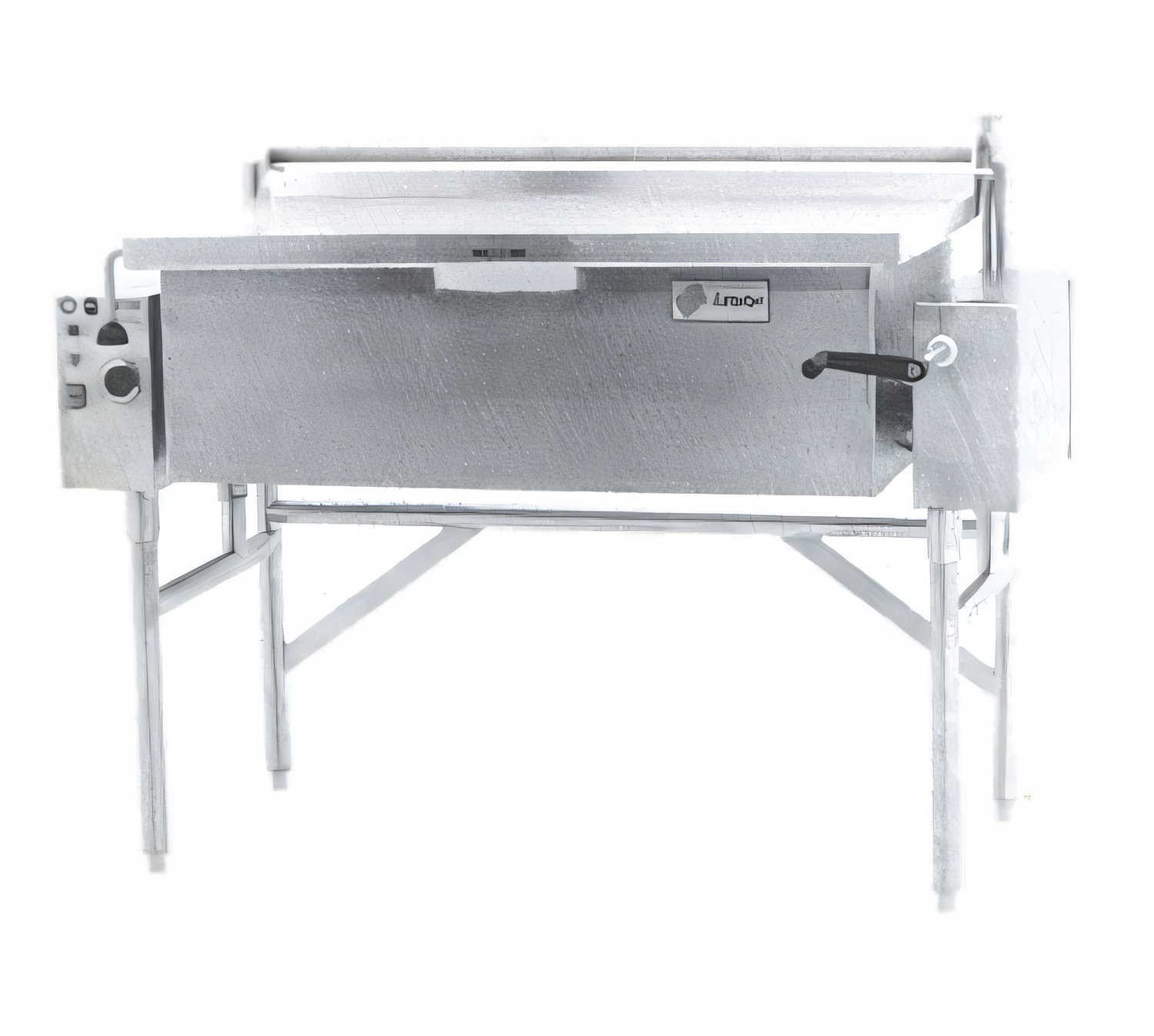

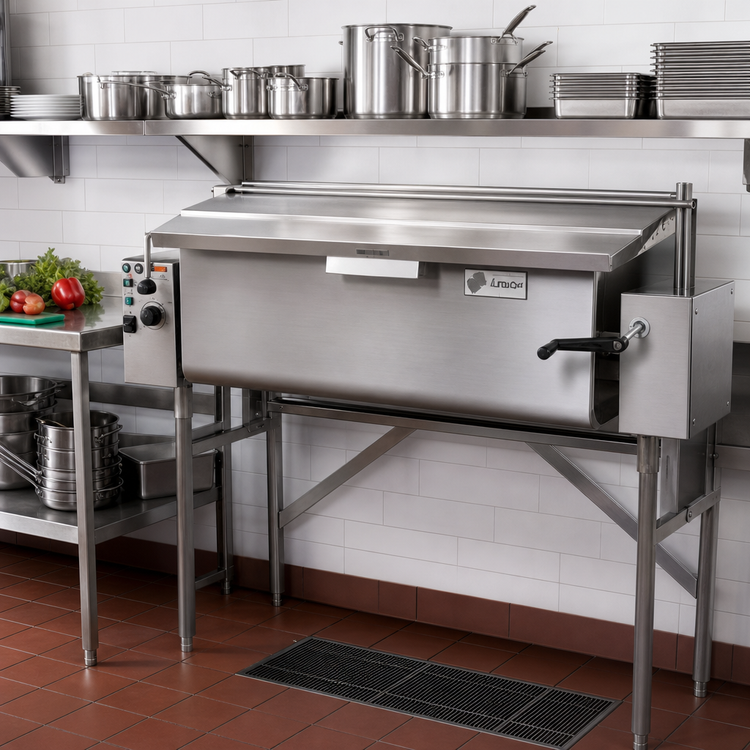

Legion Classic 30-Gallon Wall-Mounted Electric Tilting Skillet
Model TES-2430-9 • 11.1 kW • 240 V / 3-PhaseBuilt in the USA for demanding commercial kitchens, the Legion Classic wall-mounted tilting skillet replaces a braising pan, kettle and griddle in one rugged, space-saving unit. Its seamless 304 SS pan, precise electric heating and effortless hand-crank tilt make high-volume cooking faster, safer and easier.
Key Features

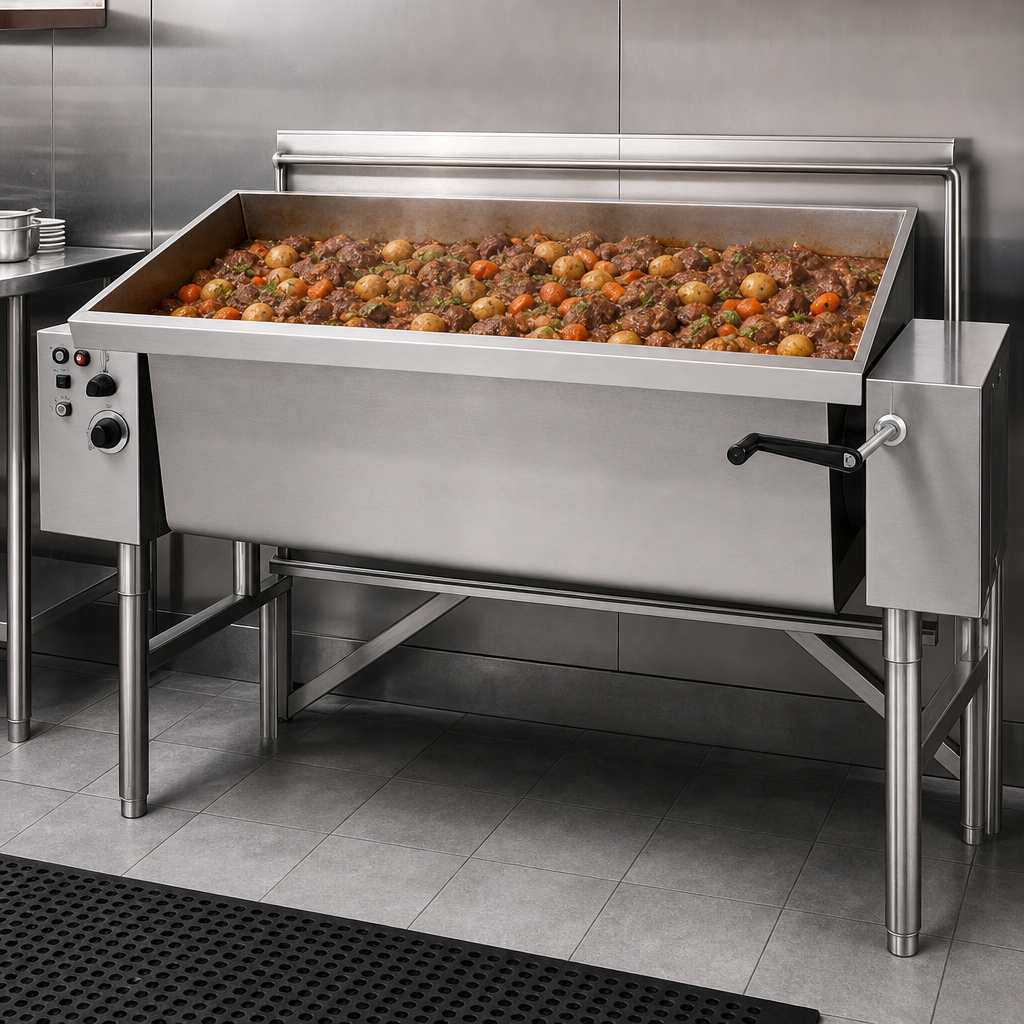

- 30 gal (114 L) capacity seamless pan – 304 SS, center-trunnion mounted for perfect balance.
- Manual self-locking worm-gear tilt mechanism with > 90° rotation for complete product evacuation.
- 11.1 kW embedded electric elements; adjustable thermostat 175 – 400 °F (79 – 204 °C) with high-limit safety.
- Actuator-assisted counterbalanced stainless lid with full-width drip shield & rear steam vent.
- Reinforced, water-resistant stainless control consoles with large, easy-grip tilt and thermostat handles.

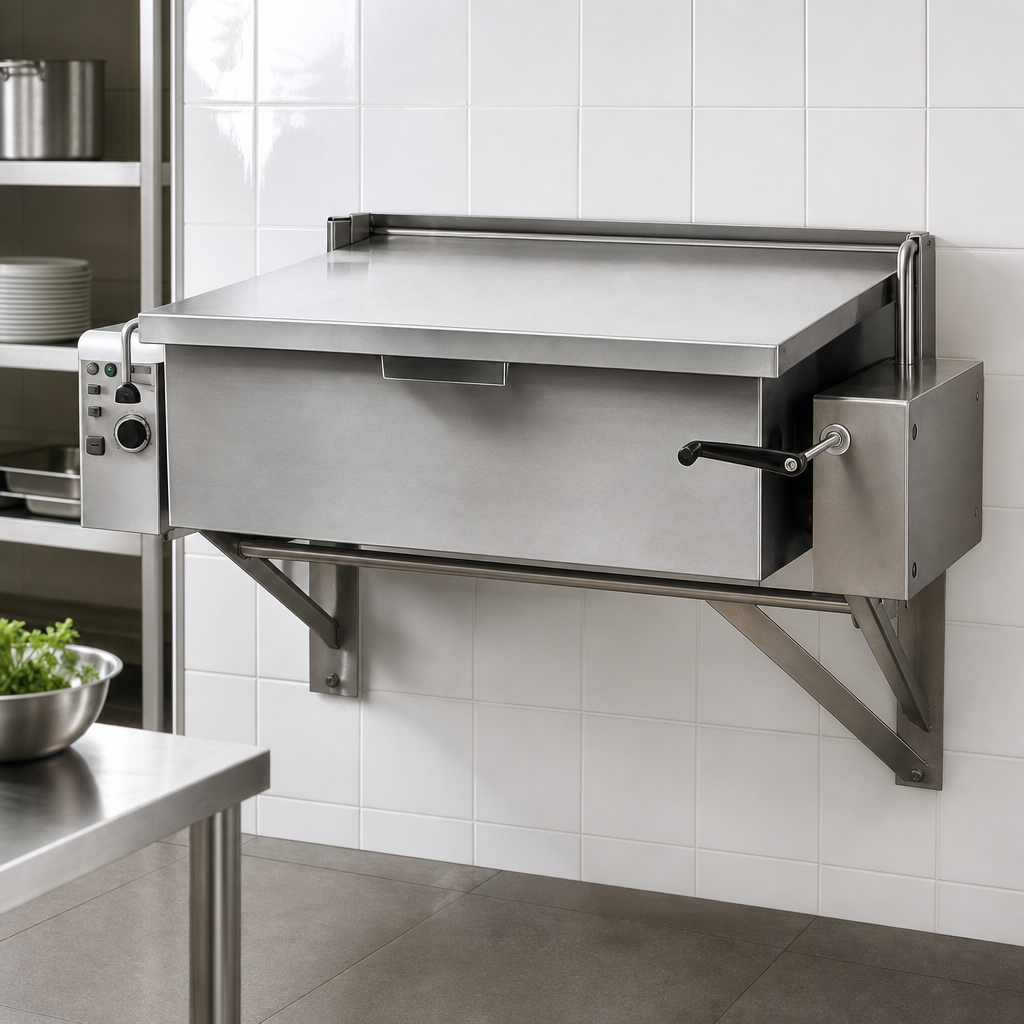

- Heavy-duty in-wall carrier brackets for secure, flush wall installation—maximises floor space and sanitation.
- Knock-down frame fits through a 26 × 66 in doorway for simplified delivery & setup.
- NSF, UL, ASME compliant; fabricated and tested in Dallas, Pennsylvania.
Why Choose a Wall-Mounted Skillet?
- Frees up valuable floor space along busy cook lines.
- Allows mop-through cleaning beneath the unit—ideal for HACCP programmes.
- Fixed pour height improves safety when transferring to food pans, tote bins or kettles.
Specifications
| Model | TES-2430-9 (Classic Series) |
|---|---|
| Capacity | 30 gal / 114 L |
| Pan Depth | 9 in (229 mm) |
| Cooking Surface Area | 778 in² (0.50 m²) |
| Heat Input | 11.1 kW electric elements |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical (240 V, 3 Ø) | 26.7 A (other voltages/phase options available) |
| Inside Pan Width (A) | 31.0 in (787 mm) |
| Overall Width (F) | 46.1 in (1172 mm) |
| Front-to-Back (L) | 37.5 in (953 mm) |
| Minimum Pour Clearance | 30 in (from wall) |
| Construction | All 304 stainless steel – pan, lid, frame & consoles |
Included With Your Skillet
- Counterbalanced lid with single side safety handle
- Manual hand-crank with self-locking worm gear
- Heavy-duty wall carrier & mounting hardware
- High-limit thermostat & indicator light
- Comprehensive owner’s manual
Popular Accessories (Sold Separately)
- 1½ in, 2 in or 3 in draw-off valve assemblies (ball or compression)
- Single or dual pantry fill faucets with 12- or 18-in swing nozzles
- 48 in flexible spray rinse hose (vinyl or stainless)
- Draw-off pan holder or pour-lip strainer
- Electric timer with buzzer
- Lockable lid or control cover for high-security installations
Need a custom voltage, faucet or security package? Contact us and we’ll configure your Legion Classic skillet to match your exact requirements.
