Legion TES-2430-7-WC Classic Braising Pans & Tilt Skillets
Description

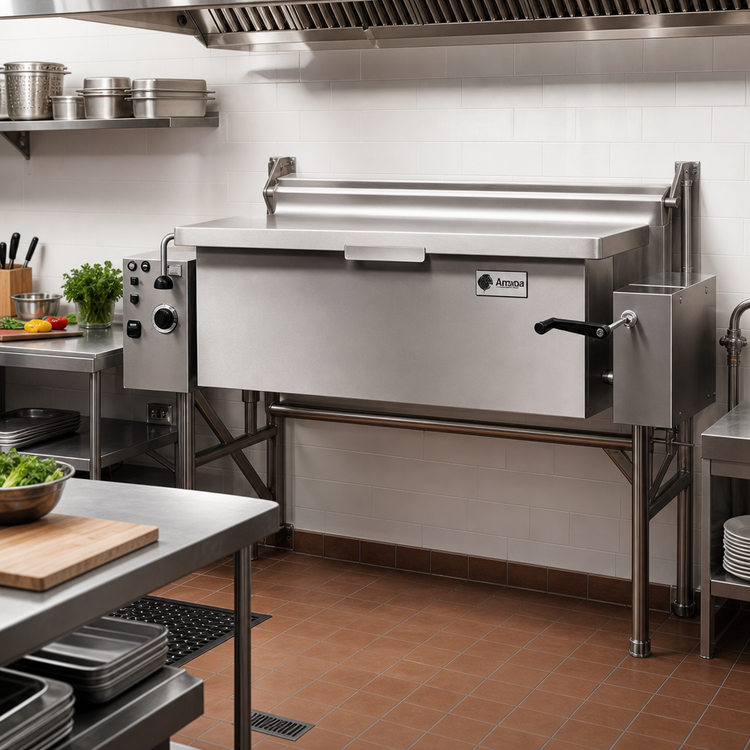

Legion Classic 23-Gallon Electric Tilting Skillet – Wall Mounted
Model TES-2430-7 | 11.1 kW | Manual, Self-Locking TiltBuilt in the USA for kitchens that demand versatility, the Legion Classic wall-mounted tilting skillet combines the capacity of a braising pan, the power of a griddle and the convenience of a kettle—all in one heavy-duty 304 stainless-steel unit. With a generous 23-gallon pan and a precise 175 °F–400 °F thermostat, it lets you sear, sauté, braise, simmer or shallow-fry, then tilt more than 90° for effortless, controlled pouring.
Key performance advantages
- 23 gal (87 L) capacity pan provides 778 in² of cooking surface.
- 11.1 kW electric heating elements reach set temperature fast and recover quickly.

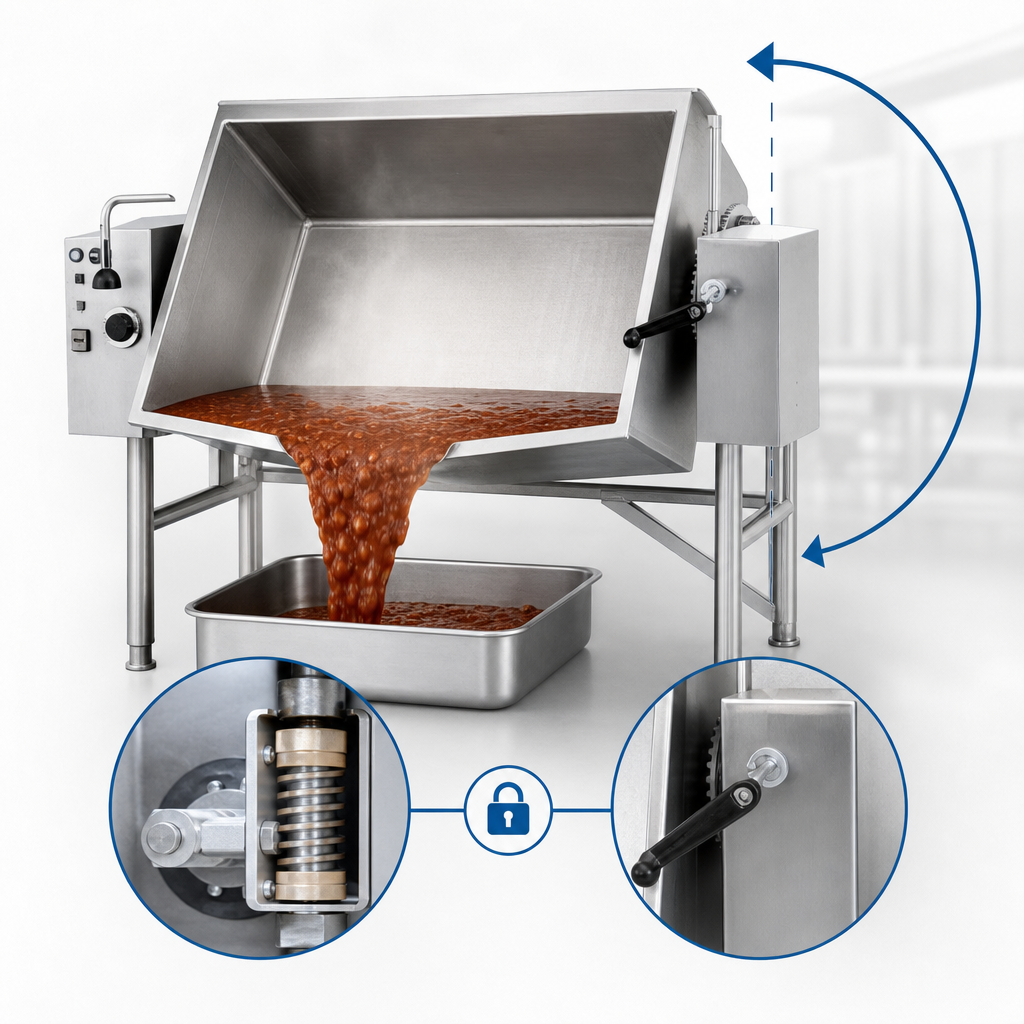

- Manual self-locking worm-gear tilt with center trunnion gives smooth, precise control and keeps the pan exactly where you set it.
- Actuator-assisted, counter-balanced lid reduces operator effort and features a full-width condensate drip shield and rear steam vent.
- Seam-welded 304 stainless-steel pan with clad cooking surface for excellent heat transfer and easy cleaning.
- High-limit safety thermostat protects the unit from overheating.
- Water-resistant stainless consoles and a knock-down frame that fits through a 26" × 66" opening simplify installation.

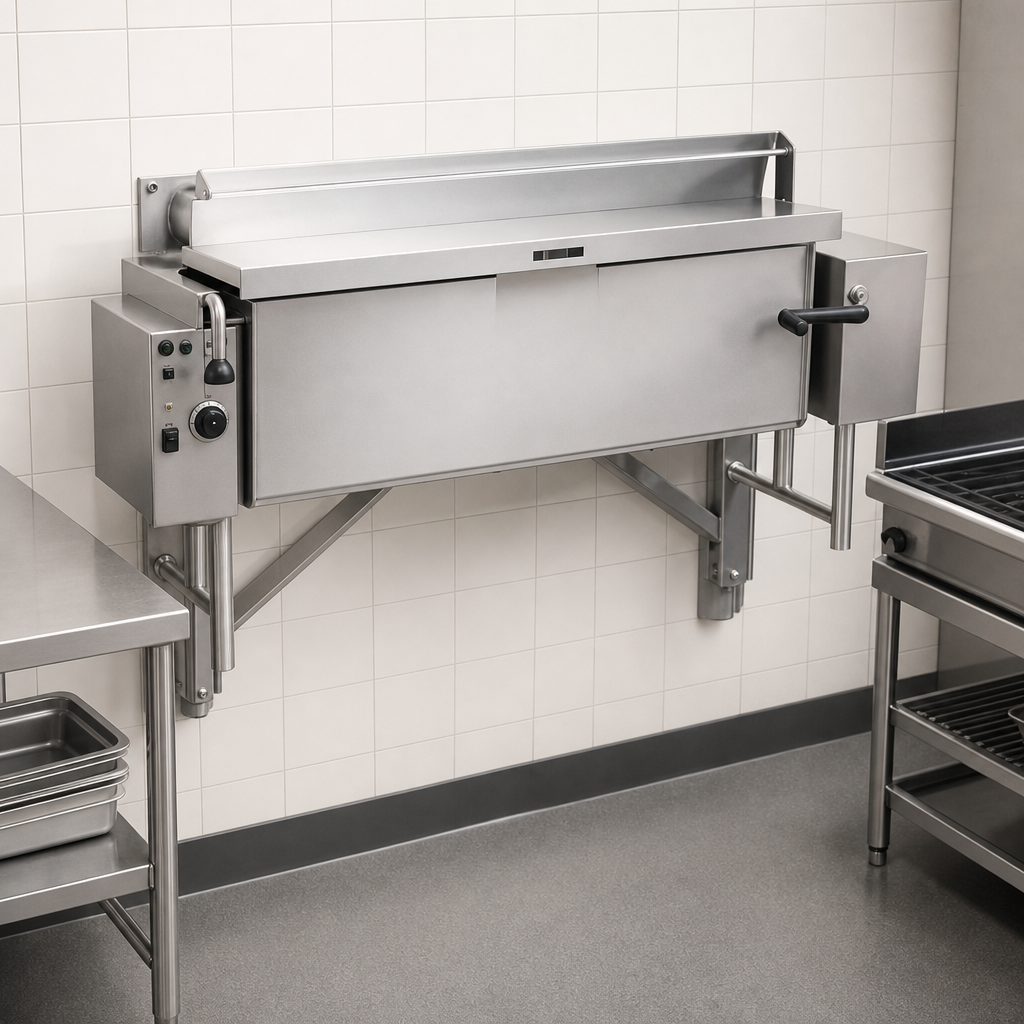

- Supplied wall-mount carrier maximizes floor space and makes cleaning underneath a breeze.
Technical specifications
| Pan capacity | 23 gal (87 L) |
|---|---|
| Pan depth | 7 in (178 mm) |
| Cooking surface | 778 in² |
| Heating power | 11.1 kW electric |
| Temperature range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt mechanism | Manual, self-locking worm gear, > 90° pour angle |
| Lid | 304 SS, actuator-assisted, counter-balanced with drip shield & rear vent |
| Inside pan width (A) | 31 in (787 mm) |
| Overall width (F) | 46.1 in (1 171 mm) |
| Overall length (L) | 37.5 in (953 mm) |
| Electrical (amps/phase) |
208 V – 1Ø 53.4 A / 3Ø 30.8 A 240 V – 1Ø 46.3 A / 3Ø 26.7 A 380 V – 1Ø 29.2 A / 3Ø 16.9 A 415 V – 1Ø 26.7 A / 3Ø 15.4 A 440 V – 1Ø 25.2 A / 3Ø 14.6 A 480 V – 1Ø 23.1 A / 3Ø 13.4 A |
| Construction | All-welded 304 SS pan, frame & consoles |
| Compliance | UL, NSF, ASME — see data plate |
Optional accessories
- 1½" or 2" draw-off valve assemblies & flexible drain hose
- Single or double water-fill faucets with 12" / 18" swing nozzle
- 48" stainless or vinyl spray-rinse hose
- Perforated cooking/steaming baskets (11 × 20½ × 5")
- Lockable lid or lockable control cover for security installations
- Classic care kit with essential maintenance tools
- Casters or adjustable flanged feet for floor-mount conversions
Covered by Legion’s 12-month parts & labor warranty from date of installation. Register the equipment within 10 days to activate coverage.
