Legion TES-2430-7 Classic Braising Pans & Tilt Skillets
Description

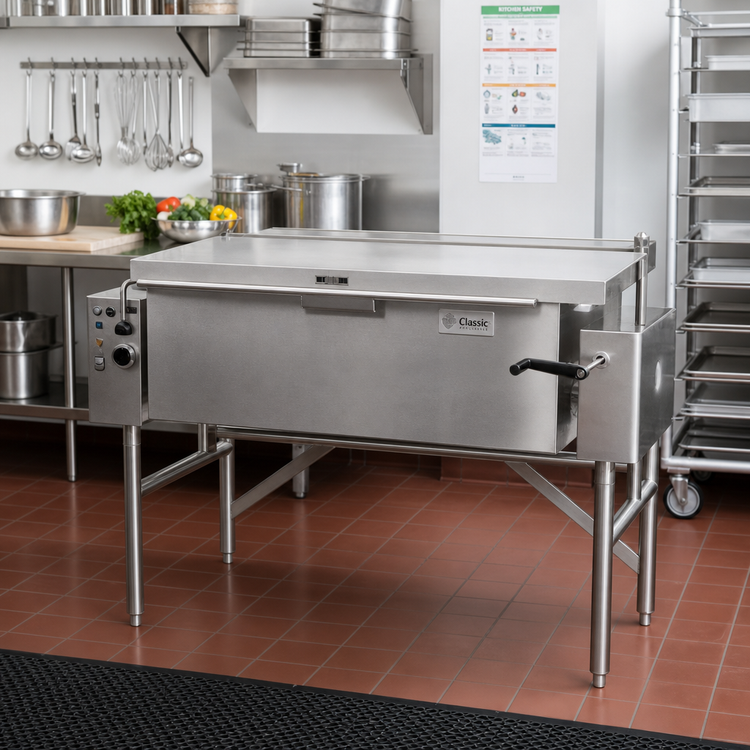

Legion Classic 23-Gallon Electric Tilting Skillet
Model TES-2430-7 | 11.1 kW • 240 V / 3 ØFrom braising beef tips to scrambling a full hotel-pan of eggs, the Legion Classic brings uncompromising versatility to any high-volume kitchen. A smooth, center-trunnion tilt lets a single operator pour product safely, while the 304 stainless steel construction withstands years of daily punishment and rigorous cleaning.
Why You’ll Love It

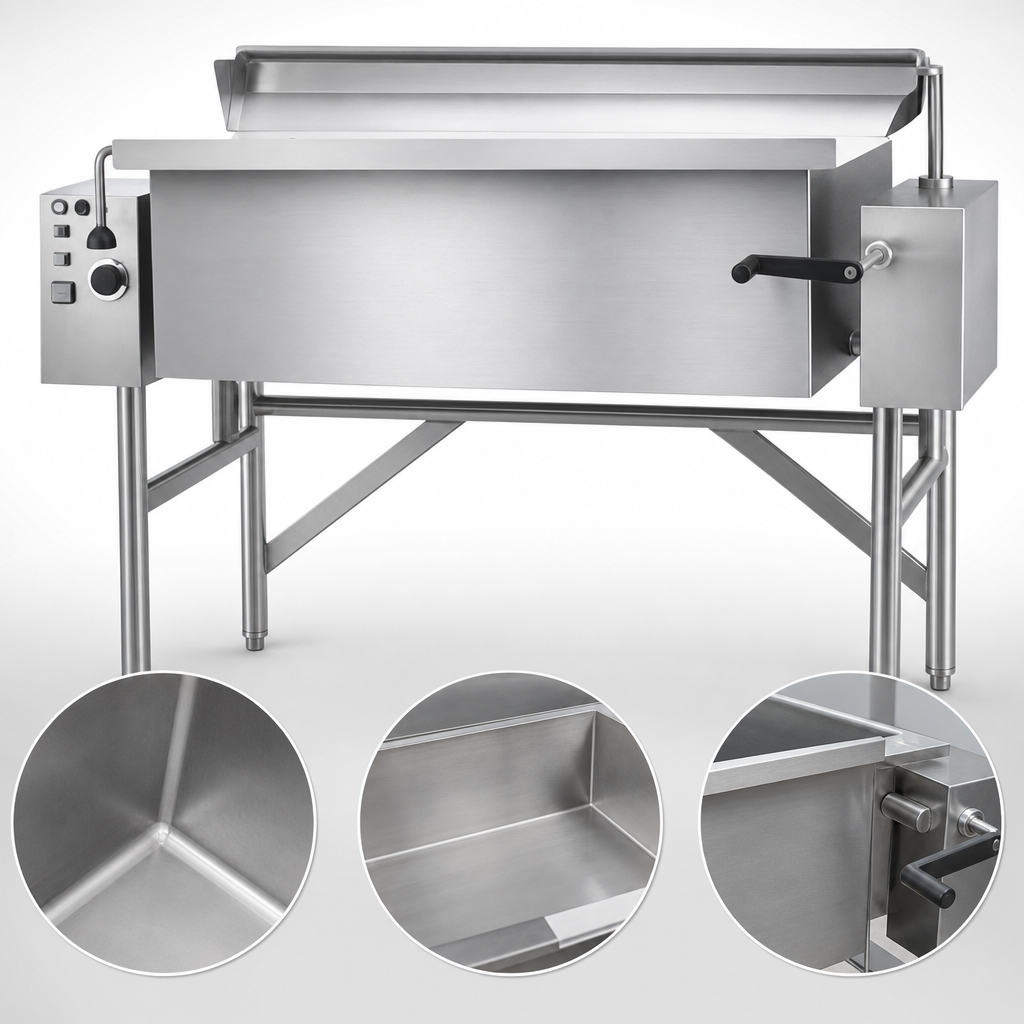

- 304 SS seam-welded pan with 778 in² cooking surface—large enough for up to 140 lb of ground meat.

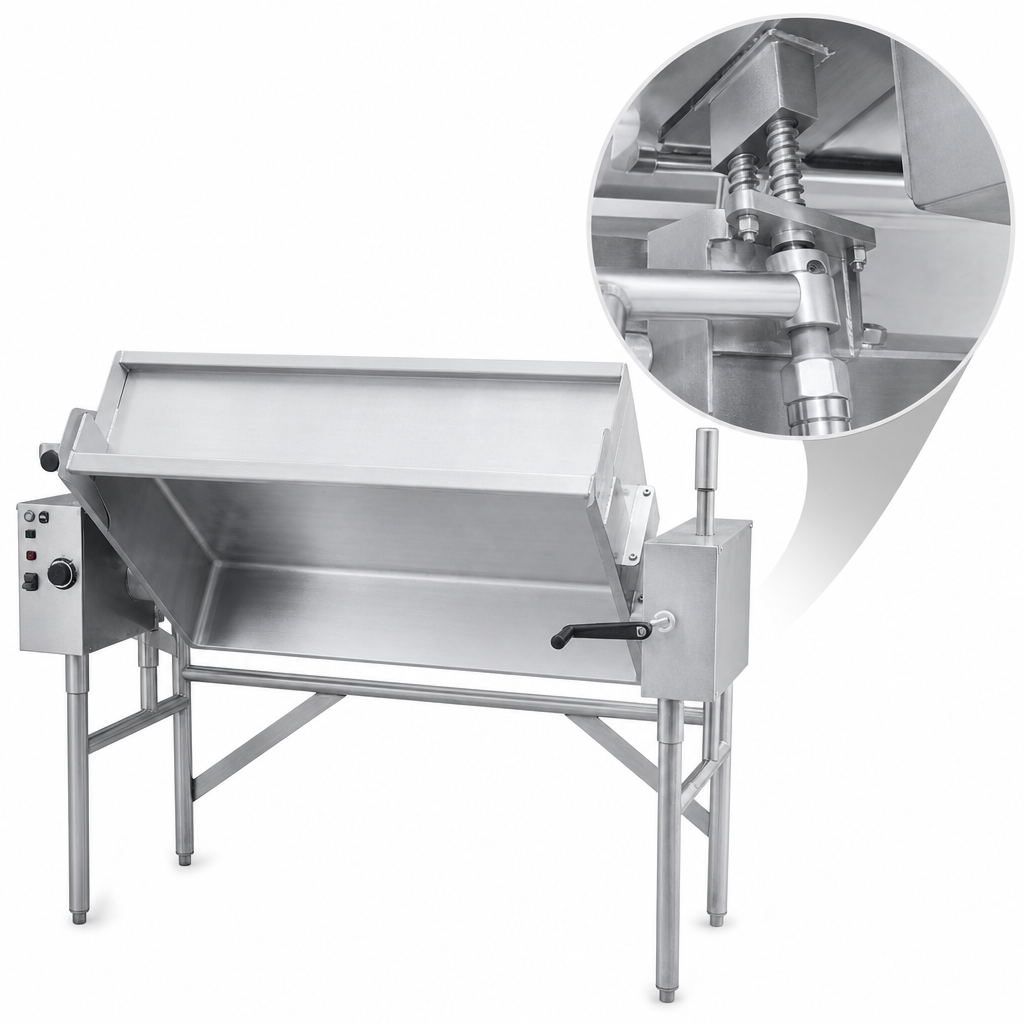

- Self-locking worm-gear mechanism provides precise, 90°+ tilt for splash-free pouring.
- Fast-acting 11.1 kW elements governed by a thermostat (175–400 °F) plus high-limit safety cut-off.
- Patented, counter-balanced lid with full-width condensate drip shield and rear steam vent.
- Reinforced, water-resistant stainless control console and indicator light for at-a-glance status.
- Adjustable bullet feet; unit ships knock-down to clear a 26" × 66" doorway.
- NSF, UL & ASME compliant—proudly made in Waynesboro, GA (USA).
Capacity & Dimensions
| Usable volume | 23 gal | 87 L |
|---|---|
| Pan depth | 7 in | 178 mm |
| Cooking surface | 31 in × 25 in (778 in²) |
| Minimum pour clearance | 30 in from wall (with 9 in pan) |
Electrical
| Input power | 11.1 kW electric heaters |
|---|---|
| Standard voltage | 240 V, 3-phase, 28.4 A/leg |
| Alternate voltages | 208, 380, 415, 440 or 480 V (1 Ø or 3 Ø—specify at order) |
| Field connection | Hard-wired (no cord or plug supplied) |
Popular Kitchen Uses
- Braising roasts, carnitas or pulled pork
- Grilling pancakes, burgers or fajita veggies directly on the pan
- Batch cooking pasta, rice or chowders—then tilting to portion
- Holding sauces or gravies on low without scorching
Factory-Fit Options
- 1.5", 2" or 3" draw-off valve with strainer, hose or can-holder
- 48" spray-rinse faucet or automatic water-meter fill
- Caster set (two locking / two swivel) & restraining devices
- Lockable lid & control cover for correctional installations
- Perforated steam baskets, solid food pans & surface cleaning kit
For a full list of accessories and voltage configurations, contact our team.
Warranty
Standard 12-month parts & labor coverage from installation. Extendable up to 3 years at the time of purchase.
