Legion TES-2430-11-WC Classic Braising Pans & Tilt Skillets
Description
Legion Classic 37-Gallon Electric Tilting Skillet
Model TES-2430-11 | 11.1 kW | Made in USAPurpose-built for high-volume kitchens that demand durability, precision and easy cleanup, the Legion Classic manual-tilt skillet delivers 37 gallons (4.6 ft³) of even, edge-to-edge heat in a seamless 304 stainless steel pan. A self-locking worm gear ensures smooth, controlled tilting while the actuator-assisted lid keeps operators safe and fatigue-free.
Why You’ll Love It

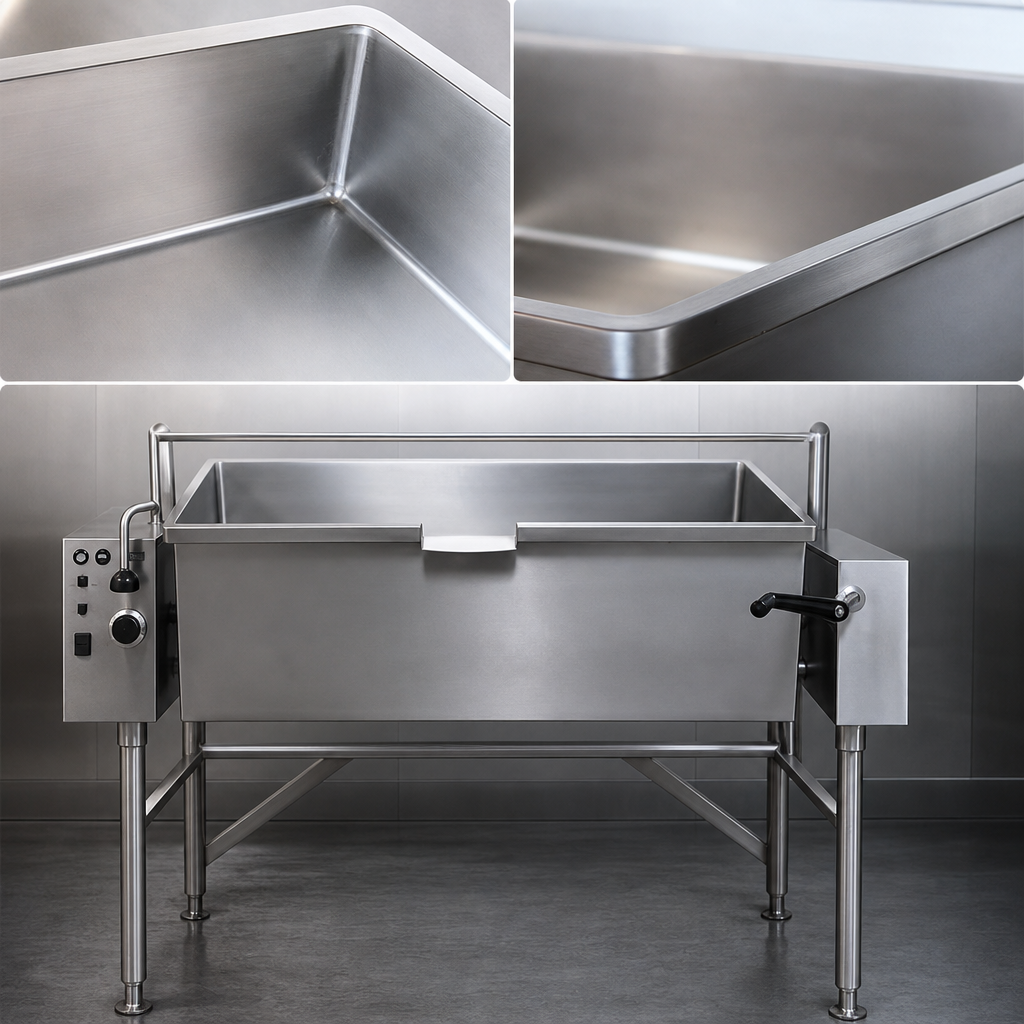

- Rugged 304 stainless steel pan – seam-welded and center-trunnion mounted for rock-solid support.

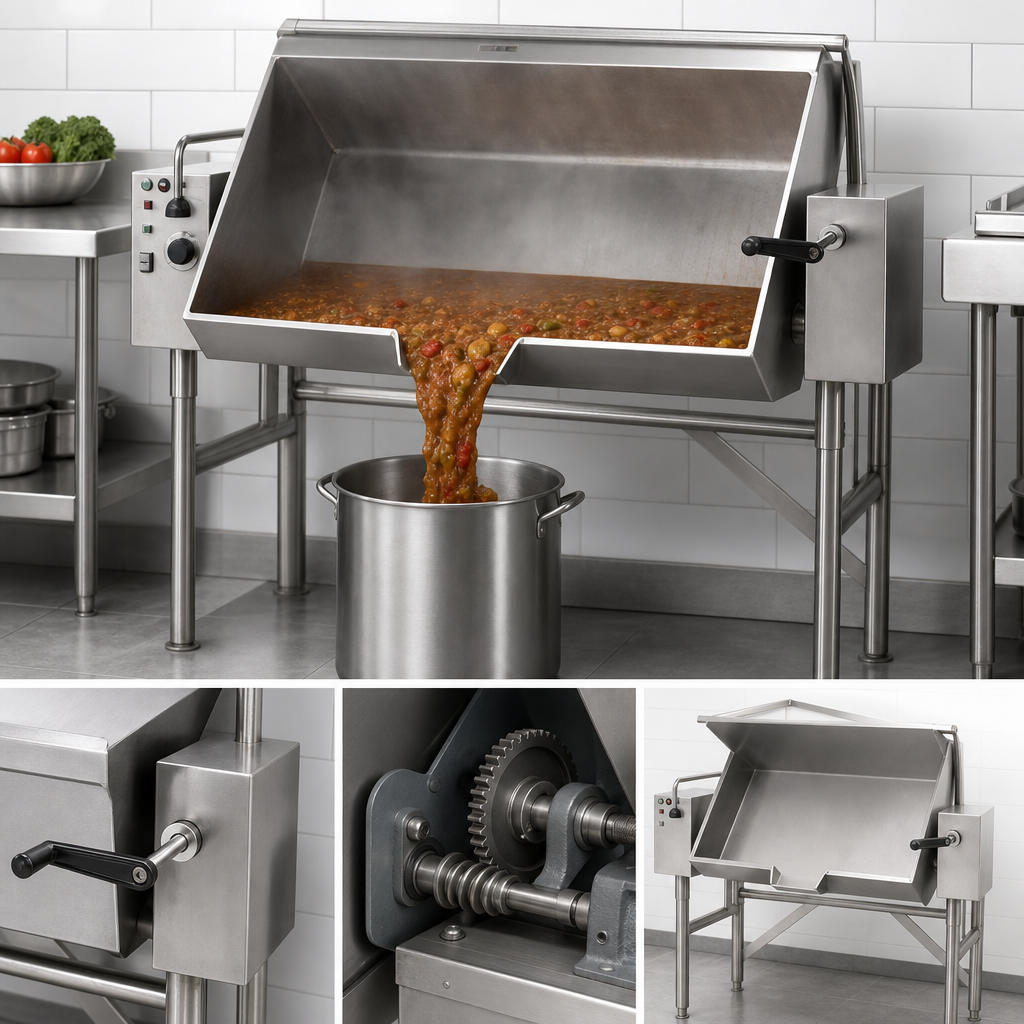

- Self-locking worm gear manual tilt – rotation exceeds 90° for fast, complete pour-out.
- Actuator-assisted counter-balanced lid with full-width drip shield and rear steam vent.
- Wide temperature range – adjustable thermostat from 175 °F to 400 °F plus high-limit safety cut-off.
- 11.1 kW electric heating – rapid recovery and even heat distribution; 240 V, 3-phase standard.
- Water-resistant stainless consoles & tubular frame engineered to withstand daily wash-downs.
- Knock-down design fits through 26" × 66" doorways for effortless installation.

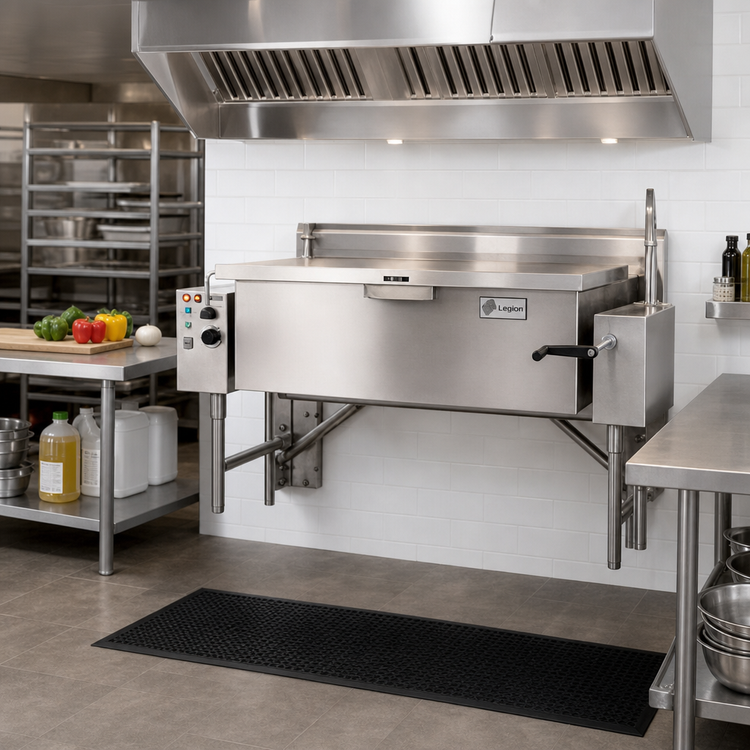

- Optional in-wall carrier allows wall-mounted installation to free up valuable floor space.
At-a-Glance Specs
| Capacity | 37 gal | 778 in² cooking area |
|---|---|
| Pan Depth | 11 in (279 mm) |
| Construction | 304 stainless steel pan & frame; 304 clad cooking surface |
| Tilt Mechanism | Manual, self-locking worm gear – >90° rotation |
| Lid | 304 stainless, actuator-assisted counterbalance with drip shield & steam vent |
| Temperature Control | Thermostat 175 – 400 °F (79 – 204 °C) with high-limit safety |
| Electrical | 11.1 kW | 240 V 3 Ø (26.7 A) Alternate voltages: 208 / 380 / 415 / 440 / 480 V; single-phase available |
| Overall (W × D × H) | 46.1" × 37.5" × 67.3" (lid raised) |
| Shipping | Knock-down for 26" × 66" openings |
| Origin | Manufactured in Dallas, PA USA |
Customize Your Skillet
- In-wall carrier for true wall-mount operation
- 1½", 2", or 3" draw-off valve (compression or ball type)
- Single or double water fill faucets with 12" / 18" swing nozzles
- 48" stainless or vinyl spray hose & bracket
- Electric timer with buzzer
- Casters or adjustable flanged feet
- Lockable lid & control cover (security applications)
- Perforated cooking/steaming baskets, food pans & pour-lip strainers
Safety & Certifications
Legion equipment is built to comply with applicable UL, NSF, ASME and CSA standards. Always verify local code requirements before installation.
Images may show optional accessories. Specifications subject to change without notice.
