Legion TES-2430-11 Classic Braising Pans & Tilt Skillets
Description

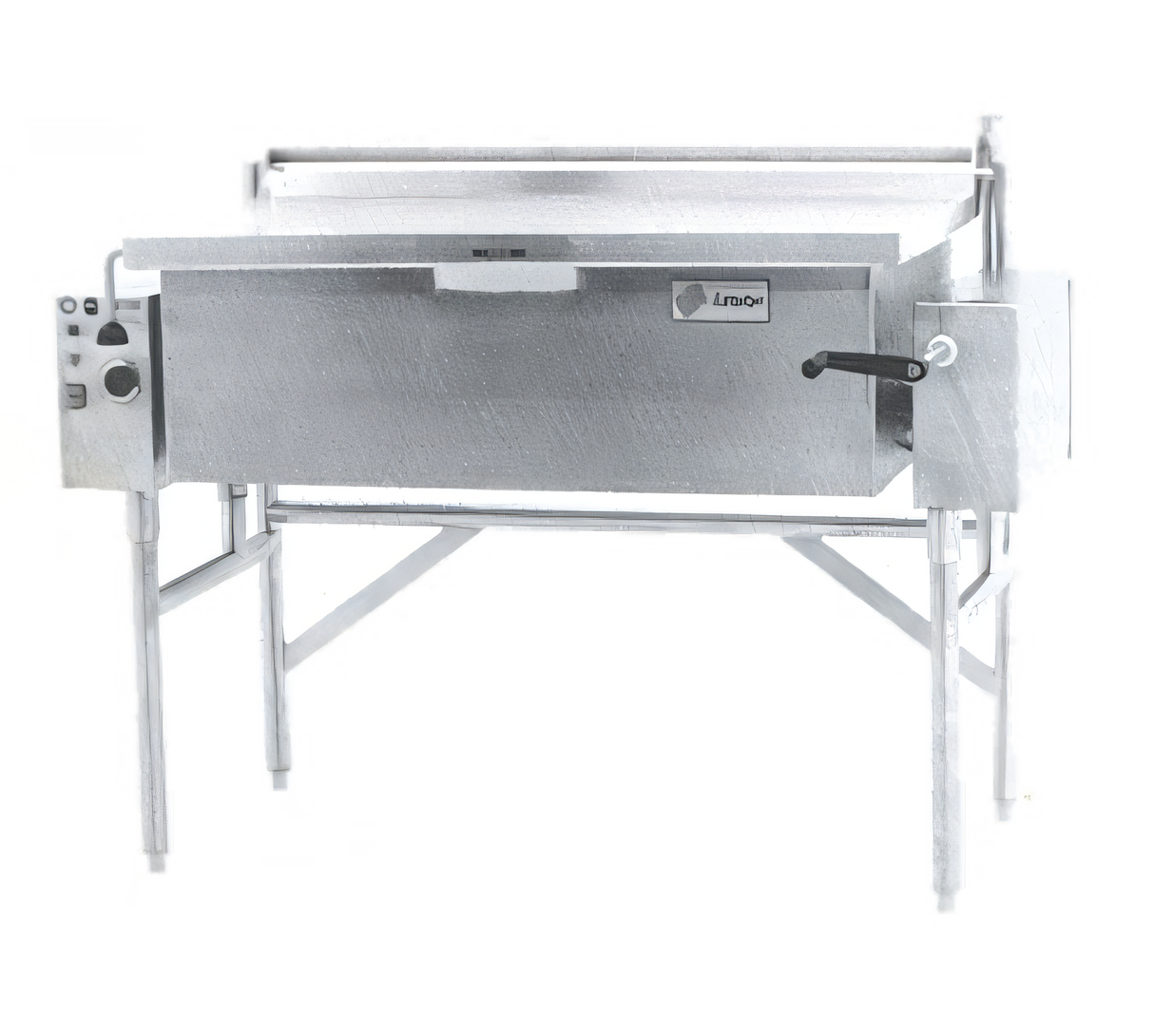

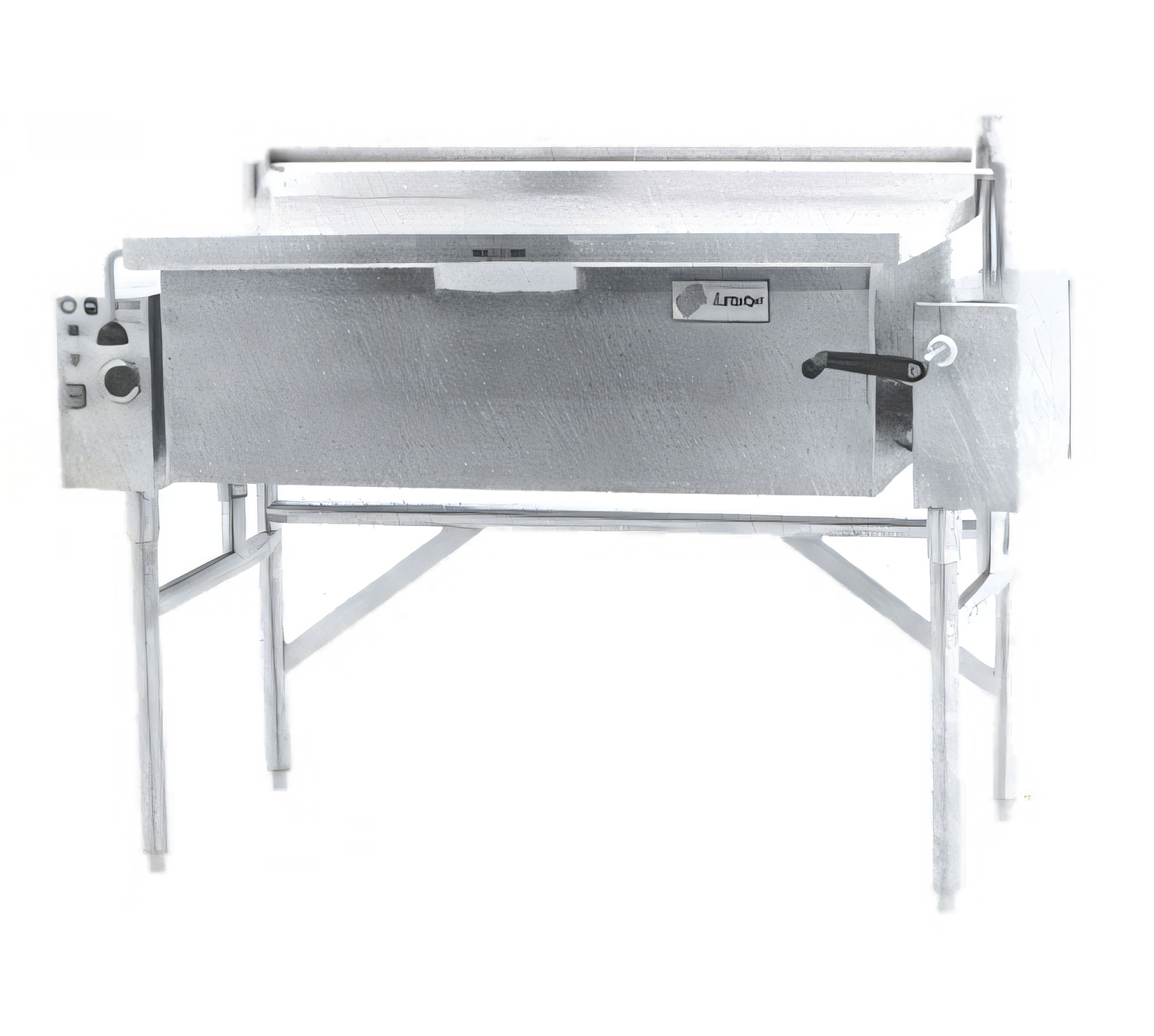

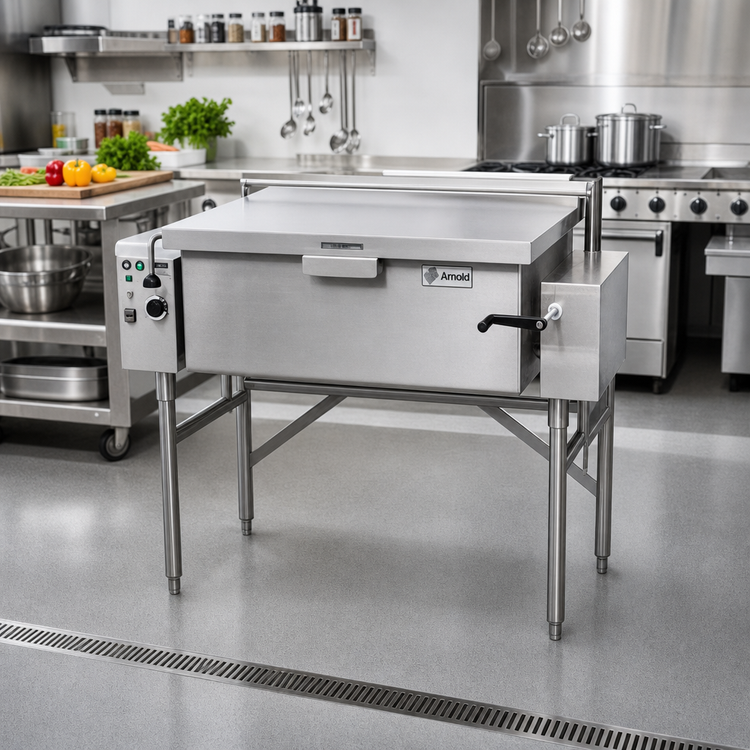

Legion Classic 37-Gallon Electric Tilting Skillet
Model TES-2430-11 | Floor-Mounted | Made in USABuilt for demanding commercial kitchens, the Legion Classic electric tilting skillet gives you the flexibility of a griddle, brazier, kettle and holding pan in one ultra-durable package. A 37-gallon (140 L) capacity, fast 11.1 kW electric heating and a smooth self-locking tilt make it the perfect workhorse for large-batch sautéing, braising, simmering, searing and more.
Standard Features

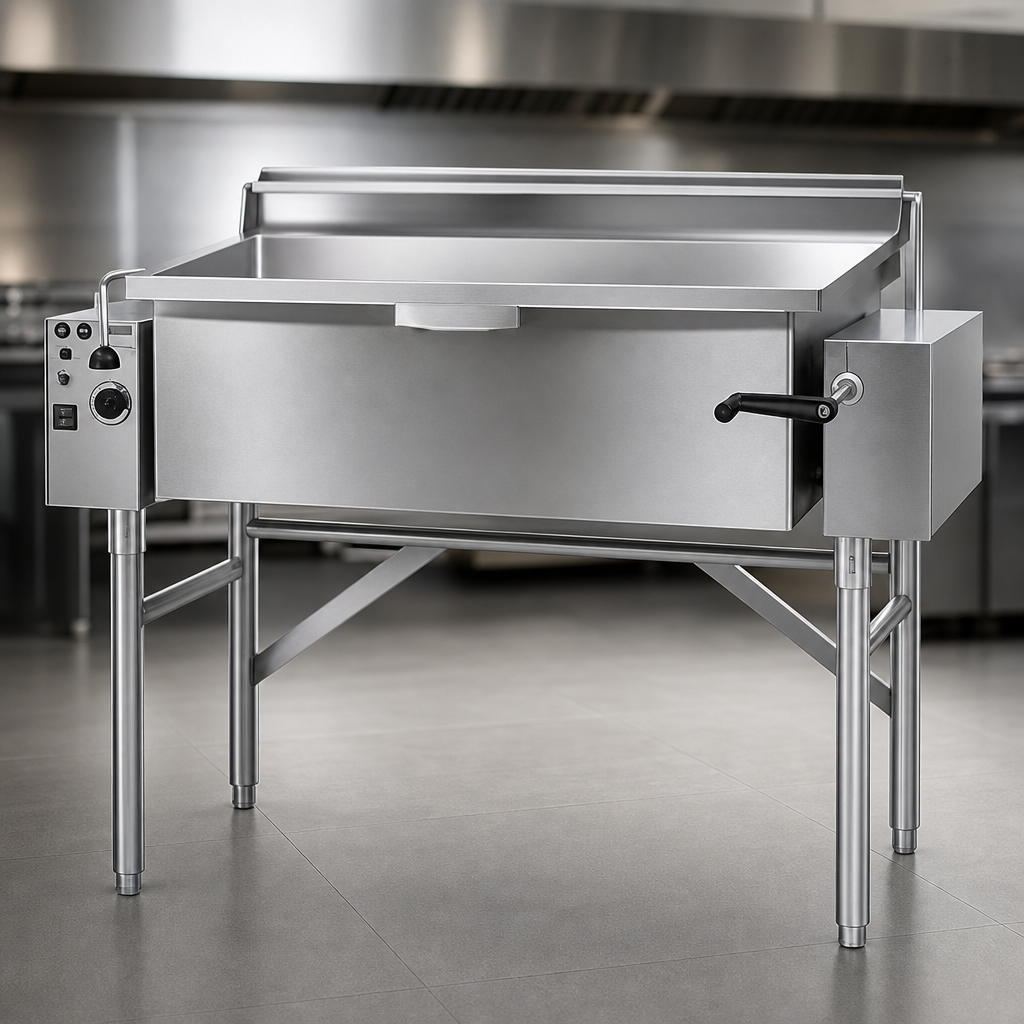

- 304 series stainless-steel, seam-welded pan body with center trunnion mount

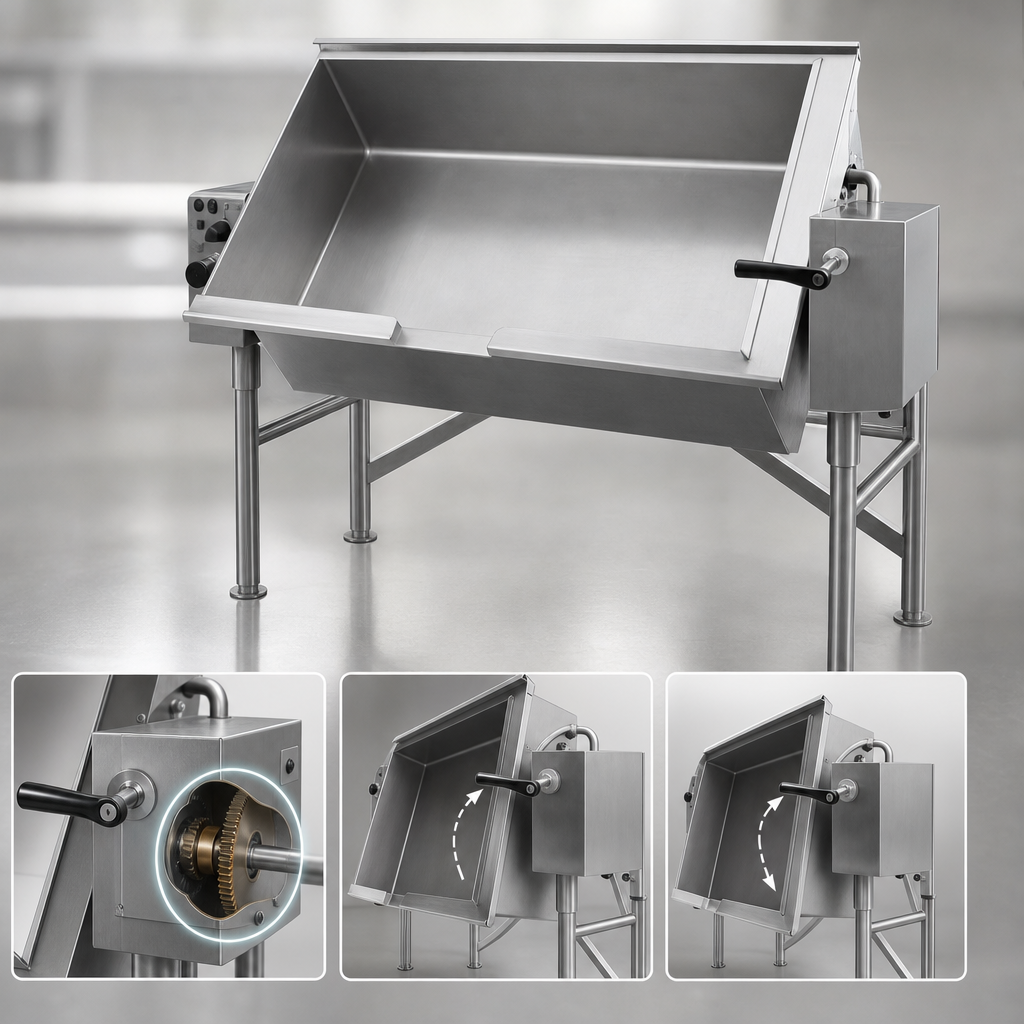

- Self-locking worm-gear tilt mechanism with 90°+ rotation for complete emptying
- 11.1 kW electric elements-– 240 V, 3-phase standard (other voltages available)
- Precise thermostat control from 175 °F to 400 °F with high-limit safety cutoff
- Patented stainless-steel lid with actuator-assisted counterbalance, full-width drip shield & rear steam vent
- Water-resistant, reinforced stainless control console
- Rugged tubular stainless frame with field-adjustable bullet feet
- Knock-down design passes through a 26 in × 66 in doorway for easy installation
Performance Benefits
- Versatile menu production – roast, grill, braise, steam or hold in a single vessel
- Rapid heat-up and even distribution from the 11 kW coved-corner pan
- One-handed tilt lets operators pour or portion safely and smoothly
- Easy cleanup thanks to smooth welds, rounded corners and optional draw-off accessories
- Made in the USA and built to meet or exceed ASME, NSF, UL and other agency standards
Specifications
| Model | TES-2430-11 |
|---|---|
| Pan Capacity | 37 gal | 140 L | 5.0 ft³ |
| Cooking Surface Area | 778 in² (5017 cm²) |
| Inside Pan Depth | 11 in (279 mm) |
| Overall Width (F) | 46.1 in (1172 mm) |
| Overall Length (L) | 37.5 in (953 mm) |
| Heating Power | 11.1 kW electric |
| Voltage / Phase | 240 V, 3-phase standard | 208 V, 380-480 V & 1-phase optional |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Construction | All 304 stainless pan, lid, frame & control housing |
| Agency Compliance | ASME, NSF, UL, ETL and other local codes as applicable |
| Origin | Waynesboro, Georgia, USA |
Popular Options & Accessories
- 1½-, 2- or 3-inch draw-off valve with strainer & hose
- 48 in flexible spray rinse hose (vinyl or stainless steel)
- Perforated cooking/steaming baskets & 12 × 20 food pans
- Casters (locking/non-locking) with restraining devices
- Electric timer with buzzer
- Lockable lid and control-cover kits for correctional installations
Includes Legion’s 12-month parts & labor warranty (15 months from ship date when registered).
