Legion TES-2424-9-WC Classic Braising Pans & Tilt Skillets
Description
Legion Classic™ 24-Gallon Tilting Skillet
Model TES-2424-9 | Wall-Mounted • Electric • 10.6 kWEngineered for high-volume kitchens that demand versatility, speed, and rock-solid reliability, the Legion Classic™ 24-Gallon Tilting Skillet tackles everything from searing and braising to steaming and holding — then pours it all out with a smooth, self-locking worm-gear tilt. 100 % built in the USA, it’s the workhorse you mount once and count on for years.
Why You’ll Love It
- Massive 24-gallon (628 in²) capacity cooks up to 350 servings of chili, sauce, pasta, eggs and more in a single batch.

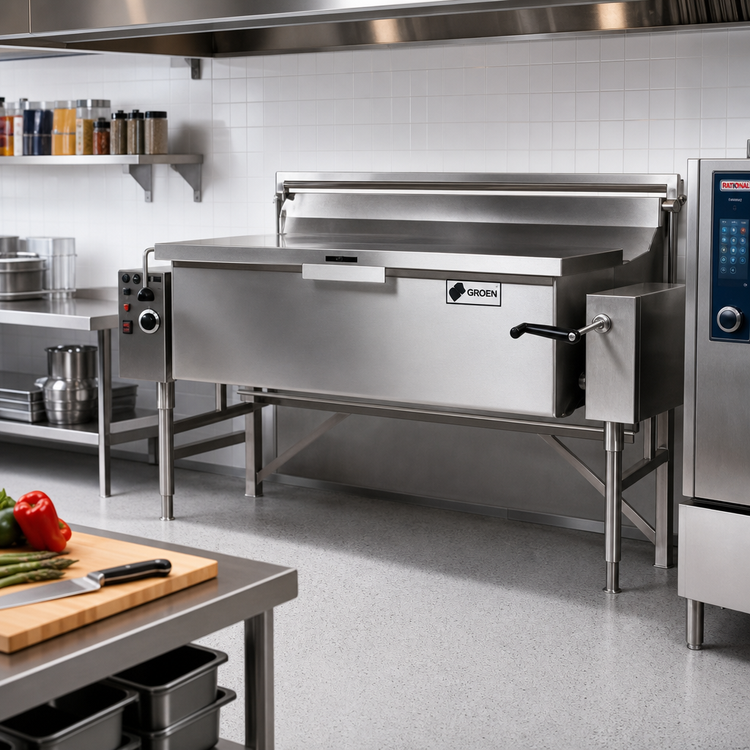

- Wall-mounted design frees floor space and keeps the work zone easy to clean.

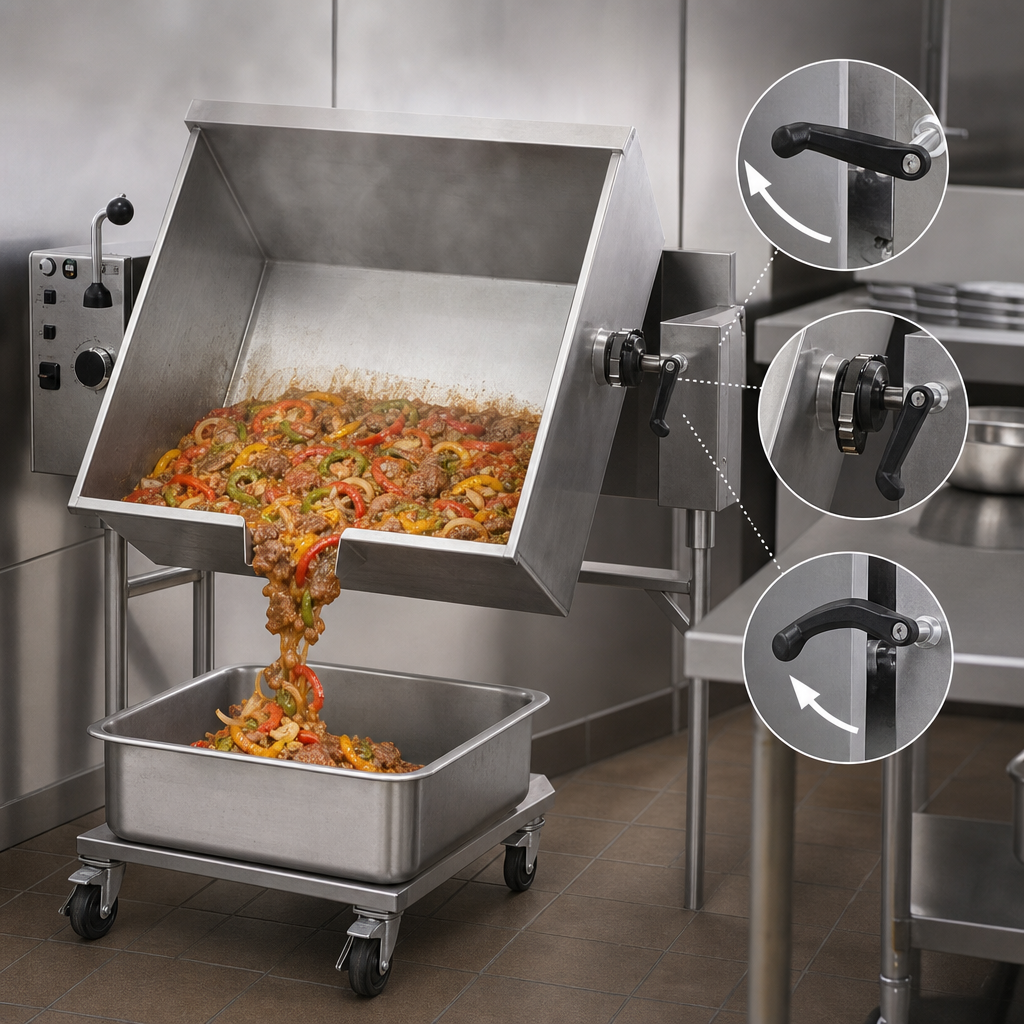

- Self-locking worm-gear tilt rotates the pan more than 90° for complete, controlled emptying — no hydraulics to fail.
- 304 stainless, seam-welded pan with 304 clad cooking surface for even heat and lifetime corrosion resistance.
- Actuator-assisted counter-balanced lid with full-width drip shield & rear steam vent keeps condensation where it belongs.

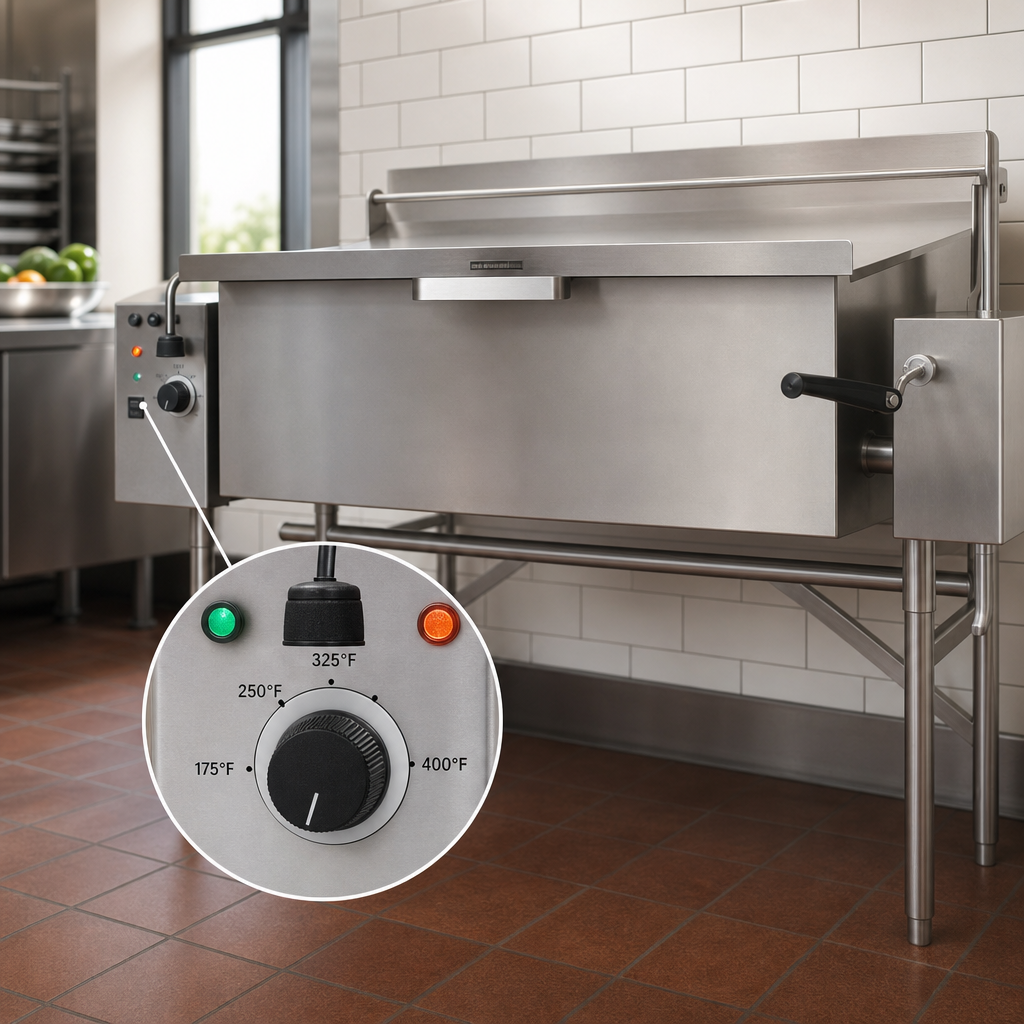

- Wide 175 °F – 400 °F thermostat plus high-limit safety cuts power if temperatures spike.
- Knock-down frame fits through a 26" × 66" doorway – install it anywhere, even existing kitchens.
- Meets or exceeds NSF, UL and ASME standards; backed by Legion’s 1-year parts & labor warranty.
Technical Specifications
| Model | TES-2424-9 (Classic Series) |
|---|---|
| Pan Capacity | 24 gal | 3.3 ft³ | 628 in² cooking surface |
| Heating Power | 10.6 kW electric, 240 V, 3-phase (other voltages available) |
| Thermostat Range | 175 °F – 400 °F with high-limit safety cut-off |
| Tilt Mechanism | Manual, self-locking worm gear | > 90° rotation |
| Construction | 304 stainless pan, lid, consoles & tubular frame |
| Interior Pan Depth | 9 in (229 mm) |
| Overall Width (F) | 40.1 in (1,019 mm) |
| Overall Length (L) | 31.5 in (800 mm) |
| Inside Pan Width (A) | 25.0 in (635 mm) |
| Shipping | Knock-down for 26" × 66" openings; ships from Dallas, PA, USA |
| Agency Approvals | NSF, UL, ASME |
| Warranty | 12 months parts & labor (extended plans available) |
Factory-Installed Options
- 1½" or 2" draw-off valve & food-pan holder assemblies
- Single / dual fill faucets with 12" or 18" swing nozzles
- 48" stainless or vinyl spray hose | automatic water meter
- Electric timer with buzzer for repeatable batch cooking
- Lockable lid & control cover for correctional facilities
- Perforated steaming baskets, solid & perforated food pans, #10-can holder and more
Upgrade your line today with the Legion Classic™ — the tilting skillet chefs trust when every service, every batch, and every plate has to be perfect.
