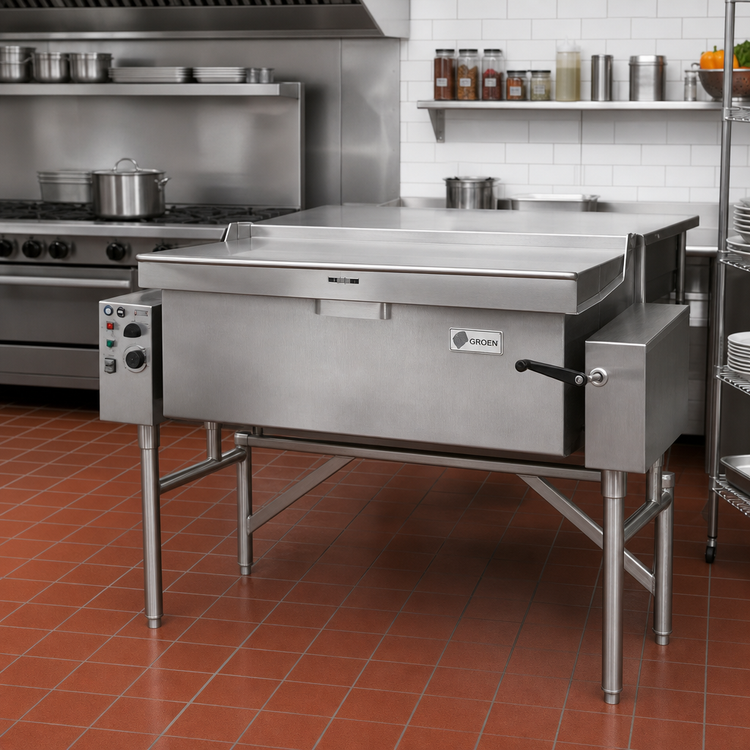

Classic 24-Gallon Electric Manual Tilting Skillet, 9-Inch Deep, Floor Mounted

304 Stainless Steel Pan and Frame, 240V 3-Phase, Adjustable Thermostat

A rugged, floor-mounted skillet with smooth manual tilting and precise heat control for high-volume braising, sautéing, simmering, and batch cooking.

  • 24-gallon capacity supports large-batch cooking and holding.
  • Self-locking worm gear tilt mechanism rotates beyond 90 degrees for controlled pouring and cleaning.
  • Adjustable thermostat from 175°F to 400°F with a high-limit safety thermostat.
  • 304 stainless steel pan body, cooking surface, lid, console, and tubular frame for durability.
  • Actuator-assisted counterbalanced lid includes a drip shield and rear steam vent.
  • Floor-mounted design with adjustable bullet feet and knockdown capability for tighter access.

Product Weight:

410.0 lb

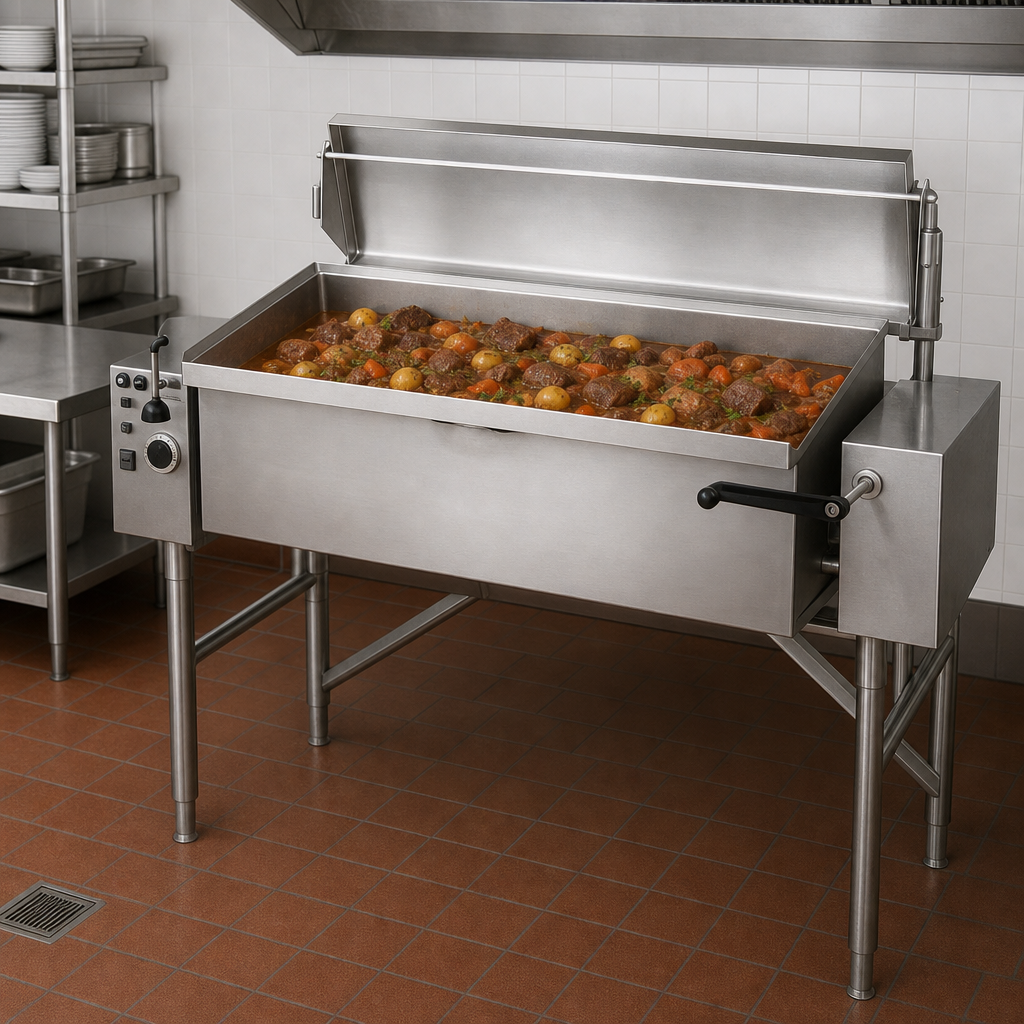

24-Gallon Capacity

Sized for high-volume kitchen production, braising, simmering, and batch service.

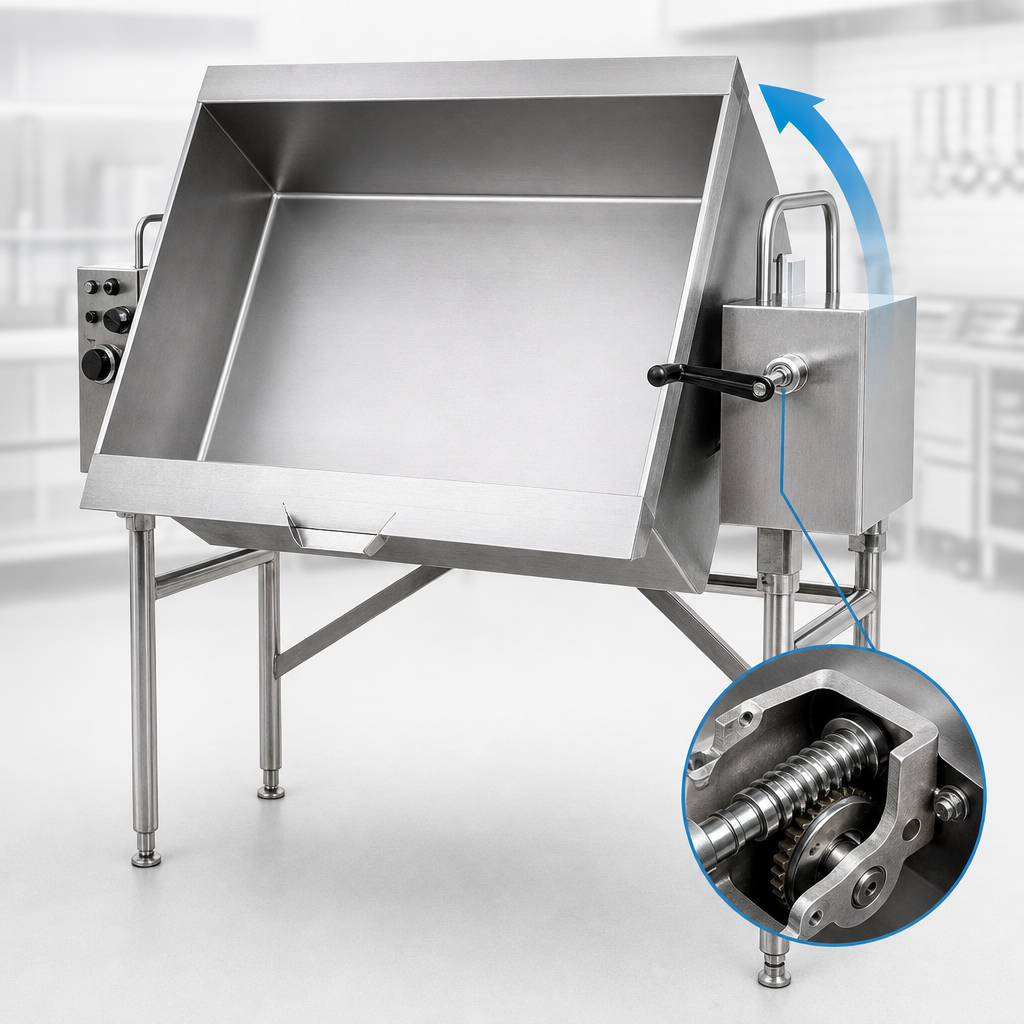

Manual Tilting Worm Gear

Self-locking worm gear tilt mechanism provides smooth, controlled manual dumping and rotates beyond 90 degrees.

Adjustable Thermostat

Operator-adjustable heat control ranges from 175°F to 400°F.

High-Limit Safety Thermostat

Adds an extra layer of protection against overheating.

304 Stainless Steel Construction

Seam-welded pan body, cooking surface, safety lid, control console, and tubular frame are built from 304 stainless steel.

Counterbalanced Safety Lid

Actuator-assisted lid design helps lift and lower the lid smoothly and includes a full-width condensate drip shield.

Steam Venting Design

Full-width rear steam vent helps manage heat and moisture during operation.

Floor-Mounted Frame

Tubular frame construction with adjustable bullet feet supports stable floor installation.

Knockdown Capability

Designed to fit through a 26 x 66-inch opening for easier installation access.

Electrical Configuration Options

Standard 240V, 3-phase electrical setup with selectable voltage and phase options available.

Type Tilting Skillet
Style Manual Tilting
Installation Type Floor Model
Capacity 24 Gallons
Pan Depth 9 Inches
Material 304 Stainless Steel
Controls Adjustable Thermostat
Temperature Range 175°F to 400°F
Voltage 240 Volts
Phase 3-Phase
Watts 5.9 kW
Country of Origin USA
Shipping Weight 410 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 24-gallon kettle capacity.
It uses a self-locking worm gear tilt mechanism for manual tilting, and rotation exceeds 90 degrees.
The adjustable thermostat ranges from 175°F to 400°F.
The documentation lists a standard 240V, 3-phase setup, with selectable voltage options from 208V to 480V and 1- or 3-phase choices.
Key components are made from 304 stainless steel, including the pan body, cooking surface, lid, console, and frame.
Yes, it is a floor-mounted unit with adjustable bullet feet.
