Legion TES-2424-7-WC Classic Braising Pans & Tilt Skillets
Description
Legion Classic 19-Gallon Wall-Mounted Tilting Skillet
Model TES-2424-7 | Electric | 10.6 kW | Manual Worm-Gear TiltEngineered for high-volume, high-versatility production, the Classic Series wall-mounted skillet combines a roomy 19-gallon cooking surface with Legion’s legendary 304 stainless construction. Precise electric heat, a self-locking worm-gear tilt, and a patented counter-balanced lid give chefs complete control from sear to serve.
Why You’ll Love It
- 19 gal / 72 L capacity handles up to 70 lb of ground meat, 20 gal of soup, or 480 portions of rice in a single batch.

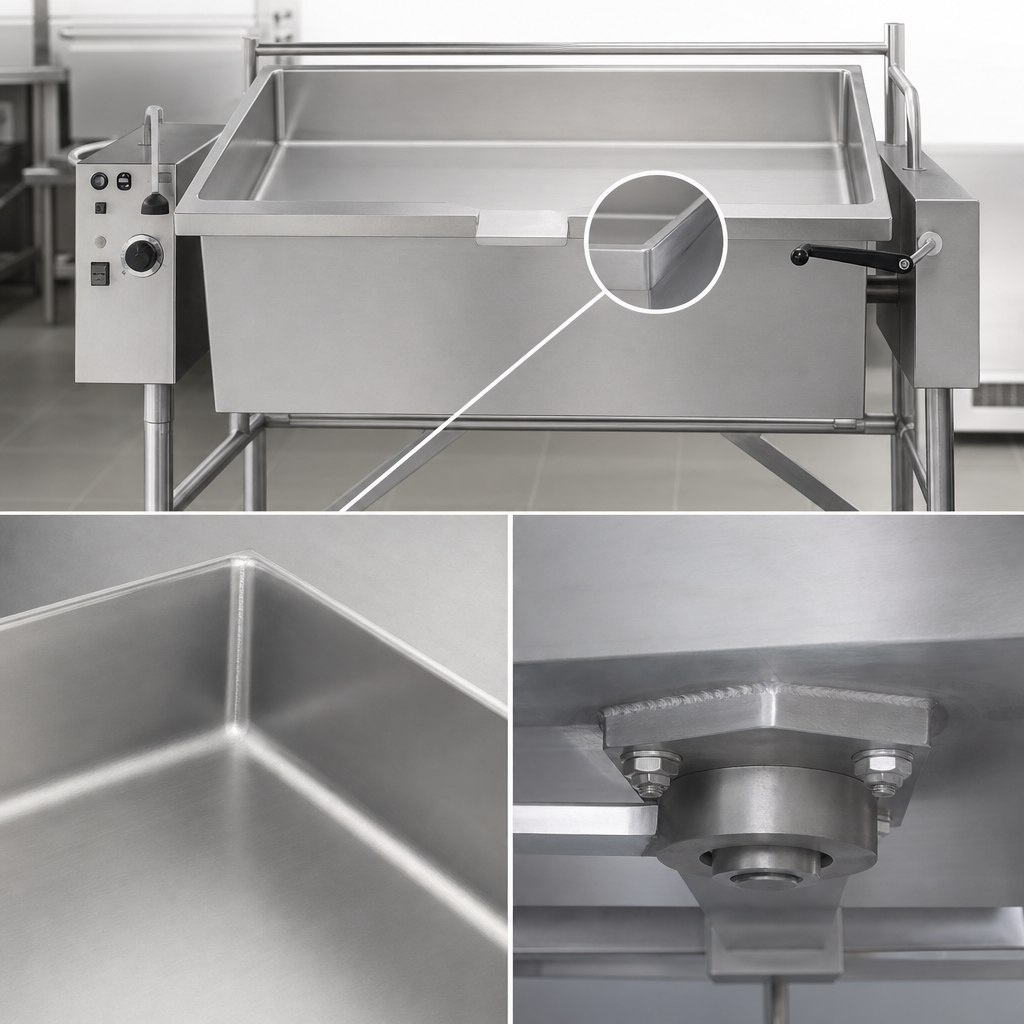

- Seam-welded 304 stainless pan with over-90° rotation for fast, complete pour-out and easy cleaning.

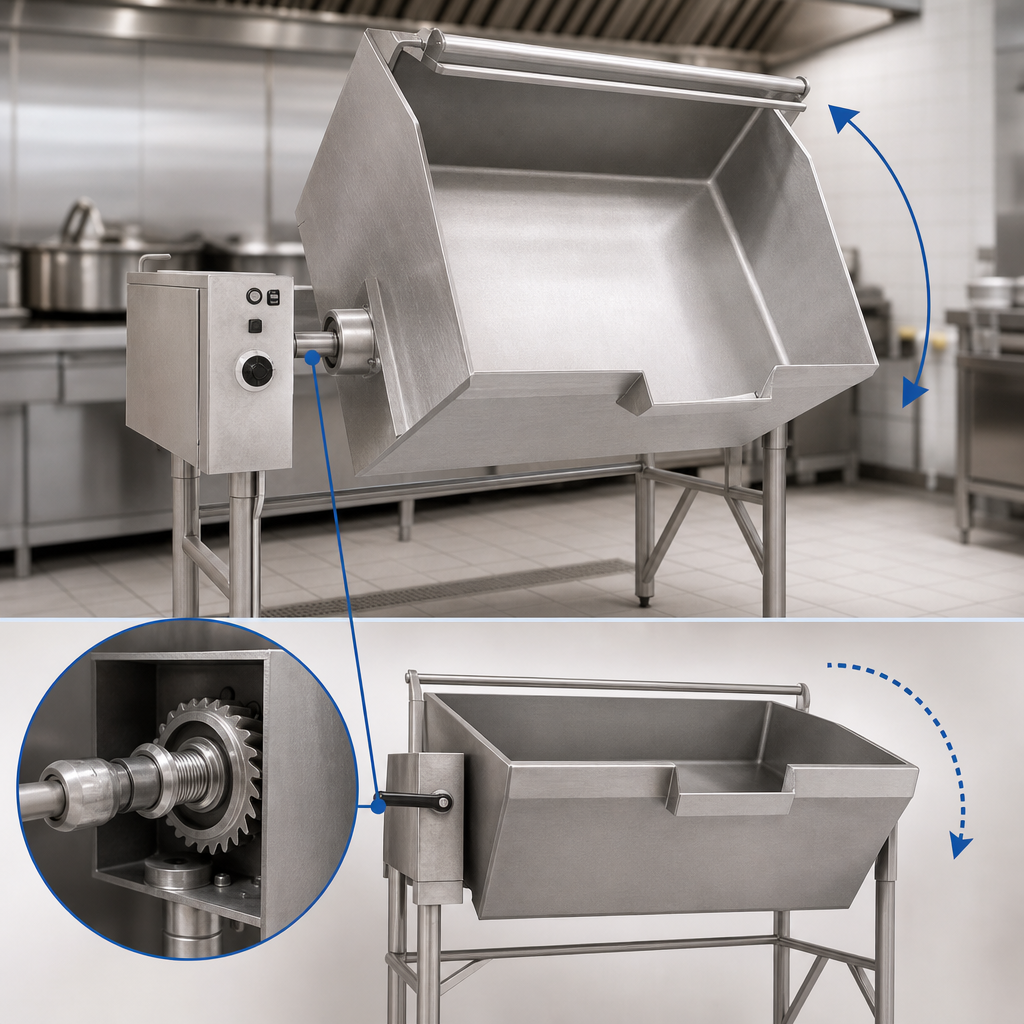

- Manual self-locking worm-gear tilt prevents accidental movement—zero hydraulics to maintain.
- 10.6 kW electric elements and a thermostat-controlled range of 175 – 400 °F, plus built-in high-limit safety.
- Patented lid with actuator-assisted counterbalance, full-width condensate drip shield, and rear steam vent.
- 304 stainless, water-resistant control consoles and tubular frame built Made-in-USA tough.

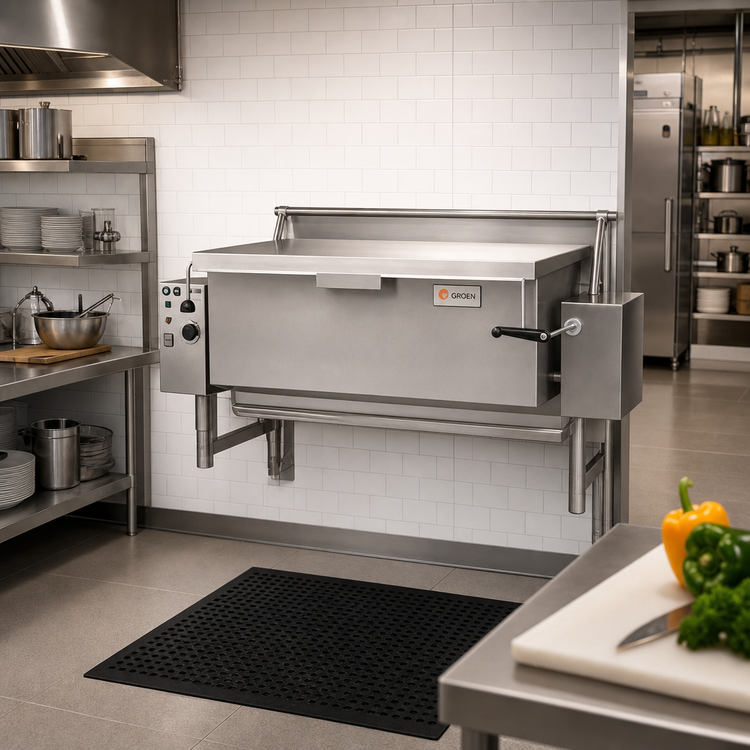

- Wall-mount carrier keeps the floor clear, maximizes aisle space, and simplifies clean-in-place routines.
Technical Specifications
| Model | TES-2424-7 (Classic Series) |
|---|---|
| Capacity | 19 gal / 72 L |
| Pan Dimensions (W × L × D) | 25 in × 24 in × 7 in (inside) |
| Cooking Area | 628 in² (0.41 m²) |
| Heating Power | 10.6 kW electric elements |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical (std.) | 240 V, 3 Ø | See below for all voltages |
| Amperage @ 240 V | 44.2 A (1 Ø) / 25.5 A (3 Ø) |
| Tilt Mechanism | Manual hand-crank, self-locking worm gear, > 90° dump angle |
| Lid | 304 SS, actuator-assisted counterbalance, drip shield, rear vent |
| Construction | All 304 SS pan, consoles & frame; NSF/UL compliant |
| Overall Width (F) | 40.1 in (102 cm) |
| Overall Length (L) | 31.5 in (80 cm) |
| Clearance to Pour | 30 in (9 in deep pan) |
Available Voltages & Amp Draw
| Voltage | 1 Ø | 3 Ø |
|---|---|---|
| 208 V | 51.0 A | 29.4 A |
| 240 V | 44.2 A | 25.5 A |
| 380 V | 27.9 A | 16.1 A |
| 415 V | 25.5 A | 14.7 A |
| 440 V | 24.1 A | 13.9 A |
| 480 V | 22.1 A | 12.8 A |
Popular Accessories (Sold Separately)
- 1 ½" or 2" sanitary draw-off valves with compression or ball fittings
- Single / double fill faucets with 12" or 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- Electric timer with buzzer for batch consistency
- #10 can holder, pour-lip strainer & pan holder assemblies
- Lockable lid & control cover for correctional facilities
Covered by Legion’s standard 12-month parts & labor warranty from installation (15 months from ship date). Extended coverage is available—ask your sales representative for details.
