Legion TES-2424-11-WC Classic Braising Pans & Tilt Skillets
Description

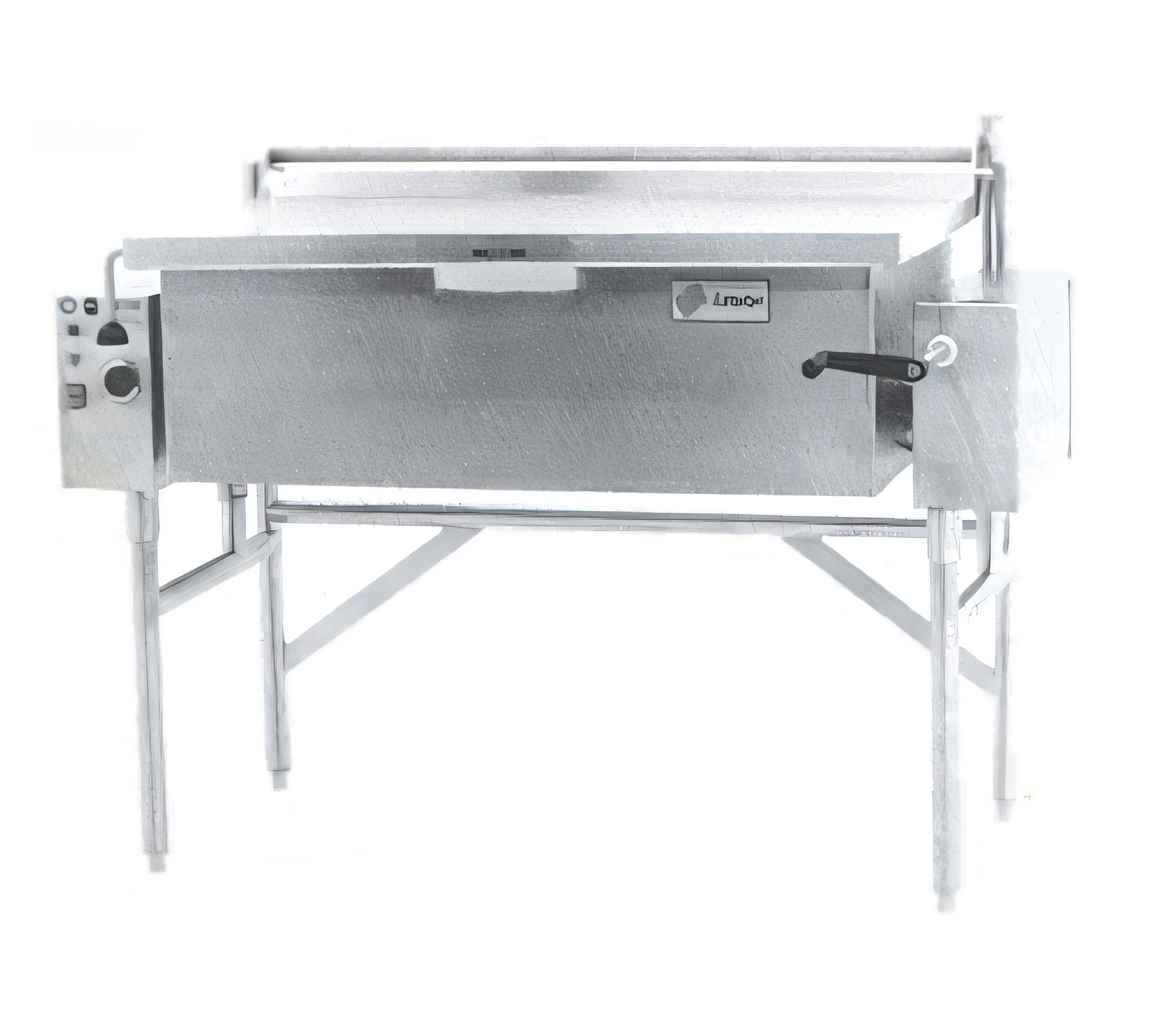

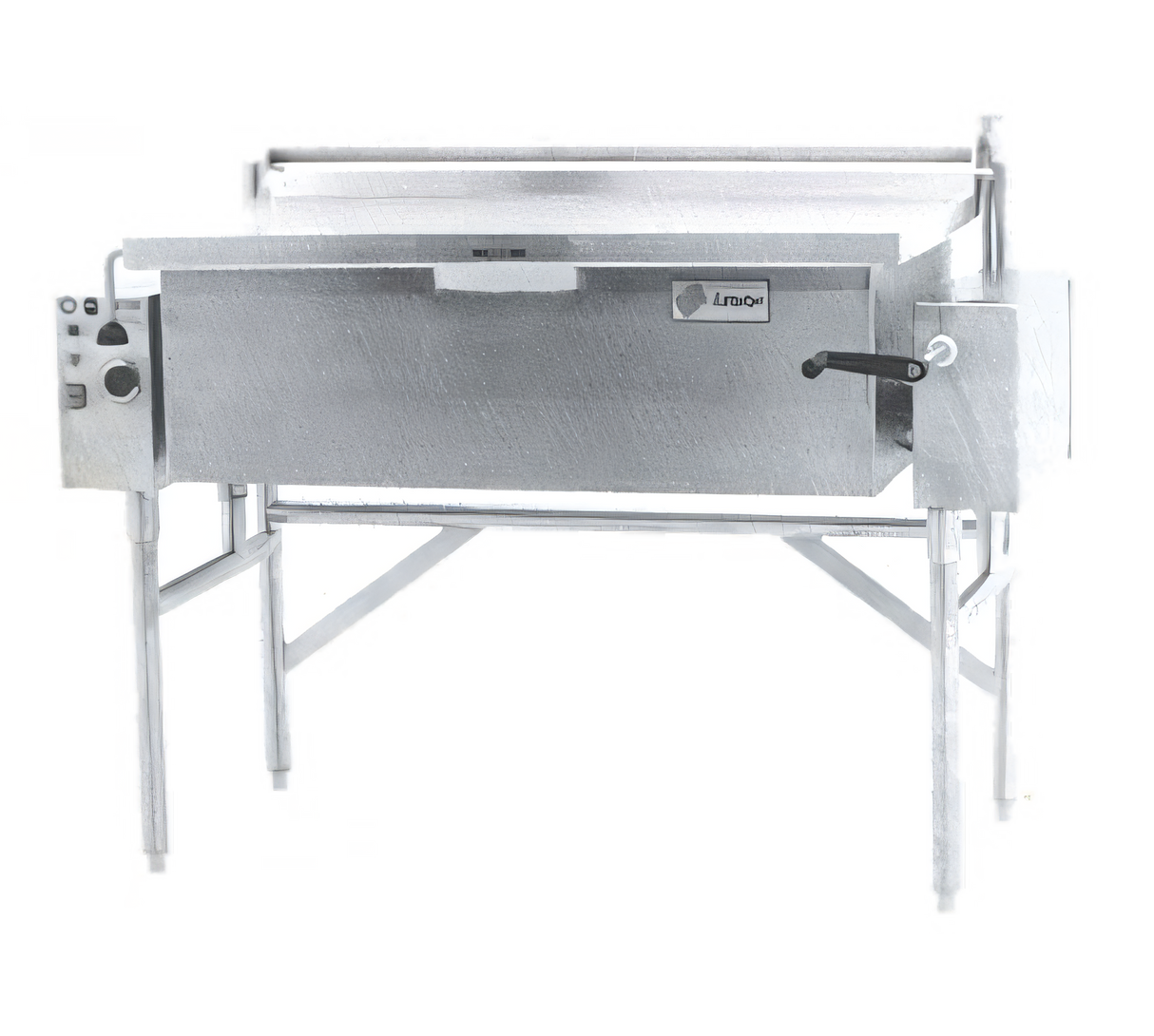

Legion Classic™ 30-Gallon Wall-Mounted Electric Tilting Skillet
Model TES-2424-11 | 10.6 kW | Manual Worm-Gear TiltEngineered for high-volume kitchens that refuse to compromise on versatility, the Legion Classic™ TES-2424-11 combines braising pan capacity with skillet speed. From searing and sautéing to shallow-fry, simmer or hold, this 30-gallon workhorse mounts securely to a wall carrier (sold separately) to free up precious floor space while delivering the legendary durability chefs expect from Legion Industries.
Why You’ll Love It
- Generous 30-gallon (113 L) capacity – 628 in² cooking surface easily handles up to 75 lb of ground beef or 18 gal of soup per batch.

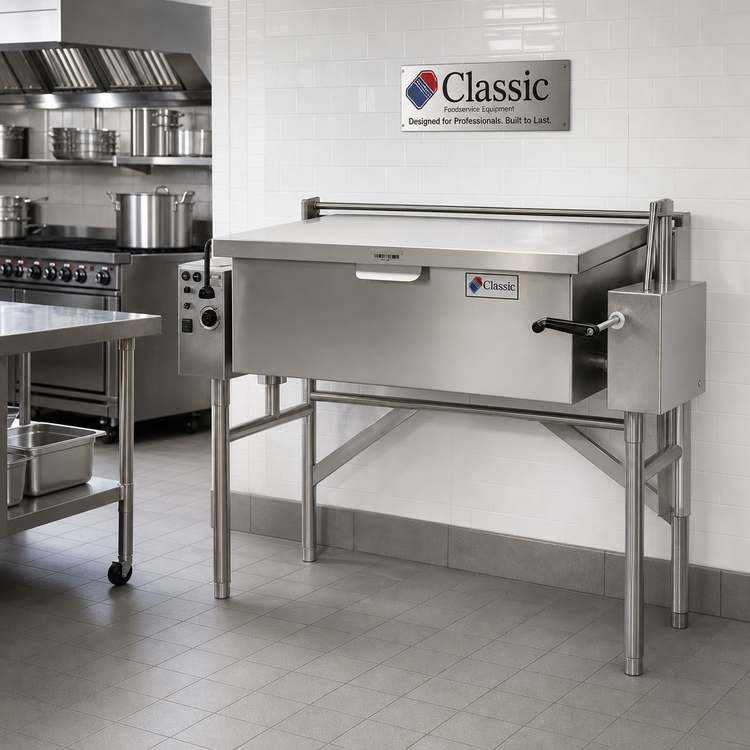

- Wall-mounted footprint – keeps the floor clear for carts and cleaning (in-wall carrier option required).

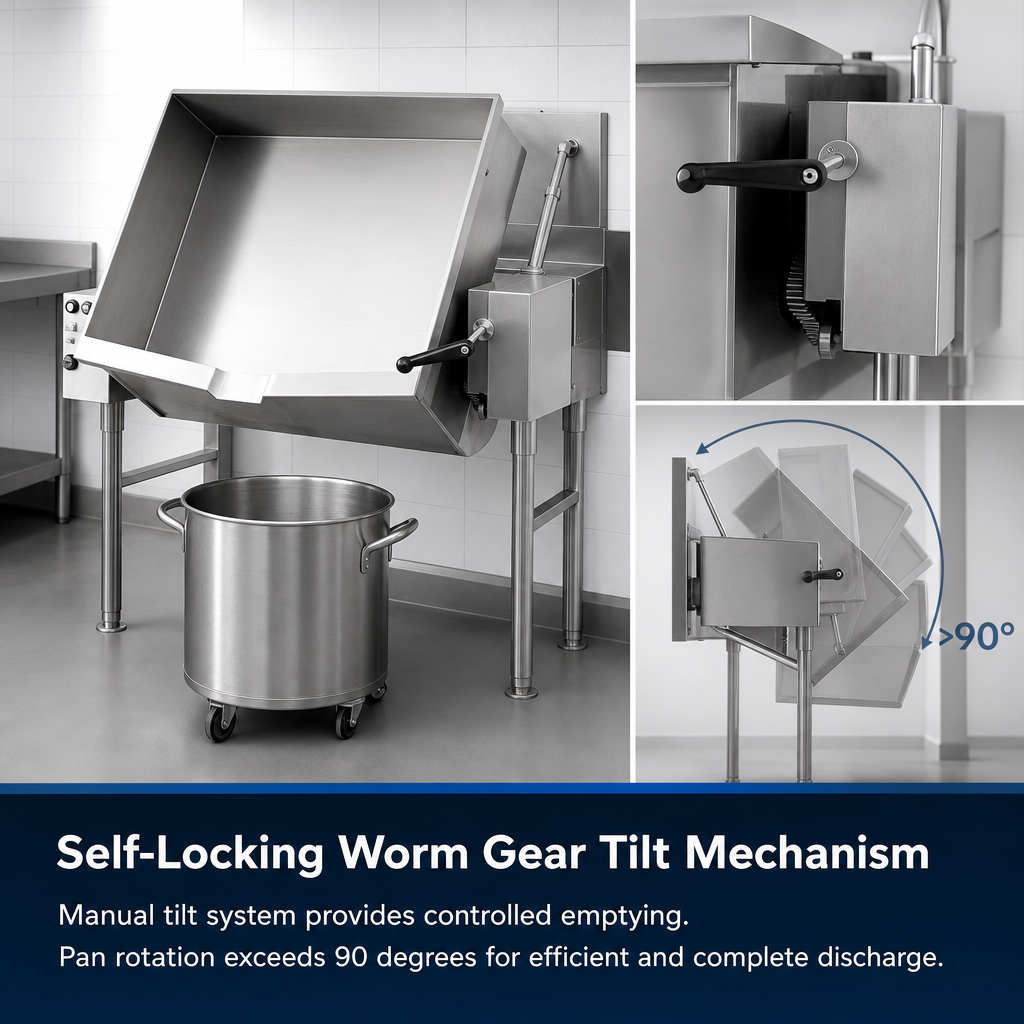

- Manual, self-locking worm-gear tilt – smooth, precise pouring with rotation past 90° for complete emptying.
- Accurate thermostat 175-400 °F (79-204 °C) plus redundant high-limit safety shuts off heat before it can reach a hazard point.
- Patented counter-balanced lid – one-hand operation, full-width drip shield and rear steam vent reduce condensation splash.

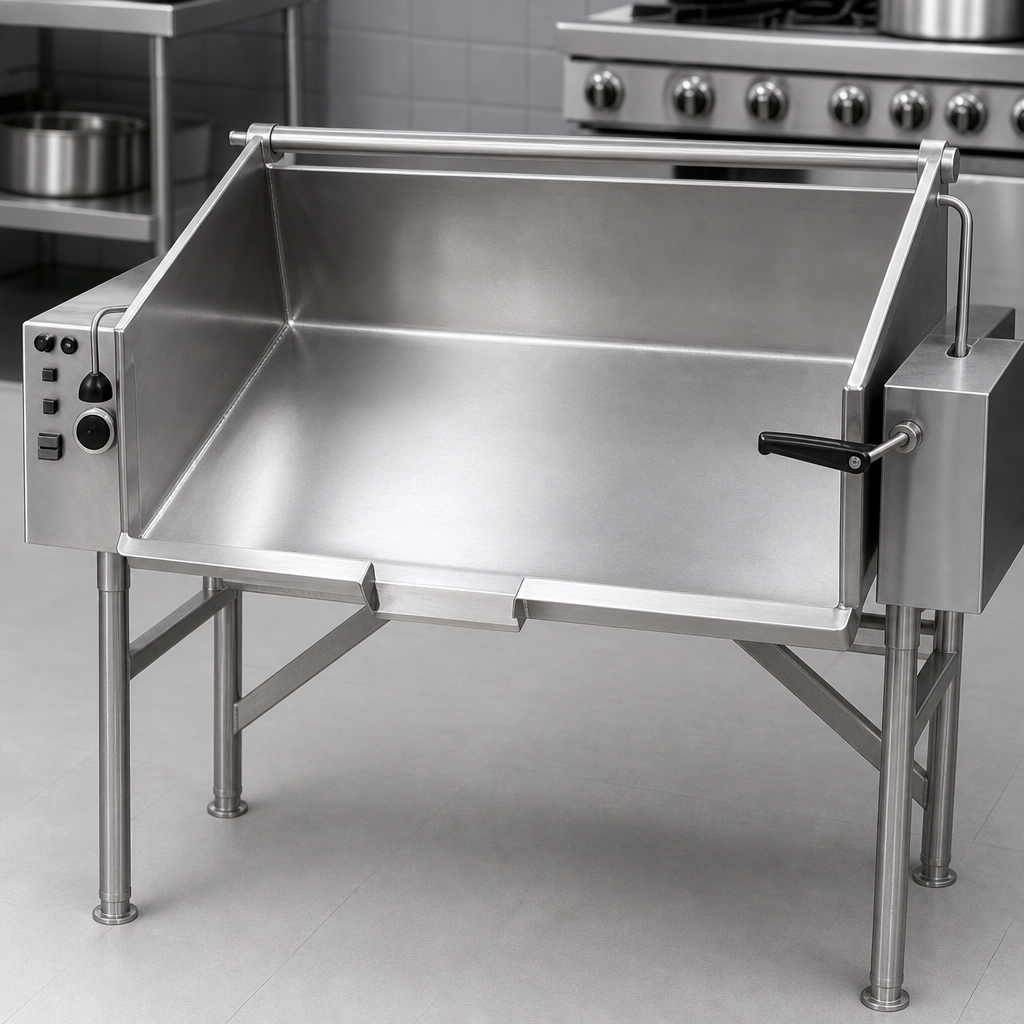

- All 304 stainless steel construction – seam-welded pan, clad cooking surface, reinforced water-resistant consoles and tubular frame built to last in the toughest kitchens.
- Knock-down design – ships through a 26" × 66" opening for easier installations or retrofits.
- Made in the USA and built to NSF, UL and other applicable agency standards.
Perfect Applications
- Hotel & resort banquet prep
- School & university cafeterias
- Correctional facilities
- Commissary & central production kitchens
Technical Specifications
| Capacity | 30 gal / 113 L (11 in pan depth) |
|---|---|
| Cooking area | 628 in² (4050 cm²) |
| Heat source | Electric, 10.6 kW |
| Standard power | 240 V, 3-phase (other voltages 208/380/415/440/480 V or single-phase available) |
| Amps @ 240 V 3Ø | 25.5 A |
| Temperature range | 175–400 °F (79–204 °C) |
| Tilt mechanism | Manual, self-locking worm gear > 90° travel |
| Interior pan | 304 SS, clad cooking surface, radius corners |
| Overall dimensions (W × D × H) | 40.1 ″ × 31.5 ″ × 36.3 ″ (with lid closed) Additional clearance: 30–32 ″ pour path from wall. |
| Shipping configuration | Knock-down, fits through 26 ″ × 66 ″ opening |
| Agency approvals | NSF, UL, ASME & others as applicable |
| Country of origin | USA |
Popular Options & Accessories
- In-wall carrier kit for wall mounting (required)
- 1½ ″, 2 ″ or 3 ″ draw-off valves with compression or ball fittings
- Single or dual fill faucet (12 ″ or 18 ″ swing nozzle) with mounting bracket
- 48 ″ flexible spray hose (vinyl or stainless)
- Electric timer with buzzer
- Lockable lid or control cover for security installations
- Casters or adjustable flanged feet (floor-mount conversion)
- Perforated cooking/steaming baskets (11 ″ × 20.5 ″ × 5 ″)
- Classic care kit (maintenance consumables)
Warranty
The Classic™ series is covered by a 12-month parts & labor warranty from date of installation (15 months from ship date). Extended coverage is available—ask your sales representative for details.
