Legion TES-2424-11 Classic Braising Pans & Tilt Skillets
Description

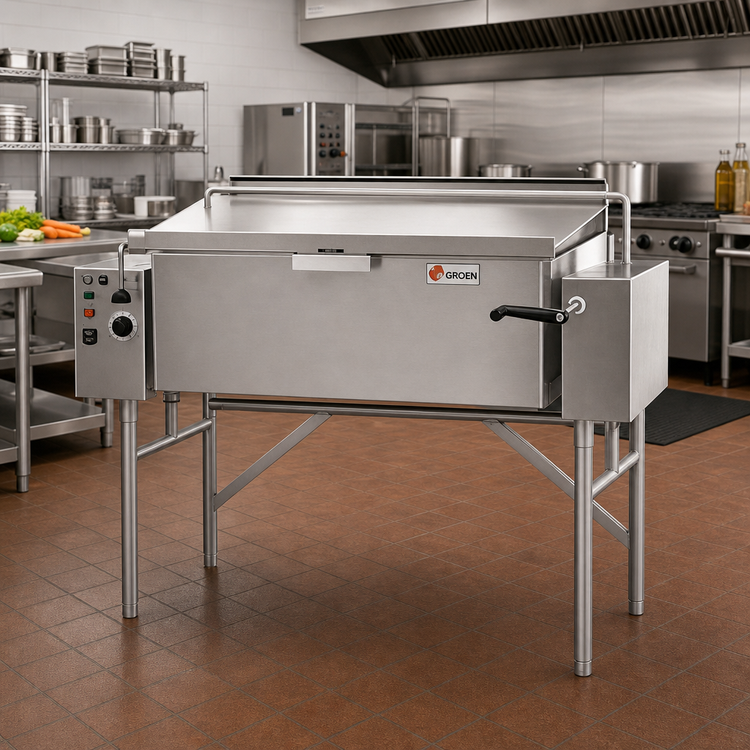

Classic 30-Gallon Electric Tilting Skillet
Model TES-2430-9 | Manual Tilt | 10.6 kW | Made in USABuilt for heavy-duty commercial kitchens, the Legion Classic TES-2430-9 delivers the speed and versatility of a griddle, braising pan and kettle in one rugged, floor-mounted unit. With a 30-gallon capacity and a powerful 10.6 kW electric heating package, it sears, sautés, braises, steams and holds large batches with remarkable consistency—all while the smooth self-locking worm-gear tilt mechanism makes pouring effortless and safe.
Key Features

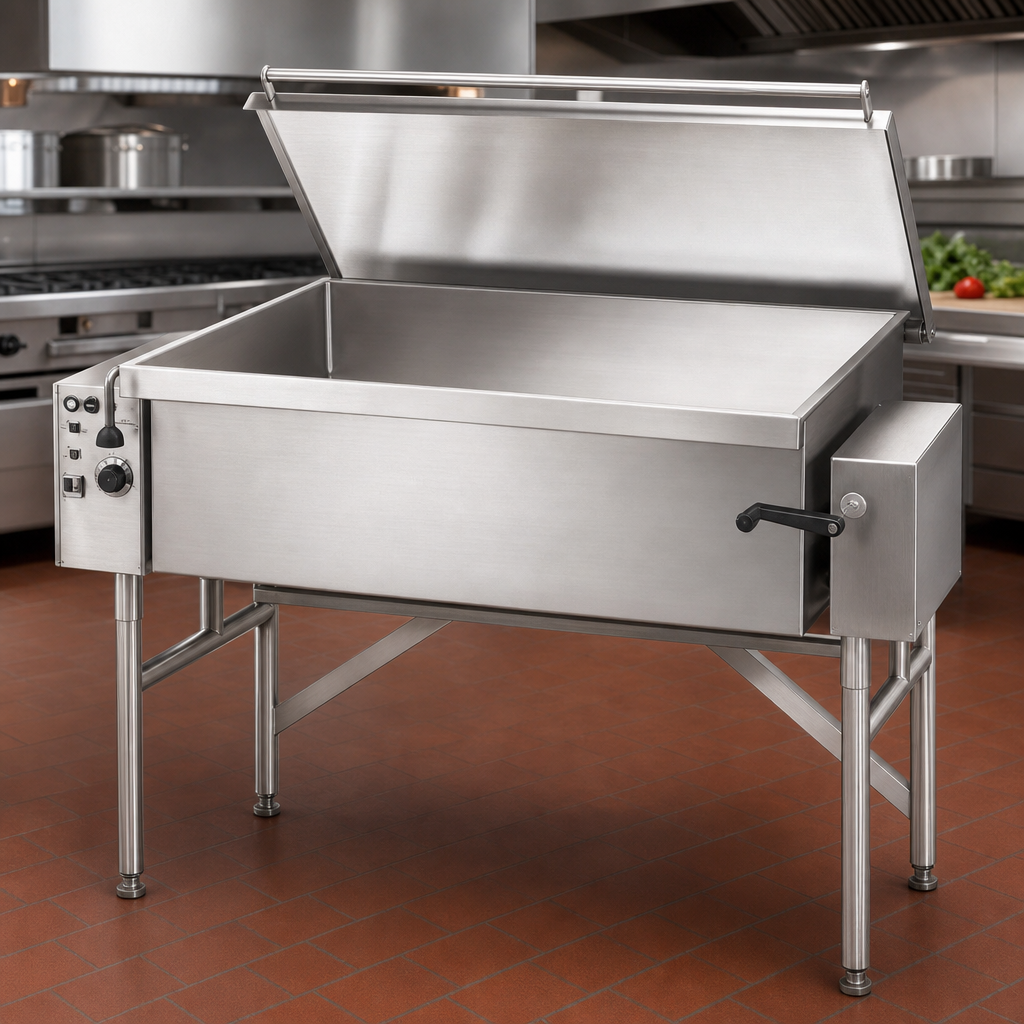

- 304 stainless, seam-welded pan with 9 in. depth and center trunnion mounting

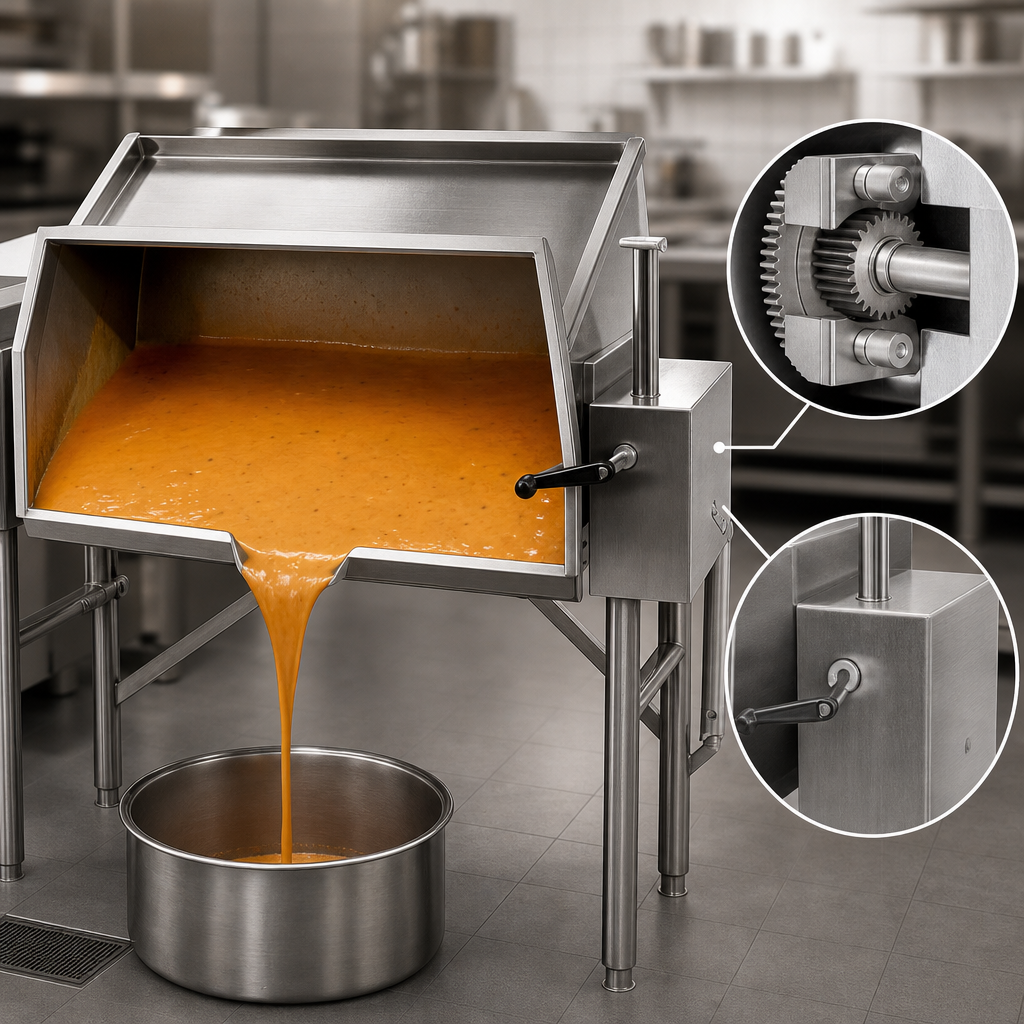

- Manual self-locking worm-gear tilt rotates beyond 90° for complete emptying
- Actuator-assisted, counter-balanced lid with full-width drip shield & rear steam vent
- Adjustable thermostat 175 °F – 400 °F plus high-limit safety cut-off
- Reinforced, water-resistant control console (304 stainless)
- All-stainless tubular frame with adjustable bullet feet; knock-down design fits through 26 × 66 in. openings
- 240 V, 3-phase connection supplied as standard (other voltages/phase available)
- NSF, UL and ASME compliant construction
Performance Benefits
- Even heat distribution across 778 in² of cooking surface reduces hot spots and improves yields.
- Full-width condensate shield keeps floors dry and directs moisture back to the pan.
- Single-hand tilt handle holds any position—ideal for portioning or pan-frying.
- High-polish 304 stainless cooking surface cleans quickly and resists corrosion.
Specifications
| Capacity | 30 US gal | 113 L |
|---|---|
| Pan Depth | 9 in. (229 mm) |
| Cooking Surface | 778 in² (5,020 cm²) |
| Heat Input | 10.6 kW electric (240 V, 3 Ø standard) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt Mechanism | Manual, self-locking worm gear, > 90° rotation |
| Inside Pan (A) | 31 in. (787 mm) width |
| Overall Width (F) | 46.1 in. (1,171 mm) |
| Overall Depth (L) | 37.5 in. (953 mm) |
| Shipping Weight | Approx. 615 lb (279 kg) |
Popular Options & Accessories
- 1.5 in. or 2 in. draw-off valve with perforated strainer
- 48 in. flexible spray-rinse hose assembly
- Perforated or solid 12 × 20 in. pans (2 ½, 4 or 6 in. deep)
- Lockable lid and/or control cover for correctional use
- Casters or adjustable flanged feet for mobile or bolted installations
- Electric timer with buzzer for batch cooking
Need a custom voltage, faucet package or security option? Contact us—Legion builds every Classic skillet to order.
