Description

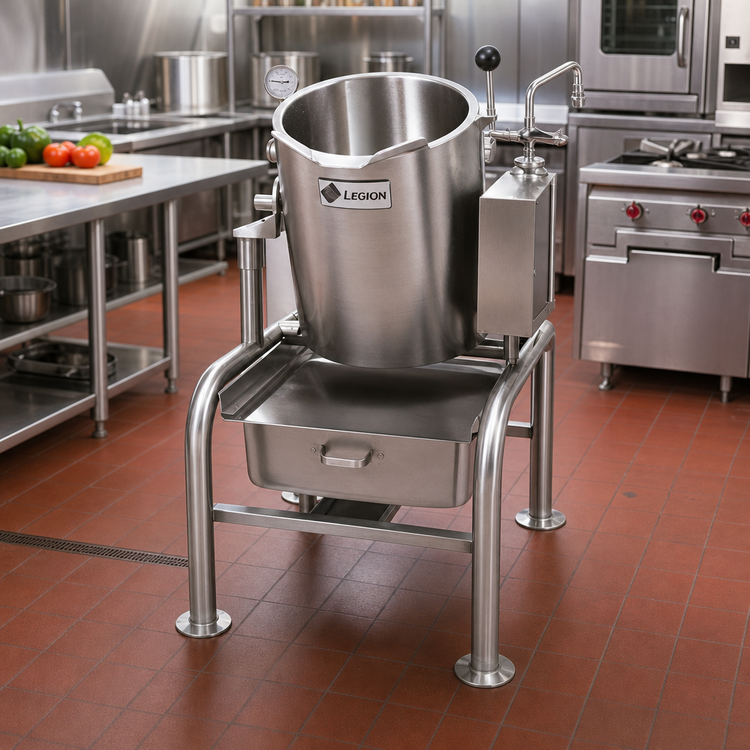

Legion TEH-5F 5-Gallon Electric Tilting Kettle

2/3 Jacketed • Floor Mounted • 6 kW • Made in USA

Built for chefs who refuse to compromise, the Legion TEH-5F delivers rapid, even heating and rock–solid reliability in a compact 5-gallon (20 qt / 19 L) footprint. Its seamless 304 stainless liner, robust 2" tubular frame, and Self-Insulated for Safety™ design make it the smart choice for restaurants, schools, correctional facilities, and R&D kitchens that need small-batch versatility without sacrificing industrial strength.

Why You’ll Love It

  • One-piece deep-drawn 304 stainless steel liner with integrally formed radius lip—no crevices for food soil to hide.

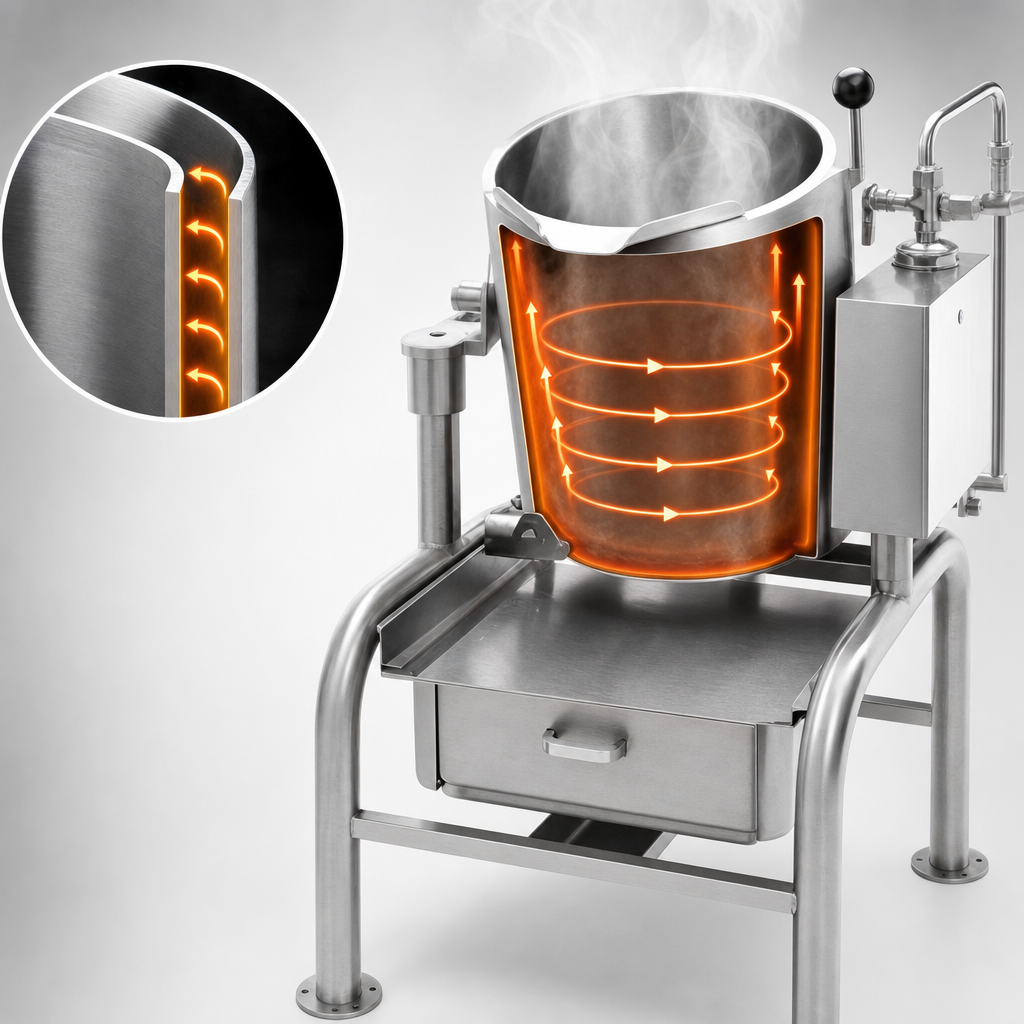

  • 2/3 steam jacket in 304L stainless spreads heat evenly for scorch-free soups, sauces, custards & more.
  • Full-body insulation protects staff and slashes energy loss.
  • Precise thermostat control from 150 °F – 285 °F lets you simmer or boil at the twist of a dial.
  • Comprehensive kettle protection system: pressure gauge & relief valve, low-water cut-off with indicator light, and field-replaceable elements.
  • Right-side stainless control console keeps electronics cool, dry, and easy to service.

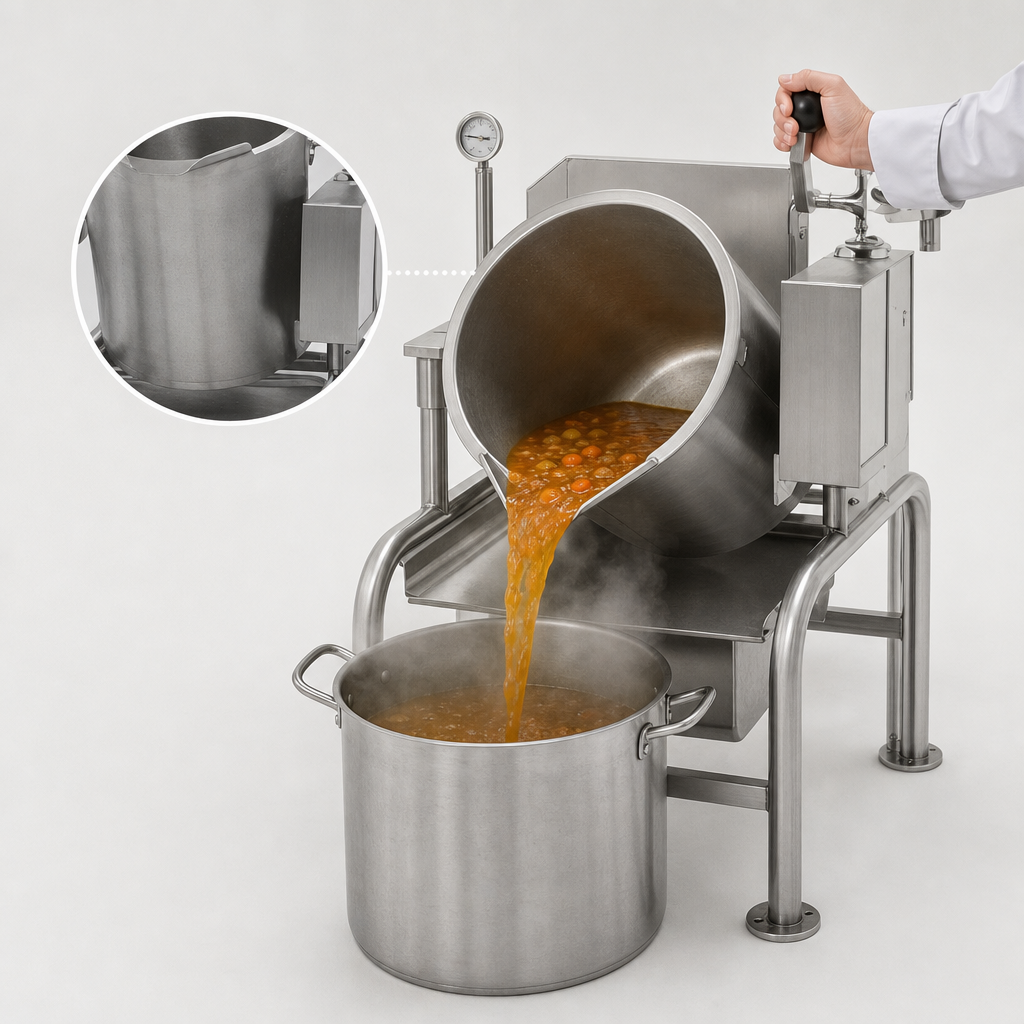

  • Effortless tilting for quick pour-outs through a pitched 1 ½" drain trough.
  • Space-saving sliding utensil drawer with coved corners—ideal for ladles, whisks, and thermometers.
  • Heavy-duty 2" tubular frame with adjustable flanged feet bolts securely to the floor.
  • Manufactured in Waynesboro, Georgia and conforms to ASME & NSF standards.

Technical Specs

Capacity 5 gal | 20 qt | 19 L
Power / Elements 6 kW field-replaceable electric elements
Voltage Options 208, 240, 380, 415, 440 or 480 V   •  1-phase or 3-phase
Amperage Draw
(per leg)		 208 V 1Ø 21.7 A | 208 V 3Ø 12.5 A
240 V 1Ø 25.0 A | 240 V 3Ø 14.4 A
380 V 1Ø 15.8 A | 380 V 3Ø 9.1 A
415 V 1Ø 14.5 A | 415 V 3Ø 8.3 A
440 V 1Ø 11.5 A | 440 V 3Ø 6.6 A
480 V 1Ø 12.5 A | 480 V 3Ø 7.2 A
Temperature Range 150 °F – 285 °F (65 °C – 140 °C)
Overall Dimensions* W 41.0"  •  D 27.0"  •  H 47.7"
Shipping Weight* ≈ 425 lb (193 kg)
Certifications ASME U-Stamped, NSF, UL
Country of Origin USA

*Dimensions & weight are nominal and subject to change with ongoing product improvements.

Customize Your Kettle

  • Single or dual swing-nozzle fill faucet (12" or 18")
  • 48" flexible spray hose assembly (vinyl or stainless)
  • Anti-splash screen for drawer
  • Tilt locking device
  • Single-speed mixer / agitator
  • Care kit, lift-off cover, basket inserts & more
Installation note: This kettle must be bolted to a non-combustible floor and connected by a qualified electrician in accordance with local codes. Use only soft water in the jacket to prevent scale build-up.

Warranty

Legion backs every kettle with a 12-month parts & labor warranty (15 months from ship date) and extended coverage options up to five years.

Features & Specs

Manufacturer

Legion

Shipping Weight

281.0lbs

Base

quad-leg

Capacity

5 - 15 gallon

Kettle Jacket

full jacket

Kettle Liner

304 stainless steel

Specifications

Kettle Electric, Tilting Floor Mounted, 5 gallon, 304 stainless steel liner, support console on right, full steam jacket design, thermostat temp. control, full body insulation, stainless steel construction, 2" tubular support fame with sliding drawer, adjustable flanged feet, 6.0kW
