Legion TEH-5F-MV Steam Kettles

Name: Legion TEH-5F-MV Steam Kettles
Brand: Legion
SKU: TEH-5F-MV
Price: 24449.64 USD
Availability: InStock

$24,449.64

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Mv mixer spec sheet Warranty sheet

Description

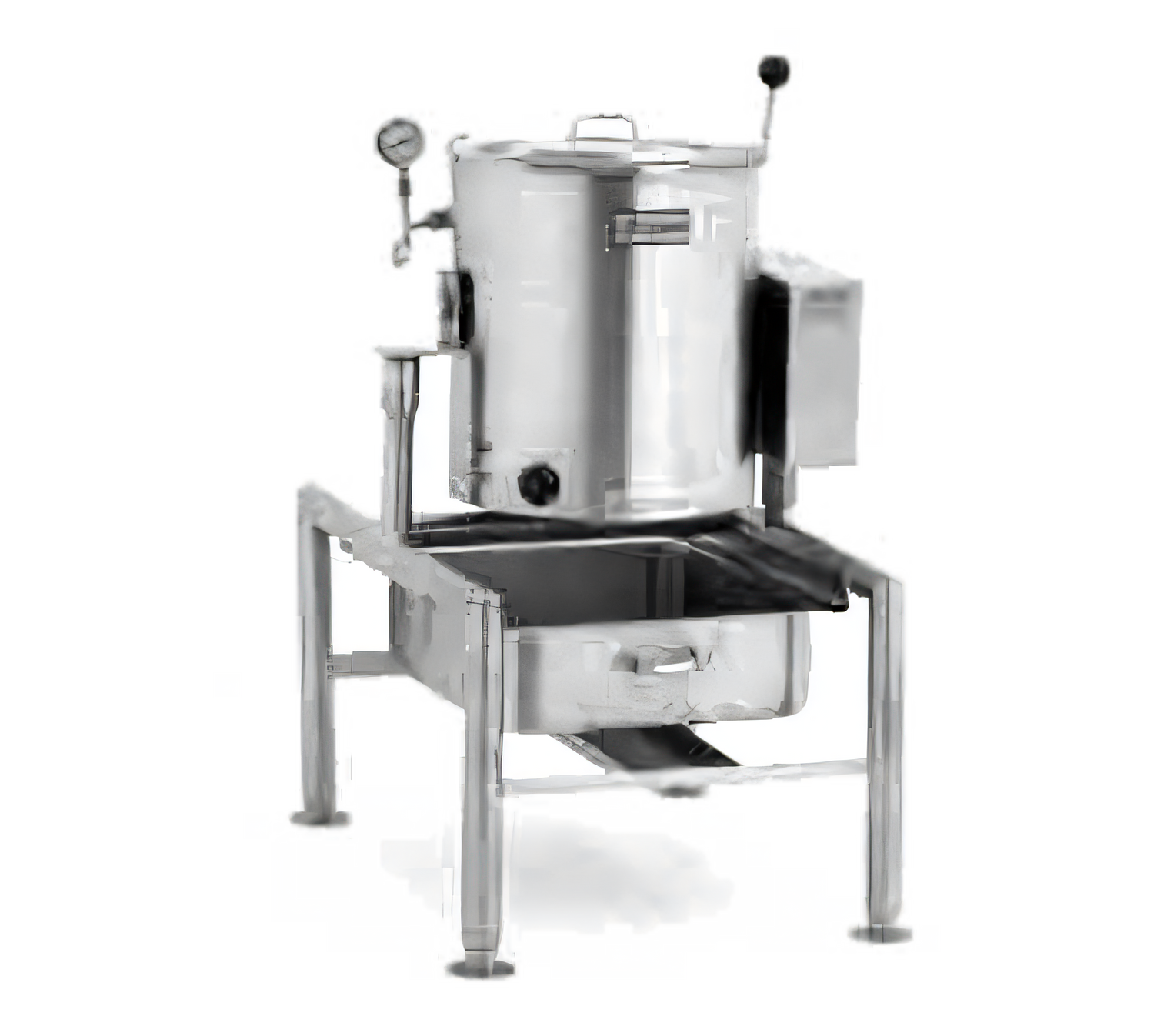

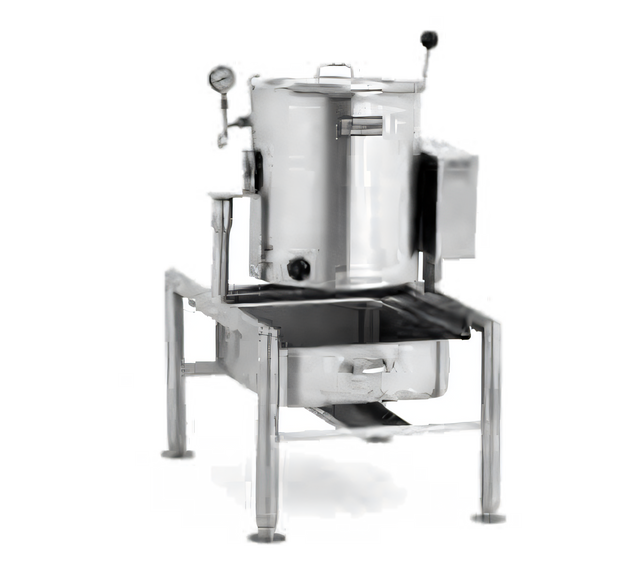

Legion TEH-5F “Insulated for Safety™” Kettle + MV Mixer

5-Gallon (20 qt.) | Electric 2/3-Jacketed | Floor-Mounted Tilting

Compact in size yet engineered for heavy-duty performance, the 5-gallon Legion TEH-5F pairs a fully jacketed, self-contained kettle with an integrated MV twin-shaft mixer—delivering rapid, even heating and hands-free agitation in one space-saving, floor-mounted unit. Perfect for small-batch sauces, soups, custards, confectionery and more.

Why You’ll Love It

Seamless deep-drawn 304 stainless steel liner with hygienic radius lip—no internal welds to trap food soils.
Full steam jacket design (2/3 coverage) speeds heat-up and eliminates hot spots.
6.0 kW electric elements heat from 150 °F to 285 °F; thermostat maintains set-point accuracy.
Factory-installed MV mixer:
- Balanced aluminum bridge with right-angle gear motor (single speed for 5-gal.)
- 304 SS anchor agitator + counter-rotating beater sweep entire kettle surface.
- Removable nylon scraper blades prevent scorching and cut cleaning time.
- Actuator-assisted lift and positive rim-lock for safe tilt-out pouring.
Full body mineral-wool insulation keeps exterior cool to the touch and reduces energy loss.
Built-in kettle protection: pressure relief valve, pressure gauge, automatic low-water cutoff & indicator light.
Rugged 2″ tubular stainless steel frame with coved-corner sliding drawer for utensils or chemicals.
304 SS pitched drain trough with 1 ½″ outlet for quick rinse-down.
Adjustable flanged feet level the unit on uneven floors.
Made in the USA and fully ASME / NSF compliant.

Technical Specifications

Model	TEH-5F-MV
Capacity	5 gal • 20 qt • 19 L
Heating Power	6 kW electric (field-replaceable elements)
Temperature Range	150 °F – 285 °F (65 °C – 141 °C)
Jacket Type	Self-contained 2/3 steam jacket, water fill port supplied
Construction	304 SS liner, jacket, outer casing, console & frame
Mixer Motor	1/3 HP, single speed • Main agitator 17 RPM • Secondary beater 43 RPM
Electrical (per leg)	208 V 1Ø 21.7 A \| 208 V 3Ø 12.5 A 240 V 1Ø 25.0 A \| 240 V 3Ø 14.4 A 380 V 1Ø 15.8 A \| 380 V 3Ø 9.1 A 415 V 1Ø 14.5 A \| 415 V 3Ø 8.3 A 440 V 1Ø 11.5 A \| 440 V 3Ø 6.6 A 480 V 1Ø 12.5 A \| 480 V 3Ø 7.2 A
Overall Dimensions (W × D × H)	Refer to dimensional drawing (approx. 41 ″ W × 27 ″ D × 48 ″ H)
Shipping Weight	≈ 320 lb (145 kg)

What’s Included

TEH-5F kettle with support console on right-hand side
Factory-mounted MV twin-shaft mixer assembly
Removable lift-off stainless steel cover
Operator’s manual & Legion care kit

Popular Options (sold separately)

Single or dual fill faucets with 12″ / 18″ swing nozzle
48″ flexible spray hose assembly (vinyl or stainless)
Tilt-locking device for transport carts
Anti-splash screen for sliding drawer
Automatic water-fill meter

Contact our team for factory-installed options or custom configurations.

Important: Unit must be bolted to the floor and connected by a qualified electrician in accordance with local codes and ASME guidelines. Always verify adequate water level in the jacket before energizing heaters.

Features & Specs

Manufacturer

Legion

Shipping Weight

681.0lbs

Type

tilt

Jacket

full jacket

Base

quad-leg

Capacity

5 gal

Kettle Liner

stainless steel

Specifications

Kettle Electric, Tilting Floor Mounted, with mixer, 5 gallon, 304 stainless steel liner, support console on right, full steam jacket design, thermostat temp. control, full body insulation, stainless steel construction, 2" tubular support fame with sliding drawer, adjustable flanged feet, 6.0kW
