Legion TEH-40MV Steam Kettles
Description

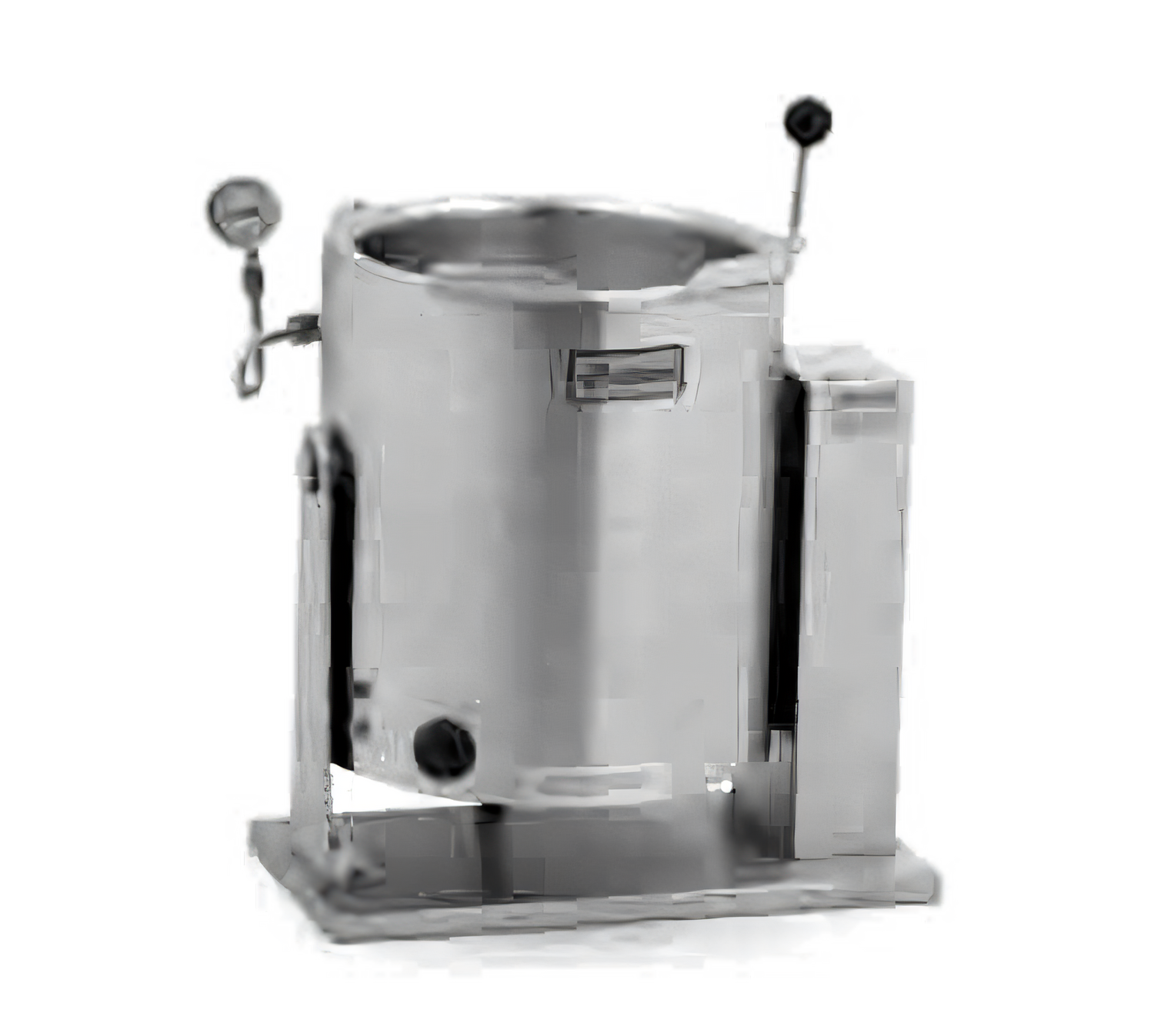

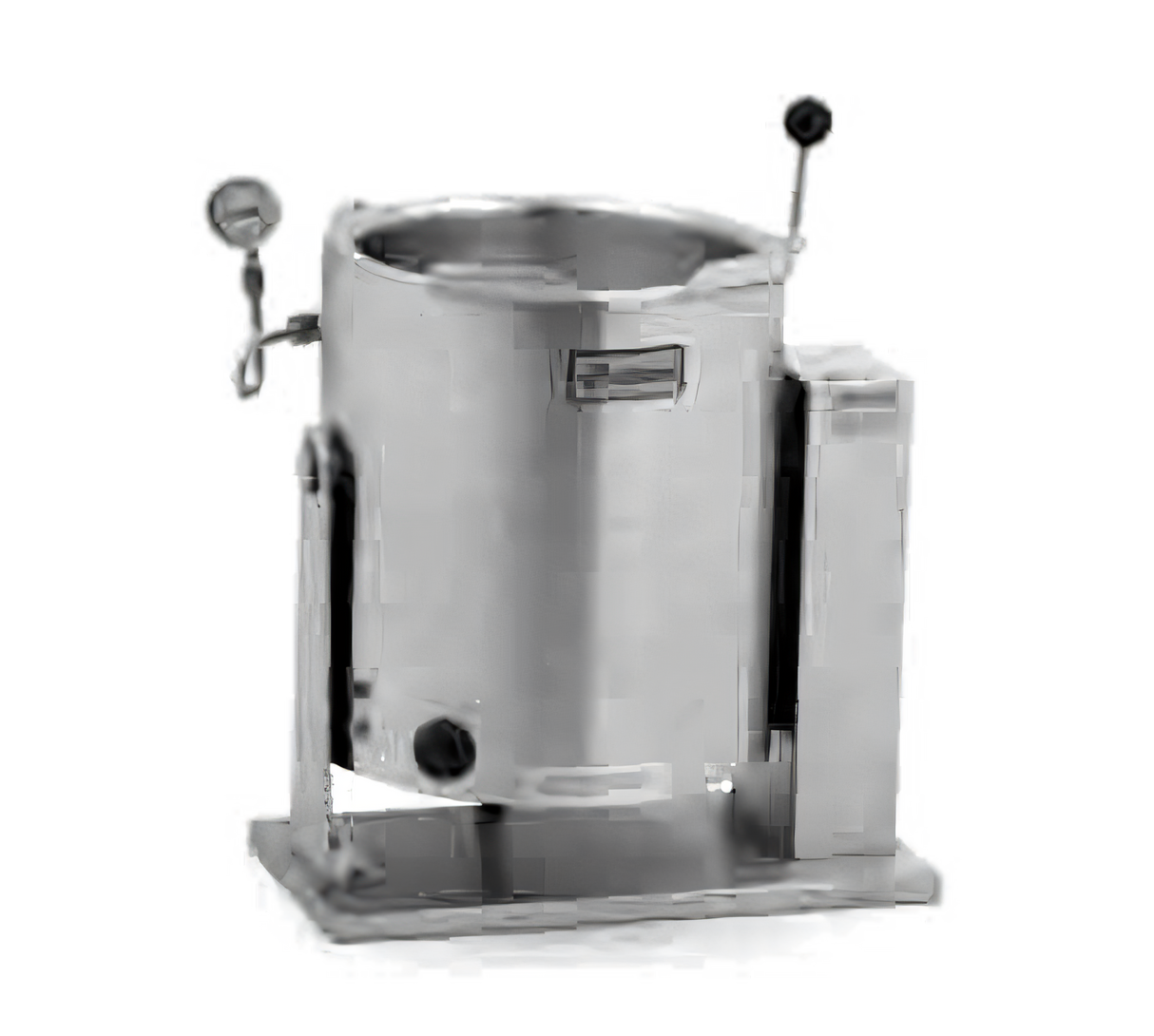

Legion TEH-40 Table-Top Tilt Kettle & Integrated Mixer – 10 gal / 40 qt
Insulated Self-Contained • 2/3-Jacketed • 12 kW ElectricBuilt for high-output kitchens that work tight on space, the Legion TEH-40 combines a 10-gallon stainless steel tilting kettle with a factory-matched agitator system. From small-batch sauces to creamy mashed potatoes, you get fast, even heating, continuous agitation and fingertip pouring— all on a compact table-top footprint.
Why You’ll Love It
- Rapid, even cooking: 2/3 steam jacket surrounds product for gentle, uniform heat up to 285 °F.
- Integrated twin-shaft mixer: 304 SS anchor agitator (17 RPM) plus counter-rotating beater (43 RPM) keeps even the thickest foods lump-free.
- Deep-drawn 304 kettle liner: Seamless construction with rolled radius lip for easy cleaning and drip-free pouring.
- Full-body insulation: Legion’s Insulated for Safety™ design keeps outer surfaces cooler and slashes energy loss.
- Right-side control console: Stainless, seam-welded enclosure with thermostat, indicator lights, pressure gauge and low-water safety cut-off.
- Simple manual tilt: Smooth worm-gear tilt allows precise portion control straight into pans or hotel pans.
- Field-replaceable elements: 12 kW electric heat, available in 208–480 V, 1- or 3-phase.
- Made in the USA: Built to ASME, NSF, UL and other applicable standards.
Factory-Matched Agitator System
- Balanced aluminum mixer bridge—tilts out of the way for cleaning and emptying.
- Totally-enclosed 1/3 HP gear motor, single speed (5–10 gal range).
- Removable nylon scraper blades polish every interior surface.
- Bayonet-mounted agitator & beater lift out tool-free for cleaning or kettle-only use.
- Actuator-assisted lift plus positive rim-lock keeps the bridge secure during operation.
- Built-in safety interlock prevents high-speed starts when mixer is not fully engaged.
Technical Specifications
| Model / Part No. | TEH-40-MV (with mixer) |
|---|---|
| Cooking Capacity | 10 gal · 40 qt · 38 L |
| Heat Input | 12 kW electric, 2/3 jacketed |
| Temperature Range | 150 – 285 °F (65 – 140 °C) |
| Construction | 304/304L stainless kettle, jacket, console & base; full fiber-glass insulation |
| Interior Diameter (A) | 16.0 in / 406 mm |
| Interior Depth (B) | 14.0 in / 356 mm |
| Overall Height (C) | 27.2 in / 691 mm |
| Console Height (J) | 32.2 in / 818 mm |
| Footprint (L × W) | 23.5 × 12.6 in (597 × 320 mm) |
| Electrical (208 V) | 1 Ø 43.3 A | 3 Ø 25.0 A |
| Electrical (240 V) | 1 Ø 50.0 A | 3 Ø 28.9 A |
| Electrical (480 V) | 1 Ø 25.0 A | 3 Ø 14.4 A |
| Agitator Speed | Main 17 RPM | Secondary 43 RPM |
| Agitator Motor | 1/3 HP, TEFC |
Built-In Safety & Protection
- Pressure relief valve and gauge
- Jacket fill port with automatic low-water cut-off & indicator
- Kettle protection system prevents element burn-out
- Seam-welded outer casing keeps electronics sealed from steam & spills
Need faucets, stands or additional accessories? Legion offers factory-installed swing-nozzle faucets, flexible spray hoses, lockable control covers and more. Contact us for a custom quote.
