Description

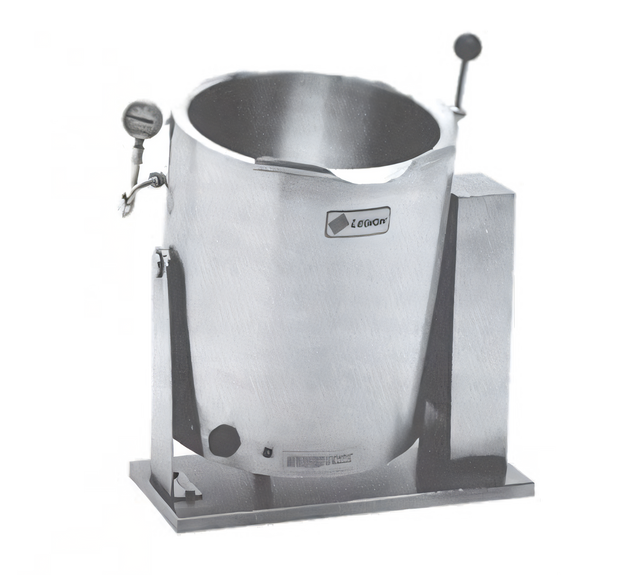

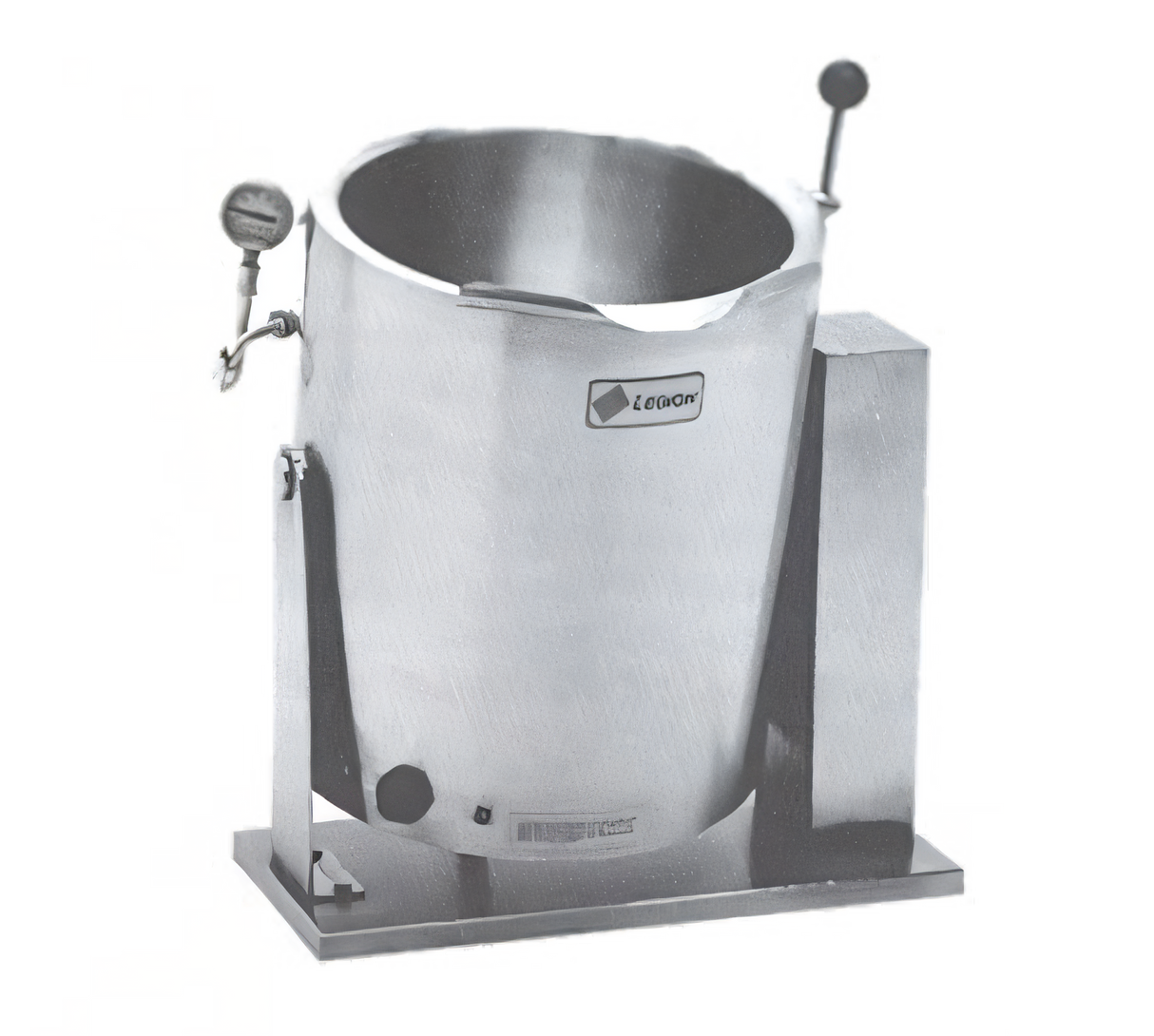

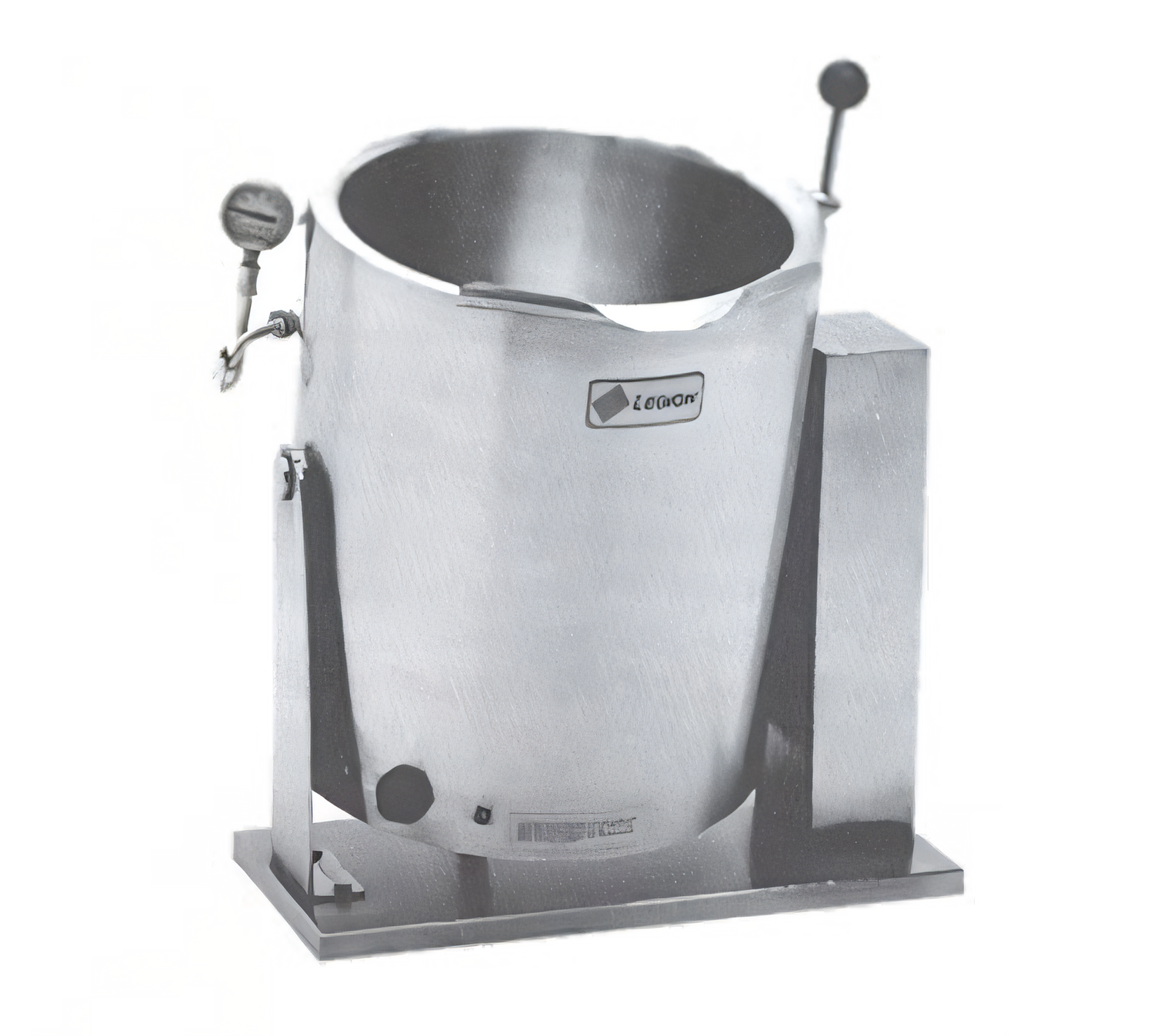

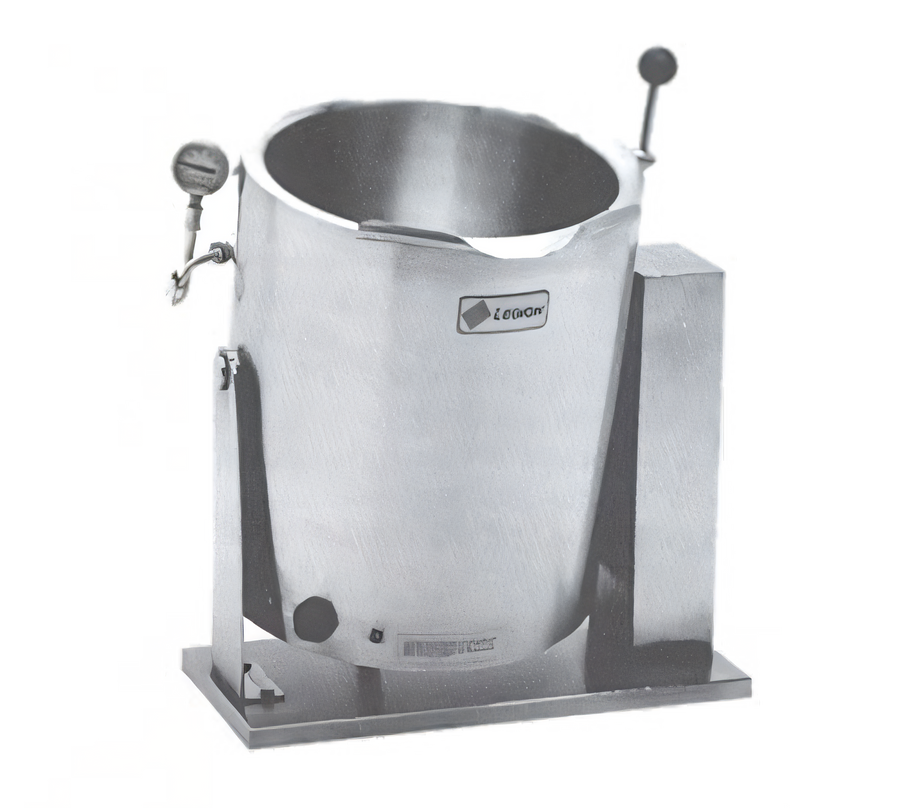

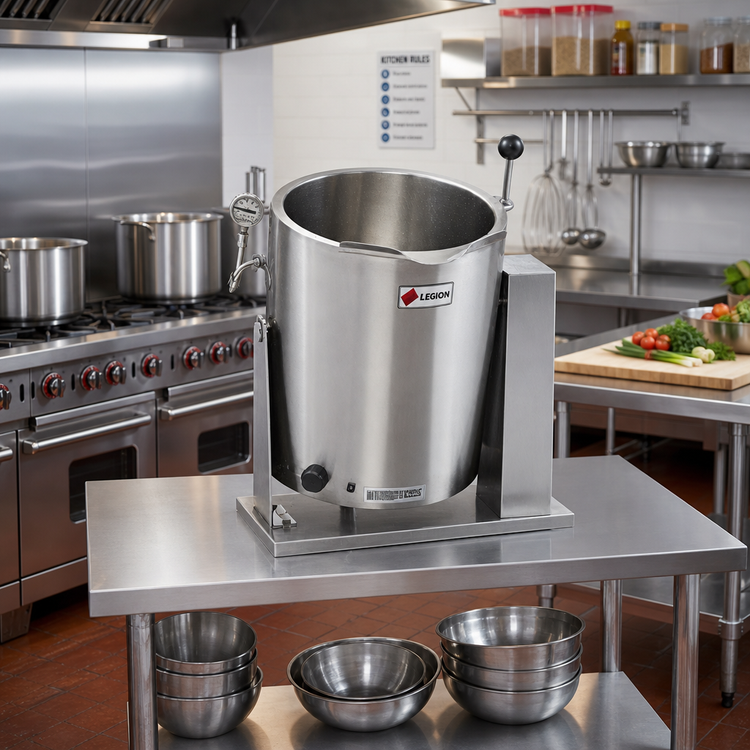

Legion TEH-40 10-Gallon Electric Tilting Table-Top Kettle

Self-Contained • 2/3 Steam-Jacketed • 304 Stainless Steel

Bring high-volume production to even the tightest prep areas. The Legion TEH-40 delivers 10 gallons of steam-jacketed cooking power in a compact, table-top footprint—perfect for finishing soups, sauces, custards and more with unmatched speed, consistency and safety.

Key Features

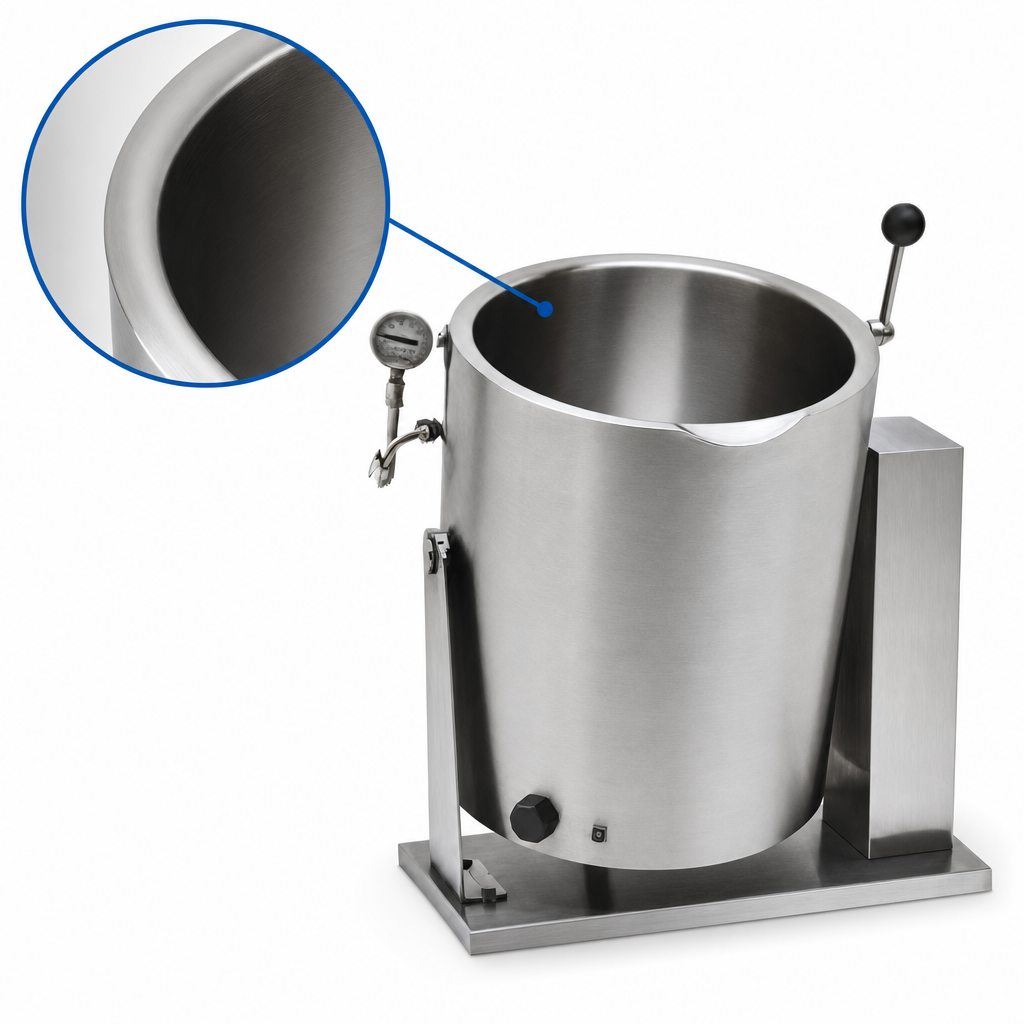

  • Seamless deep-drawn 304 stainless steel liner with integrally formed radius lip for drip-free pouring
  • Self-contained 2/3 steam jacket provides even, scorch-free heat transfer
  • 12 kW electric elements (field-replaceable) heat rapidly without a remote boiler
  • Solid-state thermostat control, 150 – 285 °F (65 – 140 °C)
  • Complete protection system: pressure relief valve, pressure gauge, jacket-water fill port & automatic low-water cut-off with indicator light
  • Full-body insulation keeps exterior surfaces cool while reducing energy loss
  • Right-side stainless control console, gasketed & seam-welded for long life

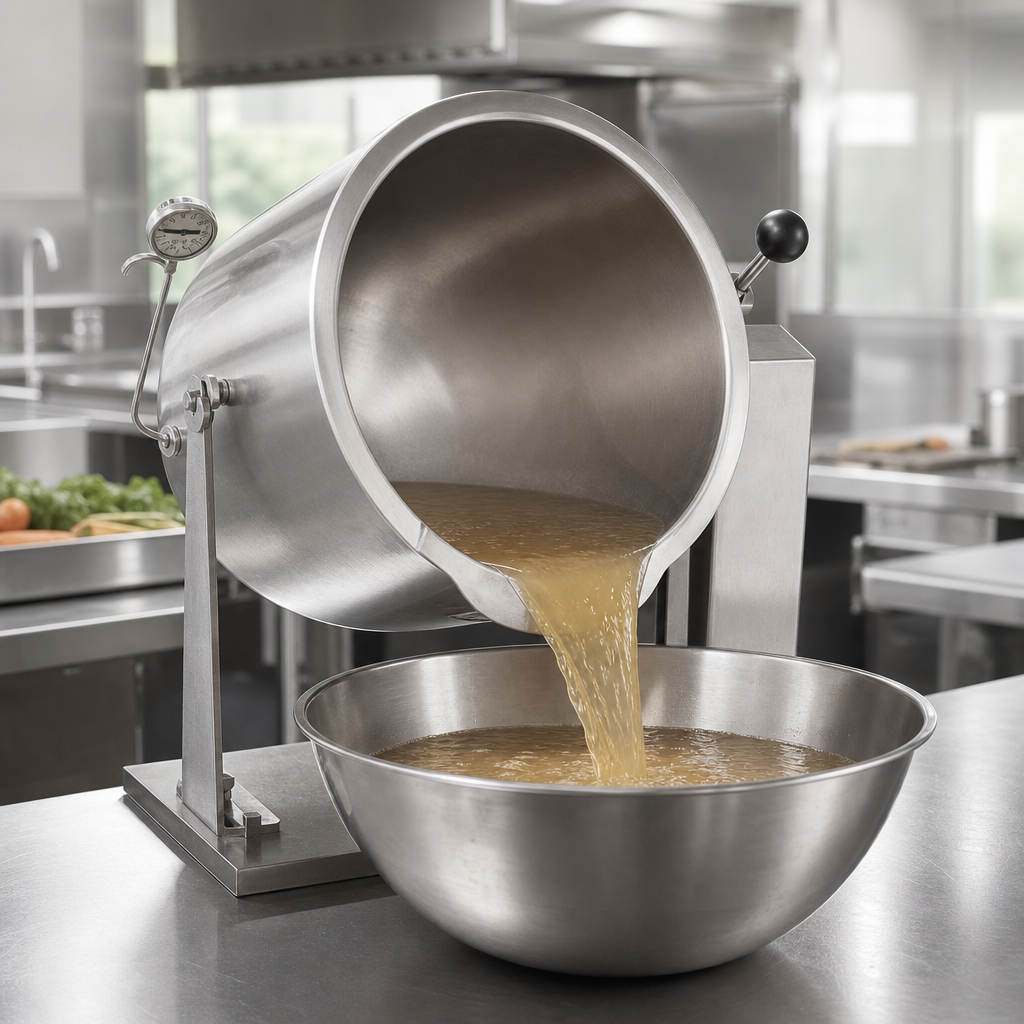

  • Smooth manual tilt for precise, operator-controlled pouring
  • Reinforced stainless base plate for rock-solid table mounting
  • Built, inspected and certified in the USA to ASME & NSF standards
Specifications
Capacity 10 gal / 40 qt / 38 L
Jacket Type Self-contained, 2/3 steam jacket (water-filled)
Heat Input 12.0 kW electric
Thermostat Range 150 – 285 °F (65 – 140 °C)
Voltage Options* 208, 240, 380, 415, 440, 480 V – single- or three-phase
Max Amp Draw 50.0 A (240 V, 1 Φ) – see chart below
Tilt Mechanism Manual, right-hand mounted
Construction 304 / 304L stainless liner, jacket, outer casing & console; full insulation
Safety Systems Pressure relief valve, pressure gauge, low-water cut-off, gasketed console
Origin Made in USA

*Confirm voltage & phase when ordering. Electrical loads are per leg.

Electrical Load – TEH-40 (12 kW)
Voltage Phase Amps / Leg Suggested Breaker
208 V 1 Φ 43.3 A 50 A
208 V 3 Φ 25.0 A 30 A
240 V 1 Φ 50.0 A 60 A
240 V 3 Φ 28.9 A 35 A
380 V 1 Φ 31.6 A 40 A
380 V 3 Φ 18.2 A 20 A
415 V 1 Φ 28.9 A 35 A
415 V 3 Φ 16.7 A 20 A
440 V 1 Φ 22.9 A 30 A
440 V 3 Φ 13.2 A 15 A
480 V 1 Φ 25.0 A 30 A
480 V 3 Φ 14.4 A 20 A
Popular Options & Accessories (sold separately)
  • Single or dual fill faucet with 12" / 18" swing nozzle
  • 48" flexible spray hose (vinyl or stainless)
  • Table stand for one or two TEH kettles
  • Anti-splash screen for sliding drawer
  • Single-speed mixer/agitator
  • Tilt-locking device
  • Lift-off cover, basket insert or nylon bag insert with spreader ring
  • Care & maintenance kit
  • Security package with tamper-resistant fasteners & lockable control cover
Installation Note: The jacket ships dry. Fill and vent according to the installation manual before energizing. All electrical connections must be made by a qualified professional in accordance with local codes.

Legion continuously improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Legion

Shipping Weight

220.0lbs

Kettle Jacket

full jacket

Support location

right

Tilt type

arm

Kettle Liner

stainless steel

Capacity

10 gal = 40 qt

Specifications

Kettle Electric, Tilting Table Top, 10 gallon, 304 stainless steel liner, support console on right, full steam jacket design, thermostat temp. control, full body insulation, stainless steel construction, 12.0kW
