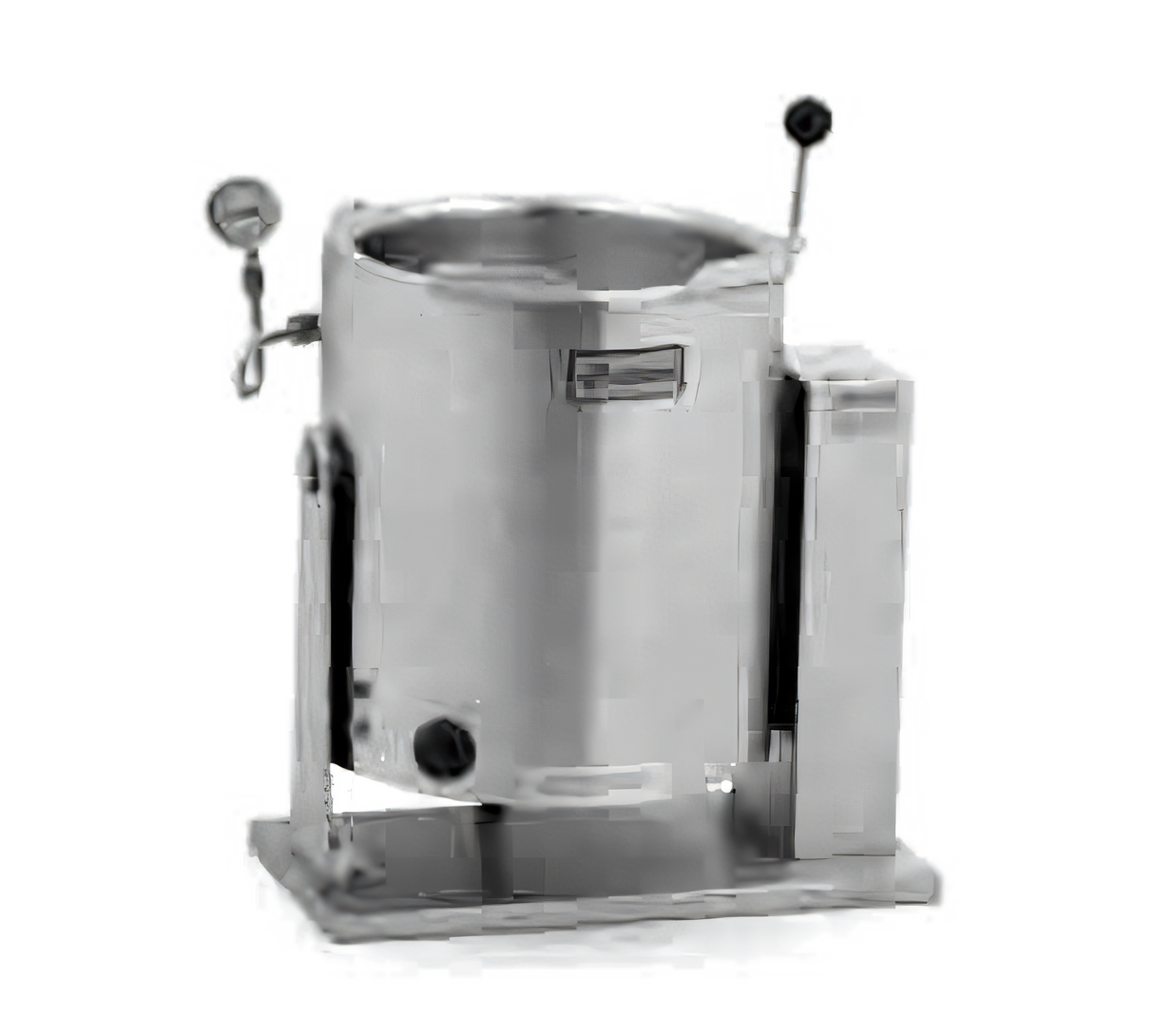

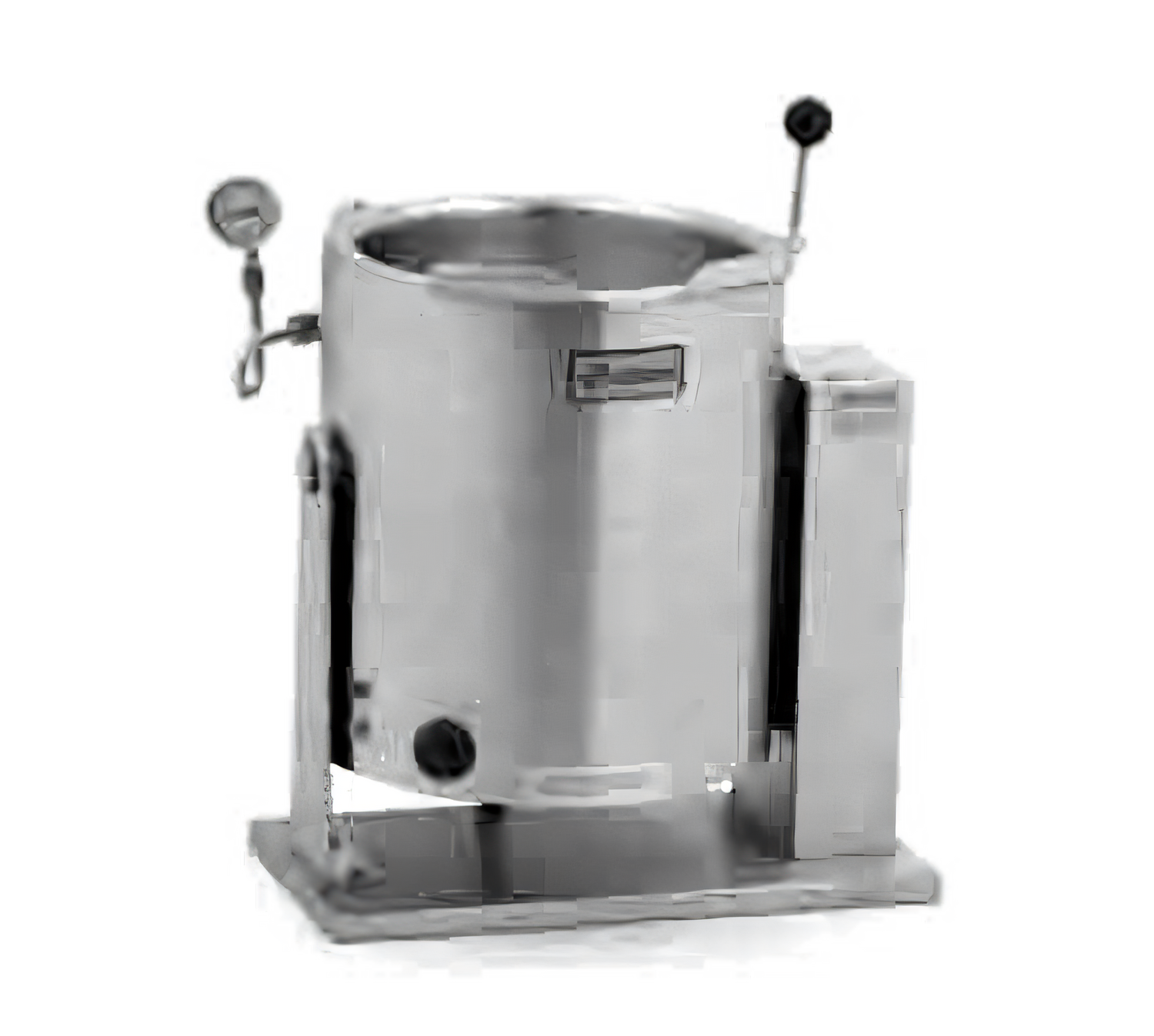

Legion TEH-20 “Insulated for Safety”™ Tilting Table-Top Kettle with MV Mixer – 5 gal / 20 qt
6 kW • Electric 2/3-Steam Jacket • Self-Contained • Made in USAEngineered for compact workstations that demand full-size performance, the Legion TEH-20 delivers rapid, even cooking, continuous product agitation and operator-friendly tilting — all in a 5-gallon footprint that drops straight onto your existing table or custom stand.
Key performance & safety features
- Seamless 304 stainless steel kettle liner with integrally-formed radius lip for hygienic pour-off.
- 2/3 steam jacket, 304L stainless, self-contained – no external boiler required.
- 6 kW field-replaceable heating elements reach cooking temperature fast and recover quickly between batches.
- Precision thermostat control 150 °F – 285 °F maintains set temperature without guesswork.
- Factory-installed MV single-speed mixer (1/3 HP) keeps sauces, custards and soups lump-free: 17 RPM anchor agitator with nylon scraper + 43 RPM counter-rotating beater.
- Full body mineral-wool insulation keeps jacket heat in, kitchen heat out – safer and more energy-efficient.
- Right-side stainless control console with power & status lights, pressure gauge, low-water cut-off and automatic jacket water fill port.
- Balanced, manual tilt mechanism empties the kettle smoothly to the last ounce.
- Pressure relief valve and positive rim-lock latch protect both operator and equipment.
- All-stainless exterior (liner, jacket, console & base plate) stands up to daily wash-downs and harsh detergents.
Technical specifications
| Capacity | 5 gal (20 qt / 19 L) |
|---|---|
| Heat input | 6 kW electric, self-contained |
| Jacket type | 2/3 steam jacket, ASME coded |
| Temperature range | 150 °F – 285 °F (65 °C – 140 °C) |
| Voltage / Phase | 208 V or 240 V (standard), 380 V • 415 V • 440 V • 480 V optional / 1- or 3-phase |
| Current draw @ 208 V | 21.7 A (1 Ø) / 12.5 A (3 Ø) |
| Mixer drive | 1/3 HP gear motor, single speed |
| Agitator speeds | Main anchor 17 RPM / Secondary beater 43 RPM |
| Tilt angle | 0°–90° manual, hand-balance assisted |
| Overall dimensions (W × D × H) | 11.6″ × 27.2″ × 32.2″ (see drawing for detail) |
| Construction | All 304 stainless, seam-welded; fully insulated outer casing |
| Certifications | NSF, UL, ASME |
| Country of origin | USA |
What’s in the box
- Legion TEH-20 tilting kettle with right-side support console
- Factory-mounted MV mixer head with agitator & beater
- Low-water cut-off and indicator light (pre-installed)
- Pressure relief valve & gauge
- Operator manual & warranty registration
Popular add-ons (sold separately)
- Lift-off stainless cover
- Single or dual swing-nozzle fill faucet (12″ or 18″)
- 48″ flexible spray hose (vinyl / stainless)
- Tilt-locking device for transport applications
- Legion care & cleaning kit
- Table stand for one or two TEH kettles
Warranty & after-sales support
Every Legion kettle ships with a 12-month parts & labor warranty (15 months from ship date when registered). Extended coverage is available — ask our team for details.
Product Weight:
253.0 lbFrequently Asked Questions
