Legion TEH-20 Steam Kettles
Description

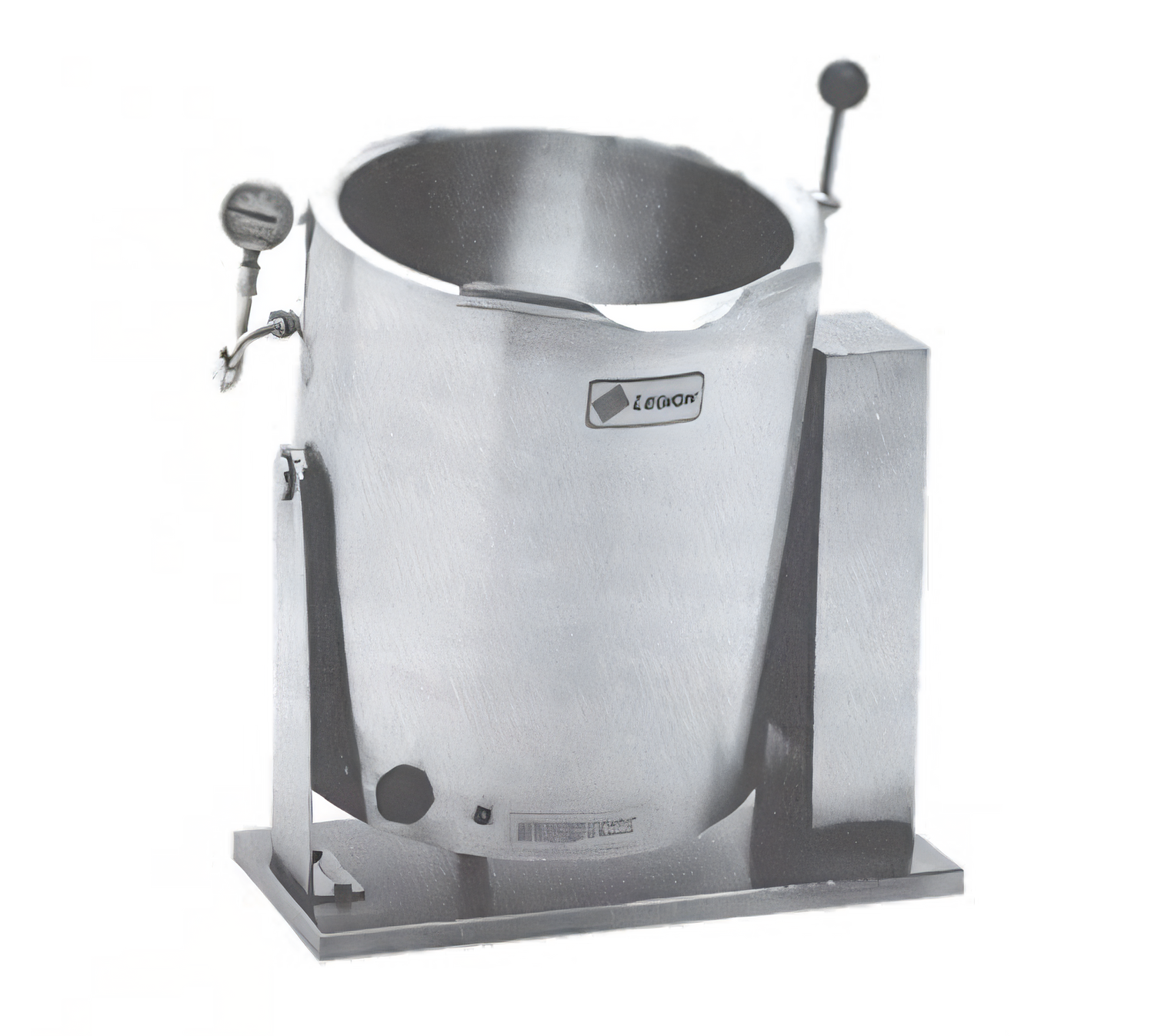

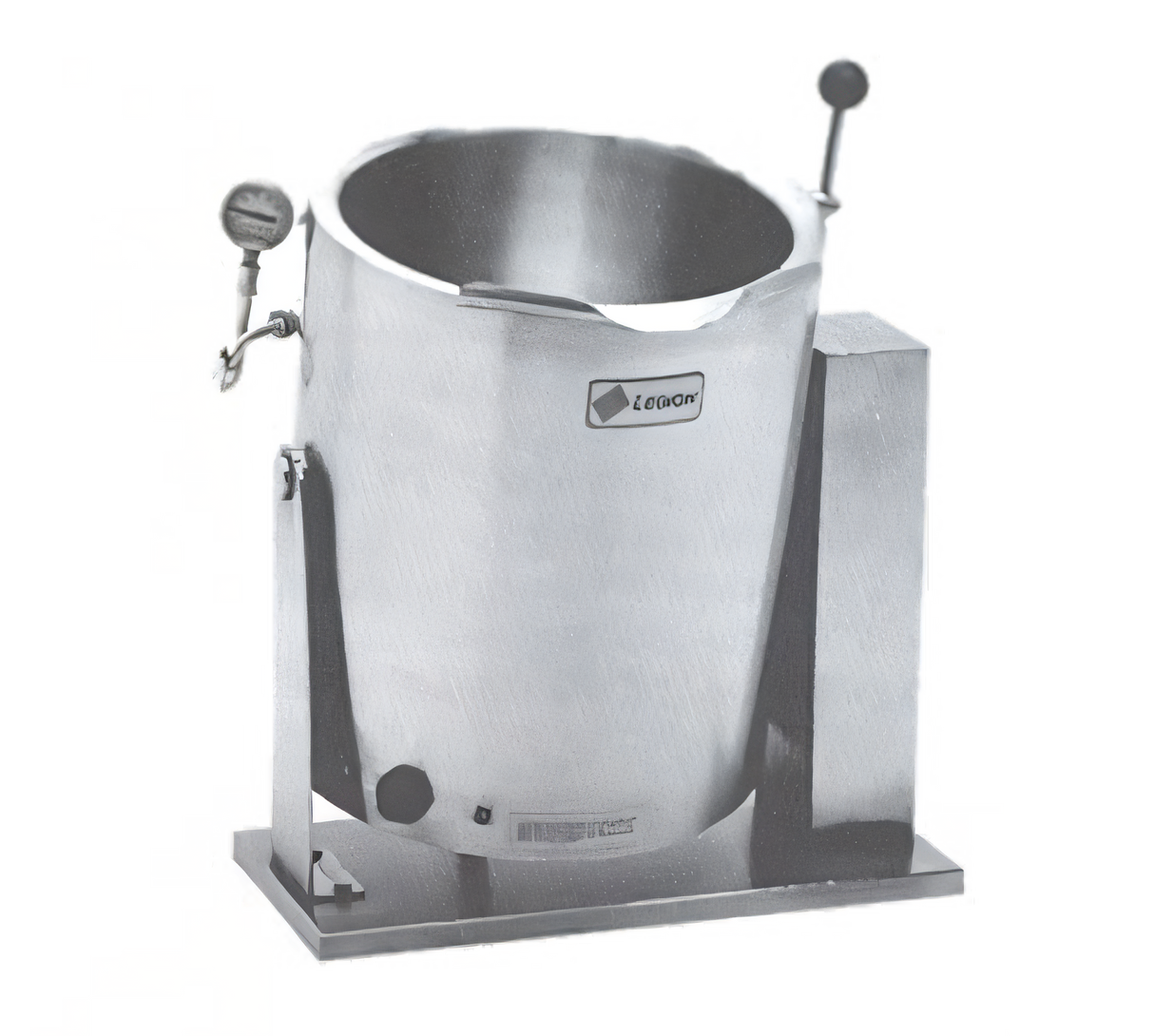

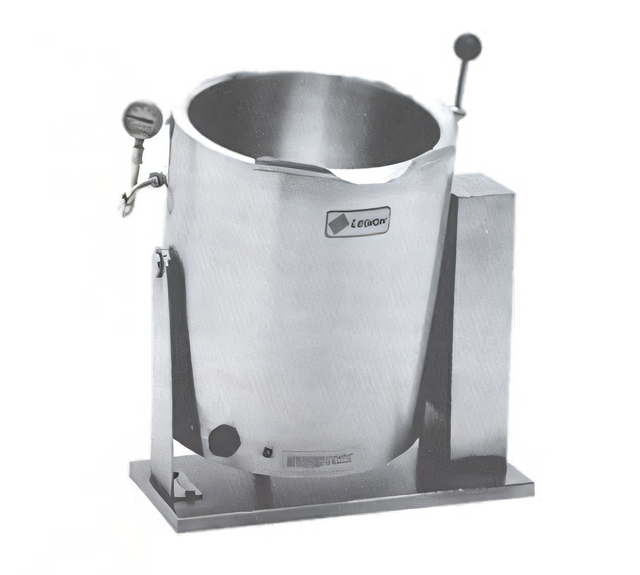

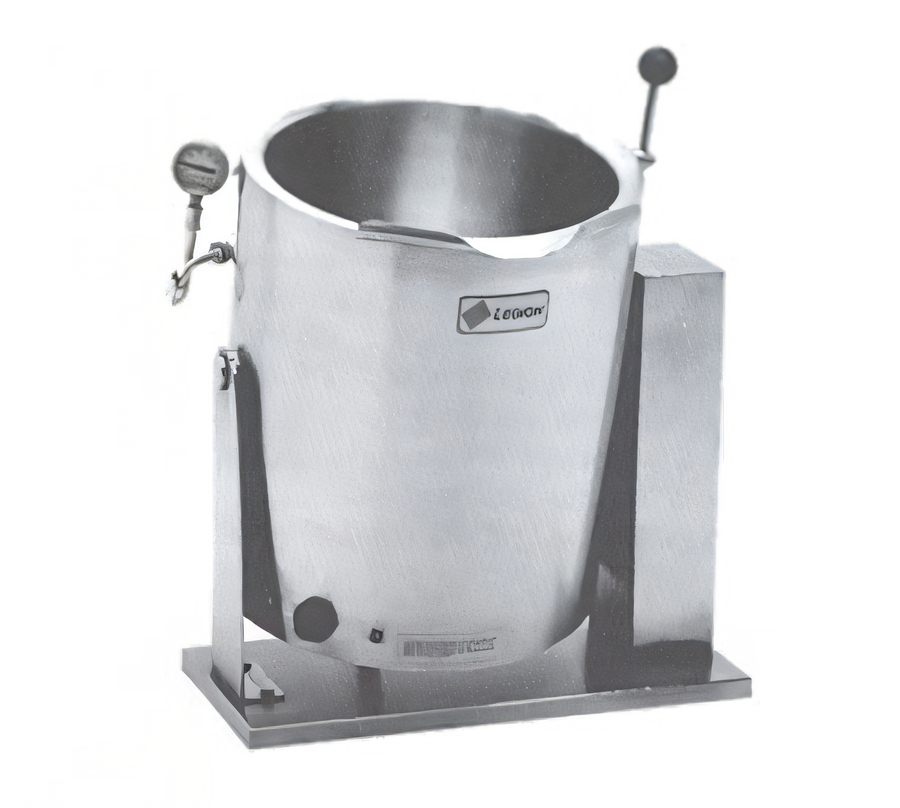

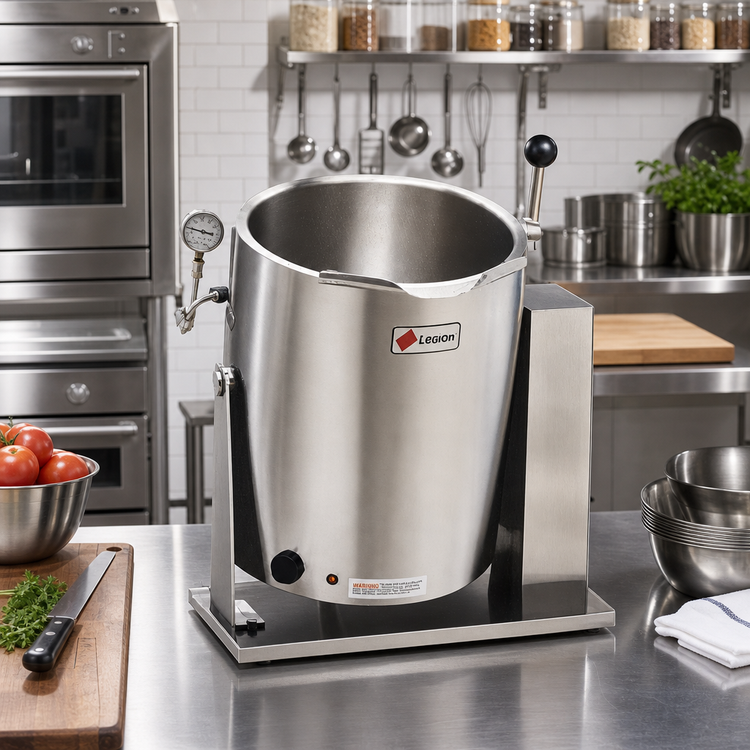

Legion TEH-20 5-Gallon Table-Top Tilting Electric Kettle
2/3 Steam Jacket • 304 Stainless Steel • 6 kWPerfect for small-batch production, satellite kitchens and catering lines, the Legion TEH-20 delivers the speed and consistency of a full-size kettle in a compact, 5-gallon footprint. A self-contained steam jacket, precise thermostat control and stay-cool insulation let you boil, simmer or hold with confidence—no external boiler required.
Key Features

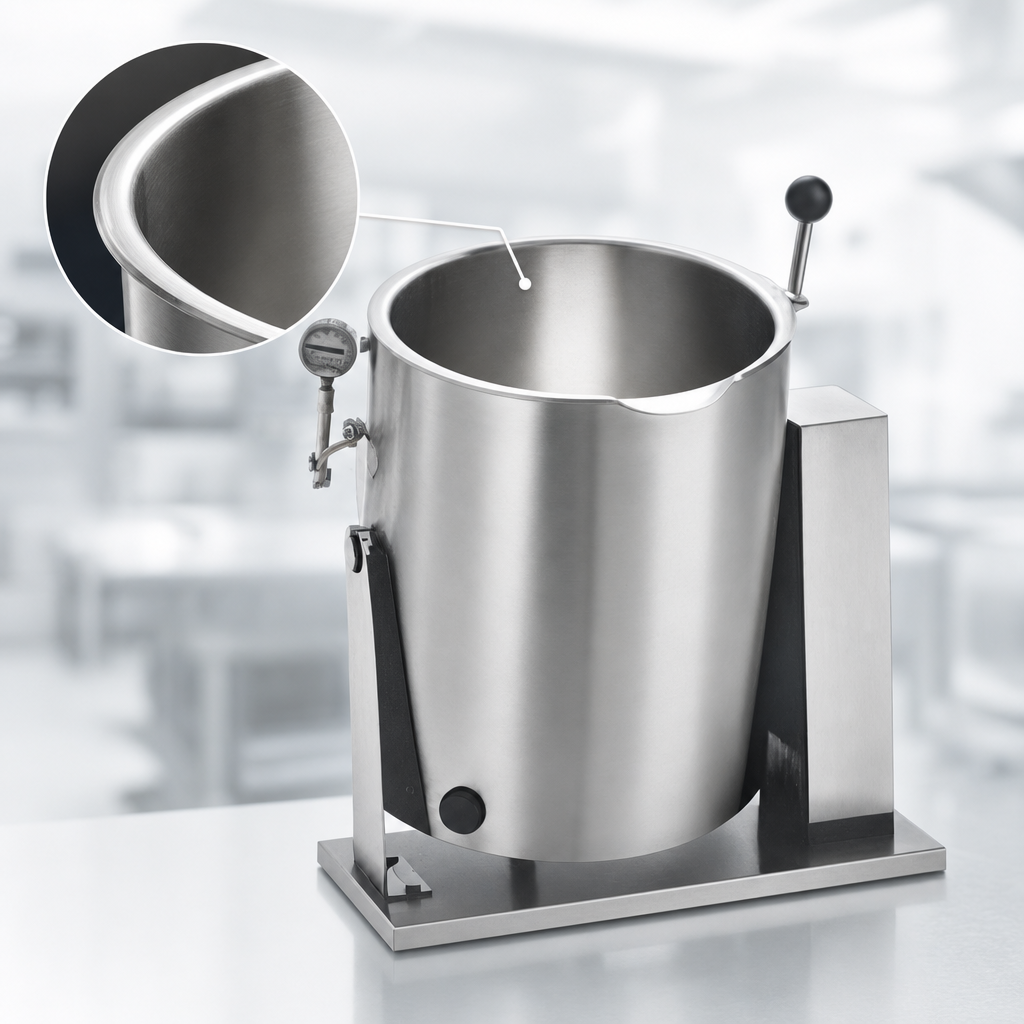

- Seamless deep-drawn 304 stainless liner with integrally formed radius lip for drip-free pouring.

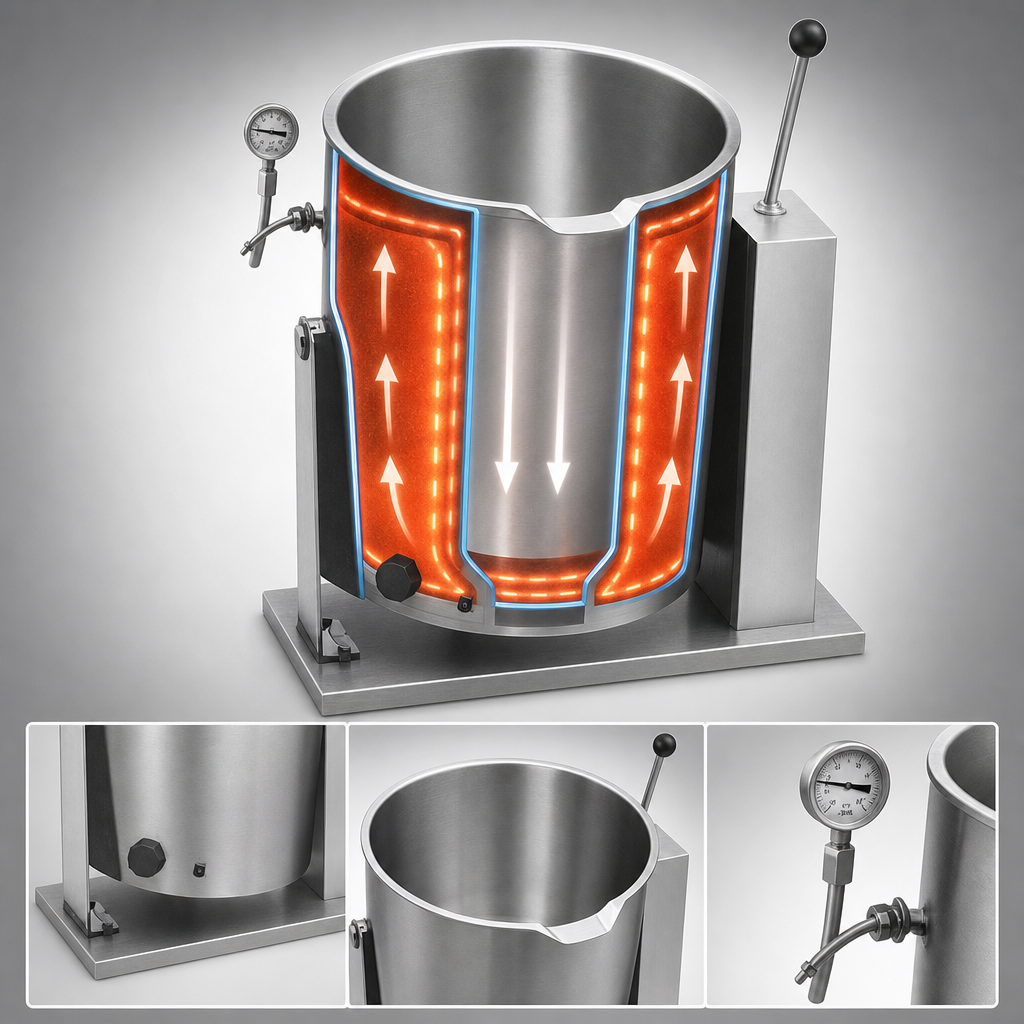

- True 2/3 jacket surrounds product with gentle, even heat that won’t scorch or burn.
- Thermostat control (150 °F–285 °F / 66 °C–140 °C) with automatic low-water cut-off indicator.
- Full-body fiberglass insulation keeps exterior surfaces cool and saves energy.
- Right-hand stainless control console—easy operator access while maximizing counter space.
- Built-in safety system: pressure relief valve, pressure gauge and field-replaceable elements.
- All-stainless outer casing, console and reinforced base—NSF, UL, ETL & ASME compliant.
- Made in the USA and backed by Legion’s 12-month parts & labor warranty.
Technical Specifications
| Model | TEH-20 (Table-Top, Tilting, Self-Contained) |
|---|---|
| Capacity | 5 gal / 20 qt / 19 L |
| Heating Output | 6.0 kW electric steam jacket |
| Voltage / Phase | 208, 240, 380, 415, 440 or 480 V | 1 Ø or 3 Ø |
| Amperage (208 V) | 21.7 A (1 Ø) / 12.5 A (3 Ø) |
| Temperature Range | 150 °F – 285 °F (66 °C – 140 °C) |
| Dimensions | W 11.6" × L 23.5" × H 32.2" (see drawing) |
| Construction | 304 & 304L stainless—seam-welded jacket, console & base |
| Controls | Thermostatic dial, power light, low-water indicator, manual tilt handle |
Ideal For
- Soups, sauces & chowders
- Pasta, rice & grains
- Custards, puddings & dessert fillings
- Re-therming chilled product
- Small-batch sous-vide or poaching
Popular Accessories *
- Lift-off stainless cover
- 12" or 18" swing-nozzle fill faucet (single or dual)
- 48" flexible spray hose assembly
- Single basket or nylon bag insert with spreader ring
- Tilt-locking device & pressure switch
- Care & maintenance kit
*Accessories sold separately—contact us for configurations and lead times.
Need more capacity? Check out the 10-gallon Legion TEH-40 or our floor-mounted series.
