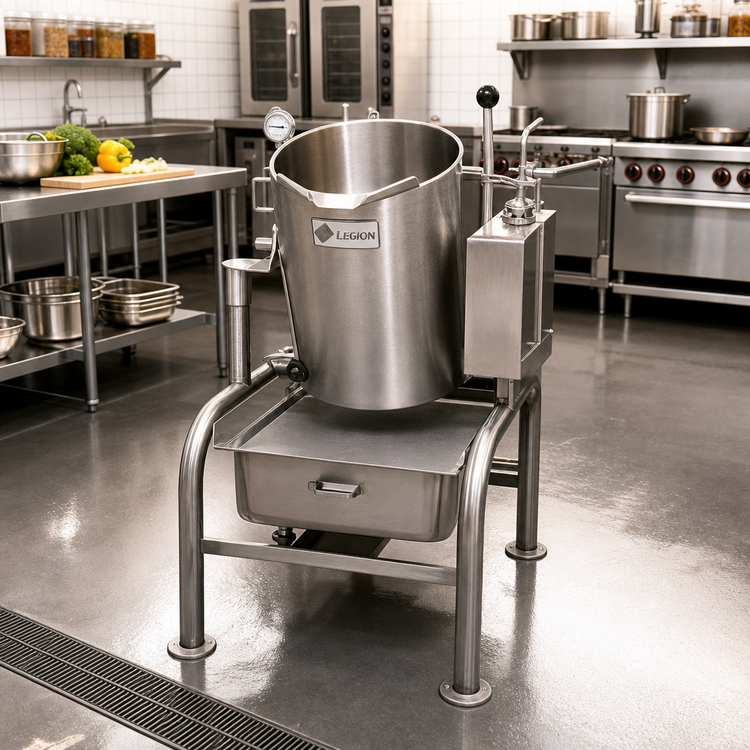

Legion TEH-10F 10 Gal. Electric Tilting Kettle
Insulated Self-Contained • Floor-Mounted • Made in USAEngineered for demanding commercial kitchens, the TEH-10F delivers 10 gallons (40 qt) of precise, energy-efficient cooking capacity in a rugged, fully insulated, right-hand-console design.
Why you’ll love it

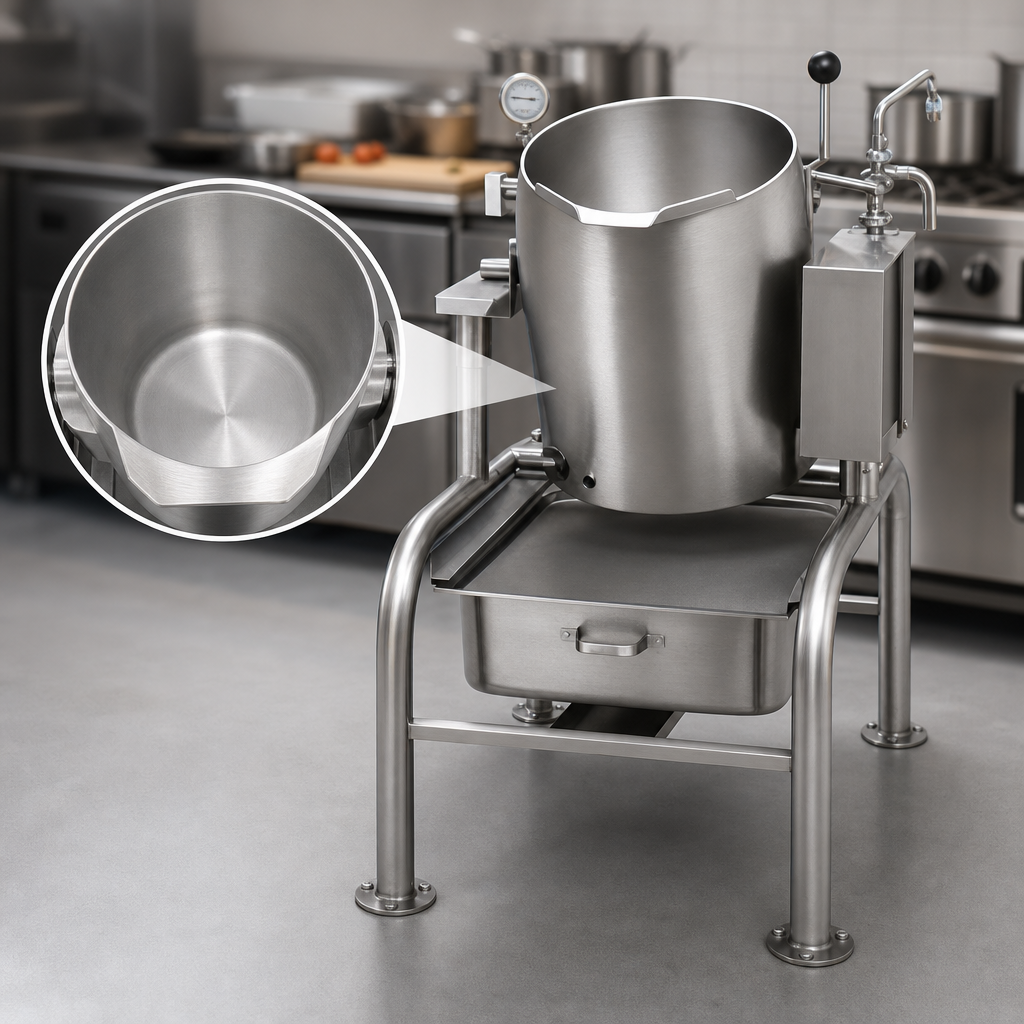

- Seamless 304 stainless steel liner with integral radius lip—no crevices, no leaks.

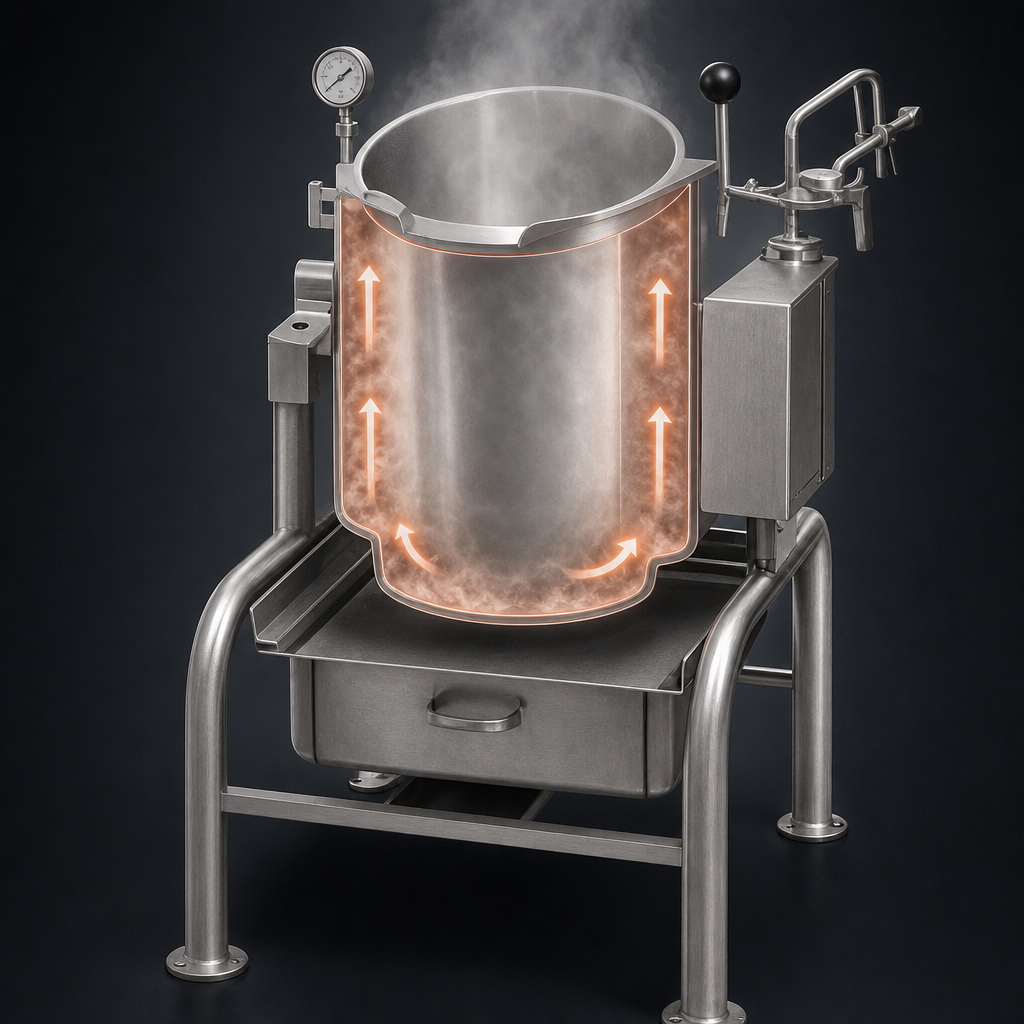

- Full 2⁄3 steam jacket for fast, even heat distribution and reduced scorching.
- Thermostatic control from 150 °F – 285 °F lets you simmer, poach or boil with fingertip accuracy.
- Insulated for Safety™ construction keeps outer surfaces cool and slashes energy loss.
- Hygienic, floor-mounted frame with coved-corner sliding drawer for utensils or chemicals.
- Tilt mechanism delivers effortless product transfer and complete kettle drain-out.
- Field-replaceable heating elements minimize downtime and service costs.
- Built-in protection: low-water cut-off, pressure relief valve, pressure gauge & indicator light.
Technical Specifications
| Model | TEH-10F |
|---|---|
| Capacity | 10 gal / 40 qt / 38 L |
| Operating Temp. Range | 150 °F – 285 °F (65 °C – 140 °C) |
| Heating Power | 12 kW electric, 2⁄3 jacketed |
| Liner & Jacket | Seamless 304 & 304L stainless steel |
| Frame | 2" 304 stainless tubular support frame with adjustable flanged feet |
| Control Console | Right-hand, 304 stainless, seam-welded |
| Insulation | Full body high-temperature mineral fiber |
| Drain | 1 ½" pitched trough to accommodate optional faucets or hose assemblies |
| Overall Dimensions (in) | A 16.0 • B 14.0 • C 42.6 • F 29.0 • G 43.5 • J 47.7 • L 24.4 • W 12.1 • Y 26.4 |
Electrical Load (per leg)
| Voltage | Phase | Amperage |
|---|---|---|
| 208 V | 1 Ø | 43.3 A |
| 208 V | 3 Ø | 25.0 A |
| 240 V | 1 Ø | 50.0 A |
| 240 V | 3 Ø | 28.9 A |
| 380 V | 3 Ø | 18.2 A |
| 415 V | 3 Ø | 16.7 A |
| 440 V | 3 Ø | 13.2 A |
| 480 V | 3 Ø | 14.4 A |
Factory wired; specify voltage and phase when ordering.
Popular Add-Ons
- Single or dual swing-nozzle fill faucets (12" or 18")
- 48" flexible spray hose (vinyl or stainless)
- Anti-splash screen for sliding drawer
- Tilt locking device for transport or cleaning
- Lift-off stainless cover, basket inserts, care kit & more
Important: Unit must be bolted to a level floor and connected by a qualified electrician in accordance with local
codes and ASME/NSF requirements.
TEH-10F is manufactured by Legion Industries, Waynesboro GA, and complies with applicable ASME, NSF, UL, CSA and ETL standards.
Features & Specs
Features & Specs
Manufacturer
Legion
Shipping Weight
297.0lbs
Base
quad-leg
Capacity
5 - 15 gallon
Kettle Jacket
full jacket
Kettle Liner
304 stainless steel
Specifications
Kettle Electric, Tilting Floor Mounted, 10 gallon, 304 stainless steel liner, support console on right, full steam jacket design, thermostat temp. control, full body insulation, stainless steel construction, 2" tubular support fame with sliding drawer, adjustable flanged feet, 12.0kW
