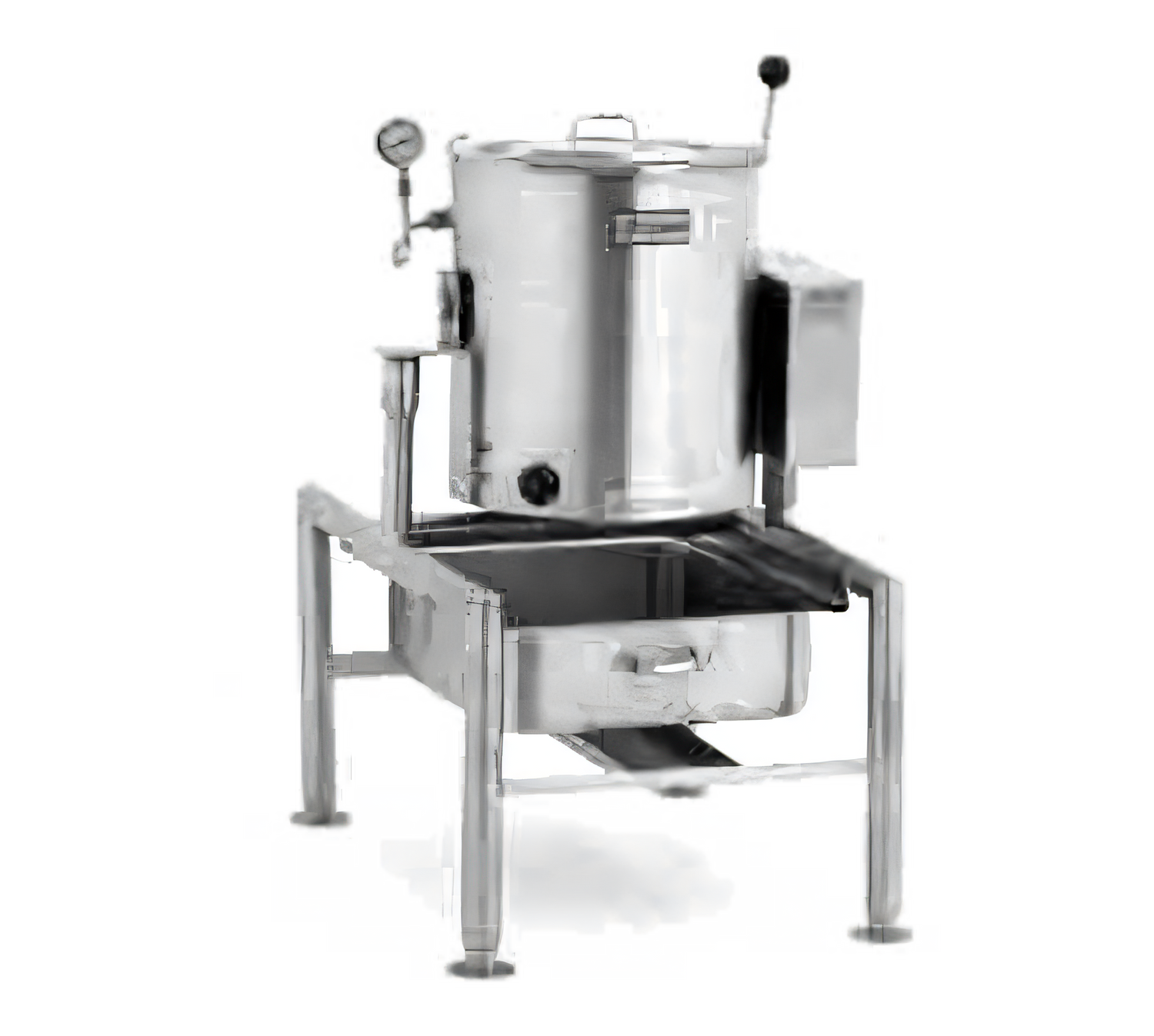

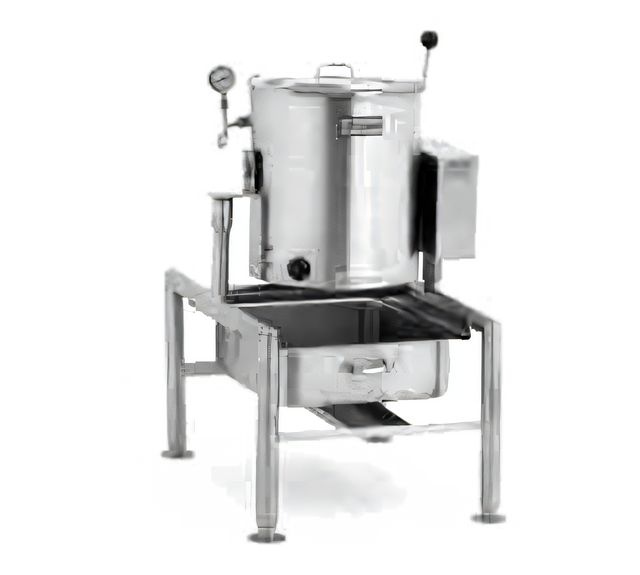

Legion TEH-10F Electric Tilting Kettle with Integrated Mixer – 10 Gallons
Self-Contained • 2/3 Steam Jacket • 12 kW • Floor Mounted • Made in USABatch faster, safer and more consistently. The Legion TEH-10F couples a heavy-duty 10 gallon kettle with a factory-mounted agitator so you can cook and mix at the same time—perfect for sauces, soups, custards and fillings that demand constant motion and precise temperature control.
Top Reasons Chefs Choose the TEH-10F
- Seamless deep-drawn 304 SS liner with sanitary radius lip for drip-free pouring
- Full 2/3 self-contained steam jacket—no external boiler required
- 12 kW field-replaceable heating elements with thermostat (150 °F–285 °F)
- Kettle protection system: pressure relief valve, gauge, automatic low-water cut-off & indicator light
- Factory-installed single-speed twin-shaft mixer
- 304 SS anchor agitator contoured to kettle wall
- Counter-rotating secondary beater for uniform product movement
- Removable nylon scraper blades sweep every surface to virtually eliminate burn-on
- Actuator-assisted lift lets you swing the mixer clear for loading, cleaning or tilting
- Right-hand stainless control console for intuitive operation
- Full body insulation (Insulated for Safety™) keeps exterior surfaces cool and conserves energy
- Robust 304 SS 2″ tubular support frame with coved-corner sliding utensil drawer
- Pitched 1 ½″ drain trough speeds clean-up between batches
- Adjustable flanged feet secure the unit to the floor and simplify level installation
- Built and certified to NSF, ASME & UL standards in Waynesboro, Georgia
At-a-Glance Specifications
| Capacity | 10 gal / 40 qt / 38 L |
|---|---|
| Heating Source | Electric, 12 kW (self-contained steam jacket) |
| Temperature Range | 150 °F – 285 °F, adjustable thermostat |
| Agitator Drive | Single-speed, twin-shaft (main 17 RPM / secondary 43 RPM) |
| Materials | 304 & 304L stainless steel, full polyurethane insulation |
| Tilt Mechanism | Manual crank, floor mounted, right-hand console |
| Drain Outlet | 1 ½″ NPT pitched drain trough |
| Electrical (per leg) |
208 V 1 Ø – 43.3 A | 208 V 3 Ø – 25 A 240 V 1 Ø – 50 A | 240 V 3 Ø – 28.9 A 380 V 1 Ø – 31.6 A | 380 V 3 Ø – 18.2 A 415 V 1 Ø – 28.9 A | 415 V 3 Ø – 16.7 A 440 V 1 Ø – 22.9 A | 440 V 3 Ø – 13.2 A 480 V 1 Ø – 25 A | 480 V 3 Ø – 14.4 A |
| Overall Size (in.) | W 24.4″ × D 43.5″ × H 47.7″ (to rim) |
Benefits of a Self-Contained Kettle
- Plug-and-play installation—just add jacket water during commissioning
- Lower maintenance costs versus central boiler systems
- Even, wrap-around heat shortens batch times and improves product yield
- Cooler kitchen environment and reduced operator risk
Looking for lift-off covers, basket inserts or spray hoses? We stock the full range of Legion accessories—just ask!
Product Weight:
697.0 lbFrequently Asked Questions
