Legion TAT-40MV Steam Kettles
Description

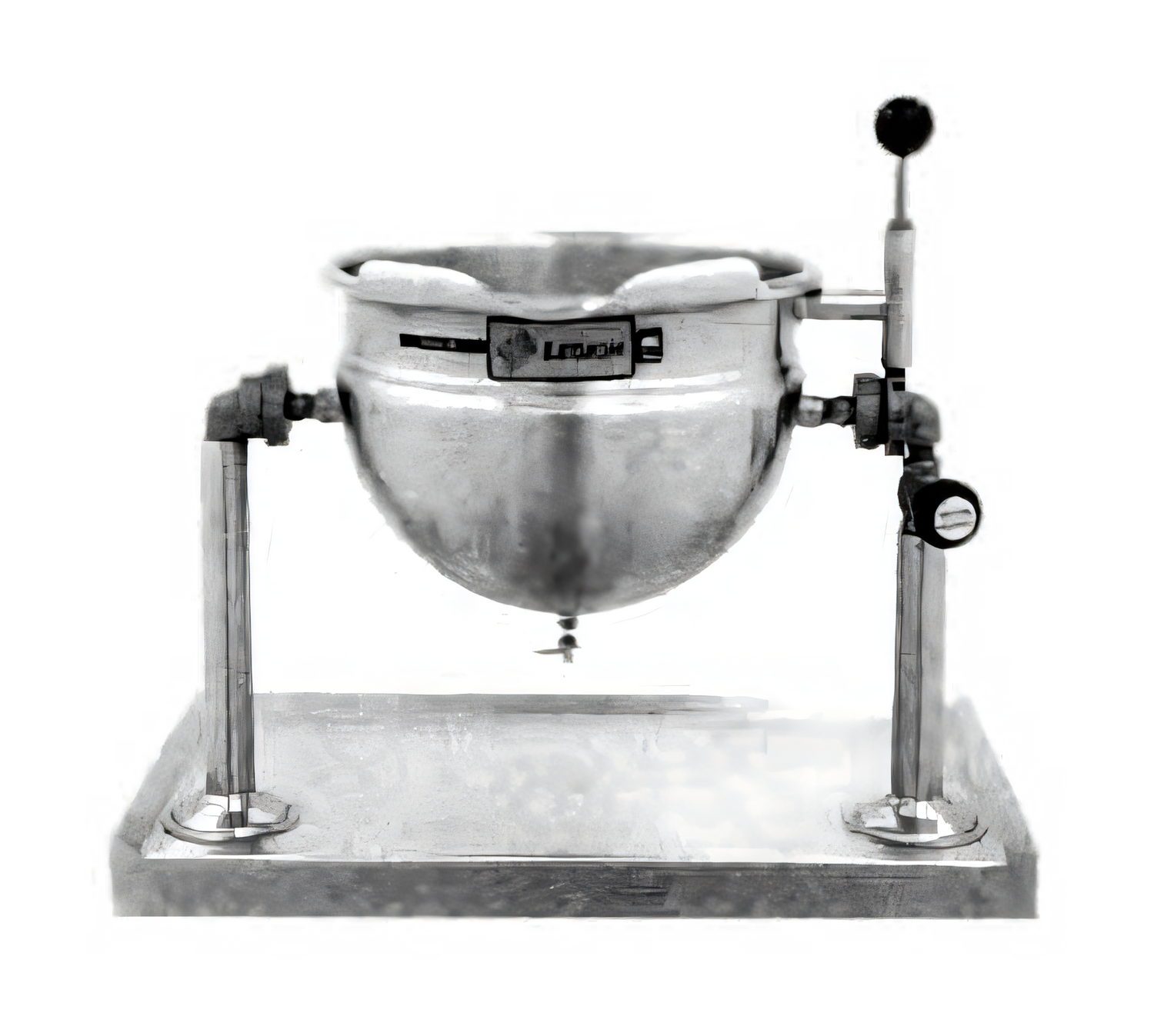

Legion 40-Qt Tabletop Tilting Direct-Steam Kettle with Mixer
Model TAT-40 | 2/3 Jacketed • 30 PSI • 304 Stainless SteelEngineered and manufactured in the USA, the Legion TAT-40 gives you the even heating of direct steam in a compact, table-mounted footprint. Its 40-quart bowl and factory-installed single-speed mixer make quick work of soups, sauces, custards and more—while the positive-locking tilt mechanism lets you pour with confidence and precision.
Key Features
- 40 qt (38 L) working capacity—perfect for midsize production runs.
- Factory-installed single-speed agitator/mixer keeps product moving for consistent results and reduced scorching.
- 2/3 jacketed bowl delivers fast, even heat distribution from an external steam source.
- Seamless, deep-drawn 304 stainless steel liner and 304L stainless jacket resist pitting, corrosion and flavor transfer.
- Open stainless steel support arms with a positive-position locking trunnion secure the kettle at any tilt angle up to 90°.
- Integrated steam supply control valve for precise temperature regulation.
- 30 PSI operating pressure rating meets a wide range of cooking needs.
- ½" NPT steam inlet and condensate outlet simplify connection to your existing steam system.
- Built to ASME code and NSF-listed for sanitation.
- Made in Waynesboro, Georgia—backed by Legion’s 1-year parts & labor warranty (extendable).
Specifications
| Manufacturer / Model | Legion Industries — TAT-40 (with mixer) |
|---|---|
| Capacity | 40 qt / 38 L |
| Jacket Type | 2/3 jacket, direct steam |
| Operating Pressure | 30 PSI (max) |
| Construction | Seamless 304 stainless liner & 304L stainless jacket; stainless support arms and trunnion |
| Agitator/Mixer | Single-speed, removable agitator shaft with sanitary seal |
| Tilt Mechanism | Manual crank with positive position lock, 0–90° range |
| Steam Connections | ½" NPT inlet / ½" NPT outlet (condensate) |
| Compliance | ASME, NSF |
| Standard Warranty | 12 months parts & labor from installation (extendable) |
Popular Options & Accessories
- Table-mount faucet kits (single or double) with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (PVC or stainless)
- Automatic water-fill meter
- Lift-off stainless cover
- Single basket or nylon bag insert with spreader ring
- Matching stainless work tables (Legion L5C or R-337 series)
Contact your sales rep to configure your kettle with any of the above accessories.
