Legion TAT-40 Steam Kettles
Description

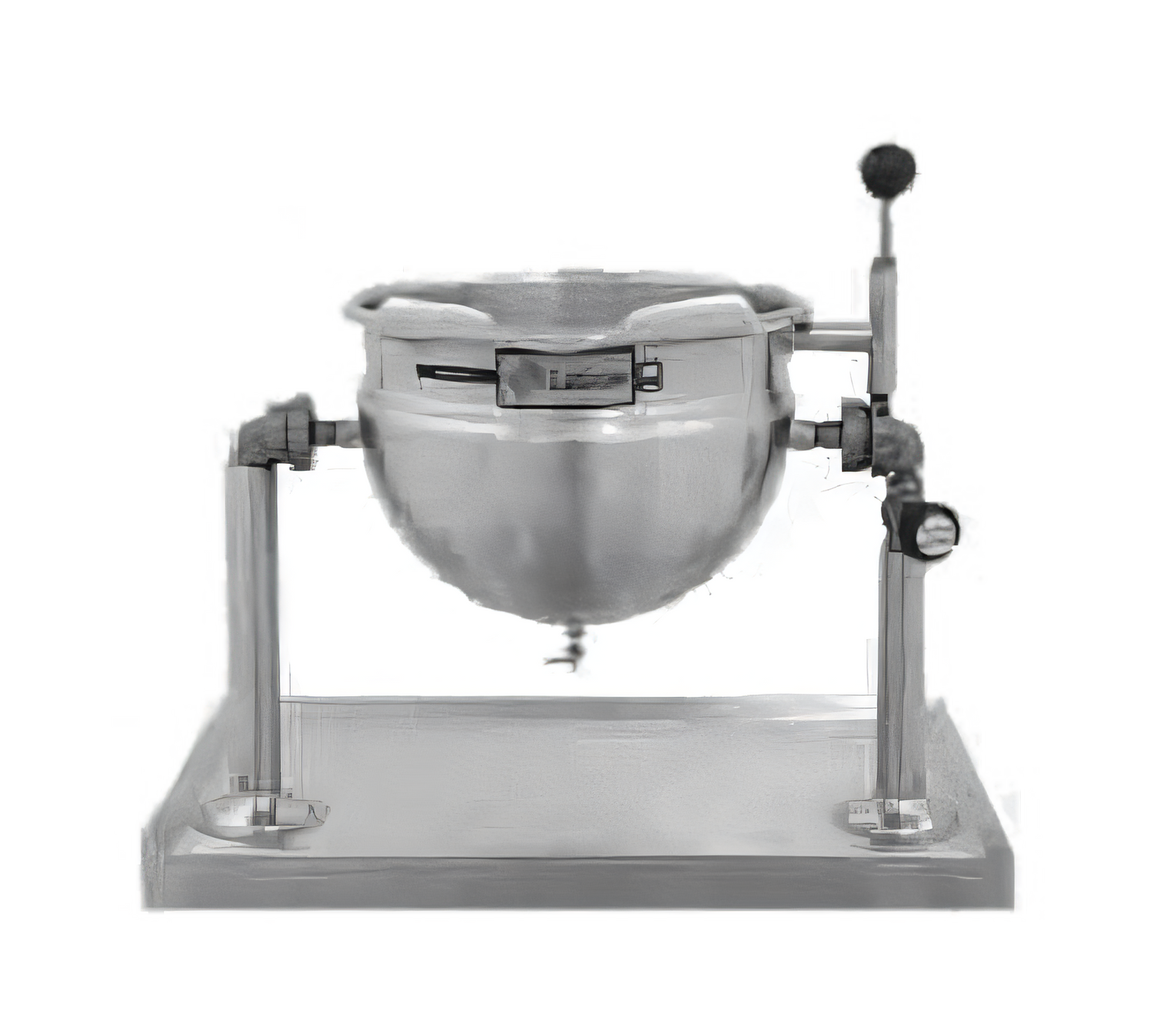

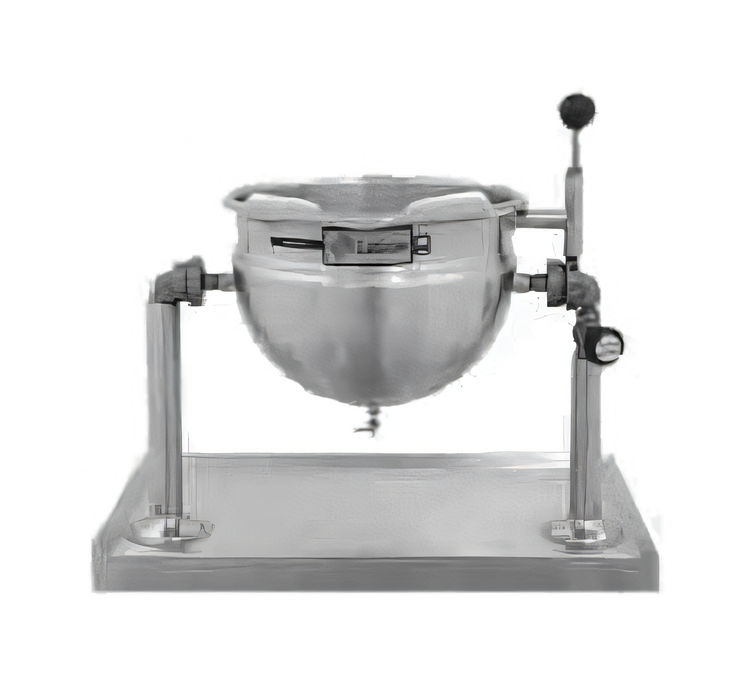

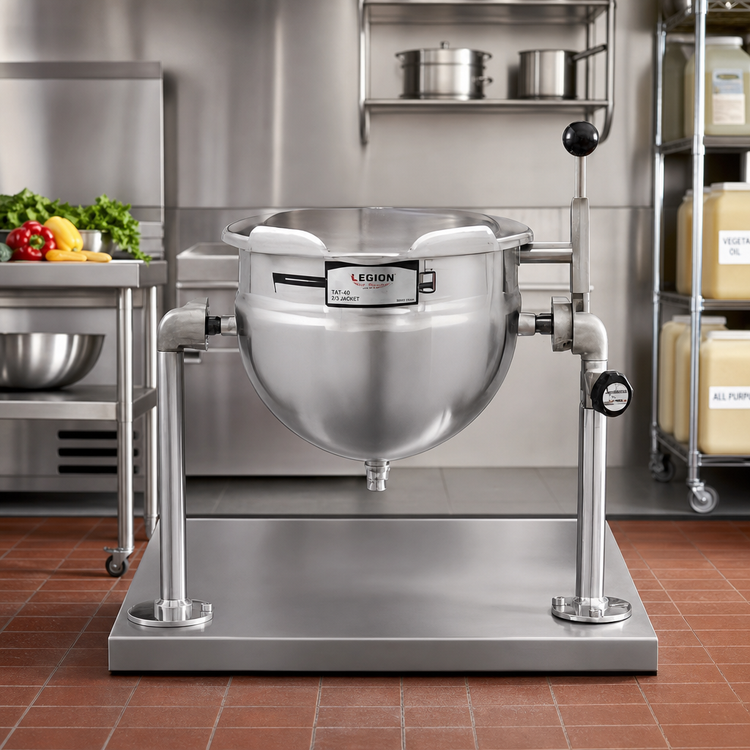

Legion TAT-40 Tabletop Tilting Direct-Steam Kettle – 40 Qt
2/3-Jacketed • 304 Stainless Steel • Made in the USABuilt for demanding, high-volume kitchens, the Legion TAT-40 delivers rapid, even heating and effortless pour-off in a compact, table-mounted footprint. Its seamless 304 stainless liner, 2/3-jacketed construction and precise steam control let you turn out perfect soups, sauces and stocks—batch after batch.
Key Features

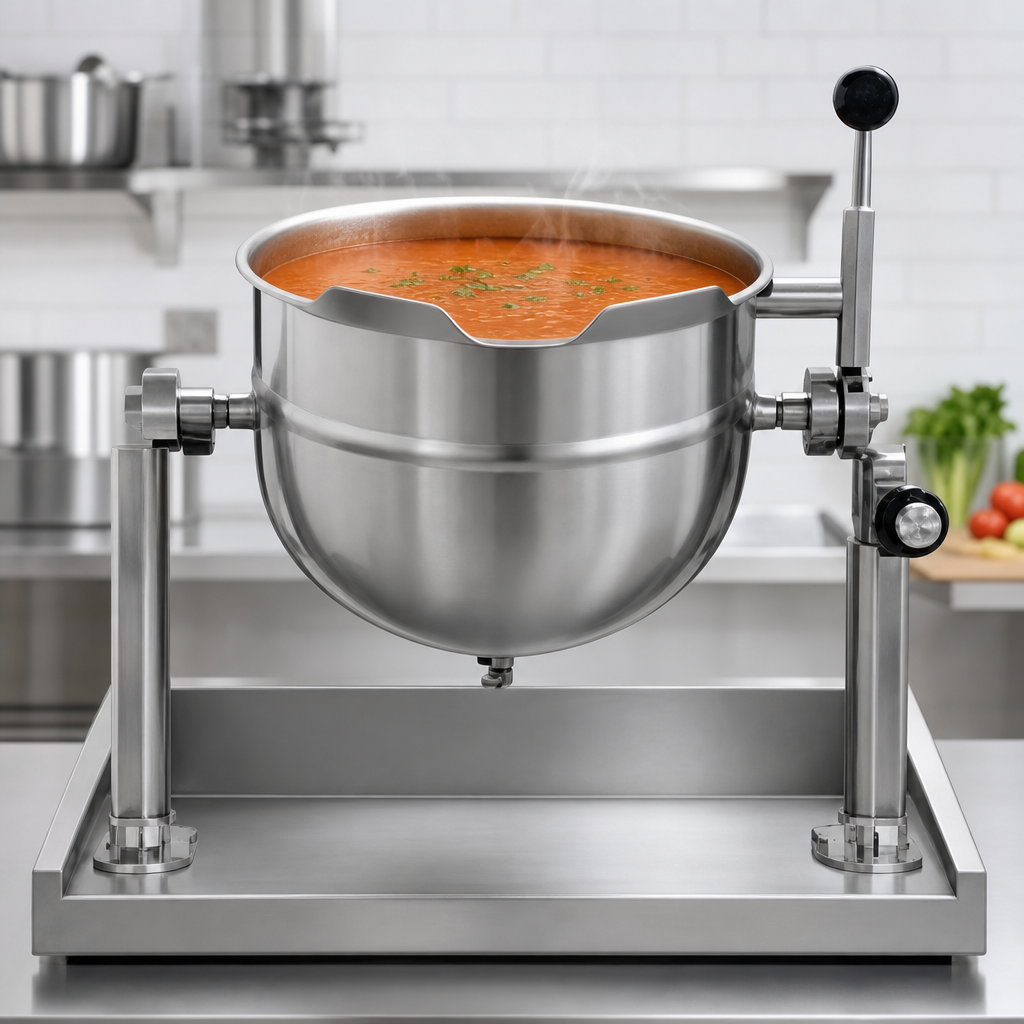

- Roomy 40 qt (38 L) capacity for bulk production.

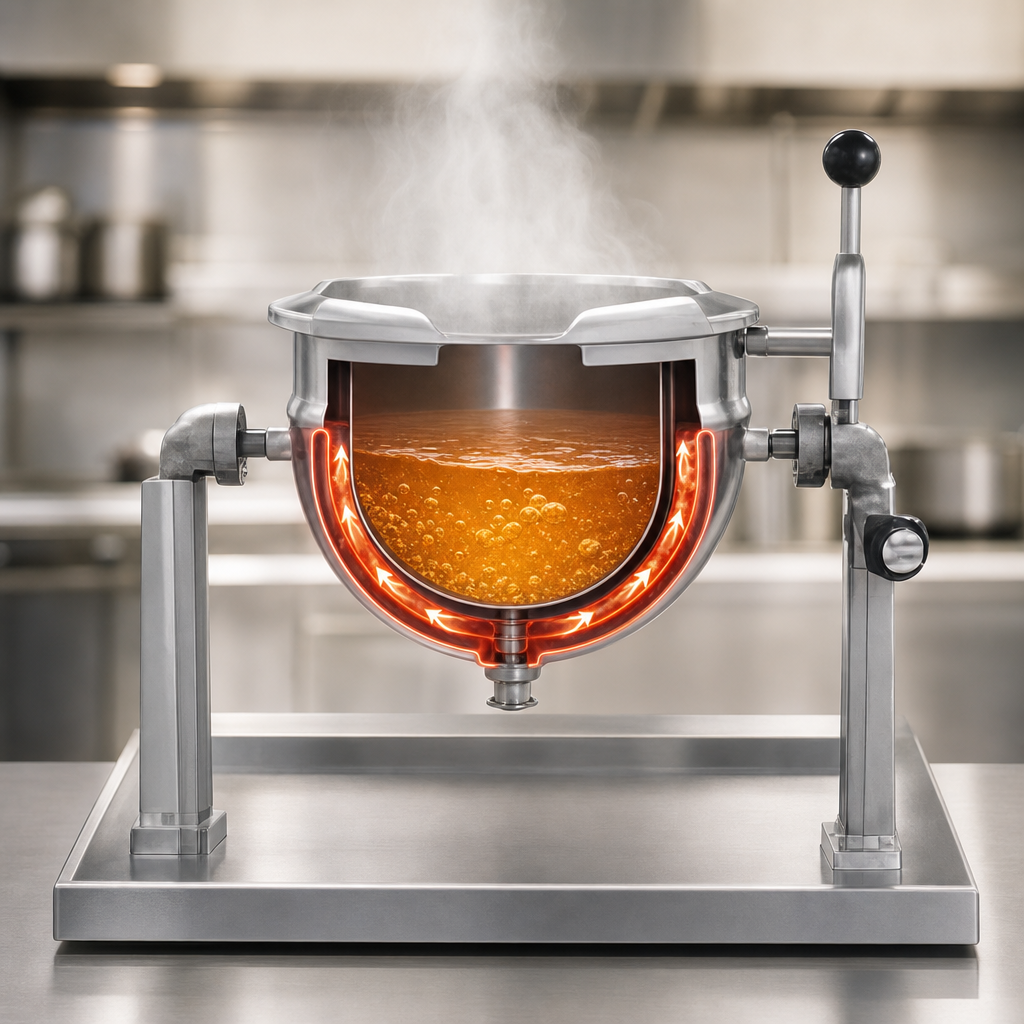

- 2/3-jacketed bowl surrounds food with steam on the sides & bottom for up to 30 % faster heat-up.
- Seamless, deep-drawn 304 stainless steel liner—no interior welds, no crevices, easy sanitation.
- 304 L stainless jacket rated to 30 psi for consistent, high-efficiency performance.
- Open stainless support arms with positive-position locking keep the kettle exactly where you set it while pouring.
- Manual crank tilts the bowl a full 90 ° for controlled, splash-free transfer.
- Front-mounted steam supply control valve—dial in and hold precise temperatures.
- NSF & ASME compliant, proudly manufactured in Waynesboro, GA.
Performance Benefits
- Direct steam hookup—no internal boiler to maintain.
- Deep-drawn construction maximizes strength while minimizing food sticking points.
- Stainless insulated support tubes reduce heat loss to the work surface.
- All-stainless build stands up to aggressive cleaning chemicals and everyday commercial wear.
Specifications
| Model | Legion TAT-40 |
|---|---|
| Capacity | 40 qt / 38 L |
| Cooking Surface | 2/3 jacketed, direct steam |
| Operating Pressure | 30 psi (207 kPa) |
| Tilt Mechanism | Manual crank with positive lock |
| Steam Inlet / Outlet | ½" NPT |
| Liner & Jacket Material | Seamless 304 / 304 L stainless steel |
| Overall Width (F) | 28.5" / 724 mm |
| Overall Height (J) | 27.0" / 686 mm |
| Bowl Diameter (A) | 16.0" / 406 mm |
| Bowl Depth (B) | 14.0" / 356 mm |
| Table Footprint (L) | 23.5" / 597 mm |
| Minimum Clearance (D) | 11.9" / 302 mm |
| Certifications | NSF, ASME Section VIII |
| Origin | Made in USA |
Popular Options & Accessories
- Single or double fill faucet with 12" or 18" swing nozzle.
- 48" flexible spray hose assembly (PVC or stainless).
- Automatic water-fill meter.
- Lift-off stainless cover for 20–40 qt kettles.
- Care kit, steaming basket or nylon bag insert with spreader ring.
- R-337 stainless tables (single, double or triple kettle configurations).
Questions about steam supply, table configurations or accessories? Use the “Ask a Question” tab—our equipment specialists are here to help.
