Legion TAT-20MV Steam Kettles
Description

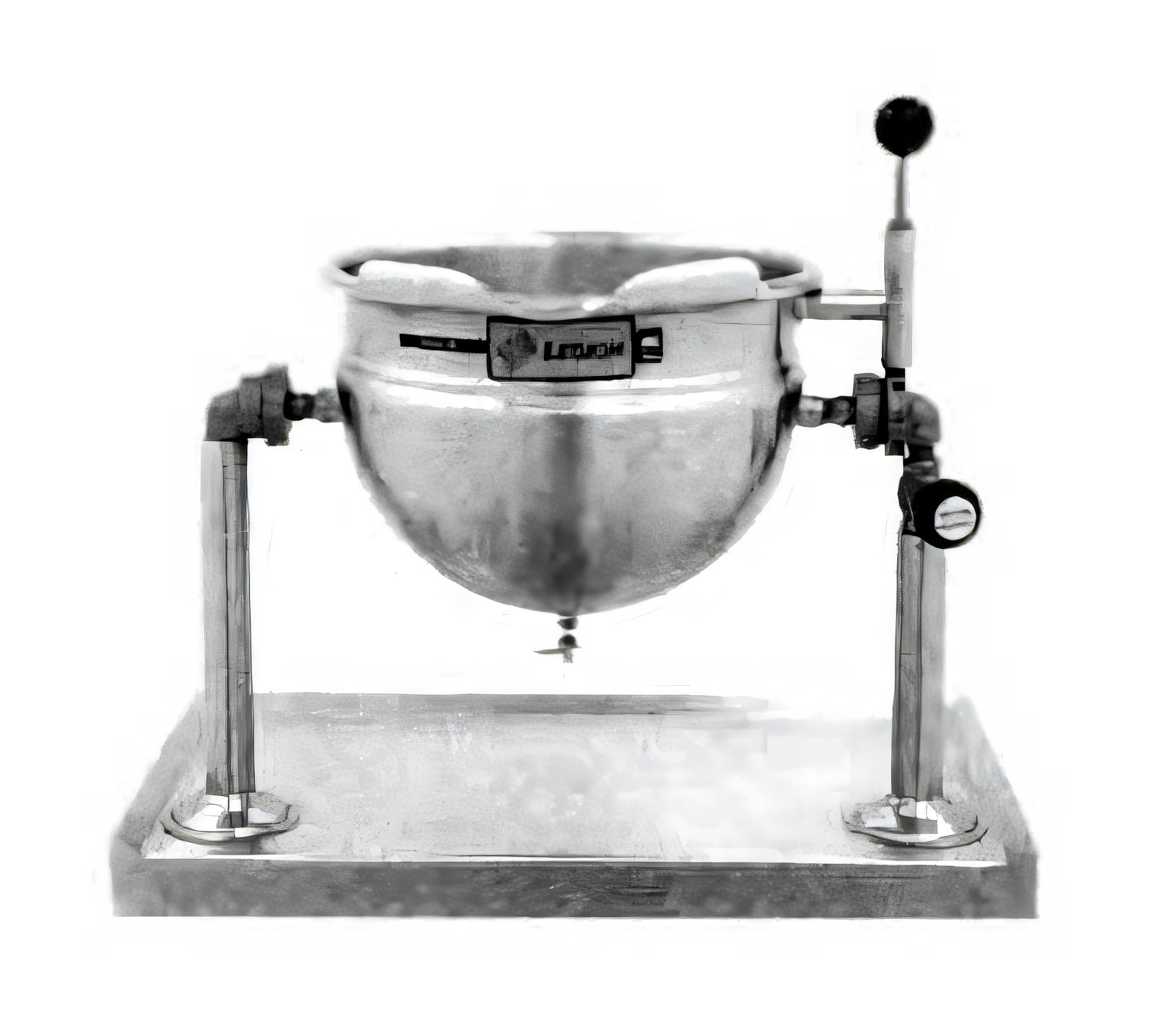

Legion 20-Quart Tilting Table-Top Kettle with Mixer
Model TAT-20 | 2/3 Jacketed • Direct Steam • Made in USATake the stress out of small-batch cooking. Built on Legion’s deep-drawn heritage, this 20-qt tabletop kettle pairs seamless 304 stainless steel with a smooth-running single-speed mixer—perfect for lump-free sauces, soups, confectionery fillings and more. Direct-steam heating, precise tilt control and a positive-lock trunnion give you the speed, safety and consistency today’s kitchens demand.
Key Features
- 20-qt (19 L) capacity—ideal for R&D, room-service, or satellite production
- Seamless, deep-drawn 304 stainless steel liner: no crevices, no weld fatigue
- 2/3 jacketed design for rapid, even heat transfer
- 30 psi operating pressure handles demanding steam systems
- 304 L stainless steel jacket and open support arms resist corrosion
- Positive position locking mechanism keeps the kettle exactly where you set it
- Direct-mount steam control valve for fingertip temperature regulation
- Integrated single-speed mixer/agitator reduces scorching & manual stirring
- Table-top footprint fits on existing counters or optional Legion L5C tables
Technical Specifications
| Capacity | 20 quarts / 19 litres |
|---|---|
| Construction | Seamless 304 stainless steel liner & 304 L stainless jacket |
| Jacket Coverage | 2/3 kettle body |
| Operating Pressure | 30 psi (2.0 bar) max |
| Steam Connections | ½" NPT inlet & outlet |
| Tilt Mechanism | Manual trunnion with positive-lock positions |
| Mixer Drive | Single-speed, agitator style (Factory-installed) |
| Overall Width (F) | 26.5 in / 673 mm |
| Overall Height (J) | 23.3 in / 592 mm |
| Bowl Diameter (A) | 14 in / 356 mm |
| Net Weight | Approx. 85 lb / 39 kg |
| Certifications | ASME-coded, NSF-listed |
| Country of Origin | United States |
What’s Included
- TAT-20 direct-steam kettle with mounted mixer
- Steam control valve (factory installed)
- Insulating support arms & base plate
- Operations & maintenance manual
- One-year parts & labor warranty
Popular Add-Ons (Sold Separately)
- Single or double fill faucets with 12" or 18" swing nozzles
- 48" flexible spray-hose assembly (PVC or stainless)
- Lift-off stainless cover
- Care kit, baskets & nylon insert bags
- Legion L5C stainless tables (1-, 2- or 3-kettle configurations)
Direct low-pressure steam (≤ 30 psi) and a ½" NPT supply line are required for operation. Mixer ships fully installed; no field modification is necessary.
