Legion  |  SKU: TAT-20

Legion TAT-20 Steam Kettles

$2,470.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

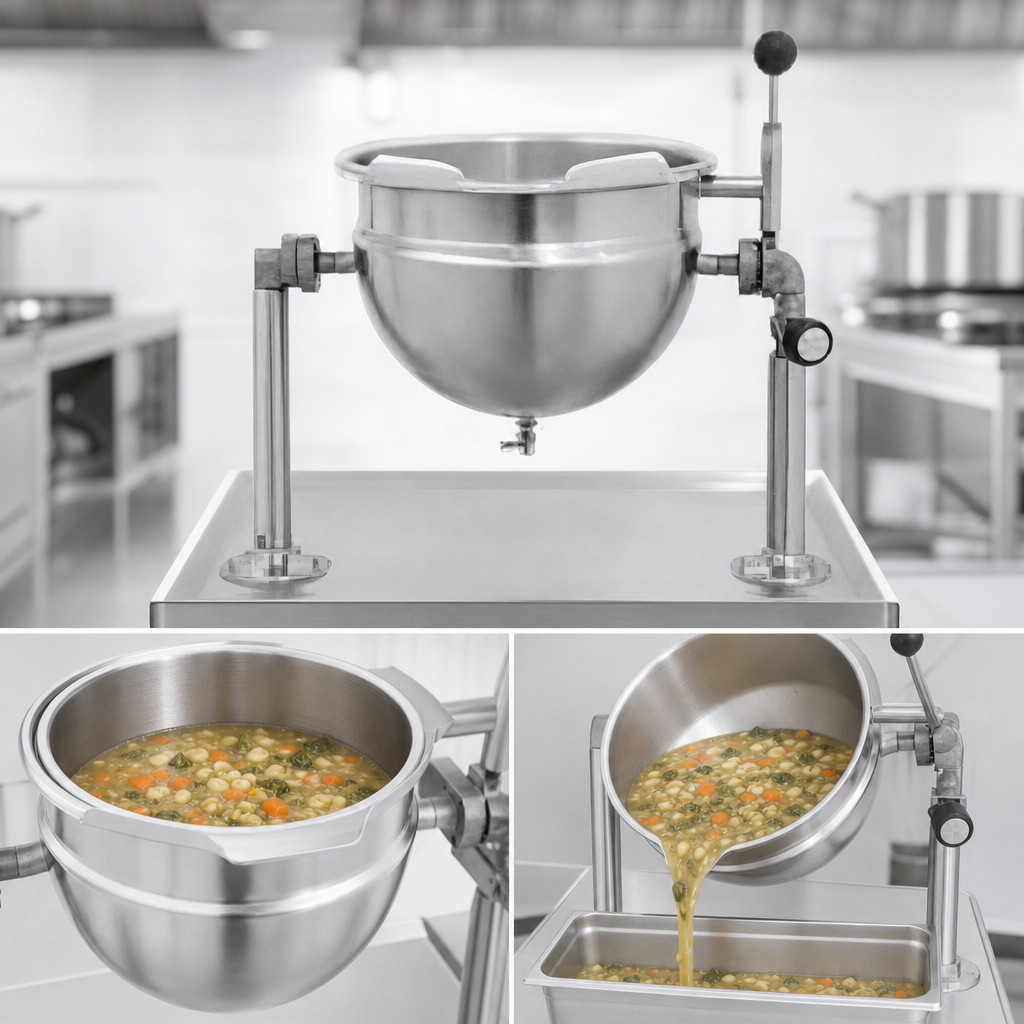

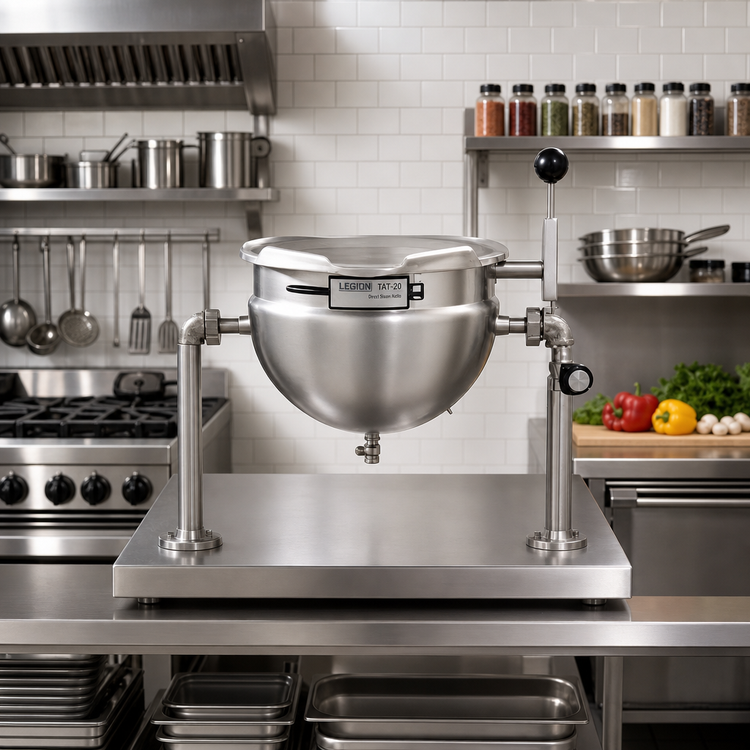

Legion TAT-20 20-Qt Table-Top Tilting Steam Kettle

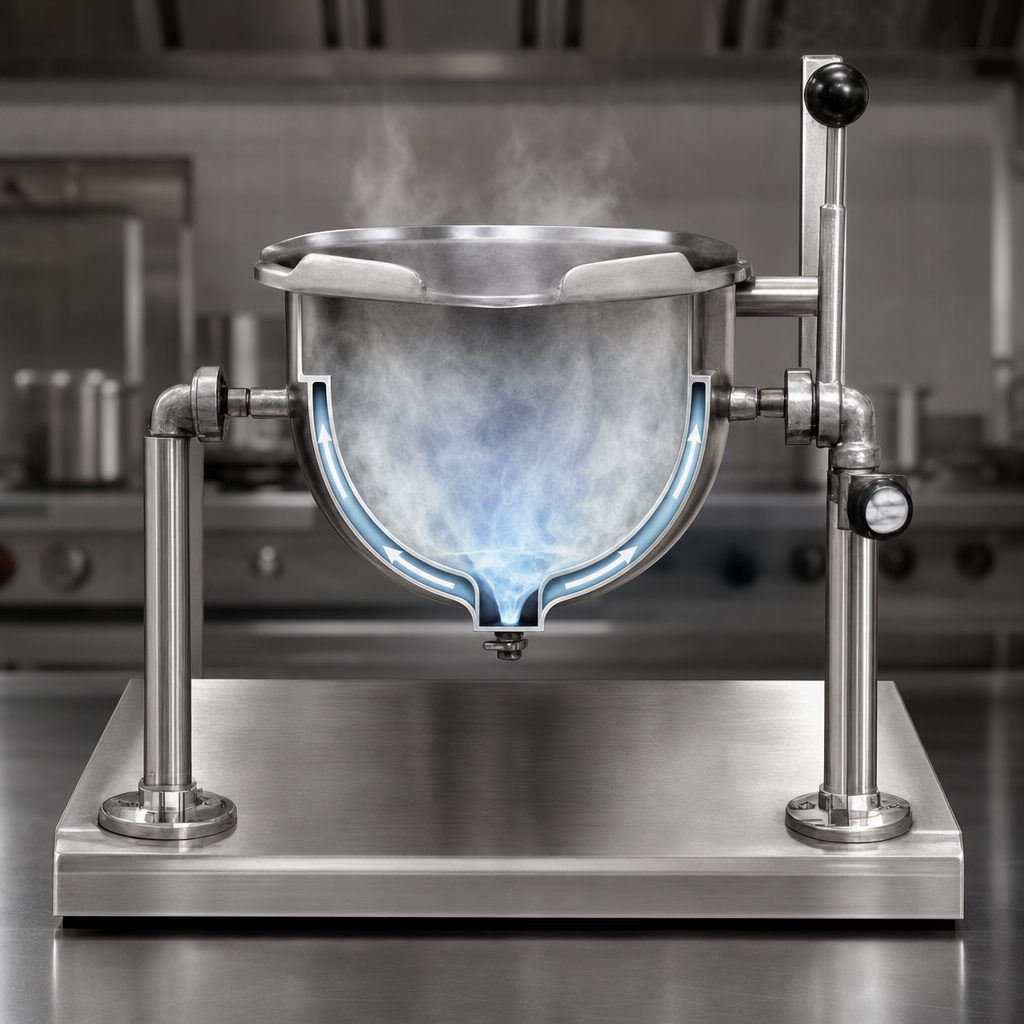

2/3 Jacketed • Direct Steam • 30 psi Rating

Bring the speed, consistency and flavor of steam cooking to your counter with the Legion TAT-20. Built in Waynesboro, GA, this 20-quart kettle pairs rugged 304 stainless steel construction with precise manual tilting, giving chefs a compact workhorse for soups, sauces, grains and more.

Why You’ll Love It

  • Seamless, deep-drawn 304 stainless steel kettle liner for fast cleanup and long life.
  • 2/3 jacketed 304L stainless steel exterior rated to 30 psi for rapid, even heat transfer.
  • Manual trunnion tilt with positive-position locking—pour or hold at any angle with confidence.
  • Open 304 stainless support arms/tubes mount directly to your work table, keeping the floor clear and easy to clean.
  • Hand-wheel steam control valve for fingertip temperature regulation.
  • NSF-listed and ASME code stamped for commercial peace of mind.
  • Made in the USA and backed by Legion’s industry-leading warranty.

Ideal For

  • Soups, stocks & chowders
  • Sauces, gravies & reductions
  • Custards, puddings & confections
  • Pasta, rice & grains
  • Small-batch chili, stew or braises
  • Re-thermalizing prepared foods

Technical Specifications

Model TAT-20
Capacity 20 qt / 19 L (net)
Heating Source Direct steam, 2/3 jacket
Operating Pressure 30 psi (205 kPa) maximum
Construction 304 stainless liner & 304L stainless jacket
Steam Inlet / Outlet ½ in. NPT
Interior Depth (B) 9.9 in. / 251 mm
Rim Diameter (A) 14 in. / 356 mm
Overall Height Above Table (J) 23.3 in. / 592 mm
Minimum Table Depth (L) 21.5 in. / 546 mm

Popular Options & Accessories (sold separately)

  • Lift-off stainless cover (20 qt)
  • Single or double fill faucet with 12″ or 18″ swing nozzle
  • 48″ flexible spray hose assembly (PVC or stainless)
  • Automatic water-fill meter
  • Care kit, product baskets & nylon bag inserts
  • Stainless tables – Legion L5C or R-337 series (single, double or triple kettle)

Warranty

Legion provides a 12-month parts & labor warranty from installation (15 months from ship date). Extended coverage is available.

Features & Specs

Manufacturer

Legion

Shipping Weight

83.0lbs

Kettle Jacket

partial jacket

Tilt type

single arm

Kettle Liner

stainless steel

Capacity

5 gal = 20 qt

Specifications

Kettle, Tilting Table Top, Direct Steam, 20 quart, 2/3 jacket, 304 stainless steel liner, open support arms with positive position locking mechanism, steam control valve, stainless steel construction, 30 psi
