Legion TAT-10 Steam Kettles
Description

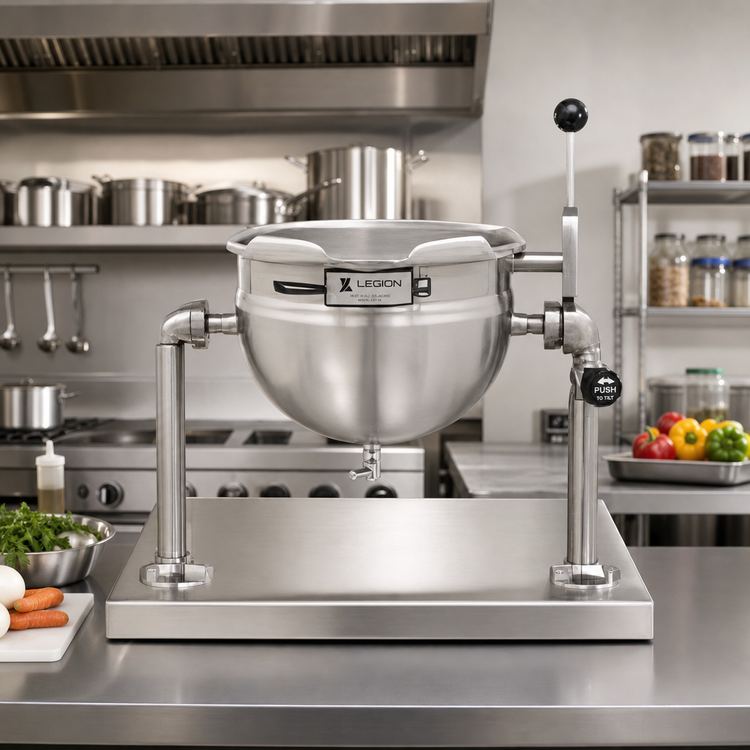

Legion 10-Qt Direct Steam Tilting Kettle

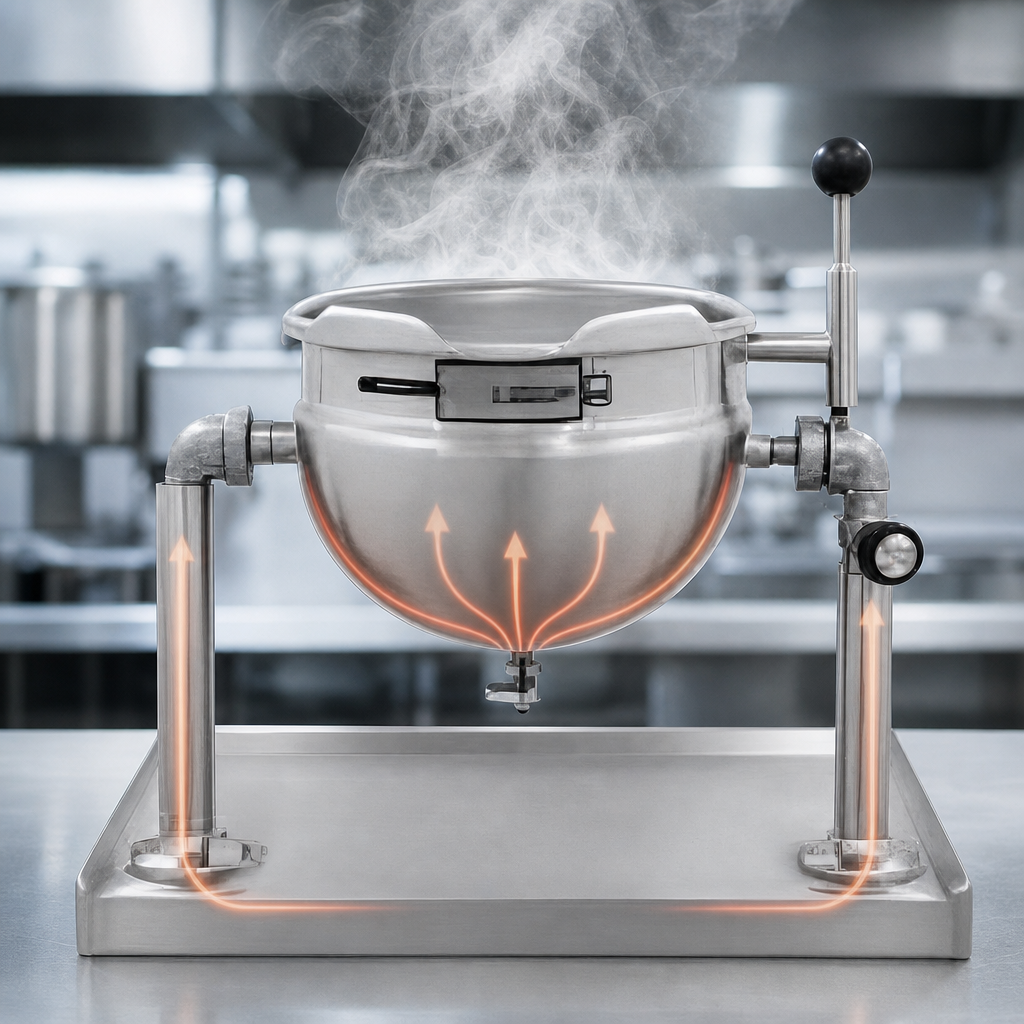

Model TAT-10 | Table-Top • 2/3 Jacketed • 30 psiBring commercial-grade steam cooking to any counter with the Legion TAT-10. This compact, USA-made kettle offers the speed, precision and safety you need for small-batch soups, sauces, custards and more—without taking over your kitchen.
Key Benefits
- Seamless 304 stainless steel liner—deep-drawn for an ultra-smooth, easy-clean interior.
- 2/3 jacketed bowl surrounds product with even heat on both sides and the bottom.

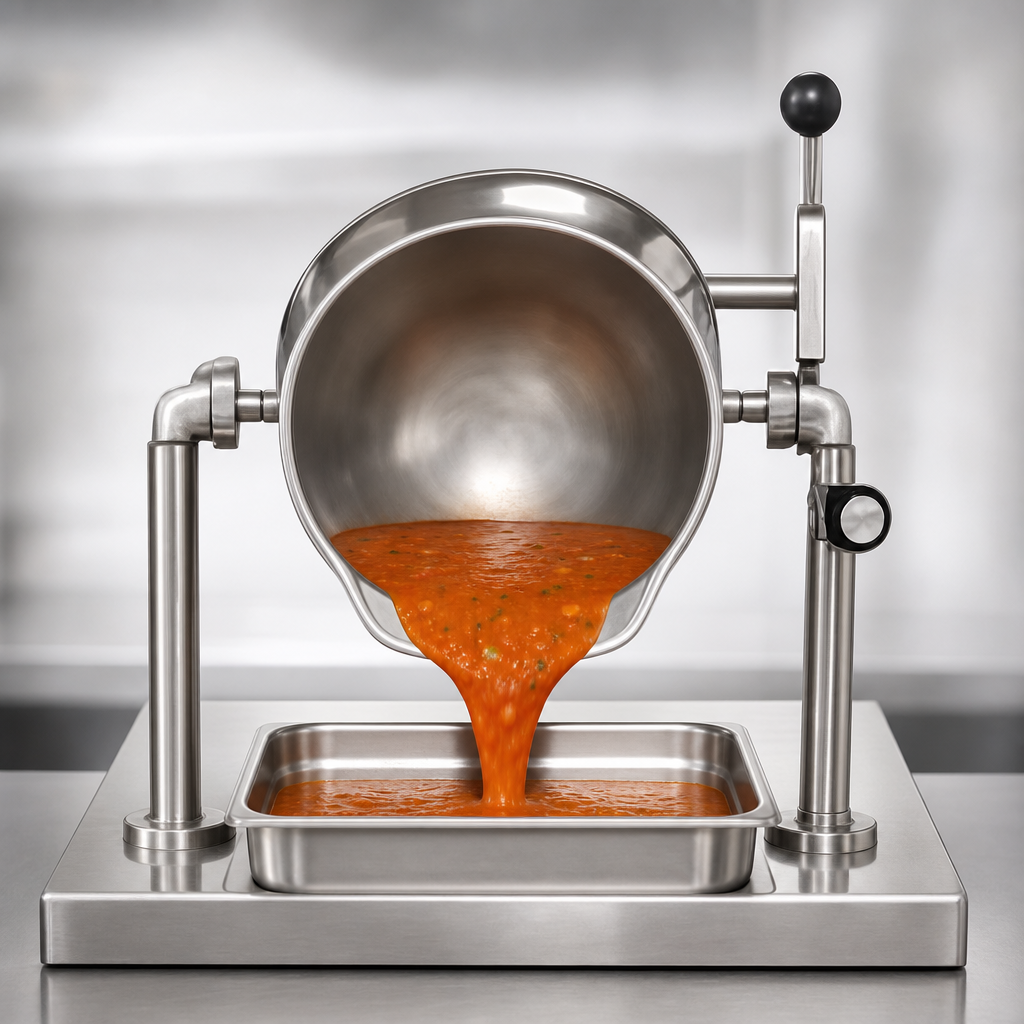

- Open stainless support arms with positive-position locking for secure, one-handed tilting.
- Integrated steam control valve delivers precise temperature regulation.
- 30 psi operating pressure slashes heat-up and recovery times.
- ASME-code stamped and NSF compliant; proudly made in the USA.
Technical Specifications
| Capacity | 10 qt / 9.5 L |
|---|---|
| Kettle Type | Direct steam, 2/3 jacketed |
| Operating Pressure | 30 psi (207 kPa) |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L stainless steel |
| Steam Inlet / Outlet | ½ in. NPT |
| Overall Width (A) | 12.0 in. (305 mm) |
| Overall Height (F) | 24.5 in. (622 mm) |
| Centerline Height (J) | 21.5 in. (546 mm) |
| Minimum Clearance (D) | 9.4 in. (239 mm) |
Optional Accessories
- Single or dual fill faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray-hose assembly (PVC or stainless)
- Table riser for fill faucet
- Automatic water-filling meter
- Lift-off stainless steel cover (10 qt)
- Care kit, nylon bag insert with spreader ring, single steaming basket
- Bright nickel-plated steam trap kit
Warranty
Legion warrants the TAT-10 for 12 months from installation (15 months from ship date) against defects in materials and workmanship when properly installed and registered in the continental U.S.
