Legion SKL9-5 Skittle Braising Pans & Tilt Skillets
Description
Legion Skittle® Multi-Function Cooker – Model SKL9-5
Steam • Grill • Boil • Fry • Roast – all in one insulated 10°-tilt powerhousePurpose-built for high-volume commercial kitchens, the Legion Skittle® SKL9-5 replaces five separate appliances with a single 17.7 kW, 304-stainless workhorse. Its patented insulated Capsule Lid, 10° tilting pan and 1½″ compression draw-off valve make it effortless to cook, finish and serve everything from delicate veggies to 105 lb. batches of fried chicken – while the adjustable thermostat (175 °F – 400 °F) delivers precise, repeatable results every shift.
Key Performance Advantages
- True 5-in-1 functionality – Steam, Grill, Boil, Fry & Roast in the same vessel
- Generous 9-pan rack (12″ × 20″ × 2.5″) plus 6 basket positions for batch cooking
- 22.3 gal kettle / 105 lb. oil capacity for high-yield frying & simmering
- 10° power tilt with tapered rim for fast, spill-free product transfer
- Patented Capsule Lid – actuator-assisted, insulated & vent-adjustable to lock in heat and minimize condensate
- High-limit safety thermostat and splash-proof control enclosure for worry-free operation
- 304 stainless, seam-welded cooking chamber, frame and component enclosure – built to last & NSF compliant
- Single ball-valve faucet with 48″ stainless spray hose speeds clean-up
- Adjustable flanged feet simplify rigid floor mounting
- Made in the USA & backed by Legion’s 12-month warranty
Technical Specifications
| Cooking modes | Steam, grill, boil, fry, roast (oven volume 8.2 ft³) |
|---|---|
| Pan / basket capacity | (9) 12″ × 20″ × 2.5″ pans | (6) 11″ × 20.5″ × 5″ baskets |
| Kettle / oil volume | 22.3 gal liquid | 105 lb. frying oil |
| Griddle area | 1,029 in² seamless flat bottom |
| Thermostat range | 175 °F – 400 °F with high-limit safety cut-off |
| Electrical rating | 17.7 kW, 240 V, 3 Ø (standard) • 44.4 A/leg Optional: 208, 380, 415, 440, 480 V • 1 Ø or 3 Ø |
| Draw-off valve | 1½″ compression style (2″ / 3″ & ball-type optional) |
| Working height | 31″ to top of pan rim |
| Construction | Insulated 304 SS pan & lid, tubular frame, seam-welded enclosure |
| Included accessories | Cassette pan rack, food-pan holder, spray hose assembly |
| Certifications | NSF, UL, ASME* (*where applicable) |
| Warranty | 12 months parts & labor (extended coverage available) |
Popular Add-Ons
- Automatic water-fill meter
- Perforated or solid hotel pans (4″ / 6″ depths)
- Draw-off strainers, drain hoses & spouts
- Lockable control cover for correctional facilities
- Electric timer with buzzer for batch production

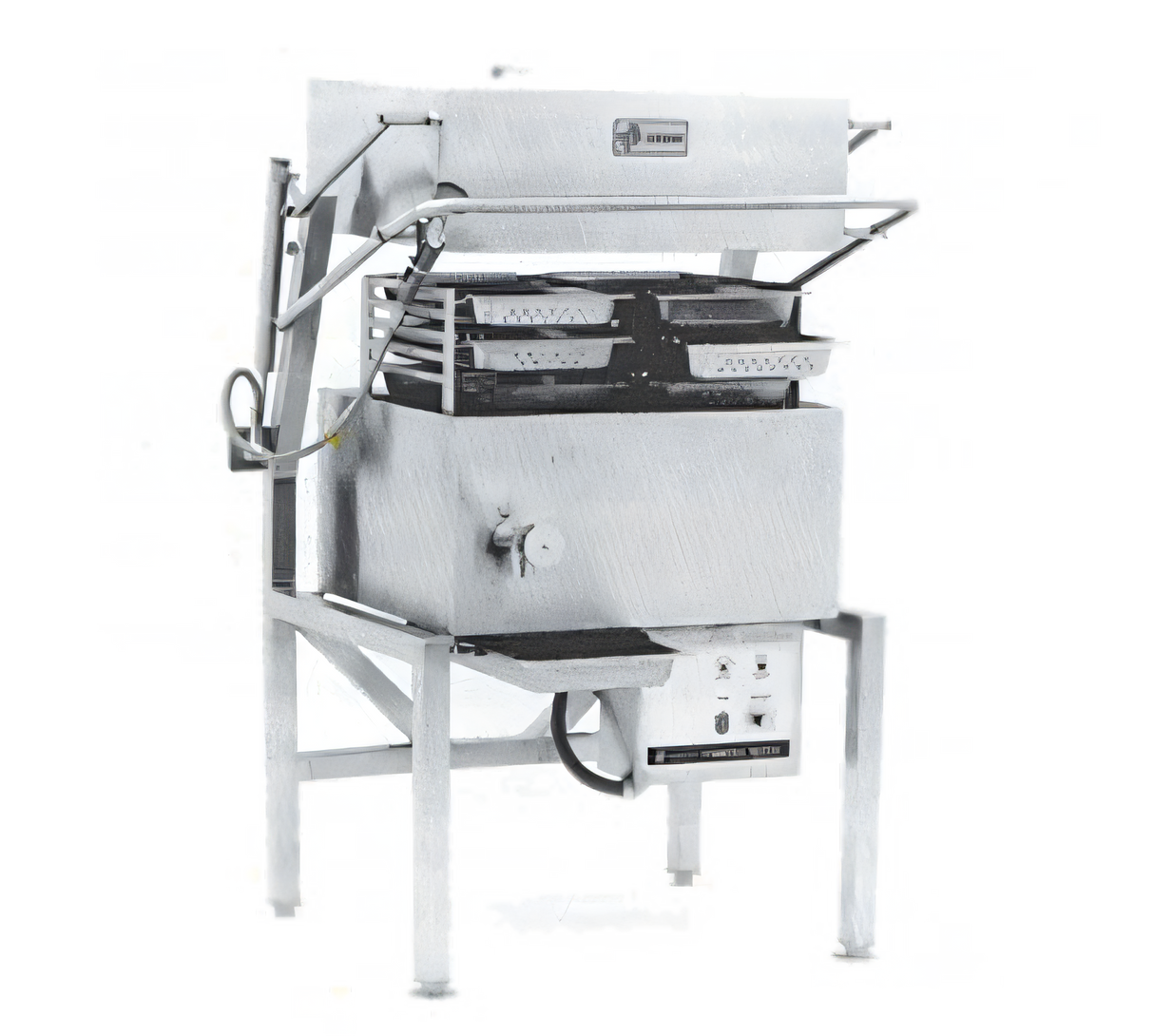

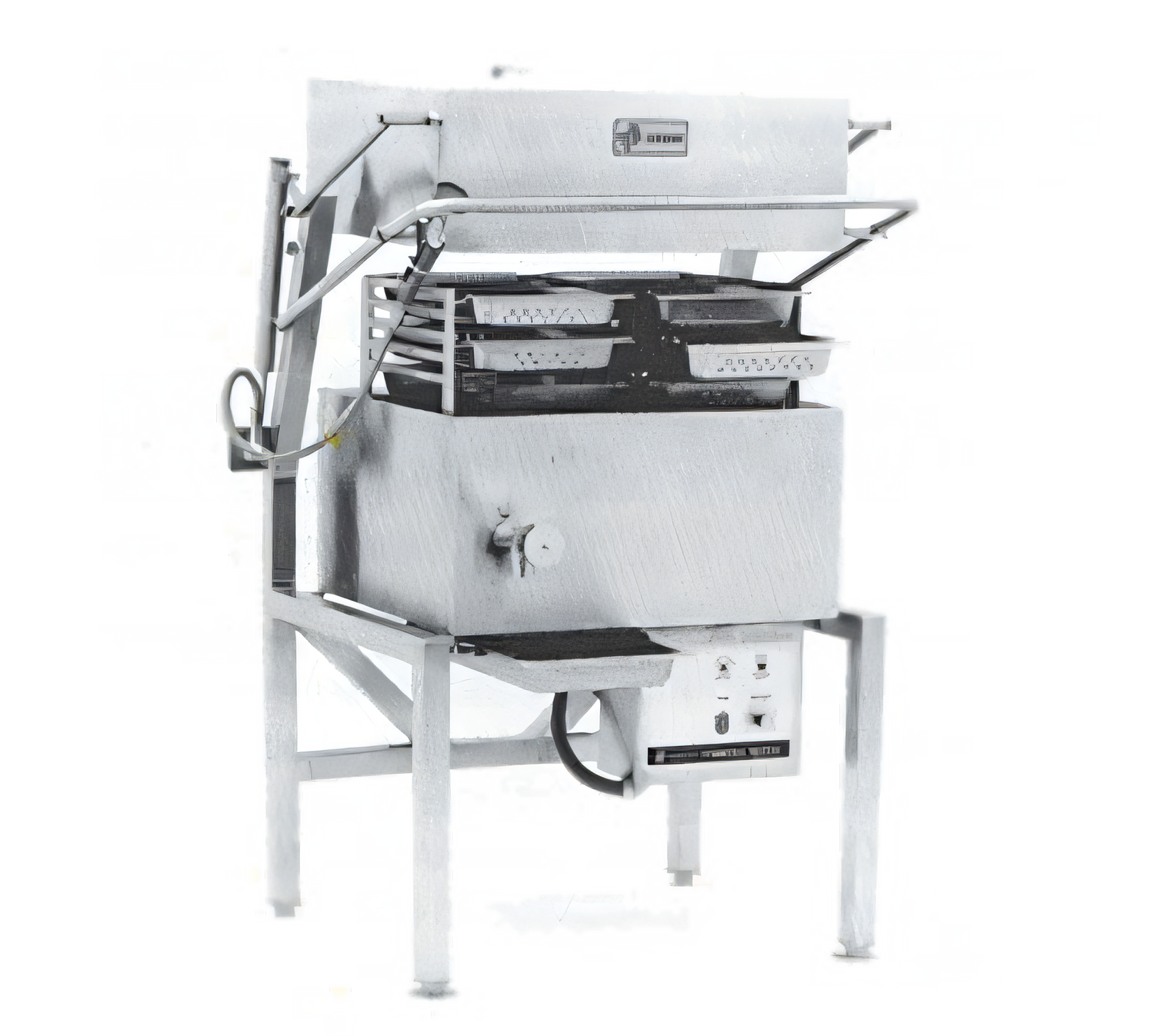

Image may show model SKL6-9 with optional accessories. Capacities and specifications listed are for model SKL9-5 as quoted. Performance may vary with voltage/phase selection.
