Legion SKGL9-9 Skittle Braising Pans & Tilt Skillets
Description

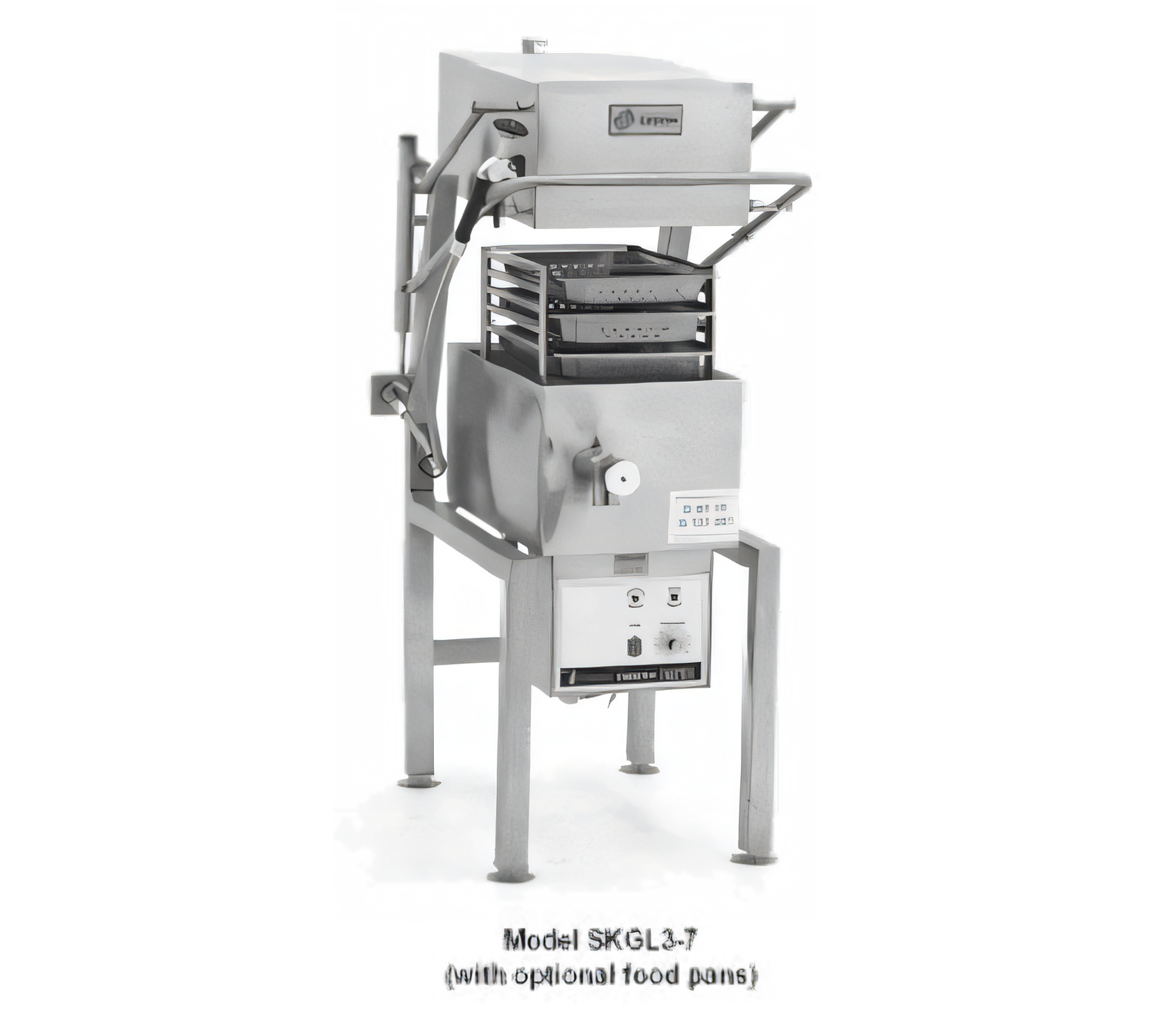

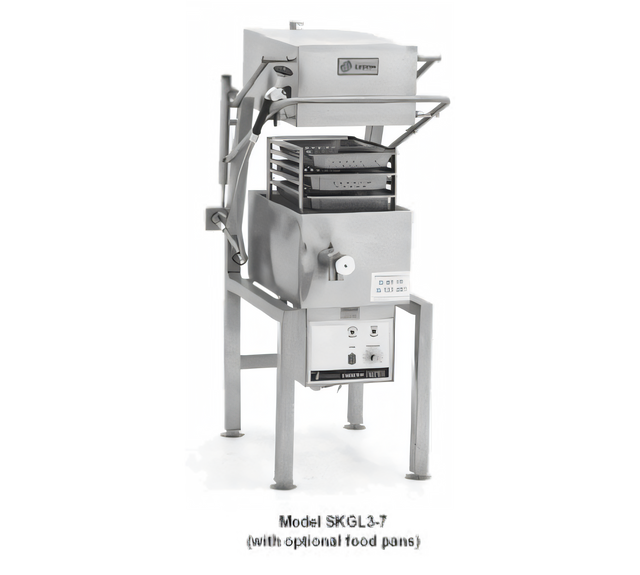

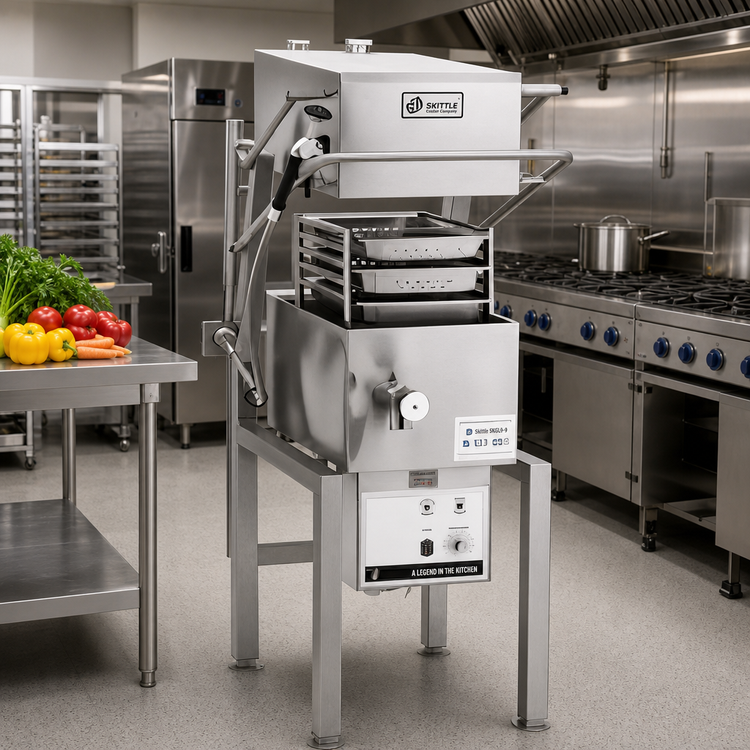

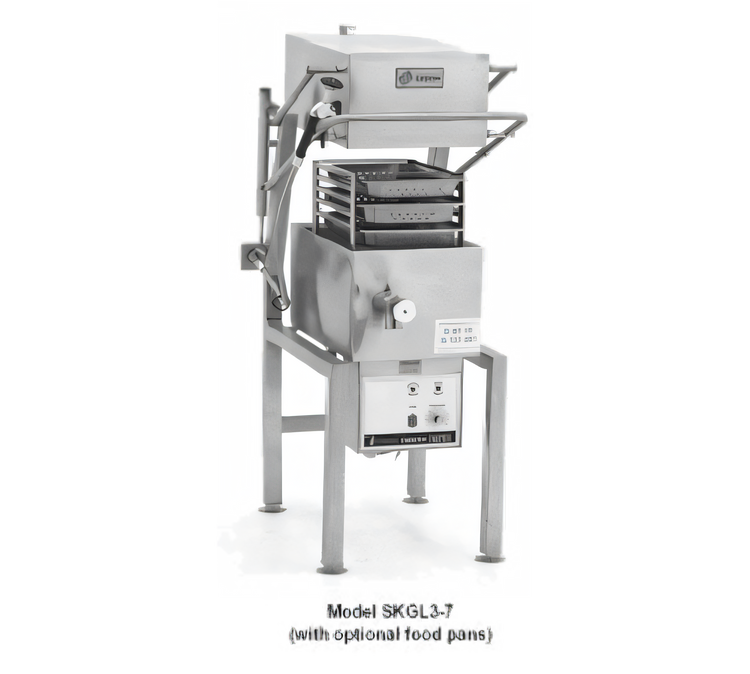

Legion Skittle® Multi-Function Cooker – Model SKGL9-9
Steam • Grill • Boil • Fry • Roast — all in one 40 gal / 9-pan powerhouseReplace a line-up of single-task appliances with the Skittle® SKGL9-9. Powered by 132,000 BTU of gas heat and protected by Legion’s Insulated for Safety™ design, this 10° tilting cooker handles everything from delicate seafood to high-volume fried chicken without breaking a sweat.
Key performance advantages

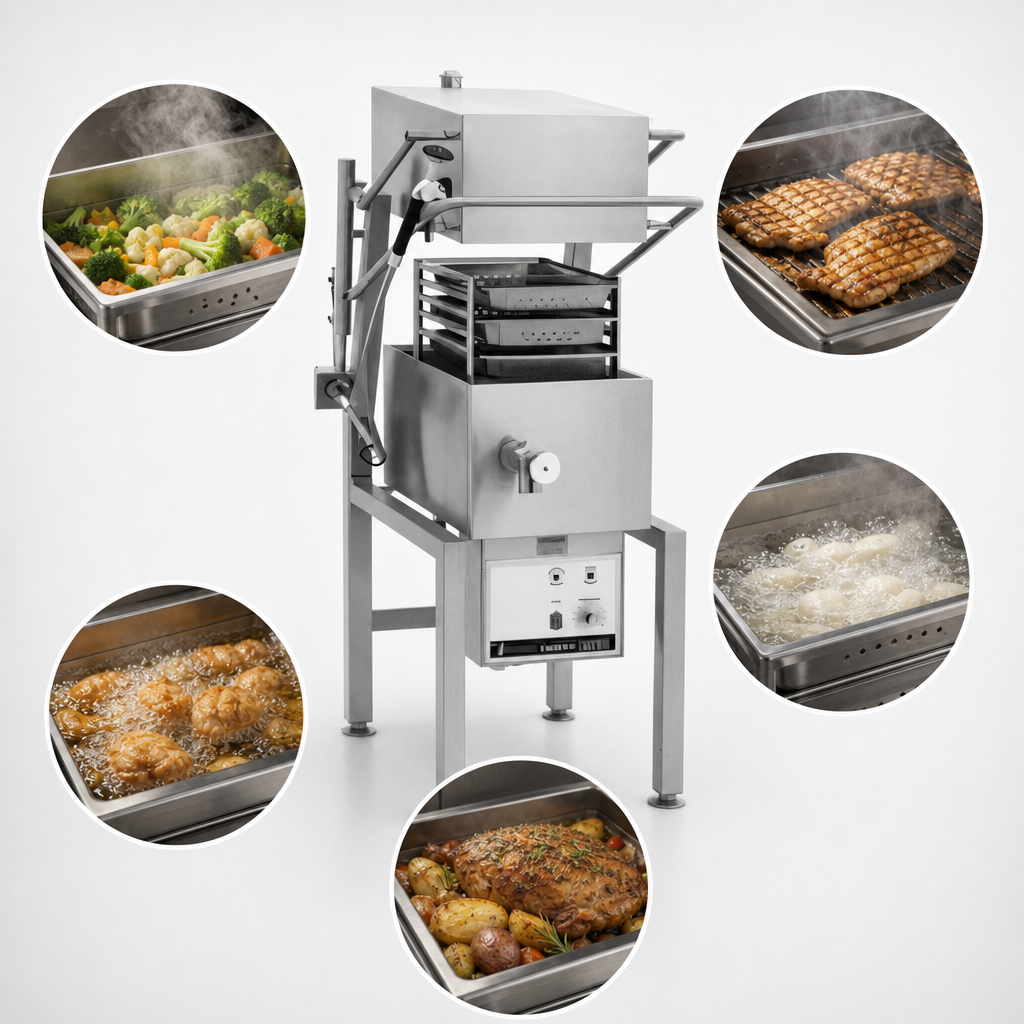

- Multi-cook versatility: steam, grill, boil, fry, braise or roast in the same 304 SS vessel.
- Massive capacity: holds (9) 12" × 20" × 2.5" hotel pans or (9) perforated baskets, plus a 40.1 gal kettle / 105 lb oil well for batch frying.
- Fast recovery 132,000 BTU burner with electronic ignition for consistent, even heat.
- Precise 175 °F – 400 °F adjustable thermostat with separate high-limit safety cut-off.

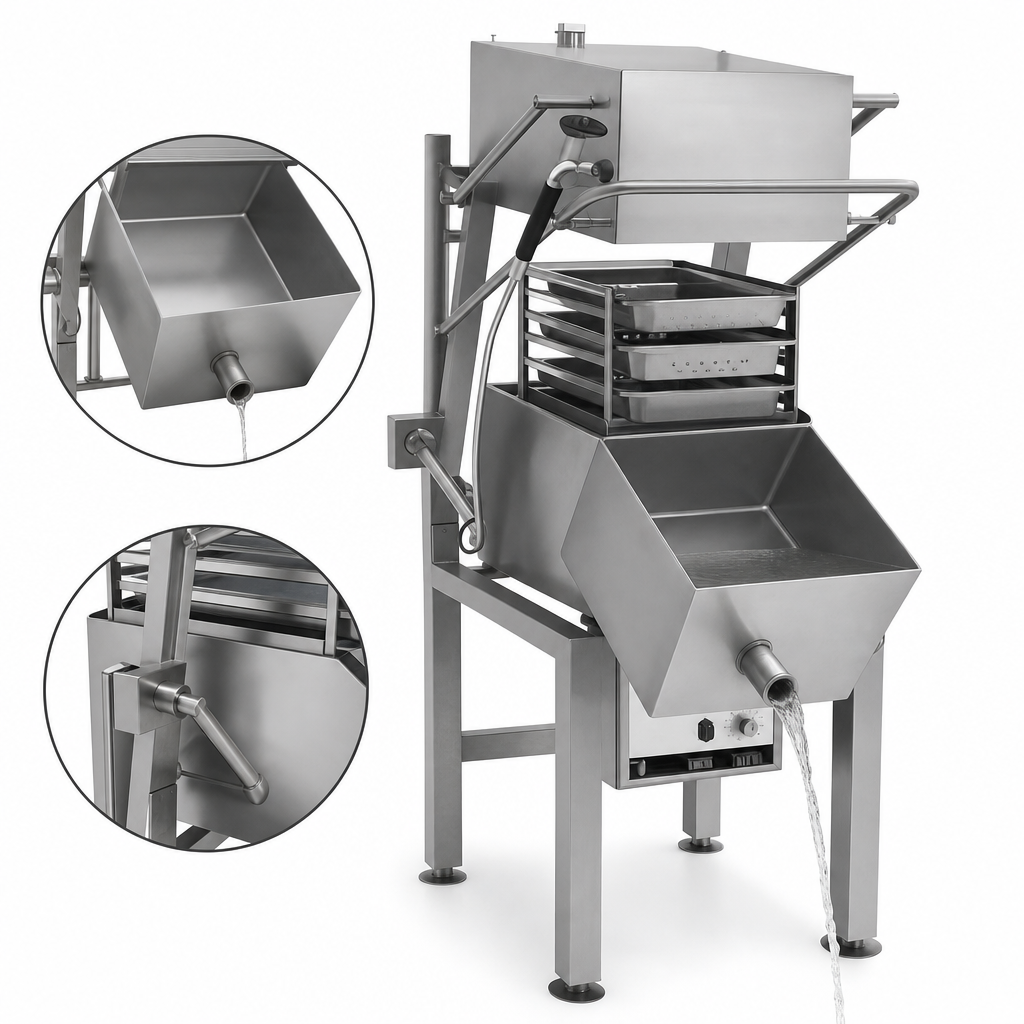

- Ergonomic 10° power tilt and 31" working height for safer, faster unloading.
- Patented, actuator-assisted Capsule Lid:
- Variable hold-open positions
- Integrated adjustable steam vent
- Double-wall insulation & condensate containment
- 1½" compression draw-off valve with 48" flexible spray hose for mess-free draining & wash-down.
- Seam-welded 304 SS frame, pan and enclosure — built & certified in the USA to NSF/UL standards.
Capacity & technical data
| Pan / Basket Capacity | (9) 12" × 20" × 2.5" pans | (9) 11" × 20½" × 5" baskets |
|---|---|
| Kettle Volume | 40.1 gal (152 L) |
| Fryer Oil Volume | 105 lb (47.6 kg) |
| Usable Cooking Surface | 1,029 in² (0.66 m²) |
| Gas Input | 132,000 BTU/h Natural | 149,000 BTU/h Propane |
| Gas Connection | ¾" NPT (min. 5–7" w.c. Nat / 12–14" w.c. LP) |
| Electrical | 120 V, 1-phase (electronic ignition & controls) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Draw-off Valve | 1½" compression-type, stainless steel |
| Tilt / Working Height | 10° manual tilt | 31" (787 mm) cooking height |
| Overall Dimensions (WxDxH) | 41" × 54.3" × 47" (1041 × 1379 × 1194 mm) |
| Construction | Seam-welded 304 stainless; insulated sides, bottom & lid |
| Certifications | NSF, ASME, UL, CSA-gas |
| Warranty | 12-month parts & labor (extended plans available) |
Included with every SKGL9-9
- (9) Heavy-duty perforated cooking/steaming baskets
- Food-pan cassette rack
- 48" stainless flexible spray hose assembly
- Flanged, adjustable stainless legs for secure floor mounting
Popular add-ons (sold separately)
- Solid or perforated 12" × 20" hotel pans (2.5", 4" or 6" deep)
- Automatic water-fill meter
- Lockable control cover for correctional facilities
- Gas quick-disconnect & ¾" × 60" flexible gas hose
- Skittle® Care Kit & cleaning tools
Need a different size? 3-pan and 6-pan Skittle® models are also available. Contact our team for a personalised quote or volume pricing.
