Legion SKGL9-7 Skittle Braising Pans & Tilt Skillets
Legion SKGL9-7 Skittle Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion SKGL9-7 Skittle Braising Pans & Tilt Skillets
Description

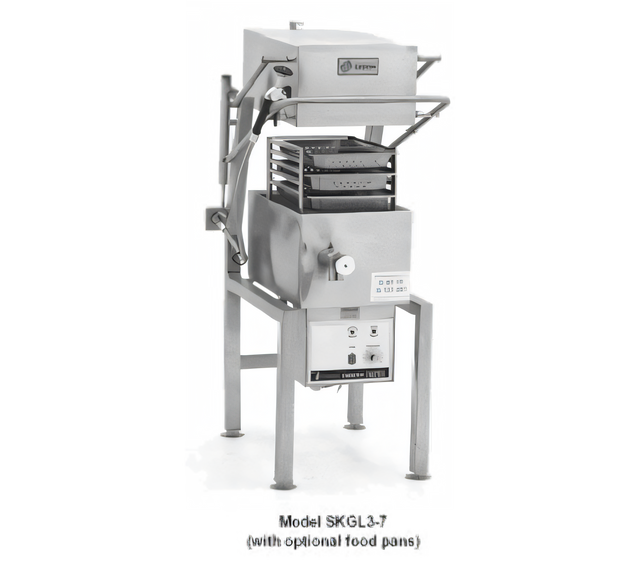

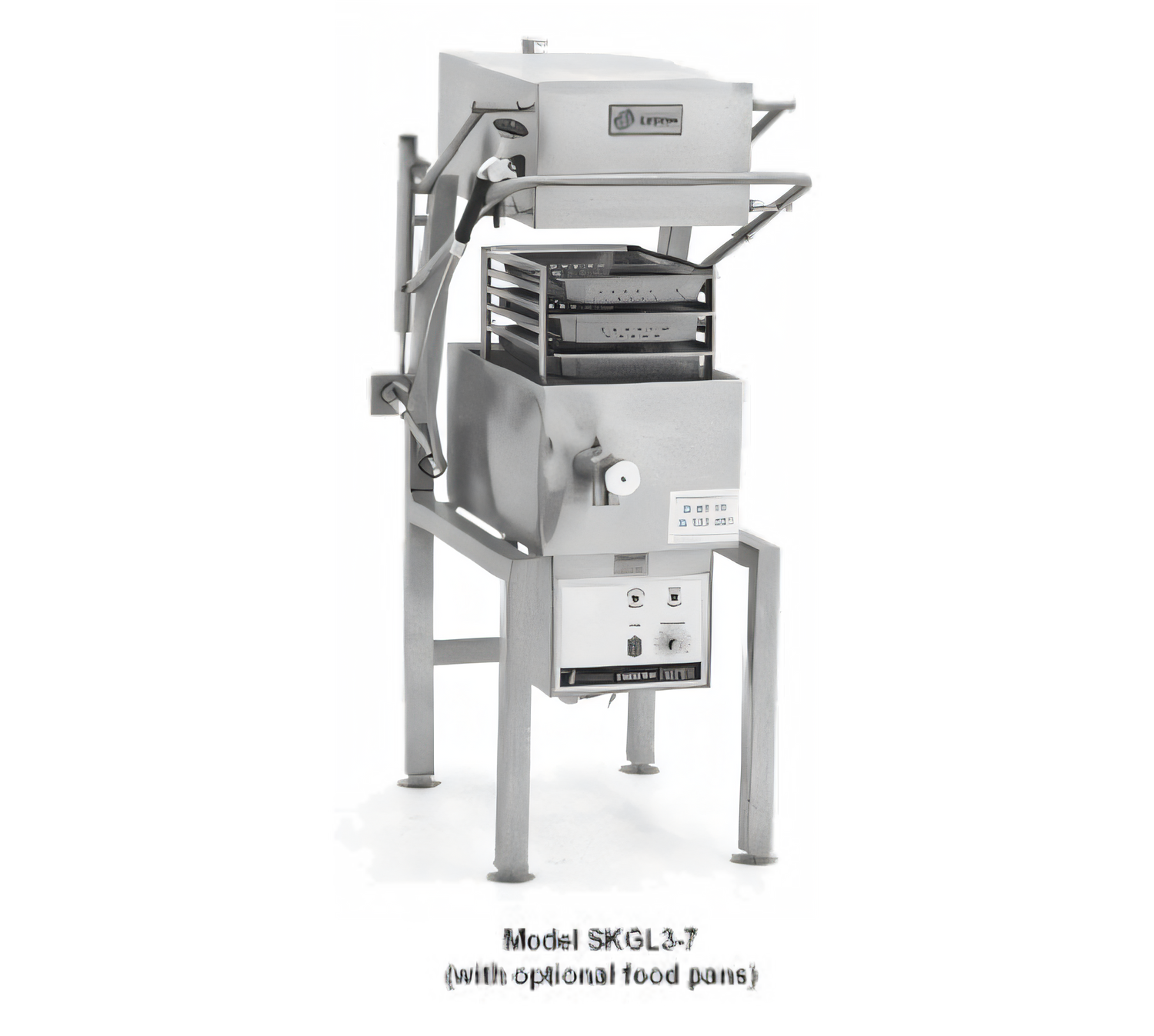

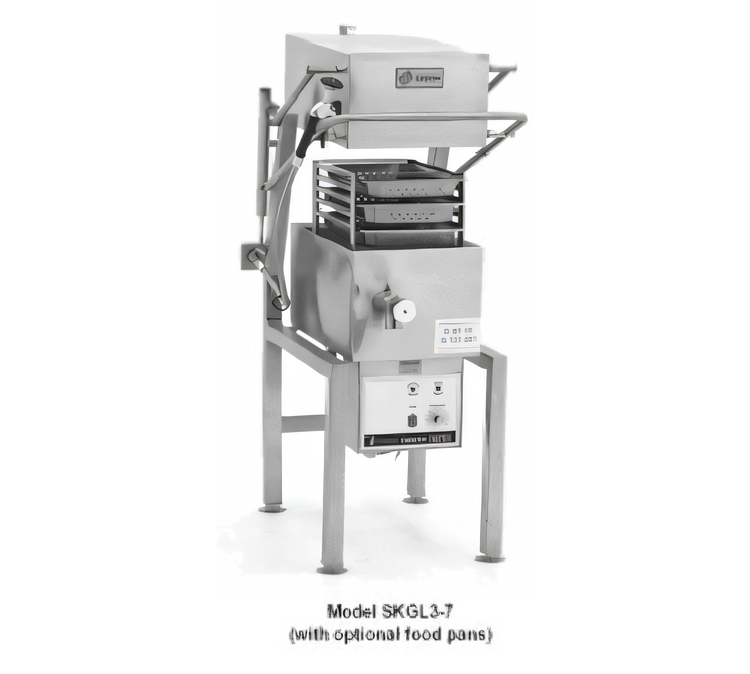

Skittle® Multi-Function Cooker – Model SKGL9-7
Steam • Grill • Boil • Fry • Roast — gas-fired, high-capacityReplace five separate appliances with one powerhouse. Made in the USA by Legion, the Skittle® SKGL9-7 delivers unmatched versatility and throughput for commissaries, hotels, correctional facilities and high-volume kitchens.
Key Advantages
- 5-in-1 versatility — steam, grill, boil, fry or roast in a single vessel
- Accepts nine full-size 12 × 20 × 2.5 in pans or nine perforated cooking baskets (included)

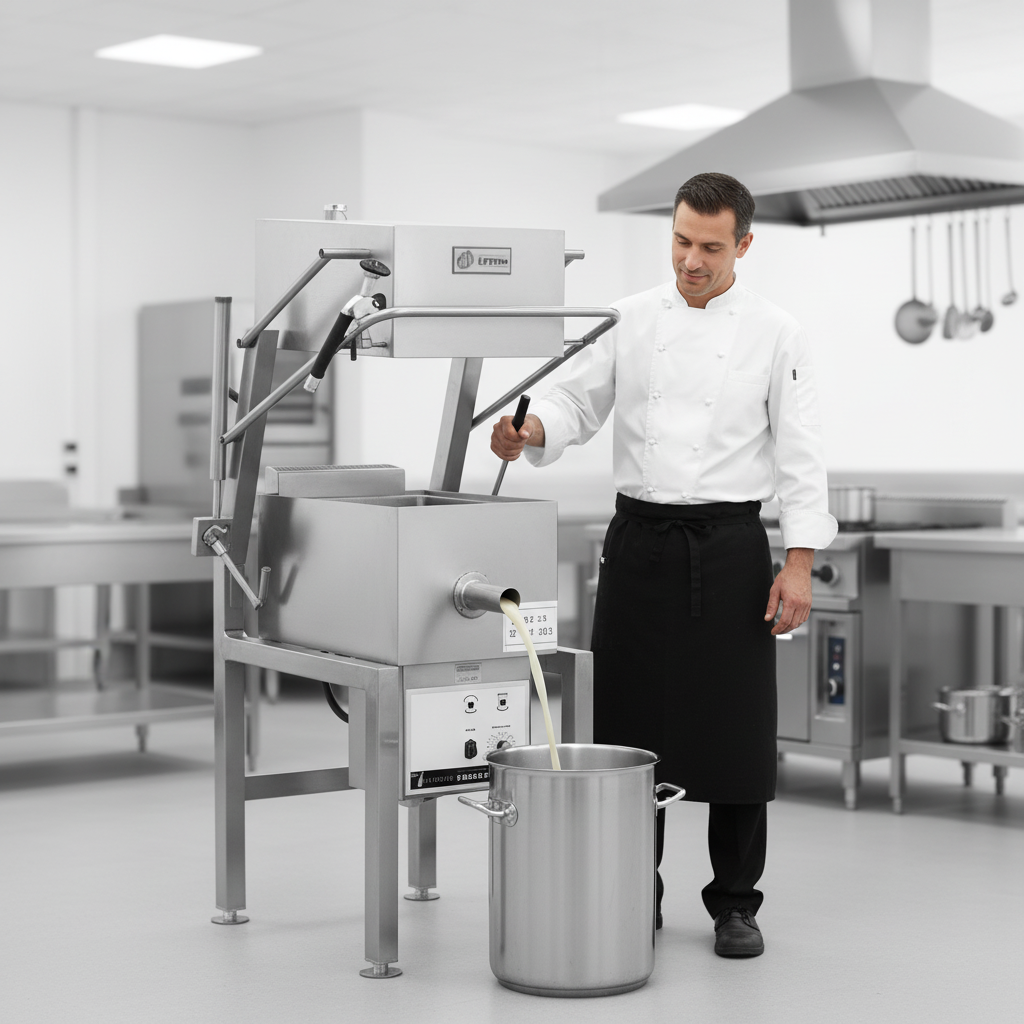

- 31.2 gal / 105 lb kettle with 10° quick-drain tilt & 1 ½ in compression draw-off valve
- 132,000 BTU burner with electronic ignition; thermostat dial 175 – 400 °F plus high-limit safety
- Patented insulated Capsule Lid — actuator-assisted lift, condensate containment & adjustable steam vent

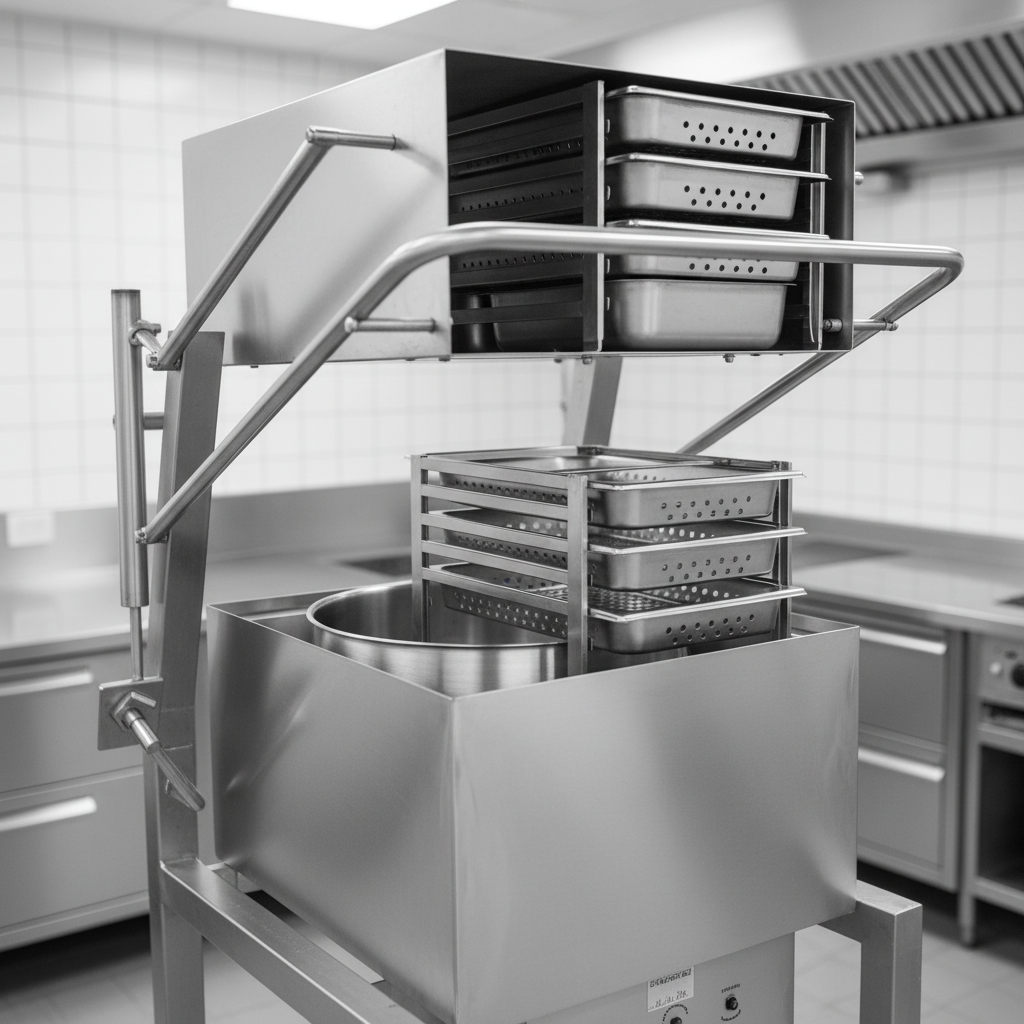

- Fully insulated 304 stainless pan, sides & bottom for faster recovery and cooler kitchens
- Built-in cassette rack keeps pans organized; food-pan holder positioned under draw-off
- 48 in stainless spray-hose faucet speeds cleaning & filling
- Hygienic seam-welded 304 stainless construction with flanged adjustable feet for floor anchoring
Specifications
| Model | SKGL9-7 |
|---|---|
| Fuel | Natural or Propane Gas (¾ in IPS) |
| Input | 132,000 BTU/hr |
| Temperature Range | 175 °F – 400 °F (adjustable) |
| Pan / Basket Capacity | 9 × 12″ × 20″ × 2.5″ pans 9 × stainless cooking baskets |
| Kettle / Oil Capacity | 31.2 gal (≈ 105 lb frying oil) |
| Griddle Area | 1,029 in² |
| Tilt Angle | 10° manual tilt |

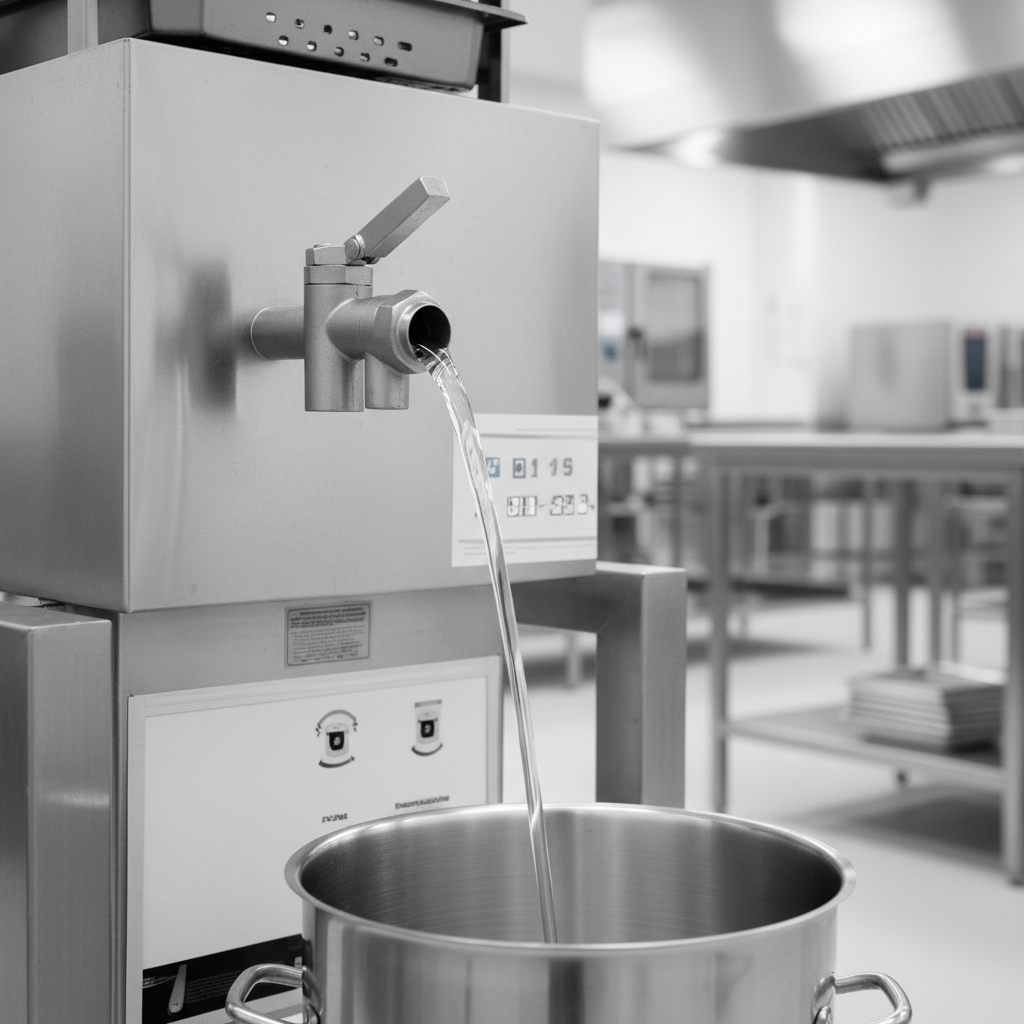

| Draw-Off Valve | 1 ½ in compression type (304 SS) |
| Electrical | 120 V, 1-phase (ignition & controls) |
| Construction | Seam-welded 304 stainless; insulated walls & lid |
| Overall Dimensions | W 54.3″ × D 38.0″ × H 72.3″ (lid closed) |
| Certifications | NSF, ASME, UL, ETL |
Included With Your Skittle®
- (9) 2.5″ deep full-size food pans
- (9) perforated cooking/steaming baskets
- Cassette rack & food-pan holder
- 48″ stainless spray hose assembly
Need extras like automatic water fill, larger draw-off valves or lockable control covers? Contact us — every Skittle® is built to order.
Warranty
Covered by a 12-month parts & labor warranty from date of installation, extendable up to three years. See Legion’s full warranty statement for details.
