Legion SKGL9-11 Skittle Braising Pans & Tilt Skillets
Description

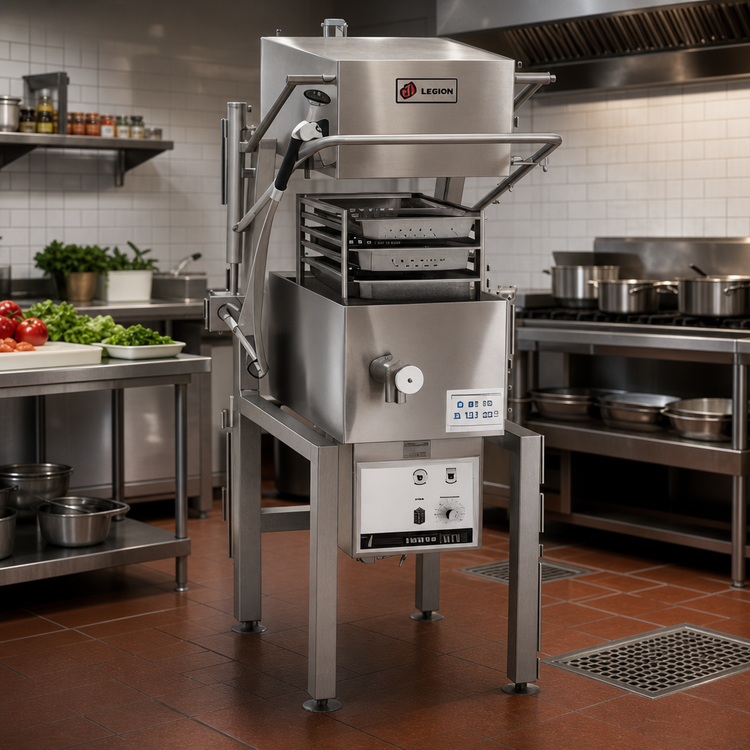

Legion Skittle® Multi-Function Cooker – Model SKGL9-11

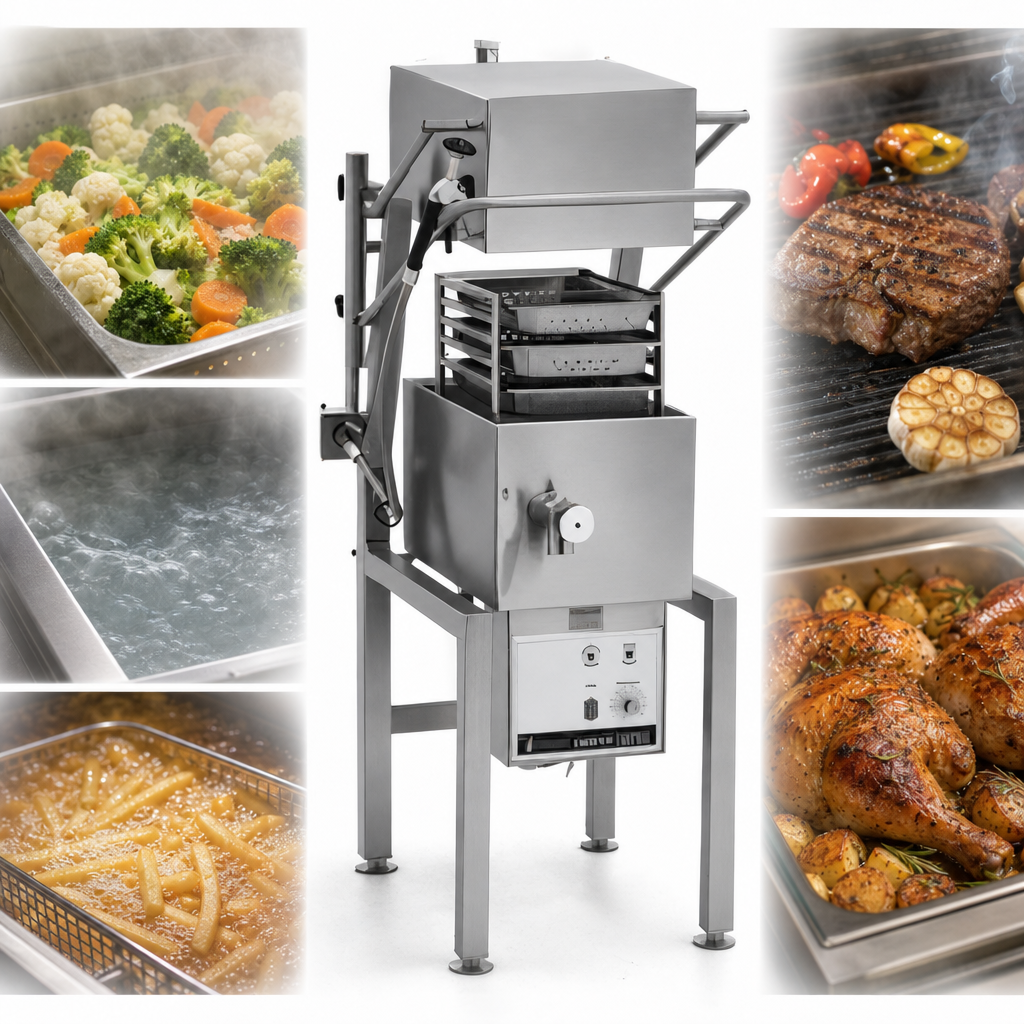

Steam • Grill • Boil • Fry • Roast – all in one 49 gal gas-fired SkittleGive your kitchen the power of nine pieces of equipment in a single, compact footprint. The Skittle® SKGL9-11 combines a 49-gallon tilting kettle, griddle, fryer, steamer, and braising pan with Legion’s patented insulated Capsule Lid for unmatched versatility, safety, and energy efficiency.
Key performance features
- 9-pan cassette rack holds (9) 12" × 20" × 2.5" hotel pans or (9) perforated cooking baskets (included).
- 49 gal / 105 lb oil capacity – batch cook, fry, or kettle-boil at scale.
- Gas-fired burner package delivers 132,000 BTU (Natural Gas) with electronic ignition.

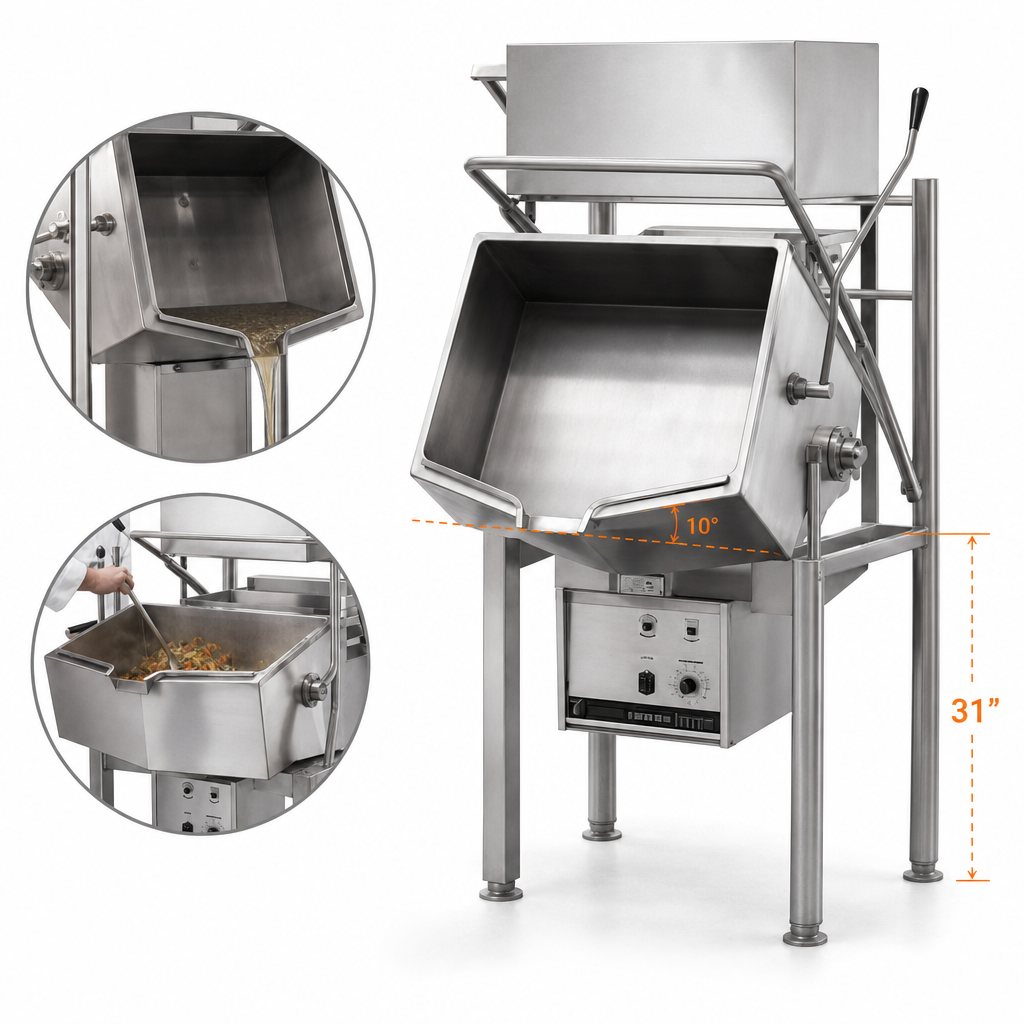

- 10° tilting pan for fast, controlled draining and plating.
- Wide 175 °F – 400 °F adjustable thermostat with independent high-limit safety.
- Patented 304 SS seam-welded Capsule Lid • Variable-position, actuator-assisted opening • Integrated steam vent & condensate containment.
- 1 ½" compression draw-off valve with food-pan holder keeps yields high and mess low.
- Fully seam-welded 304 stainless steel construction – insulated sides & bottom for cooler touch and energy savings.
- 31" working height, flanged feet, and compact leg-mount frame – ideal for island or wall placement.
- Made in the USA; built to NSF, ASME, CSA & UL standards.
Nine-pan flexibility
Swap baskets, hotel pans, or go full-surface griddle without tools – perfect for breakfast service, bulk sauces, or fryer duties.
Technical specifications
| Model | SKGL9-11 (Leg-mounted) |
|---|---|
| Heating source | Gas – 132,000 BTU (Natural) / 149,000 BTU (LP) |
| Operating voltage | 120 V, 1 Ø (controls & ignition) |
| Thermostat range | 175 °F – 400 °F |
| Pan area | 1,029 in² |
| Pan depth | 11" (tilts 10°) |
| Kettle / liquid volume | 49 gal |
| Frying oil capacity | 105 lb |
| Hotel pan capacity | (9) 12" × 20" × 2.5" pans |
| Cooking baskets | (9) stainless perforated baskets |
| Gas connection | ¾" NPT, inlet pressure 5–7" w.c. (Natural) / 12–14" w.c. (LP) |
| Draw-off valve | 1 ½" compression type (other sizes optional) |
| Construction | All 304 stainless steel – seam-welded, fully insulated |
What’s in the crate
- Skittle® cooker with Capsule Lid & 1 ½" draw-off valve pre-installed
- (9) 12" × 20" × 2.5" perforated stainless baskets
- 48" stainless flexible spray hose & single ball-valve faucet
- Owner’s manual & quick-start guide
Popular factory options
- Automatic water-fill meter
- Gas quick-disconnect kit & 60" flexible gas hose
- Perforated or solid hotel pans – 2 ½", 4" or 6" deep
- Draw-off accessories: strainer, drain hose, #10 can holder, fry scoop
- Lockable control cover & security fasteners for correctional facilities
Options ship factory-installed when ordered with the Skittle.
Compliance & warranty
- NSF, ASME, CSA, UL compliant
- 12-month parts & labor warranty (15 months from ship date when registered)
- Extended coverage available up to 3 years – contact us for details.
Skittle® is a registered trademark of Legion Industries, Inc. Specifications subject to change without notice.
