Legion SKGL6-9 Skittle Braising Pans & Tilt Skillets
Description
Legion Skittle® SKGL6-9 Multi-Function Cooker
Steam · Grill · Boil · Fry · Roast — 27.4 gal / 6-Pan / 100,000 BTUReplace a room full of single-purpose equipment with one powerhouse. The gas-fired Skittle® SKGL6-9 gives chefs the freedom to sear steaks, boil pasta, deep-fry wings, steam vegetables, or slow-roast proteins — all in the same 9" deep, 10°-tilting pan. Built and patented in the USA, this Insulated for Safety™ cooker delivers unmatched versatility, capacity, and labor-saving ergonomics in high-volume commercial kitchens.
Key Advantages

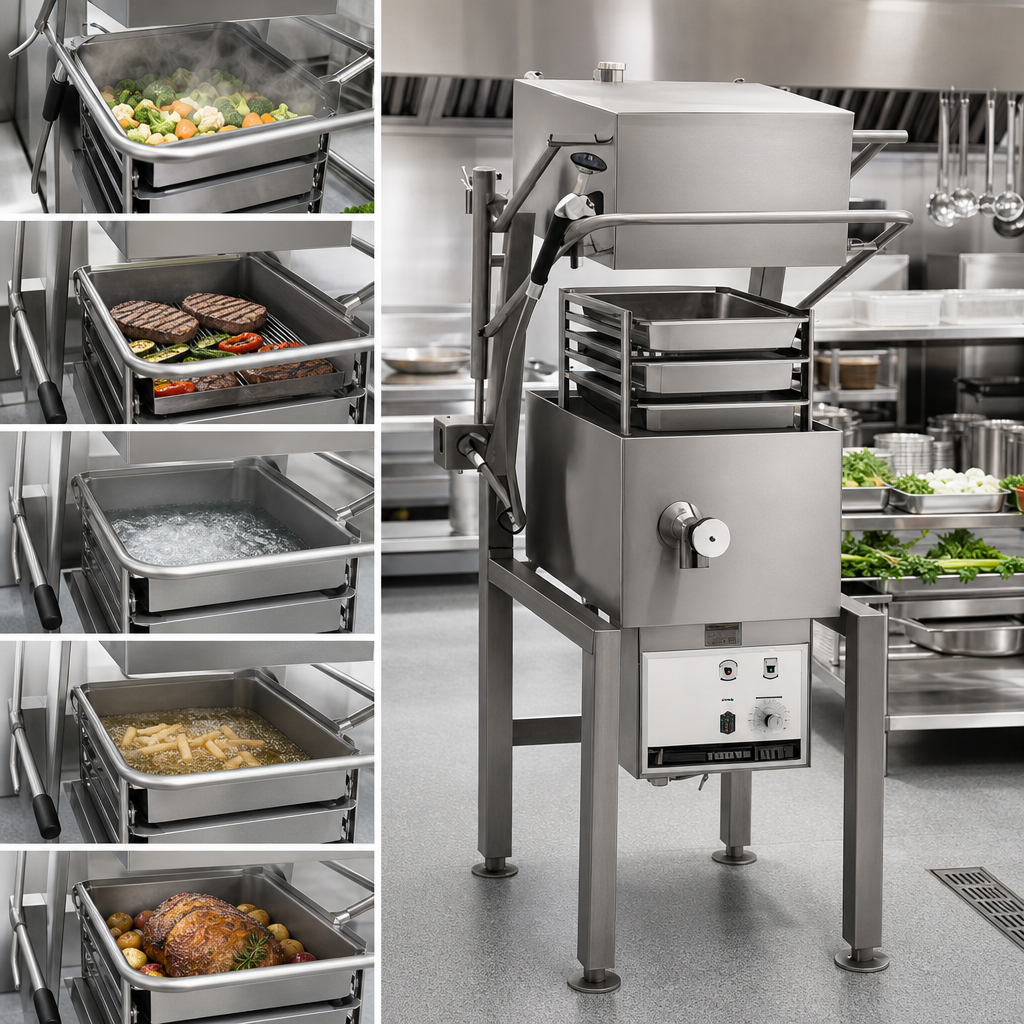

- Multi-mode cooking: switch from steaming to grilling, boiling, frying or roasting in seconds.

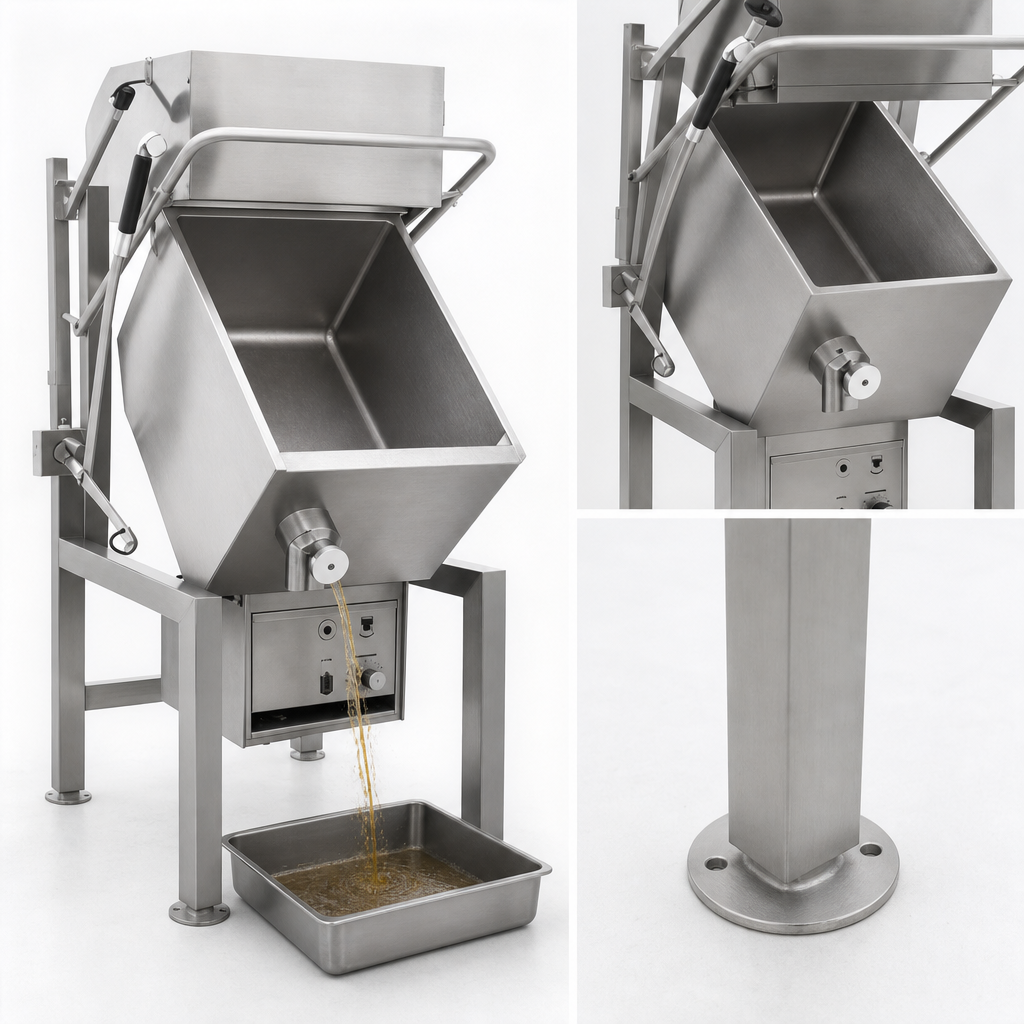

- 10° manual tilt quickly drains liquids or transfers product without heavy lifting.
- Generous capacity: (6) 12 × 20 × 2.5″ pans or (6) Legion cooking baskets, 27.4 gal jacket / 70 lb frying oil volume.
- Accurate 175 °F – 400 °F adjustable thermostat with high-limit safety cut-out.
- 304 stainless steel everywhere — pan, capsule lid, frame & enclosure — for lifetime corrosion resistance.
- Insulated low-profile lid (patented) improves heat retention, reduces energy use, and vents steam exactly where you want it.
- Electronic ignition & 100 k BTU burner pack fast heat-up and recovery.
- 1½″ compression draw-off valve with food-pan holder beneath for mess-free draining.
- 31″ working height plus flanged, adjustable stainless legs for rock-solid stability.
- Made in the USA; built to NSF, ASME, CSA & UL standards.
Capacities at a Glance
- Pan inserts: 6 full-size (12 × 20 × 2.5″) hotel pans
- Cooking/steaming baskets: 6 (11″ × 20.5″ × 5″)
- Frying oil: 70 lb (≈ 35 qt)
- Working kettle volume: 27.4 gal (≈ 104 L)
Technical Specifications
| Model | SKGL6-9 |
|---|---|
| Cooking modes | Steam, grill, boil, fry, roast, braise |
| Fuel / Input | Natural gas – 100,000 BTU Propane – 111,000 BTU |
| Thermostat range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilt | 10° manual tilt with positive stop |
| Pan depth | 9″ (229 mm) |
| Footprint (W × D) | 41.3″ × 34.0″ (1,050 × 864 mm) |
| Working height | 31″ (787 mm) to pan rim |
| Height, lid open | 74.3″ (1,887 mm) |
| Gas connection | ¾″ NPT, 5–7″ w.c. NG / 12–14″ w.c. LP |
| Electrical (controls) | 120 V, 1 Ø, < 1 A via 6′ cord & plug |
| Draw-off valve | 1½″ compression (optional 2″ or 3″) |
| Construction | All-welded 304 stainless pan, lid, frame & enclosure; fully insulated sides/bottom |
| Compliance | NSF, ASME, CSA, UL; U.S. Patents 5,553,531 & 5,964,145 |
| Origin | Made in Waynesboro, Georgia, USA |
What’s Included
- Cassette racks for six 12 × 20 pans
- Variable-position capsule lid with adjustable vent & safety handle
- 1½″ draw-off valve with 48″ stainless spray-hose assembly
- Owner’s manual & Legion 12-month parts & labor warranty
Popular Accessories (sold separately)
- Perforated cooking/steaming baskets • solid or perforated food-pans (2½″, 4″, 6″)
- Automatic water-fill meter
- 2″ or 3″ ball-type draw-off valves, strainers & drain hoses
- Lockable control cover & security fasteners
- Skittle® care & cleaning kit
- ¾″ gas quick-disconnect & flexible gas hose
Installation must conform to local gas, electrical and plumbing codes. Consult the factory for clearance requirements or additional options.
