Legion SKGL6-7 Skittle Braising Pans & Tilt Skillets
Description

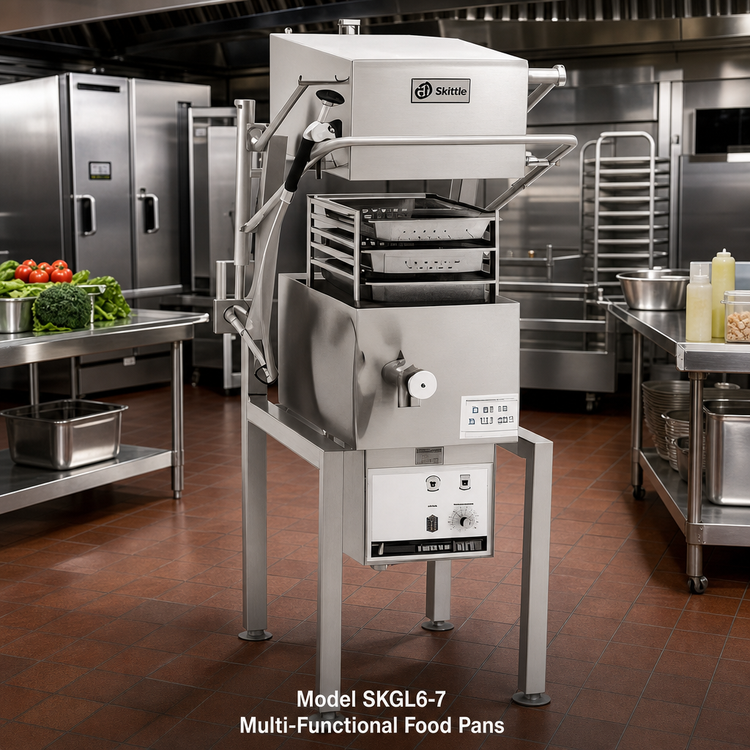

Skittle® Multi-Function Cooker – Model SKGL6-7
Steam • Grill • Boil • Fry • Roast — 6-Pan Gas Tilt SkilletDo the work of a steamer, braising pan, griddle, kettle and fryer in one insulated, space-saving appliance. Built in the USA from 304 stainless steel, the Legion Skittle® Model SKGL6-7 delivers 100,000 BTU of performance while keeping operators safe and energy costs low.
Why kitchens choose Skittle®

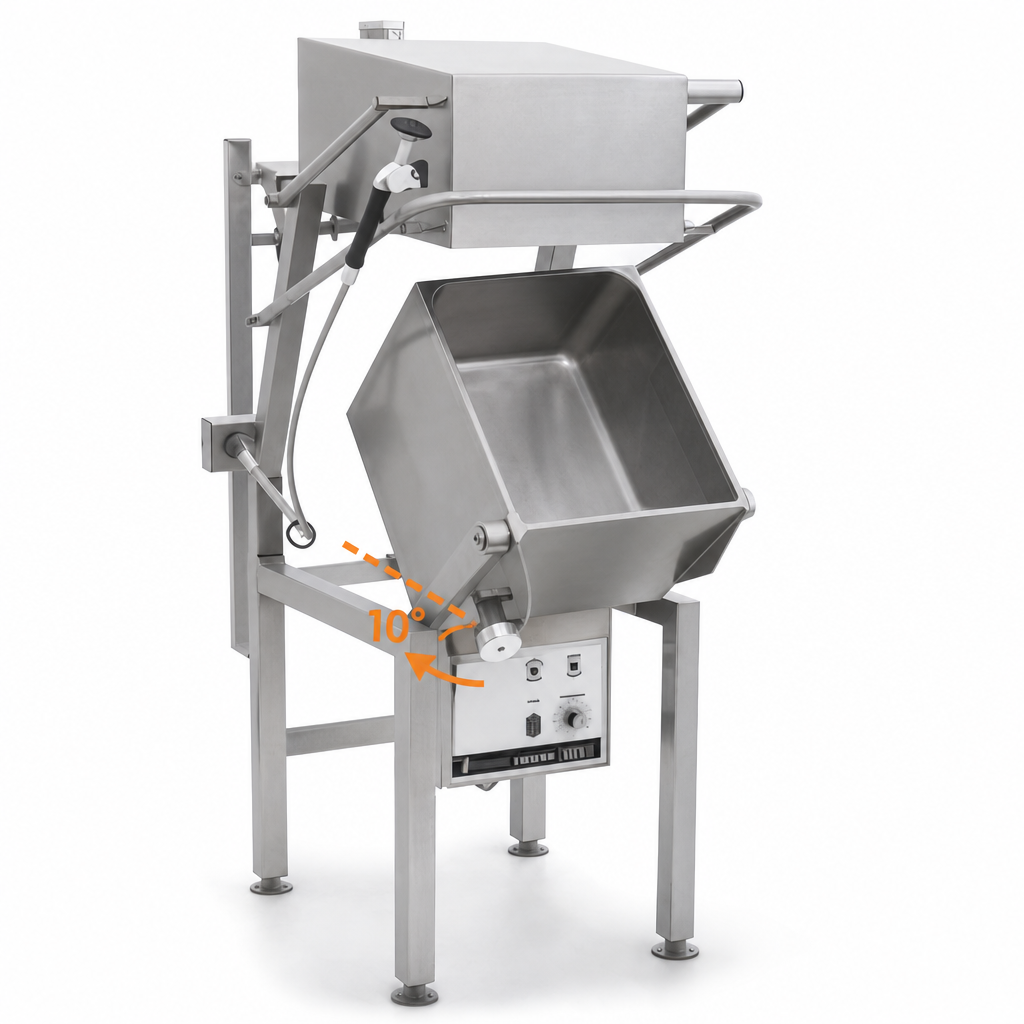

- Multi-zone 10° tilting pan lets you steam, grill, boil, fry or roast without separate equipment.
- 21.3 gal kettle / 70 lb oil capacity handles large batches without flavor carry-over.
- Fully insulated sides & bottom cut heat loss and reduce kitchen temps.
- Variable-position Capsule Lid™ with adjustable steam vent controls moisture and saves energy.
- Wide 1 ½″ compression draw-off valve & 48″ spray hose speed clean-up and product transfer.
- Electronic ignition and adjustable thermostat 175 °F – 400 °F provide precise, repeatable results.
- Leg-mounted, 31″ working height and flanged feet for simple, rock-solid installation.
Included capacity
- (6) 12″ × 20″ × 2.5″ steam table pans
- (6) perforated cooking/steaming baskets
- 703 in² griddle/frying surface
Technical specifications
| Model | SKGL6-7 |
|---|---|
| Functions | Steam, grill, boil, fry, roast |
| Tilt angle | 10° manual lever |
| Thermostat range | 175 °F – 400 °F with high-limit safety |
| Kettle volume | 21.3 gal (80 L) |
| Frying oil capacity | 70 lb (31.8 kg) |
| Pans / baskets | 6 pans • 6 baskets (12″ × 20″) |
| Heat input | 100,000 BTU /hr (Natural) • 111,000 BTU /hr (LP) |
| Gas connection | ¾″ NPT, 5–7 in. w.c. (Natural) |
| Electrical | 120 V, 1-phase (electronic ignition & controls) |
| Construction | 304 stainless, seam-welded & fully insulated |
| Working height | 31″ (788 mm) |
| Lid | Patented Capsule Lid™, actuator assisted, insulated |
| Draw-off | 1 ½″ compression valve, stainless |
| Certification | Built to meet NSF, ASME, UL, CSA standards |
What’s in the box
- Skittle® SKGL6-7 cooker with Capsule Lid™
- 6 stainless 12 × 20 pans (2.5″ deep)
- 6 perforated cooking baskets
- 1 ½″ draw-off valve with 48″ stainless spray hose
- Installation & operation manual
Popular options (sold separately)
- Automatic water fill meter
- Electric timer with buzzer
- Flexible gas quick-disconnect hose (¾″ × 60″)
- Perforated or solid pans – 4″ or 6″ deep
- Lockable control cover for high-security locations
One-year parts & labor warranty (12 months from installation or 15 months from ship date, whichever comes first). Legion reserves the right to improve or modify designs without notice.
